Step 1 — What "density" even means (the target quantity)

WHAT. Density is written $ρ$ (the Greek letter rho, just a name — think of it as the "packedness" number). It is defined as $ρ = \frac{m}{V}$

$ρ$ — how much stuff is crammed into a box (units: grams per cubic centimetre, $g/cm^{3}$ ).
$m$ — the mass, how much matter you have (grams).
$V$ — the volume, how much room that matter takes up ( $cm^{3}$ ).

WHY this formula and not another? We want to compare ice and water fairly. If we just weighed a lump of each, the bigger lump wins — that tells us nothing. Density removes the "how big is my lump" problem by asking: for one fixed scoop of room, how much mass sits inside? That is exactly the comparison that decides floating.

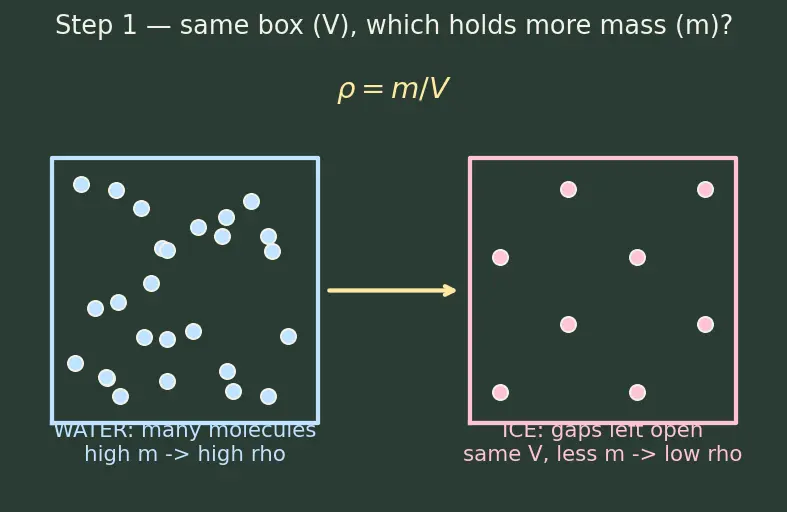

PICTURE. Look at the two boxes below. Same-size box (same $V$ ). The left box (water) has more little molecules squeezed in → more $m$ → bigger $ρ$ . The right box (ice) has the same molecules but spread out with gaps → less $m$ in the same room → smaller $ρ$ .

Figure — Hydrogen bonding — intermolecular, intramolecular; consequences (boiling points, water density)

Step 2 — One water molecule has 4 "hands" (2 to give, 2 to take)

WHAT. A water molecule is $H_{2} O$ : one oxygen (O), two hydrogens (H), bent into a V-shape. Oxygen is one of the greedy electronegative atoms. It pulls the shared electrons toward itself, so:

each H becomes slightly positive, marked $δ^{+}$ (delta-plus = "a little bit positive"),
the O becomes slightly negative, $δ^{-}$ , and carries two lone pairs (spare electron pairs pointing away from the H's).

WHY count hands? A hydrogen bond needs a donor (an $O-H$ whose exposed proton reaches out) and an acceptor (a lone pair that welcomes it). Water is special because it has both, in balance:

2 donors = its two $O-H$ bonds,
2 acceptors = its two lone pairs.

That is 4 connection points. Hold onto the number 4 — it is why the crystal is open.

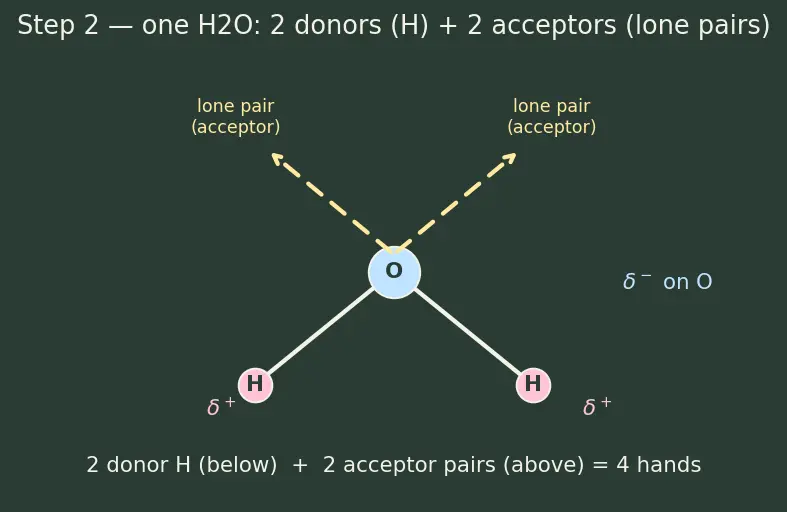

PICTURE. The two $δ^{+}$ hydrogens point one way; the two lone-pair "hands" point the other way. All four aim toward the corners of a tetrahedron (a triangular pyramid — 4 directions spreading out as far from each other as possible).

Step 3 — Liquid water: hands grab, let go, grab someone else

WHAT. In liquid water the molecules are warm and jiggling. Hydrogen bonds ( $O-H \dots O$ , where $\dots$ is the H-bond) form for a fraction of a second, then break, then reform with a different neighbour. On average each molecule is bonded, but the network is floppy and constantly rearranging.

WHY does floppy mean dense? Because the molecules are not forced to hold their 4 hands out at full stretch. When a bond breaks, a molecule can slide and roll into a nearby gap — it fills empty space. So on average water molecules pack fairly close together: small $V$ for a given number of molecules.

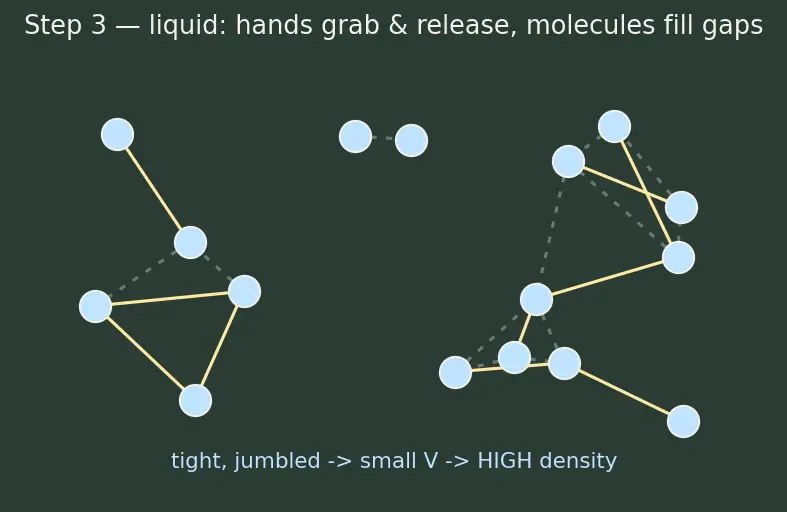

PICTURE. Below, the molecules are a jumbled, close-packed cluster — dashed H-bonds appear and vanish (some drawn faint = "just broke"). Notice there are few big holes: molecules have crept into the gaps.

Step 4 — Freezing: every hand locks, all 4 at once

WHAT. Cool the water. The jiggling slows. Now each molecule can hold all 4 of its hands steady at the same time — 2 donating, 2 accepting — pointing at the 4 tetrahedral corners from Step 2. Each corner reaches an $O$ of a neighbour molecule.

WHY does locking cost space? The tetrahedral angle ( $\approx 109. 5^{\circ}$ ) forces neighbours to sit at fixed, wide-apart positions. A molecule can no longer slide into a gap — the rigid bond directions hold its neighbours at arm's length. The crowd now stands in a fixed formation with elbows out.

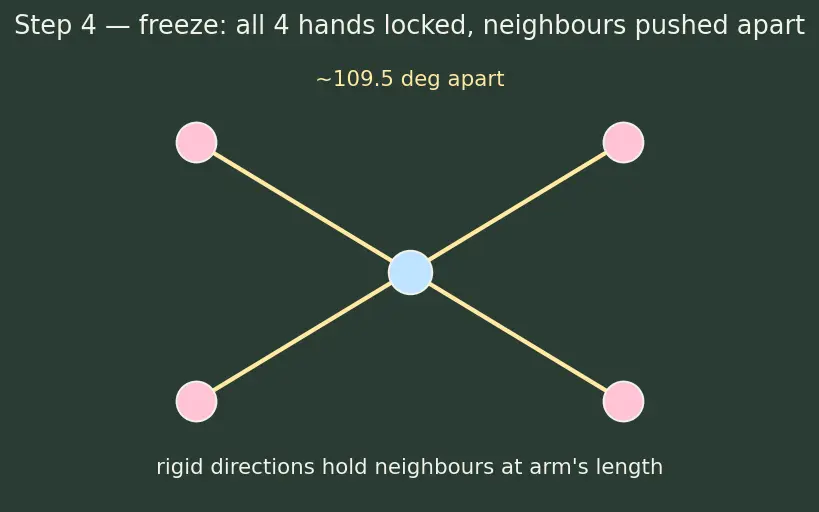

PICTURE. Compare the loose liquid (faded, left) with the locked frozen unit (right): the same molecule that was surrounded closely now has its 4 partners pushed out to the tetrahedron corners, opening space between them.

Step 5 — The open hexagonal lattice (the holes appear)

WHAT. Tile Step 4's tetrahedral unit across all the molecules and a repeating pattern emerges: the hexagonal ice lattice. Six-membered rings of water molecules stack up, and each ring encloses a genuine empty channel running through the crystal.

WHY hexagons with holes? Because 4 rigid arms per molecule, all satisfied, is exactly the recipe for a lattice like a honeycomb — maximally connected and maximally airy. The molecules cannot collapse inward because doing so would bend or break the very H-bonds holding them there.

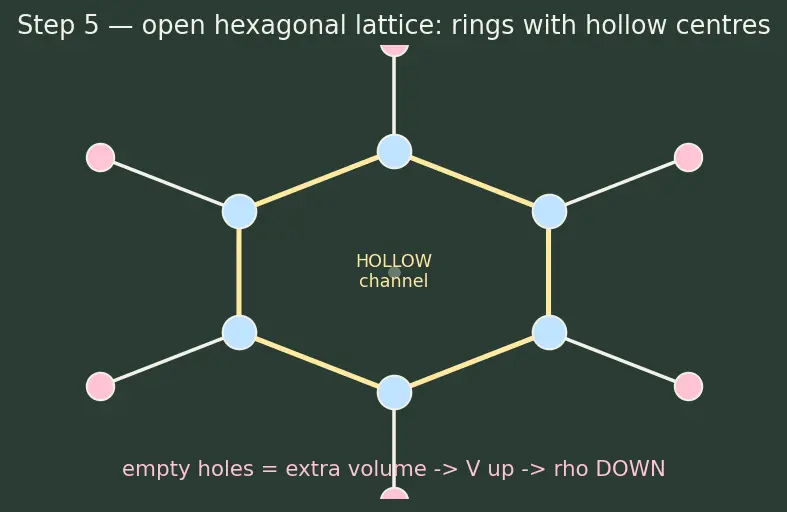

PICTURE. Look at the yellow hexagonal ring below — its centre is hollow. That hollow centre, repeated billions of times, is the extra volume $Δ V$ we predicted in Step 1.

Step 6 — The edge case: why the maximum density is at 4 °C

WHAT. Water's density does not just switch at freezing — it peaks at 4 °C. Above 4 °C water behaves "normally"; between 0 °C and 4 °C it does something strange. We must cover both regimes or the reader hits a scenario we never showed.

WHY two opposing effects? Two things fight as temperature changes:

Thermal expansion — heat makes molecules jiggle harder and spread out. Hotter ⇒ bigger $V$ ⇒ smaller $ρ$ . (This is the normal effect, ruling above 4 °C.)
Open-cluster formation — as you cool toward freezing, little ice-like open clusters (Step 5 geometry) start forming early. Colder ⇒ more open clusters ⇒ bigger $V$ ⇒ smaller $ρ$ . (This rules below 4 °C.)

At exactly 4 °C these two opposite tendencies balance — volume is smallest, so density is largest.

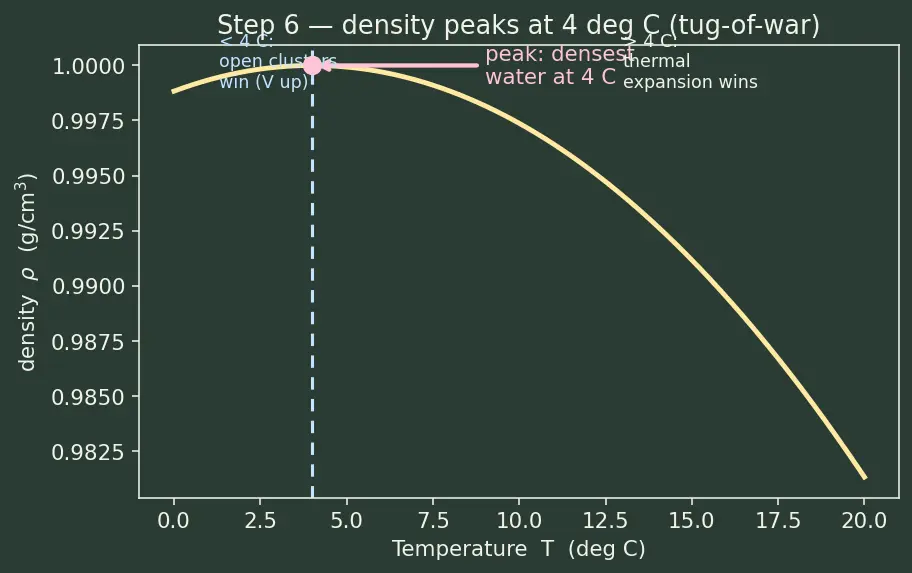

PICTURE. The density-vs-temperature curve rises from 0 °C, hits a peak at 4 °C, then falls. Left of the peak: open clusters win. Right of the peak: thermal expansion wins.

The one-picture summary

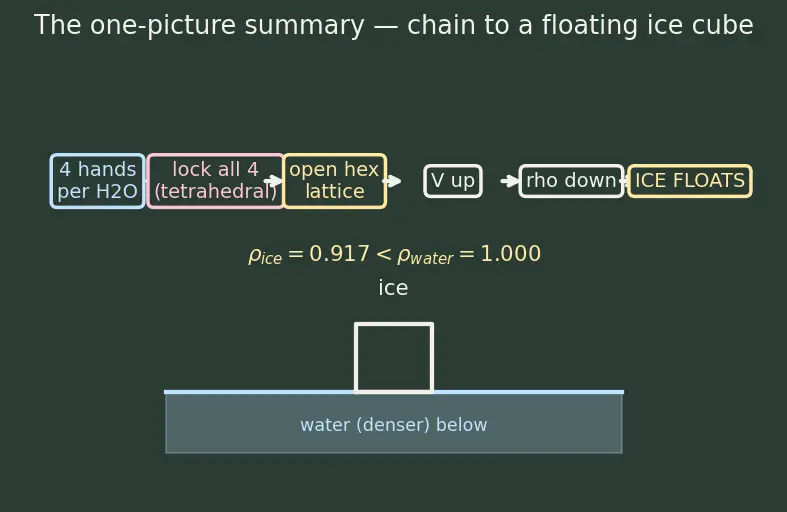

The whole chain in one glance: 4 hands per molecule → locking all 4 forces a tetrahedral formation → tetrahedra tile into an open hexagonal lattice with hollow channels → volume up → density down → ice floats, with the 4 °C peak as the tug-of-war between open clusters and thermal spreading.

Recall Feynman retelling — the walkthrough in plain words

Density just means "how much stuff fits in one scoop of room." To compare ice and water we keep the scoop the same size and ask which holds more molecules. Now, a water molecule is a little creature with four hands — two hands hold out sticky positive hydrogens, two hands hold out spare electron pairs. In warm liquid water the creatures are wiggling; a hand grabs a neighbour, lets go, grabs someone else. Because they keep letting go, they can shuffle into every gap and pack together tightly — lots of molecules per scoop, so water is dense. When it freezes, the wiggling stops and every creature holds all four hands still at the same time, pointing at the four corners of a little pyramid. That forces its four neighbours to stand far apart, elbows out. Tile that everywhere and you get a honeycomb of six-molecule rings with hollow holes down the middle. Same molecules, but now standing in an airy formation — fewer molecules per scoop — so ice is lighter and floats. One last twist: as you cool water down toward freezing, these airy clusters start forming a bit early, so water is actually densest a few degrees above freezing, at 4 °C, where "spreading from heat" and "spreading from clusters" exactly cancel. That densest water sinks, ice caps the top, and the fish are fine.

Recall Quick self-check

If freezing did not change the volume, would ice float? ::: No — with equal $V$ and equal $m$ , densities would be equal ( $ρ = m / V$ ); floating needs $V_{ice} > V_{water}$ . Which single number about a water molecule drives the open lattice? ::: 4 — the four H-bonds (2 donor + 2 acceptor) forcing tetrahedral, spacious geometry. Why is water densest at 4 °C, not 0 °C? ::: Below 4 °C open ice-like clusters expand it faster than cooling shrinks it; the peak is where thermal expansion and cluster formation balance.
