Foundations — Hydrogen bonding — intermolecular, intramolecular; consequences (boiling points, water density)

Before you can read the parent note, you must be able to read its alphabet. Below is every symbol, word and picture it silently assumes — built from absolute zero, each one leaning on the one before it.

1. The atom picture: nucleus + electron cloud

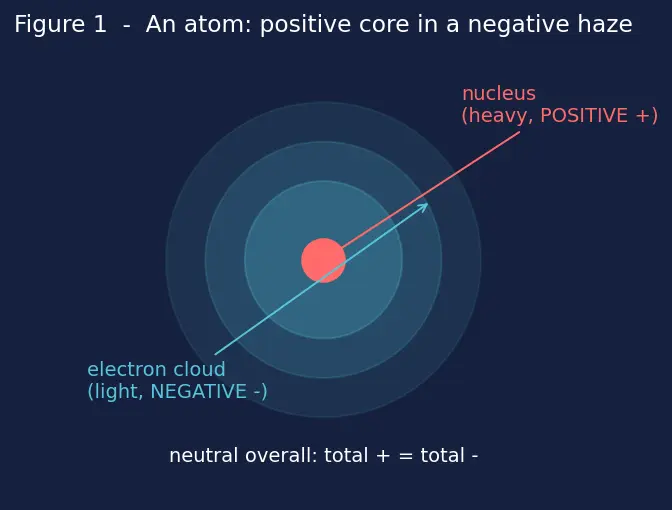

Look at Figure 1. The red dot in the middle is the nucleus (heavy, positive). The blue haze is the electron cloud (light, negative). The whole atom is normally neutral: the amount of + in the middle equals the amount of − in the cloud, so from far away they cancel.

Why the topic needs this: the entire chapter is about who pulls electron clouds and who gets left exposed. You cannot talk about pulling without first seeing there is a cloud to pull.

2. Charge and the symbols $+$, $-$, ${\delta }^{+}$, ${\delta }^{-}$

Why the topic needs this: the parent note writes hydrogen as ${\delta }^{+}$ and oxygen as ${\delta }^{-}$. Those little deltas ARE the reason molecules stick. Miss the delta and the whole page is silent.

3. Distance $r$ and why closeness matters: Coulomb's idea

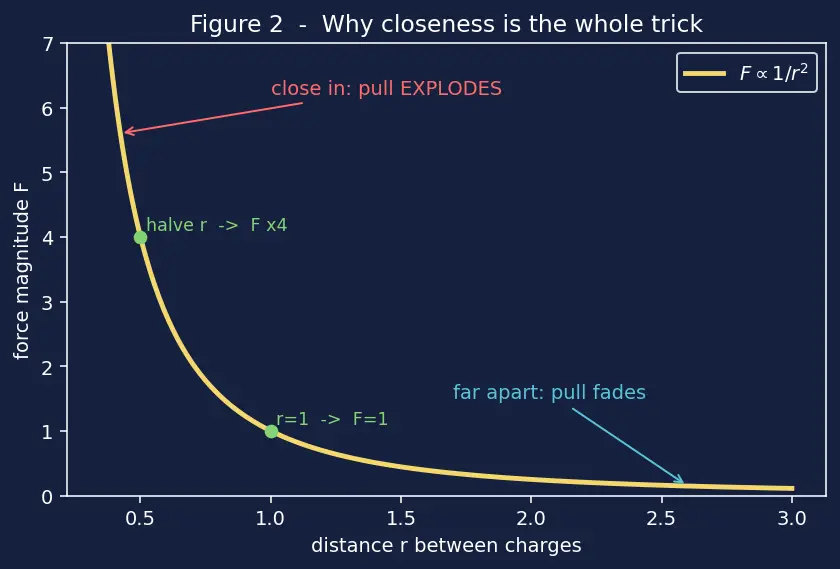

Figure 2 plots this. Notice the curve rockets upward as $r$ shrinks toward zero — that steep left-hand cliff is the "whole trick" the parent note mentions.

Why the topic needs this: the parent's claim "Coulomb attraction blows up at small $r$" is this graph. Without it, "hydrogen has no inner electrons so it gets close" is just words.

4. Electronegativity — the "greed" number

The greediest, most relevant atoms:

Why the topic needs this: the "FON rule" is nothing but "electronegativity high enough." This is the number that decides who becomes ${\delta }^{-}$ and who becomes ${\delta }^{+}$.

5. The covalent bond and the notation $\text{X–H}$

Why the topic needs this: the parent writes the hydrogen bond as $\text{X–H}\cdots \text{Y}$. The dash is the real bond; you must know it's covalent and strong before you meet the weaker $\cdots$.

6. Lone pairs and the acceptor

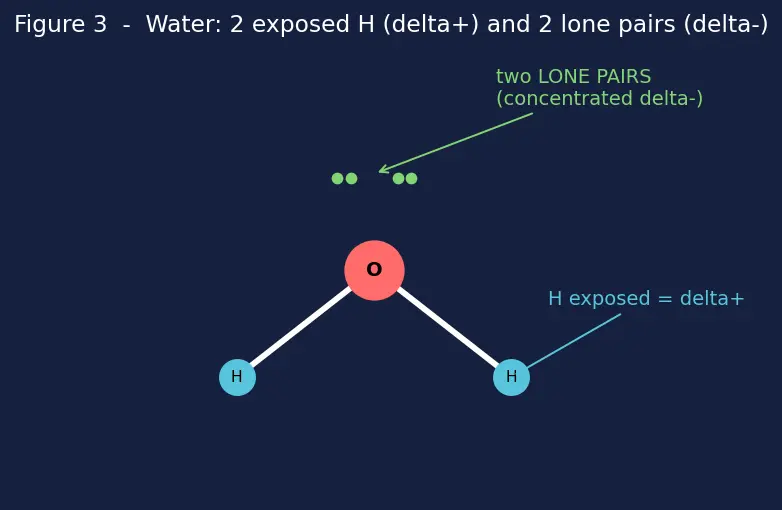

Look at Figure 3: oxygen in water has two lone pairs (the two green dot-pairs) pointing away from the hydrogens. Those bumps are concentrated ${\delta }^{-}$ regions — strong pullers on a bare proton.

Why the topic needs this: the acceptor in a hydrogen bond is exactly a lone pair. "H-bonds to a lone pair on Y" is meaningless until you can see the two-dot bump.

7. Putting it together: the dots $\cdots$ and the hydrogen bond

Now every earlier symbol pays off in one sentence:

• X is greedy (electronegativity, §4),
• it pulls H's cloud through the covalent dash (§5),
• leaving H as a ${\delta }^{+}$ exposed proton (partial charge, §2),
• which sits close (small $r$, §3) to Y's lone pair (§6, a ${\delta }^{-}$ bump),
• and opposite charges attract (§2) — strongly, because $1/r^2$ (§3).

That chain is the hydrogen bond. See also Dipole-dipole interactions and Van der Waals forces for the weaker cousins it beats.

8. Energy units: kJ/mol and "how much glue"

Three sizes to memorise (they anchor every comparison on the parent page):

Why the topic needs this: "much weaker than covalent, much stronger than van der Waals" only means something once you can see 40 sits between 1 and 400.

9. Density: the symbol $\rho$

Why the topic needs this: "${\rho }_{\text{ice}}<{\rho }_{\text{water}}$" is the whole "ice floats" section — unreadable without knowing $\rho$ means density.

Prerequisite map

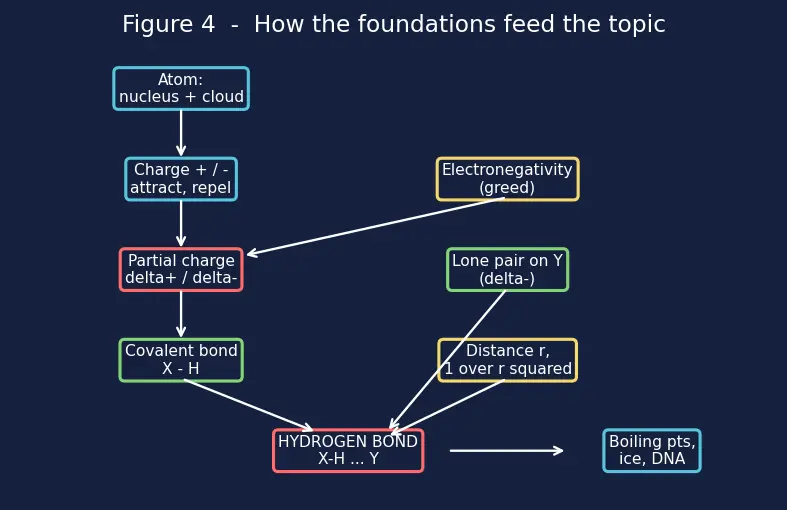

The diagram below (Figure 4) shows how each foundation feeds into the next and finally into the topic.

Read it top-down: greed + charge build the covalent bond, which exposes the proton; closeness + a lone pair complete the hydrogen bond; that single idea then feeds every consequence.

Equipment checklist

Test yourself — cover the right side. If any line stumps you, reread that section before the parent note.
