Visual walkthrough — Resonance — delocalization, resonance energy (benzene, ozone, carbonate)

Before we start, two words we lean on constantly:

Hold that last sentence — the whole derivation is just reading heights off an energy ladder.

---

Step 1 — Anchor the energy axis: what "stable" looks like

WHAT. We draw a vertical axis measuring $E$, the stored energy (enthalpy) of a molecule. Up = high energy = shaky, reactive. Down = low energy = calm, stable. We pin the zero of this axis to cyclohexane — the fully-hydrogenated product both benzene and cyclohexene end up as. Cyclohexane sits at $E=0$; every other molecule's height is measured above it. Everything we do lives on this one axis.

WHY. Resonance energy is a difference in height between two molecules, and heights only mean something once you fix a zero mark. Cyclohexane is the natural zero because it is the common landing point of both experiments — measuring from it means the $\Delta H$ values (how far each molecule falls to reach it) are the starting heights directly.

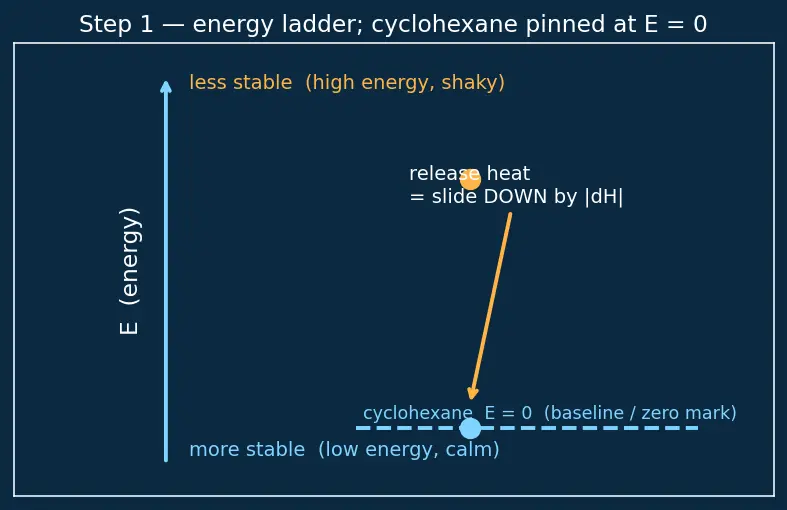

PICTURE (s01). A vertical energy axis with cyclohexane pinned as a horizontal baseline at $E=0$ near the bottom. An upward cyan arrow labels "less stable (high energy)"; downward labels "more stable (calm)." A molecule sitting high (amber dot) releases heat and slides down by $|\Delta H|$ to a lower rung (cyan dot); the slide length is annotated $|\Delta H|$.

---

Step 2 — Measure ONE double bond (the ruler)

WHAT. Take cyclohexene — a six-carbon ring with exactly one C=C double bond. Add ${\text{H}}_2$; the double bond becomes single. Measured heat released:

$\underset{\text{heat from one double bond}}{\underbrace{\Delta H_{\text{1 C=C}}}}=-120\text{kJ/mol}$

Term by term: $\Delta H_{\text{1 C=C}}$ is the label "energy dropped when we hydrogenate one localized double bond"; the minus sign says heat came out; $120$ is how far the molecule fell down the Step-1 ladder to reach cyclohexane at $E=0$.

WHY. Before predicting anything about benzene, we need a ruler for a single, ordinary, non-interacting double bond. Cyclohexene has only one C=C, so nothing is delocalized — this is the cleanest possible reading of "one plain double bond."

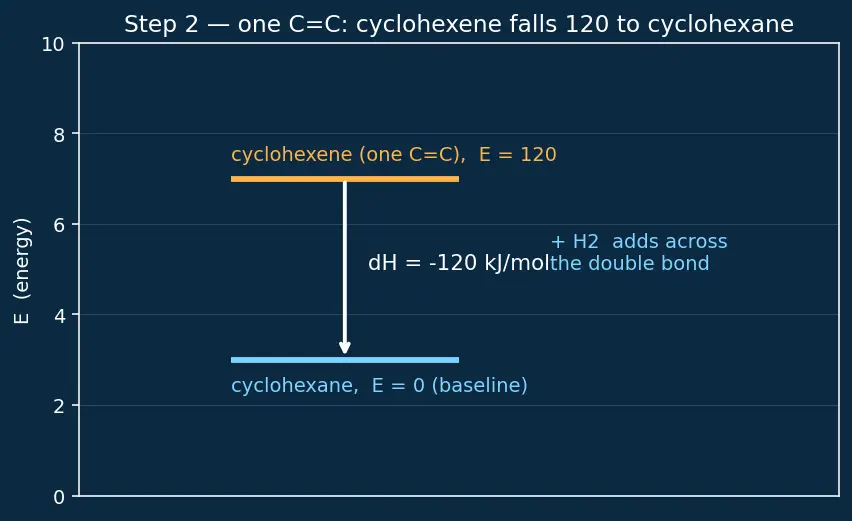

PICTURE (s02). Two horizontal rungs on the Step-1 axis: cyclohexene (amber) sits $120$ above the cyclohexane baseline (cyan, at $E=0$). A white down-arrow between them is labelled $\Delta H=-120\text{kJ/mol}$; a side note reads "+ ${\text{H}}_2$ adds across the double bond."

---

Step 3 — Build the FAKE benzene (the prediction)

WHAT. Imagine a molecule that is just three separate cyclohexene-style double bonds stitched into one ring — the old Kekulé "cyclohexatriene" picture, where bonds are strictly alternating and do not talk to each other. If each double bond is worth $-120$, then three of them give:

$\Delta H_{\text{predicted}}=3\times (\underset{\text{one bond}}{\underbrace{-120}})=\underset{\text{three independent bonds}}{\underbrace{-360}}\text{kJ/mol}$

Here $3$ = number of double bonds; the multiplication assumes each bond drops the molecule the full $120$, independently, as if the others weren't there. So this fake molecule sits $360$ above the cyclohexane baseline: $E_{\text{fake}}=360$.

WHY. We need the energy of the "hypothetical single structure" — the imaginary molecule with no delocalization. Multiplying by 3 encodes exactly one assumption: bonds are isolated and additive. That assumption is what reality will break, and the size of the break is our prize.

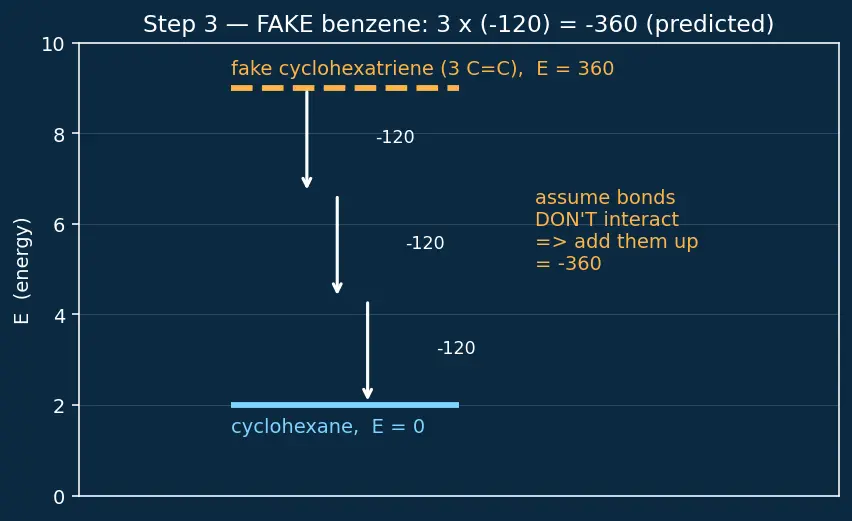

PICTURE (s03). The cyclohexane baseline (cyan) at $E=0$; the fake benzene as a dashed amber rung high above at $E=360$. Three stacked white down-arrows, each labelled $-120$, march from the fake rung down to the baseline, showing the additive assumption; a side note reads "assume bonds DON'T interact ⇒ add them up = -360."

---

Step 4 — Weigh the REAL benzene (the measurement)

WHAT. Now hydrogenate actual benzene (add three ${\text{H}}_2$, ending again at cyclohexane at $E=0$). Measured:

$\Delta H_{\text{actual}}=-208\text{kJ/mol}$

$\Delta H_{\text{actual}}$ = the true heat real benzene lets go; $-208$ is how far real benzene falls to reach cyclohexane, so real benzene sits at $E_{\text{real}}=208$ above the baseline.

WHY. This is the experiment reality actually runs. Comparing it against the Step-3 fiction is the entire trick.

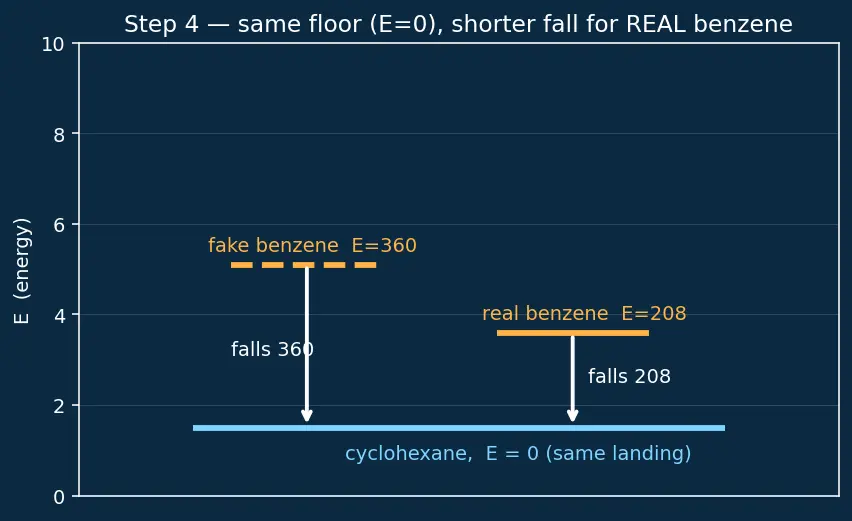

PICTURE (s04). Both molecules share the cyclohexane baseline (cyan, $E=0$). On the left the fake benzene rung (dashed amber) sits at $E=360$ with a white arrow "falls 360." On the right the real benzene rung (solid amber) sits lower at $E=208$ with a white arrow "falls 208." Same floor, shorter fall for the real one.

---

Step 5 — Read the gap: the Resonance Energy

WHAT. Because both molecules land on the same rung ($E=0$), the difference in their falls equals the difference in their starting heights $E_{\text{fake}}$ and $E_{\text{real}}$ — exactly the $\text{RE}$ we defined at the top:

$\text{RE}=\underset{-360=-E_{\text{fake}}}{\underbrace{\Delta H_{\text{predicted}}}}-\underset{-208=-E_{\text{real}}}{\underbrace{\Delta H_{\text{actual}}}}=-360-(-208)=-152\text{kJ/mol}$

Every piece: $\Delta H_{\text{predicted}}=-360$ is the fake molecule's fall (its height $E_{\text{fake}}=360$ with a minus sign); $\Delta H_{\text{actual}}=-208$ is the real molecule's fall ($E_{\text{real}}=208$ with a minus sign); subtracting a negative $208$ adds it back, giving $-360+208=-152$. Note this is identical to our top definition $\text{RE}=E_{\text{fake}}-E_{\text{real}}=360-208=152$ up to sign convention — the sign says benzene sits $152$ units below the fake molecule.

WHY. This is the boxed definition from the top of the page made visible: the predicted-minus-actual subtraction is the height difference $E_{\text{fake}}-E_{\text{real}}$ on the ladder — no new physics, just reading a gap.

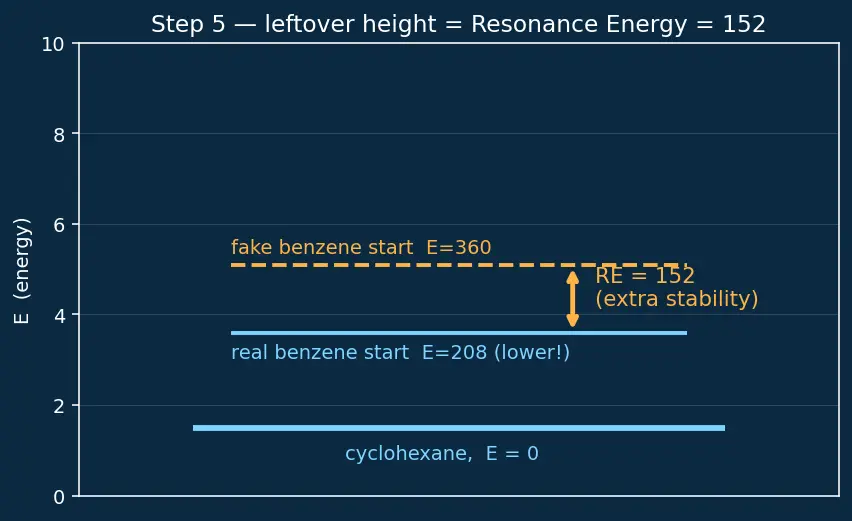

PICTURE (s05). The cyclohexane baseline (cyan, $E=0$). Two long horizontal lines: fake benzene start (dashed amber) at $E=360$, real benzene start (solid cyan) at $E=208$. A double-headed amber arrow spans the gap between them, labelled "RE = 152 (extra stability)." That bracket is the whole point of the topic.

---

Step 6 — Edge case: what if there were NO delocalization?

WHAT. Suppose benzene's electrons really were locked in three separate bonds (the fiction of Step 3). Then $\Delta H_{\text{actual}}$ would equal $\Delta H_{\text{predicted}}=-360$ (i.e. $E_{\text{real}}=E_{\text{fake}}=360$), and:

$\text{RE}=-360-(-360)=0\text{kJ/mol}$

WHY. We must show the degenerate case so you know the formula behaves. Zero RE ⇔ no delocalization ⇔ a single Lewis structure was already the truth. Non-zero RE is the fingerprint that a resonance hybrid is needed at all.

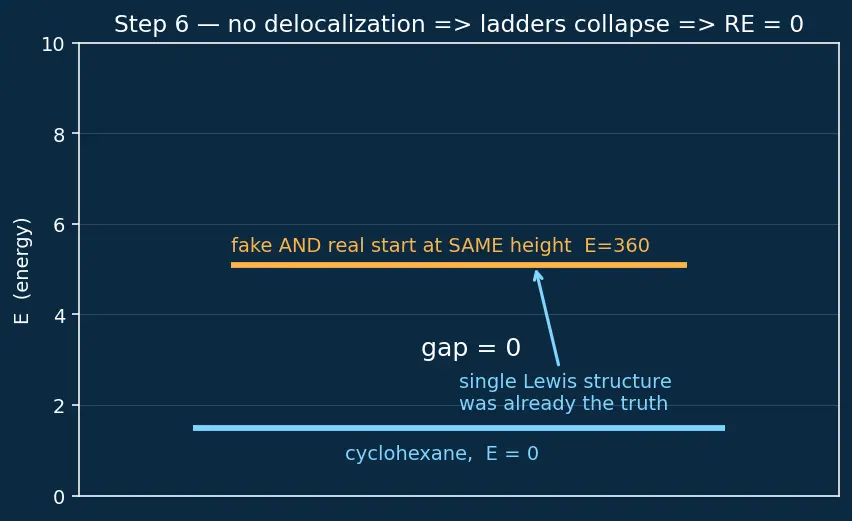

PICTURE (s06). The cyclohexane baseline (cyan, $E=0$); fake and real benzene collapse onto a single amber rung at $E=360$ labelled "fake AND real start at SAME height." The gap between them is annotated "gap = 0," with a cyan note "single Lewis structure was already the truth."

---

The one-picture summary

Everything above is a single figure: two falls to the same floor, and the leftover height between the starting points is the resonance energy.

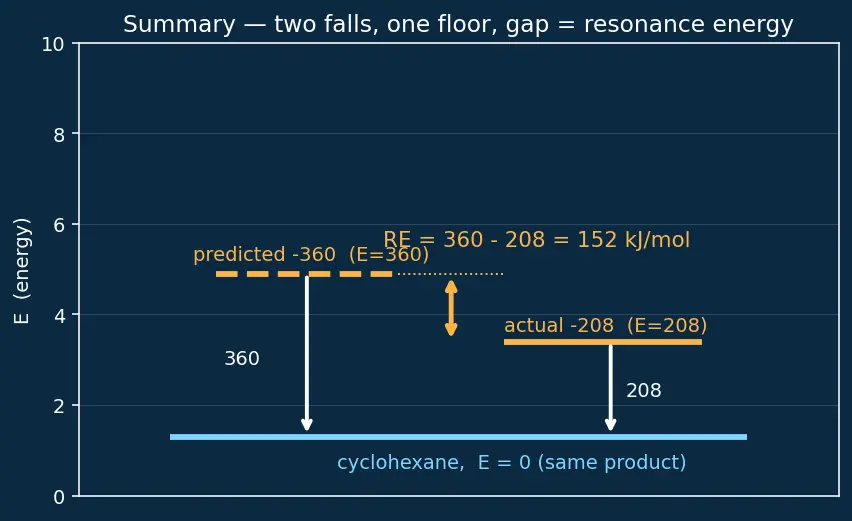

PICTURE (s07). One compressed diagram on the same $E$ axis: cyclohexane baseline (cyan) at $E=0$; predicted fake benzene (dashed amber) at $E=360$ with a white "360" fall-arrow; actual real benzene (solid amber) at $E=208$ with a white "208" fall-arrow; a double-headed amber arrow between the two starting heights labelled "RE = 360 − 208 = 152 kJ/mol."

$\text{RE}=\Delta H_{\text{predicted}}-\Delta H_{\text{actual}}=(3)(-120)-(-208)=-152\text{kJ/mol}$

Recall Feynman retelling — say it to a 12-year-old

Picture two slides ending in the same sandpit (we call the sandpit "height zero"). One slide is for a fake benzene made of three ordinary double bonds — a kid on it whooshes down a long way, releasing lots of energy: $360$ units of whoosh. The other slide is for the real benzene, and the kid on it only drops $208$ units before hitting the same sandpit. Same landing, shorter trip — so the real kid must have started standing lower and calmer on the platform to begin with. How much lower? $360-208=152$. That $152$ is how much extra "calmness" benzene already had, given to it by letting its electrons roam the whole ring instead of sitting in three tight bonds. We call that calmness the resonance energy, and we found it without memorising a single thing — we just watched two slides and measured the leftover height.

Recall Numbers to have at your fingertips

One C=C hydrogenation $\Delta H$ ::: $-120$ kJ/mol Predicted "cyclohexatriene" $\Delta H$ ::: $3\times (-120)=-360$ kJ/mol Real benzene $\Delta H$ ::: $-208$ kJ/mol Benzene resonance energy ::: $-360-(-208)=-152$ kJ/mol (extra stability) RE = 0 means ::: no delocalization; a single Lewis structure is already the truth

---

Connections

• Parent: Resonance — this page derives its central benzene number in pictures.
• Hybridization ($sp^2$) — supplies the leftover p-orbital on each carbon that makes delocalization possible.
• Molecular Orbital Theory — the ring-wide orbitals that are the "bigger box."
• Aromaticity & Hückel's Rule — benzene's huge RE is what "aromatic" means quantitatively.
• Bond Order & Bond Length — the equal 139 pm bonds are the structural echo of this energy gap.
• Formal Charge — ranks which resonance structures weigh most in the hybrid.
