Intuition The one-sentence ideaA single Lewis structure is sometimes a lie — the real molecule is a blend (hybrid) of several valid Lewis structures, and this blending spreads electrons out (delocalization), which makes the molecule more stable (lower in energy) than any one drawing suggests.
Intuition Why we even need this conceptLewis theory forces us to draw electrons locked between two atoms (localized bonds). But experiments contradict single drawings:
Ozone (O₃): both O–O bonds have the same length (~128 pm), between a single (148 pm) and double (121 pm) bond. Yet one Lewis structure shows one single and one double bond — that would predict two different lengths. Reality says: wrong. Benzene: all six C–C bonds are equal (139 pm), between single (154) and double (134). No alternating short/long pattern exists.Carbonate (CO₃²⁻): all three C–O bonds identical.
Nature "smears" the extra electrons over several atoms. Since one Lewis picture can't show a smear, we draw several and say the truth is their average .
When a species can be represented by two or more valid Lewis structures that differ only in the position of electrons (not nuclei), the real molecule is a resonance hybrid — a single, weighted average of these resonance/canonical structures . The structures are connected by a double-headed arrow ↔ \leftrightarrow ↔
Common mistake Steel-man: "The molecule flips between structures"Why it feels right: we draw two pictures with an arrow between them — looks like switching, like an equilibrium.
Why it's wrong: ↔ \leftrightarrow ↔ not ⇌ \rightleftharpoons ⇌ never structure A and never structure B. It is permanently the hybrid, exactly as a mule is not "sometimes a horse, sometimes a donkey."
Fix: Resonance = one fixed blended reality, drawn with several imperfect sketches because our notation is limited.
Definition Requirements for legitimate resonance structures
Nuclei stay put — move only π \pi π Keep the same total number of paired/unpaired electrons (same net charge, same multiplicity).
Obey normal valence (octet for period-2; don't exceed capacity).
Atoms should stay roughly in the same plane so p-orbitals can overlap (delocalization needs parallel p-orbitals).

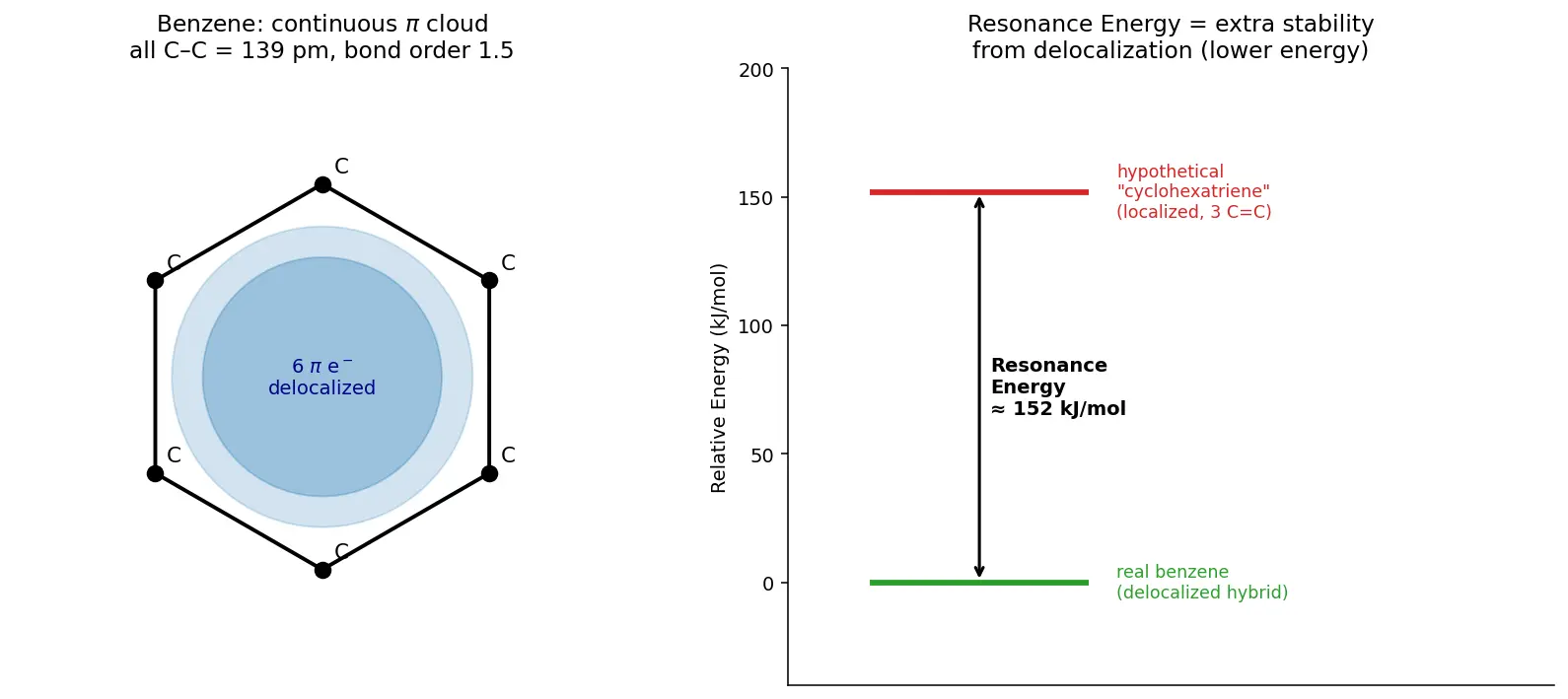

Intuition Orbital pictureIn benzene each carbon is s p 2 sp^2 s p 2 one leftover p-orbital perpendicular to the ring. Six parallel p-orbitals overlap side-to-side all the way around , forming a continuous π \pi π π \pi π whole ring , not to any specific bond. That "belonging to many atoms" is delocalization .
Intuition Spreading electrons out lowers energyQuantum mechanically, giving an electron more room to roam (a larger box) lowers its kinetic energy — think particle-in-a-box: bigger box ⇒ lower ground-state energy. Delocalization = a bigger box ⇒ lower energy ⇒ extra stability.
Definition Resonance Energy (Delocalization Energy)RE = E hypothetical single structure − E actual hybrid \boxed{\text{RE} = E_{\text{hypothetical single structure}} - E_{\text{actual hybrid}}} RE = E hypothetical single structure − E actual hybrid extra stability the real molecule has compared to the most stable single Lewis structure. Larger RE ⇒ more stable ⇒ hybrid is a much better description.
Common mistake Steel-man: "Resonance energy is the energy released when structures resonate"Why it feels right: the word "energy" + "resonance" suggests some vibration releasing energy.
Why it's wrong: nothing is oscillating; RE is a static comparison between a real molecule and a hypothetical un-delocalized one.
Fix: RE = stability gained by delocalization, measured as (predicted energy − actual energy).
Worked example Ozone O₃ — draw the hybridTwo structures:
O = O + − O − ↔ O − − O + = O \text{O}=\overset{+}{\text{O}}-\overset{-}{\text{O}} \;\;\leftrightarrow\;\; \overset{-}{\text{O}}-\overset{+}{\text{O}}=\text{O} O = O + − O − ↔ O − − O + = O Why this step? The double bond can go left or right — both equally valid, symmetric.
Hybrid consequence: each O–O bond has bond order = 1 + 2 2 = 1.5 =\dfrac{1+2}{2}=1.5 = 2 1 + 2 = 1.5 Why? Average of a single (1) and double (2) shared over 2 equivalent bonds.
Prediction: both bonds identical, length between single & double ✔ (matches 128 pm). The central O keeps + + + − 1 2 -\tfrac12 − 2 1
Worked example Carbonate CO₃²⁻ — bond orderThree equivalent structures , the C=O rotating among the three oxygens.
Bond order: total bonds shared = 4 = 4 = 4 B.O. = 1 + 1 + 2 3 = 4 3 ≈ 1.33 \text{B.O.} = \frac{1+1+2}{3} = \frac{4}{3} \approx 1.33 B.O. = 3 1 + 1 + 2 = 3 4 ≈ 1.33 Why this step? Delocalize the one π \pi π Charge: the 2 − 2- 2 − − 2 3 -\tfrac{2}{3} − 3 2 each oxygen.
Prediction: all three C–O bonds equal (~129 pm), between single (143) and double (122) ✔.
Worked example Benzene bond orderEach C–C is single in one Kekulé, double in the other:
B.O. = 1 + 2 2 = 1.5 \text{B.O.} = \frac{1+2}{2} = 1.5 B.O. = 2 1 + 2 = 1.5
Recall Fill these in before revealing
O₃ bond order = ? → 1.5
CO₃²⁻ bond order = ? → 4/3 ≈ 1.33
Benzene bond order = ? → 1.5
Benzene RE ≈ ? → ~150 kJ/mol
Meaning of ↔ \leftrightarrow ↔ ⇌ \rightleftharpoons ⇌
Recall Feynman: explain to a 12-year-oldImagine you have three friends and only enough ice-cream for one full cone, but everyone wants a taste. Instead of giving the whole cone to one friend, you let everyone share little licks — now everybody is a little happier and calmer . Electrons are like that ice-cream: when they’re forced to sit between just two atoms, they’re "grumpy" and high-energy. When the molecule lets them share across many atoms (resonance/delocalization), everyone settles down and the whole molecule becomes calmer and stronger. That extra calmness is called resonance energy . And even though we draw a few different pictures, the molecule is really just one blended picture the whole time.
"Same Nuclei, Shift Electrons, Spread = Stable."
(SNSESS → "Snakes Slither Steadily" ) — nuclei frozen, only electrons move, spreading gives stability.
For weighting: "Less charge, More bonds, Negative-on-Nasty (electronegative) = counts most."
Lewis Structures & Octet Rule — resonance patches Lewis theory's rigidity.Formal Charge — used to rank which resonance structure dominates.Hybridization ($sp^2$) — provides the parallel p-orbitals for delocalization.Molecular Orbital Theory — the "true" picture where delocalized π \pi π Aromaticity & Hückel's Rule — benzene's huge RE is why it's aromatic.Bond Order & Bond Length — fractional bond orders explain equal bond lengths.
What does the double-headed arrow ↔ \leftrightarrow ↔ The species is a single resonance hybrid — an average of the drawn structures; it is NOT an equilibrium between them.
Why must nuclei stay fixed in resonance structures? Resonance only redistributes electrons; moving atoms would give a different molecule (an isomer), not a canonical form.
Define resonance energy. RE = (energy of most stable single Lewis structure) − (energy of actual hybrid); the extra stability from delocalization.
Bond order of O₃? (1+2)/2 = 1.5, so both O–O bonds are identical.
Bond order of carbonate CO₃²⁻? (1+1+2)/3 = 4/3 ≈ 1.33.
Bond order of benzene C–C? (1+2)/2 = 1.5; all six bonds equal.
Benzene resonance energy value and how it's found? ~150 kJ/mol; from 3×ΔH(cyclohexene hydrogenation) − ΔH(benzene hydrogenation) = −360 −(−208) = 152 kJ/mol.
Which resonance structure contributes most? The one with least formal charge, most covalent bonds, and negative charge on the more electronegative atom.
Physically, why does delocalization lower energy? Electrons in a larger "box" (spread over more atoms) have lower kinetic energy — like particle-in-a-box, bigger box → lower ground state.
How is benzene's charge/bond pattern explained by resonance? Two equivalent Kekulé forms average to give six equal 1.5-order bonds and a symmetric hexagon.
linked by double-headed arrow
needs parallel p-orbitals
Experiment: equal bond lengths
Drawing rules: nuclei fixed, move pi/lone pairs
Weighting: stable forms contribute more
More stable than any drawing
Benzene, ozone, carbonate
Intuition Hinglish mein samjhoDekho, kabhi kabhi ek single Lewis structure molecule ka poora sach nahi batata. Jaise ozone (O₃) mein hum ek single bond aur ek double bond dikhate hain, lekin experiment kehta hai ki dono O–O bonds bilkul barabar length ke hain. Matlab electron kisi ek jagah "lock" nahi hai — woh spread ho jaate hain. Isko hi delocalization bolte hain, aur jab hum molecule ko kai valid structures ka average (hybrid) maante hain, us idea ko resonance kehte hain. Yaad rakho: double-headed arrow ↔ \leftrightarrow ↔
Ab kyu important hai? Jab electrons zyada atoms pe fail jaate hain (bada "box" mil jaata hai), unki energy kam ho jaati hai — molecule zyada stable ho jaata hai. Yeh jo extra stability milti hai use resonance energy kehte hain. Benzene ka classic example: agar woh sach mein 3 alag double bonds wala hota, toh hydrogenation pe 3×120 = 360 kJ/mol nikalta. Par actual sirf 208 kJ/mol nikalta hai, kyunki benzene pehle se hi neeche (stable) baitha hai. Difference 152 kJ/mol — yahi resonance energy hai.
Bond order nikalna easy hai: ozone mein (1+2)/2 = 1.5, benzene mein bhi 1.5, aur carbonate CO₃²⁻ mein (1+1+2)/3 = 4/3 ≈ 1.33. Isliye saare equivalent bonds ki length equal aati hai, single aur double ke beech mein. Rules bhi simple: nuclei ko hilao mat, sirf π \pi π
Short mein: resonance = "same nuclei, shift electrons, spread karo = stable ho jao". Exam mein bond order aur resonance energy ke numbers rat lo, aur ↔ \leftrightarrow ↔ ⇌ \rightleftharpoons ⇌
