Heisenberg uncertainty principle — Δx Δp ≥ ℏ - 2: Question bank

Notation you need on this page (build before you use)

Definition Every symbol used below, in plain words

$x$ = position of the particle along one chosen axis (metres). Picture a dot on a number line.
$p$ = momentum along that same axis, $p = m v$ (mass times velocity, units kg·m/s). Picture an arrow showing how fast and which way the dot moves.

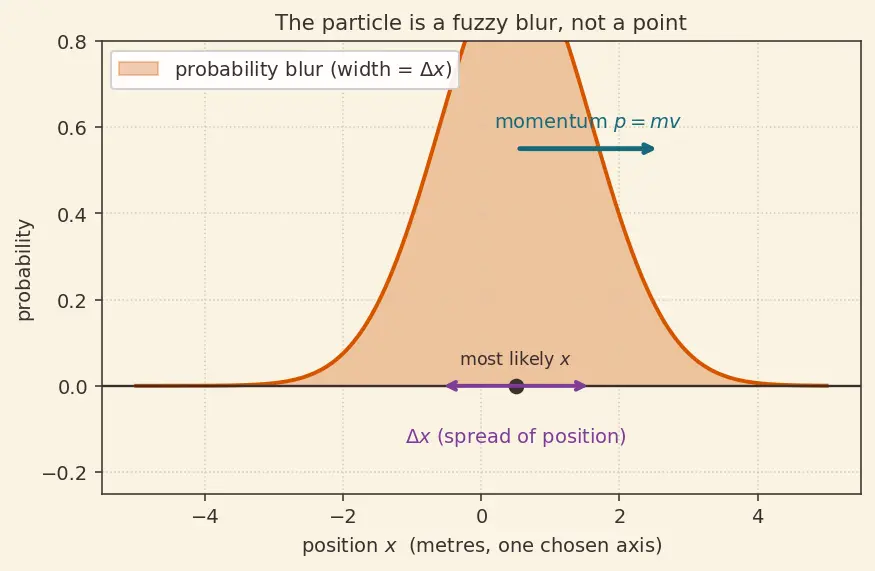

$Δ x$ = the spread (standard deviation) of position — the width of the fuzzy blur where the particle might be found, not a point. Big $Δ x$ = very fuzzy location.
$Δ p$ (or $Δ p_{x}$ , the subscript naming which axis) = the spread of momentum — how wide the range of possible speeds/directions is.
$λ$ (Greek "lambda") = wavelength, the length of one full ripple of a wave (metres). Short $λ$ = tightly-packed ripples; via de Broglie, momentum is $p = h / λ$ , so short $λ$ means big momentum.
$E$ = energy of the state (joules); $Δ E$ = its spread of energy (how fuzzy the energy is).
$t$ = time; $Δ t$ = a duration or lifetime — how long a state lasts before it changes/decays.
$\overset{x}{^}$ , $\overset{p}{^}$ (with hats) = the quantum operators for position and momentum. Read them as "the action that asks a wavefunction its position / momentum," which is a richer object than the plain numbers $x$ , $p$ above; the hat is a reminder that the order you apply them can matter.
$h$ = Planck's constant $= 6.626 \times 1 0^{- 34}$ J·s, the fixed number nature uses to set the scale of all quantum "graininess."
$ℏ$ (read "h-bar") = $\frac{h}{2 π} = 1.055 \times 1 0^{- 34}$ J·s. It is just $h$ divided by $2 π$ — same constant, tidier for angles/waves.
The rule of this whole topic: $Δ x Δ p_{x} \geq \frac{ℏ}{2}$ , equivalently $\geq \frac{h}{4 π}$ (the same number).

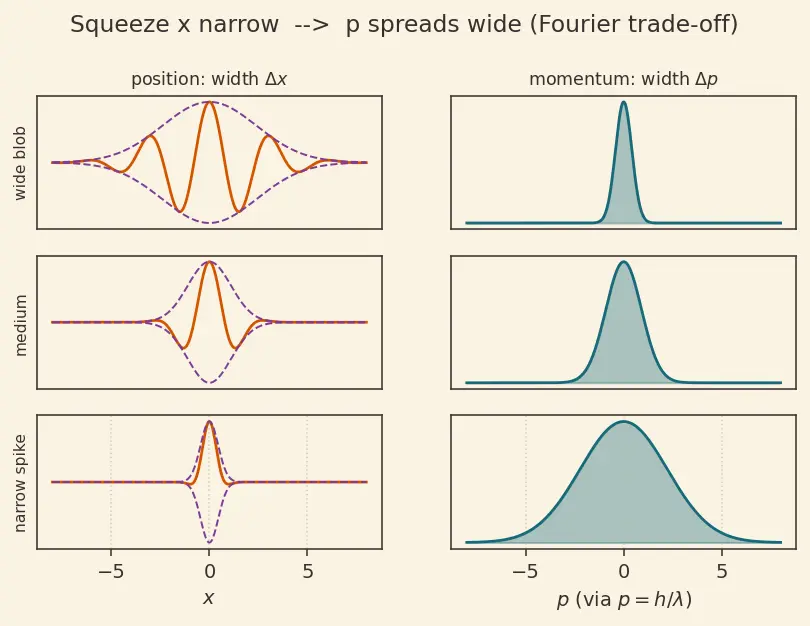

Figure — Heisenberg uncertainty principle — Δx Δp ≥ ℏ - 2

Recall Why is the Gaussian the

exact minimum (equality)? — the deeper origin The general (Robertson–Schrödinger) form of the principle comes from operator algebra: for two observables $A, B$ that do not commute, $Δ A Δ B \geq \frac{1}{2} ⟨[A, B]⟩$ , where $[A, B] = A B - B A$ is the commutator. For position and momentum, $[\overset{x}{^}, \overset{p}{^}] = i ℏ$ (this is where the operator hats earn their keep — the order $\overset{x}{^} \overset{p}{^}$ vs $\overset{p}{^} \overset{x}{^}$ differs by $i ℏ$ ), so the right side is $ℏ/2$ . The bound is saturated (turns into $=$ ) only when a certain Cauchy–Schwarz step becomes an equality, which happens exactly when the momentum-space wavefunction is a constant multiple of the position-space one — and the only shape whose Fourier transform has the same shape as itself is the Gaussian bell curve.

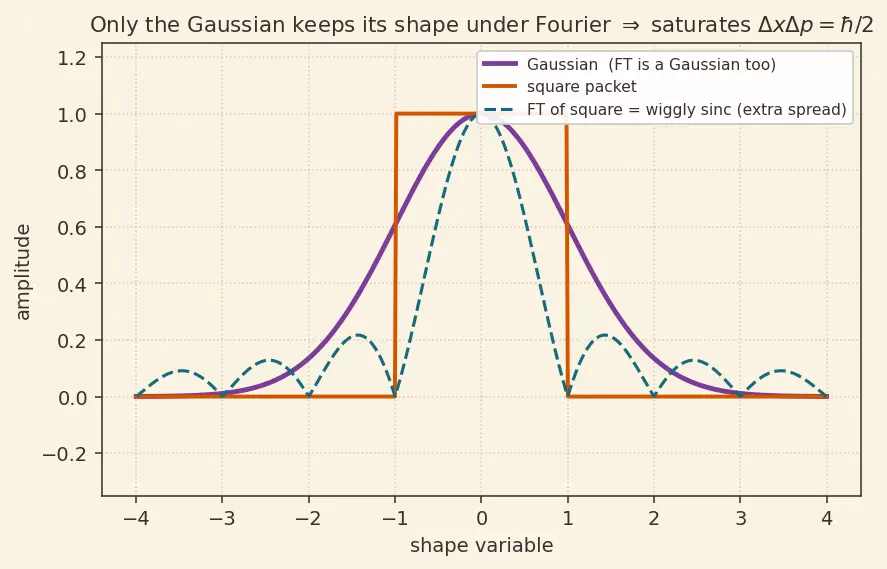

The figure below makes this visible: the plum Gaussian keeps its bell shape under the Fourier transform, while the orange square pulse transforms into the wiggly teal sinc curve whose long tails carry extra spread — so the square is "worse" and only the Gaussian sits exactly on the bound.

True or false — justify

If a claim is false, the reveal tells you the precise word that breaks it.

The uncertainty principle exists because our microscopes and detectors are not yet good enough.

False — it is a wave (Fourier) fact baked into nature; even a perfect apparatus cannot beat

Δ x Δ p \geq ℏ/2

because a localized particle simply is a spread of wavelengths.

Δ x Δ p_{x} \geq h /4 π

is a looser, less strict rule than

Δ x Δ p_{x} \geq ℏ/2

False — they are the same number:

h /4 π = ℏ/2

exactly, since

ℏ = h /2 π

. Books just swap which constant they display.

You can, in principle, measure both the position and the momentum of an electron to arbitrary precision if you measure them one after another very quickly.

False — the limit is on how sharply defined the two quantities can be simultaneously in the state itself, not a stopwatch race; pinning

x

tightly forces the momentum spread to widen at that moment.

Δ x

and

Δ p

in the formula are experimental error bars you would quote after a measurement.

False — they are the standard deviations of the quantum state, intrinsic statistical spreads that exist before you measure anything.

A particle at rest (

p = 0

exactly) can sit at a perfectly known point.

False — knowing

p = 0

exactly means

Δ p = 0

, which forces

Δ x \to \infty

; the particle would be spread over all space, so it cannot also be at one point.

The relation

Δ x Δ p_{x} \geq ℏ/2

also constrains

Δ x Δ p_{y}

False — only conjugate pairs on the same axis are constrained;

x

and

p_{y}

(perpendicular directions) can both be sharp at once with no limit.

Heisenberg's photon-microscope "kick" story is the true fundamental reason for uncertainty.

False — it gives the right size but is only an analogy; the real origin is the wave-packet / de Broglie Fourier trade-off, which applies even with no photon touching the particle.

The energy–time relation

Δ E Δ t \geq ℏ/2

means energy is not conserved for short times.

False (subtly) —

Δ t

is a state's lifetime/duration and

Δ E

its energy spread; conservation still holds, but a short-lived state cannot have one sharp energy, which is why spectral lines have natural width.

Spot the error

Each statement below is almost right. Name the flaw.

"Since

Δ x Δ p \approx h

from the microscope derivation, the true minimum of the product is

h

The

\approx h

is a rough order-of-magnitude estimate; the exact minimum is smaller,

ℏ/2 = h /4 π \approx 0.08 h

, achieved by a Gaussian packet — the careful statistical treatment sharpens the crude cancellation.

"A pure sine wave

sin (k x)

has a definite wavelength, so it is a good model of a localized particle."

A pure sine stretches to

\pm \infty

with zero position information (

Δ x = \infty

); a localized particle needs a superposition of many wavelengths (a wave packet), not a single sine.

"To make

Δ x

smaller I narrow the wave packet, and this leaves the momentum spread untouched."

Narrowing the packet in space forces a wider spread of wavelengths (Fourier), so

Δ p

grows — the two spreads are chained, you cannot shrink one for free.

"The uncertainty principle forbids us from ever knowing a particle's velocity."

It forbids knowing velocity and position simultaneously and exactly; you can know velocity as precisely as you like if you accept total ignorance of position.

"Because

ℏ

is tiny, uncertainty is negligible for everything, including electrons."

ℏ

is tiny in absolute terms, but for an electron's tiny mass and atom-sized box the resulting velocity spread is

\sim 1 0^{6}

m/s — enormous; smallness of

ℏ

only saves heavy objects.

"The minimum-uncertainty state is a square top-hat pulse, since that has the sharpest edges."

The minimum-uncertainty (equality) state is the Gaussian wave packet; sharp square edges actually contain many extra high-frequency components and worsen the product.

Why questions

Why does the product

Δ x Δ p

in the microscope argument come out independent of the wavelength

λ

of the light used?

Because

Δ x \approx λ

(resolution improves with shorter

λ

) while the photon kick

Δ p \approx h / λ

(recoil worsens with shorter

λ

); their product

λ \cdot h / λ = h

cancels the

λ

, so no choice of light escapes the trade-off.

Why does the uncertainty principle destroy the Bohr fixed-orbit picture?

A definite orbit requires an exact position and an exact momentum at every instant, which is forbidden; the electron must instead be described by a smeared probability cloud (an orbital).

Why do spectral lines have a finite width even from a perfectly still, isolated atom?

An excited state has a finite lifetime

Δ t

, so by

Δ E Δ t \geq ℏ/2

its energy is spread by

Δ E

; photons emitted therefore span a small range of frequencies — the natural line width.

Why is wave–particle duality the deep root of the principle, rather than any disturbance from measuring?

Because a particle being a wave means it is a wave packet, and the position–wavelength trade-off of packets is pure Fourier mathematics — the uncertainty is present in the state's very description, no measurement required.

Why does confining an electron to a smaller box raise its typical energy (zero-point motion)?

Small

Δ x

forces large

Δ p

, hence a large spread of speeds and thus nonzero kinetic energy that cannot be removed — the electron can never simply "sit still" in a tight well.

Why is the [[Schrödinger equation and wavefunction ψ|wavefunction

ψ

]] the natural home for these ideas rather than a definite trajectory?

ψ

encodes a spread of positions and, via its Fourier transform, a spread of momenta at once; the widths of these two spreads automatically obey the bound, whereas a single trajectory falsely assumes both are points.

Edge cases

What does the principle say in the limit

Δ x \to 0

(perfectly known position)?

Δ p

must diverge to

\infty

— the momentum becomes completely undefined; a perfectly localized particle has every momentum with equal weight.

What does the principle say in the limit

Δ p \to 0

(perfectly known momentum)?

Δ x \to \infty

— the particle is delocalized over all space, exactly the pure-sine-wave / definite-wavelength case with no location.

For a macroscopic cricket ball, is the principle wrong or merely invisible?

It is fully valid but invisible: the huge mass makes

Δ v = ℏ/ (2 m Δ x)

around

1 0^{- 28}

m/s, far below anything measurable, so the object looks perfectly classical.

Does the principle apply to a single measurement, or to a distribution?

To the distribution —

Δ x

and

Δ p

are standard deviations, so the statement is about the statistical spread over many identically-prepared systems, not one reading.

If a state is not Gaussian, where does its uncertainty product sit relative to

ℏ/2

Strictly greater than

ℏ/2

; only the Gaussian achieves equality, so every other shape is "worse" (broader combined spread).

Can

Δ E Δ t \geq ℏ/2

and

Δ x Δ p_{x} \geq ℏ/2

be used interchangeably?

No — they are separate conjugate-pair relations, and

t

is not even an operator; energy–time governs how sharply a duration pins an energy, while position–momentum governs one spatial axis; mixing their quantities is meaningless.

What happens to the bound for a stationary energy eigenstate (

Δ t \to \infty

, infinitely long-lived)?

Δ E \to 0

is allowed — an eternal state can have a perfectly sharp energy, which is why true stationary states give infinitely narrow (idealized) lines.

Recall One-line self-test (compare against the summary figure above)

Name the single physical fact from which all of these traps ultimately follow. ::: A particle is a wave packet, so its position-spread and momentum-spread are Fourier conjugates and cannot both be made small — captured by $[\overset{x}{^}, \overset{p}{^}] = i ℏ \Rightarrow Δ x Δ p \geq ℏ/2$ .
