Foundations — Modern periodic law — based on atomic number

Before you can understand the Modern Periodic Law, you must be able to read it. The law and its proof (Moseley's equation) quietly assume you already know a handful of little symbols and ideas. Let us earn each one, in an order where every symbol is defined before it is ever used.

1. The atom — a tiny solar system

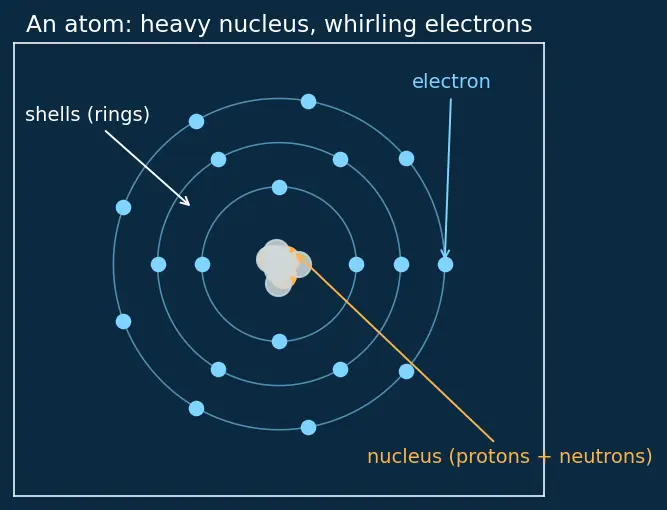

Walk through the figure piece by piece. The amber dots crammed in the centre are the protons (and, mixed in, the grey neutrons) — this is the nucleus. The cyan dots sitting on the thin cyan rings are the electrons, and each ring is one shell. The label with the white arrow points to a single shell so you can see the electrons ride along it. The one thing to carry away from this picture: everything the periodic table cares about lives in that tiny amber lump in the middle, because how strongly it pulls the outer electrons decides the atom's chemistry — and that pull comes from the protons.

This is the picture that Bohr Model of the Atom draws in full. For us, we only need the shells (rings) and the counting.

2. The symbol $Z$ — atomic number

Why does the topic need $Z$? Because the whole Modern Periodic Law is the sentence "properties are a periodic function of $Z$." If you cannot picture $Z$ as a proton count, the law is just noise. The deeper meaning of $Z$ (versus mass) lives in Atomic Number and Atomic Mass.

3. Atomic mass — the weight, and why it can lie

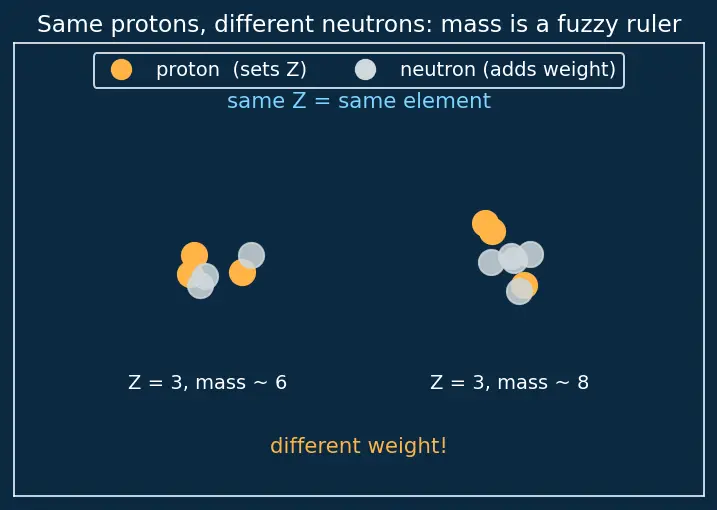

Read the two nuclei side by side. Both have the same number of amber protons — count them, three each — so both are the same element with the same $Z=3$. But the left one has fewer grey neutrons than the right one, so the right one is heavier: the labels underneath read "mass ~ 6" versus "mass ~ 8". The cyan caption "same Z = same element" sits above, the amber caption "different weight!" sits below — that contrast is the whole lesson. It shows why weight is a shaky label: two atoms can weigh differently yet be the same element, and — worse — a heavier atom can sometimes have fewer protons than a lighter one.

That single fact is the entire reason Mendeleev's mass-ordering hit anomalies (Ar heavier than K but with fewer protons), and why the parent note switches to $Z$. Compare the old mass-based scheme in Mendeleev's Periodic Table.

4. The symbol $\nu$ — frequency

Why does the topic need $\nu$? Because Moseley never measured $Z$ directly (you cannot see a proton). He measured the $\nu$ of the X-ray each element shoots out, and used it to deduce $Z$. Full story: Moseley's X-ray Experiment.

5. The relation $E=h\nu$ — turning frequency into energy

Why does the topic need $E=h\nu$? Because Moseley's argument is about energy (an inner electron dropping down releases a fixed chunk of energy), but his measurement is a frequency. The equation $E=h\nu$ is the bridge that lets us swap freely between the two. Without it, the letter $h$ in the next step would appear from nowhere.

6. The symbol $\propto$ — "is proportional to"

We define $\propto$ now, before the Bohr result, because the very next section is written as a proportionality. Earning it first keeps the rule "no symbol before its meaning" intact.

7. The symbol $\sigma$ — shielding / screening

Trace the arrows in the figure. The big amber dot at the centre is the nucleus, carrying the full charge $+Z$. Around it, the cyan ring of inner electrons stands in the way. Now follow the two arrows aimed at the lone outer electron on the right: the thin dashed white arrow is the full pull $+Z$ the nucleus would give if nothing blocked it — but it is blocked; the short solid amber arrow is the leftover pull that actually reaches the outer electron, labelled $(Z-\sigma )$. The amber arrow is deliberately shorter than the white one — that shortening is the screening. So $(Z-\sigma )$ is always a bit less than $Z$.

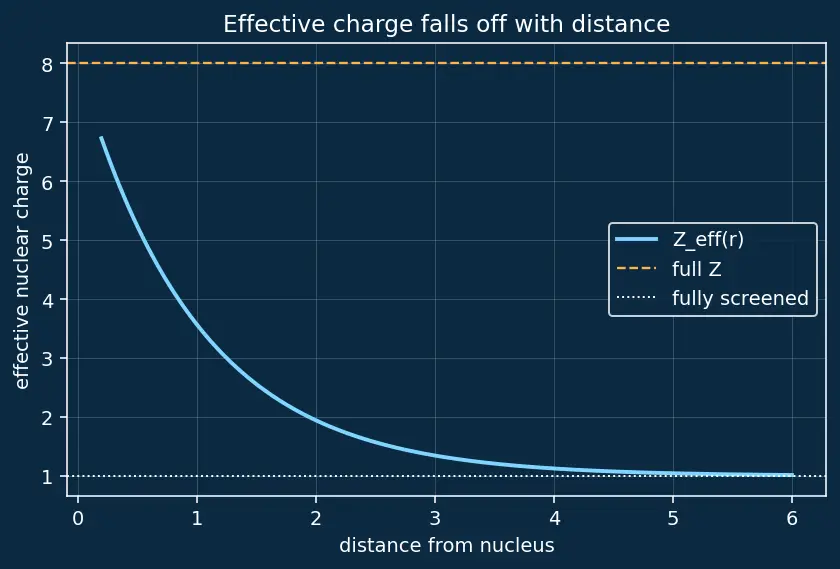

We define $\sigma$ here, before the Bohr formula in Section 8, because that formula uses it. The physics of this lives in Effective Nuclear Charge and Shielding.

8. Where $h\nu \propto (Z-\sigma {)}^2$ comes from — a Bohr sketch

Putting the pieces together (the WHY of Moseley's formula):

1. A photon's energy is $E=h\nu$ — from Section 5.
2. That photon's energy is the Bohr level-gap, which scales as (nuclear charge)${}^2$ — from the box above.
3. But an inner electron doesn't feel the full charge $Z$; the inner electrons screen it, so the felt charge is $(Z-\sigma )$ — from Section 7, already defined.

Chaining these three facts (using $\propto$ from Section 6): $h\nu \propto (Z-\sigma {)}^2.$

Why this step? Each link is already earned — $E=h\nu$ (Section 5), the $Z^2$ Bohr scaling (this section), and the screened charge $(Z-\sigma )$ (Section 7). The formula is not a rule to memorise; it is the product of three pictures.

9. The square and the square root — $x^2$ and  ​

Here $(Z-\sigma )$ is a positive quantity (the felt charge is positive), so we are safely in the $x\ge 0$ case and $\sqrt{(Z-\sigma {)}^2}=(Z-\sigma )$ with no sign worry.

Why does the topic need this? The relation $h\nu \propto (Z-\sigma {)}^2$ has a square on the right, but Moseley measured $\nu$, not ${\nu }^2$. The square root is chosen on purpose because it is the one tool that un-squares the square. Let us do the algebra without skipping a line.

Step A — turn $\propto$ into $=$ with a constant. Replacing $\propto$ by an equals sign and a constant $k$ (Section 6): $h\nu =k(Z-\sigma {)}^2.$

Step B — take  ​ of both sides. The square root of a product splits: $\sqrt{h\nu }=\sqrt{h}\sqrt{\nu }$, and $\sqrt{k(Z-\sigma {)}^2}=\sqrt{k}(Z-\sigma )$ since $(Z-\sigma )\ge 0$: $\sqrt{h}\sqrt{\nu }=\sqrt{k}(Z-\sigma ).$

Step C — isolate the measured quantity $\sqrt{\nu }$. Divide by $\sqrt{h}$: $\sqrt{\nu }=\frac{\sqrt{k}}{\sqrt{h}}(Z-\sigma ).$

Step D — bundle every fixed number into one letter $a$. Both $\sqrt{k}$ and $\sqrt{h}$ are constants, so their ratio is a single constant we name $a$: $\boxed{\sqrt{\nu }=a(Z-\sigma )}$

Why isolate $\sqrt{\nu }$? Because $\sqrt{\nu }$ is what the experiment can plot on an axis. Written this way, $\sqrt{\nu }$ against $Z$ is a straight line — the shape that proved $Z$ is the true ordering number.

10. The constants $a$ and $b$ — the slope and the screen

11. "Periodic function" — the repeating pattern

Read the graph left to right. The horizontal axis is $Z$, marching $1,2,3,\dots$; the vertical axis is some property (here a stand-in for reactivity). Follow the cyan curve: it climbs, dips, climbs, dips — the same hump shape re-appears again and again. The amber dots mark the bottoms of the dips at $Z=2,10,18$, where a noble-gas-type element returns, and the amber arrow labels one of them. That repetition, keyed to $Z$, is exactly what "periodic function of atomic number" means, and it is the beating heart of Periodic Trends.

How these feed the topic

Read this map as a story from top to bottom. The atom splits into two counts: its protons (giving $Z$) and its neutrons (which, added to protons, give mass). $Z$ flows straight into the Modern Periodic Law; mass also flows in but is marked as the fuzzy ruler that caused anomalies. On the right branch, X-ray frequency $\nu$ feeds $E=h\nu$, which — together with the Bohr $Z^2$ energy, the square-root move, proportionality, the constants $a,b$, and screening $\sigma$ — assembles Moseley's experiment, and Moseley's straight line is what proves $Z$ is fundamental. Finally the periodic-function idea joins $Z$ to complete the law.
