Combustion stoichiometry — fuel + O₂ → CO₂ + H₂O: Visual walkthrough

We are chasing one single result, the balanced reaction of a general fuel:

$C_{x} H_{y} O_{z} + a O_{2} ⟶ b CO_{2} + c H_{2} O$

Before we touch a single letter, let us agree on what these letters even mean.

Step 1 — Draw the fuel and name the counts

WHAT: We give the atom-counts names $x$ , $y$ , $z$ so we can talk about any fuel at once instead of redoing the work for every molecule.

WHY: If we solved only for methane we'd have to start over for ethanol, octane, glucose… Naming the counts once lets one drawing stand for all fuels.

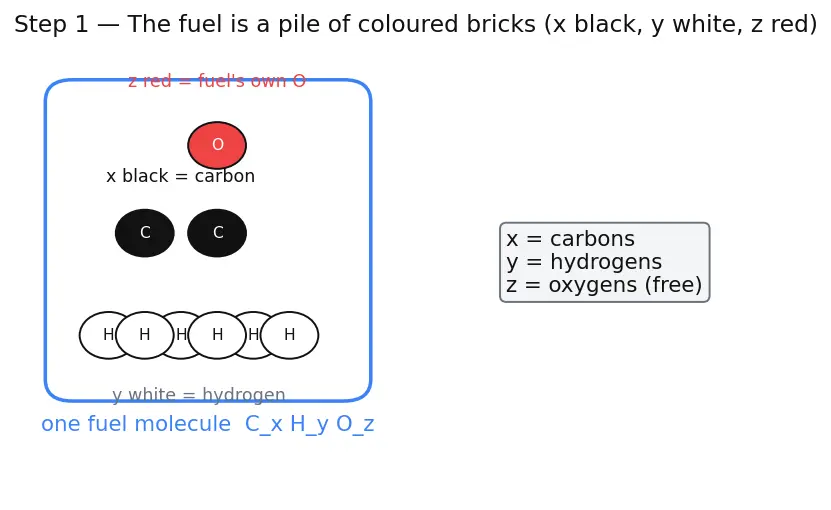

PICTURE: In the figure, one fuel molecule is drawn as a cluster of coloured bricks. Count them: $x$ black, $y$ white, $z$ red. That is the entire input on the left side of the arrow.

Figure — Combustion stoichiometry — fuel + O₂ → CO₂ + H₂O

Recall What do x, y, z count?

They count carbon, hydrogen, and the fuel's own oxygen atoms, in one molecule of fuel. x is carbons ::: black bricks, become CO₂ z is the oxygen the fuel already carries ::: it will earn us a discount later

Step 2 — The one law that forces everything: no brick is lost

WHAT: We commit to a single accounting rule: for each colour separately, count on the left = count on the right.

WHY: This is the only physics in the whole derivation. Balancing is nothing but obeying this rule three times — once per colour.

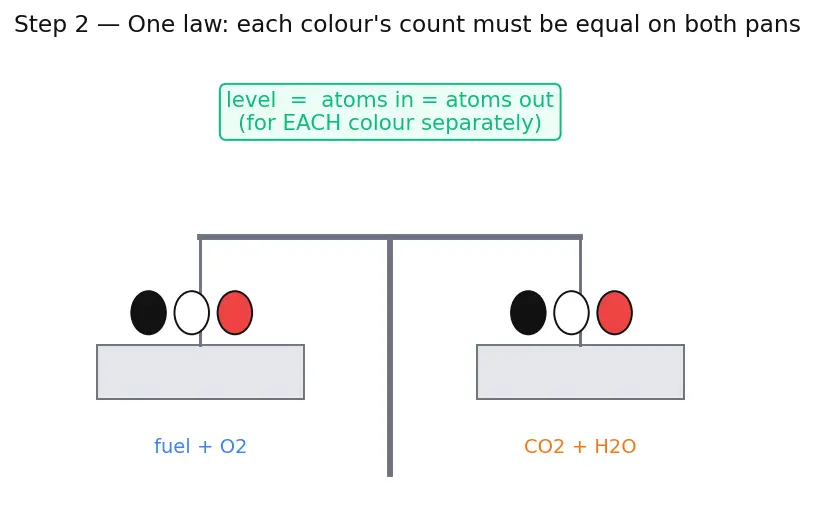

PICTURE: The figure shows a balance-scale. Left pan: the fuel + some O₂. Right pan: CO₂ + H₂O. The scale sits level only when each colour's brick-count matches across the pans. Tilt = broken chemistry.

Step 3 — Carbon balance fixes $b$

WHAT: Count black bricks. There are $x$ on the left. Each product $CO_{2}$ carries one black brick, and we make $b$ of them, so the right side holds $b$ black bricks.

$black bricks in fuel x = number of CO_{2} molecules b \Rightarrow b = x$

$x$ — carbons we started with.
$b$ — number of $CO_{2}$ pieces we must build; since each takes one carbon, we need exactly $x$ of them.

WHY carbon first? It has only one destination ( $CO_{2}$ ), so its count is forced immediately, with no guessing.

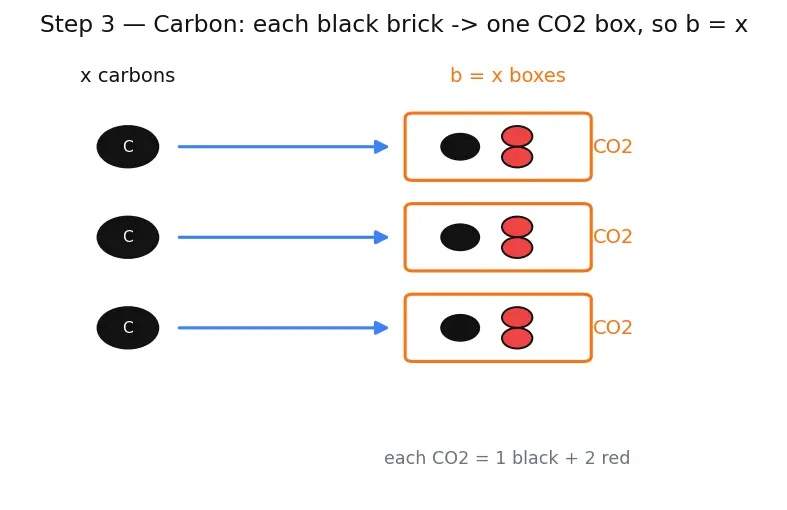

PICTURE: Arrows carry every black brick straight into its own $CO_{2}$ box. Count the boxes — that's $b = x$ .

Step 4 — Hydrogen balance fixes $c$

WHAT: Count white bricks: $y$ on the left. Each $H_{2} O$ eats two whites, and we make $c$ of them, so the right side holds $2 c$ whites.

$white bricks y = 2 per water \times c waters 2 c \Rightarrow c = \frac{y}{2}$

$y$ — hydrogens we started with.
The little $2$ — because one water molecule always swallows a pair of H atoms.
$c = y /2$ — half as many water molecules as we had hydrogens.

WHY the divide-by-2? This is the single most-forgotten point: water pairs hydrogens up, so the number of waters is half the number of hydrogens.

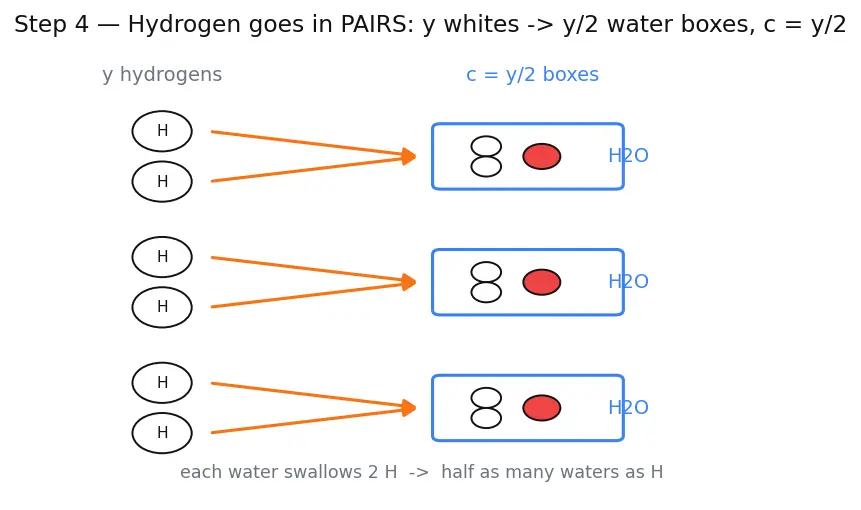

PICTURE: White bricks march in pairs into each water box. If $y$ is odd you'd get a half-box — a hint that we'll clear fractions later (Step 7).

Step 5 — Oxygen balance fixes $a$ (do this LAST)

Now the products are completely pinned: $b = x$ boxes of $CO_{2}$ and $c = y /2$ boxes of $H_{2} O$ . Only the oxygen supply $a$ is still unknown — so we solve it now.

WHAT: Count red bricks. The right side needs:

$2 b$ reds for the $CO_{2}$ (each $CO_{2}$ has 2 O), and
$c$ reds for the water (each $H_{2} O$ has 1 O).

The left side supplies reds from two sources: the fuel donates its own $z$ , and $O_{2}$ donates $2 a$ (each $O_{2}$ molecule = 2 O atoms).

$from a molecules of O_{2} 2 a + fuel’s own O z = O in all CO_{2} 2 b + O in all H_{2} O c$

PICTURE: Red bricks pour in from two taps on the left (fuel + O₂) and fill two sinks on the right (CO₂ + H₂O). The equation is just "reds in = reds out".

Step 6 — Solve for $a$ and read the meaning of every term

WHAT: Substitute the now-known $b = x$ and $c = y /2$ into the oxygen balance and isolate $a$ .

$2 a + z = 2 x + \frac{y}{2}$ $2 a = 2 x + \frac{y}{2} - z$ $a = x + \frac{y}{4} - \frac{z}{2}$

Now decode the three pieces right where they sit:

$x$ — one $O_{2}$ per carbon, because building each $CO_{2}$ needs 2 O = 1 whole $O_{2}$ .
$+ \frac{y}{4}$ — hydrogen's share. We had $y /2$ waters, each needing 1 O, so $y /2$ oxygen atoms = $y /4$ oxygen molecules. (Divide by 2 twice: H→water, then O→O₂.)
$- \frac{z}{2}$ — the discount. The fuel already carried $z$ oxygen atoms; that's $z /2$ molecules of $O_{2}$ we don't have to bring.

WHY it looks like this: every term is a translation from atoms to $O_{2}$ molecules (hence the halving), and the minus sign is nothing scarier than "credit for what you already own."

PICTURE: A stacked bar: a blue block of height $x$ , an orange block of height $y /4$ , then a green downward block of height $z /2$ carved out — the net height is $a$ .

Step 7 — Edge case: fractions and the "clear-the-halves" fix

WHAT — worked case, octane $C_{8} H_{18}$ ( $x = 8, y = 18, z = 0$ ):

$b = 8$ , $c = 18/2 = 9$ .
$a = 8 + \frac{18}{4} - 0 = 8 + 4.5 = 12.5 = \frac{25}{2}$ .

$C_{8} H_{18} + \frac{25}{2} O_{2} \to 8 CO_{2} + 9 H_{2} O$

WHY scale? To get whole molecules, multiply every coefficient by 2:

$2 C_{8} H_{18} + 25 O_{2} \to 16 CO_{2} + 18 H_{2} O$

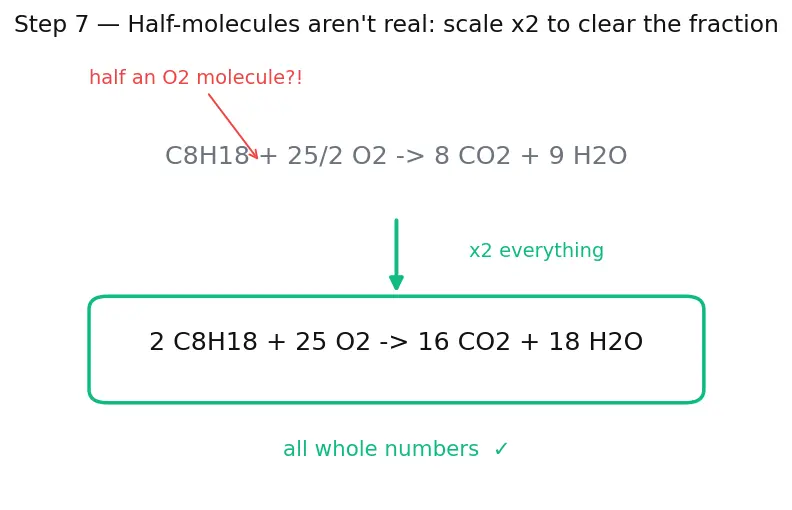

PICTURE: Two identical octane molecules side by side; now the odd oxygen pairs up neatly and nothing is left as a fraction. See Balancing Chemical Equations for the general scaling trick.

Step 8 — Degenerate cases: does the formula survive the extremes?

Case A — no fuel oxygen ( $z = 0$ , all hydrocarbons). The discount term vanishes: $a = x + y /4$ . Methane: $a = 1 + 4/4 = 2$ . ✓ (Mole Concept and Molar Mass then turns that 2 into 64 g of $O_{2}$ per 16 g $CH_{4}$ .)

Case B — pure carbon ( $y = 0, z = 0$ ). Then $a = x$ , $c = 0$ : $C + O_{2} \to CO_{2}$ . No water at all, because there is no hydrogen. ✓

Case C — oxygen-heavy fuel, glucose $C_{6} H_{12} O_{6}$ ( $x = 6, y = 12, z = 6$ ). The discount bites hard: $a = 6 + \frac{12}{4} - \frac{6}{2} = 6 + 3 - 3 = 6.$ $C_{6} H_{12} O_{6} + 6 O_{2} \to 6 CO_{2} + 6 H_{2} O$ Six carbons but only six $O_{2}$ — because glucose already brought six oxygen atoms of its own.

Boundary check — could $a$ go negative? Only if $z > 4 x + y$ , i.e. a fuel so oxygen-rich it releases oxygen. Ordinary fuels never reach this, so $a \geq 0$ always. Below that line we'd be dealing with Limiting Reagent and incomplete combustion, not this formula.

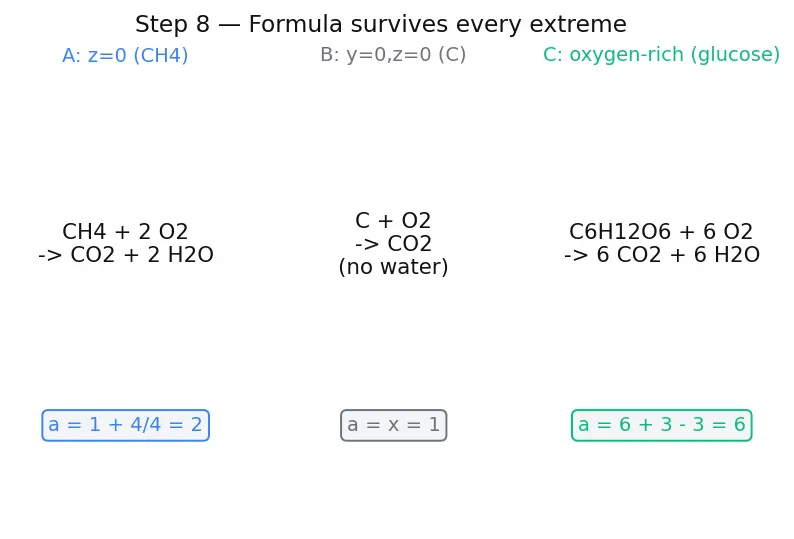

PICTURE: Three mini-panels — hydrocarbon (no discount), pure carbon (no water), glucose (big discount) — each showing the same machinery giving a sensible answer.

The one-picture summary

Everything above collapses into a single flow: three colours, three balances, one oxygen credit. The blue path counts carbon into $CO_{2}$ , the orange path pairs hydrogen into water, and the green path settles oxygen last — adding what carbon and hydrogen demand, then subtracting the fuel's own oxygen.

Recall Feynman retelling of the whole walkthrough

Picture a pile of LEGO bricks that is your fuel: some black (carbon), some white (hydrogen), maybe a few red (oxygen) already stuck on. Fire brings extra red bricks from a tank labelled $O_{2}$ , where they always come glued in pairs.

Now play by one iron rule: no brick vanishes. So I sort the pile by colour. Black first — each black brick grabs two reds and becomes a $CO_{2}$ box; if I had $x$ blacks I get $x$ boxes. Easy, because black has only one home. White next — whites are shy and always go in pairs; every pair grabs one red and becomes a water box, so $y$ whites give $y /2$ boxes. Red last — now I just add up all the reds the boxes need ( $2$ per $CO_{2}$ , $1$ per water), subtract the reds the fuel already brought, and divide by two because the tank hands them out in pairs. That's my $O_{2}$ amount: $x + y /4 - z /2$ .

The $x$ is "one air-molecule per carbon," the $y /4$ is "hydrogen's smaller share," and the minus- $z /2$ is a refund for the oxygen the fuel packed in its own suitcase. If the arithmetic hands me a half, I just build two fuel molecules at once and the halves disappear. Count carefully, and fire becomes pure bookkeeping.

Connections

Law of Conservation of Mass — the single rule powering every balance in Steps 2–6.
Balancing Chemical Equations — the fraction-clearing of Step 7 is the general method.
Mole Concept and Molar Mass — turns the coefficients into grams (Step 8, Case A).
Limiting Reagent — what happens past the boundary where $O_{2}$ runs short.
Oxidation States — why C ending as $CO_{2}$ is "fully oxidized."
Enthalpy of Combustion — the energy freed once the bricks resettle.
