Acid-base reactions — neutralization, salt formation: Visual walkthrough

We are answering ONE question: "How much base exactly cancels this much acid?" Everything below is the story of that word exactly.

Step 1 — What is actually inside the beaker?

WHAT. Before any formula, look at the liquid itself. An acid dissolved in water is not full of neat "HCl molecules" floating around — it has split into loose charged pieces. The piece that matters is the == $H^{+}$ ==, a hydrogen atom that lost its one electron, so it is just a bare positive charge looking for company.

WHY. We must count the reacting particles, not the bottles they came in. The reaction happens between individual $H^{+}$ and $O H^{-}$ pieces, so those are what we draw.

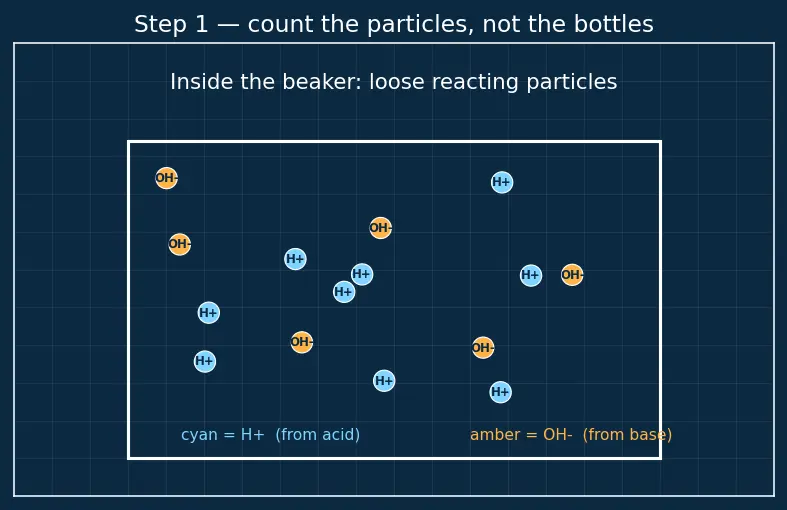

PICTURE. Figure s01 — a beaker holding a scatter of cyan $H^{+}$ dots and amber $O H^{-}$ dots. Cyan dots are $H^{+}$ (from acid), amber dots are $O H^{-}$ (from base). Notice: same-coloured dots don't react with each other — only cyan-with-amber does.

Figure — Acid-base reactions — neutralization, salt formation

Step 2 — "Exactly cancelled" means the dots MATCH

WHAT. The reaction is $H^{+} + O H^{-} \to H_{2} O$ (from Brønsted-Lowry conjugate acid-base pairs this is one proton hopping to one hydroxide). Because it is one-to-one, the beaker is neutral at the instant: $cyan dots (number of H^{+}) = amber dots (number of O H^{-})$

WHY. If cyan dots ( $H^{+}$ ) are left over, the liquid is still acidic; if amber dots ( $O H^{-}$ ) are left over, it is basic. Only when the tally is equal has every proton found a partner. This is the whole target condition, before any $M$ or $V$ shows up.

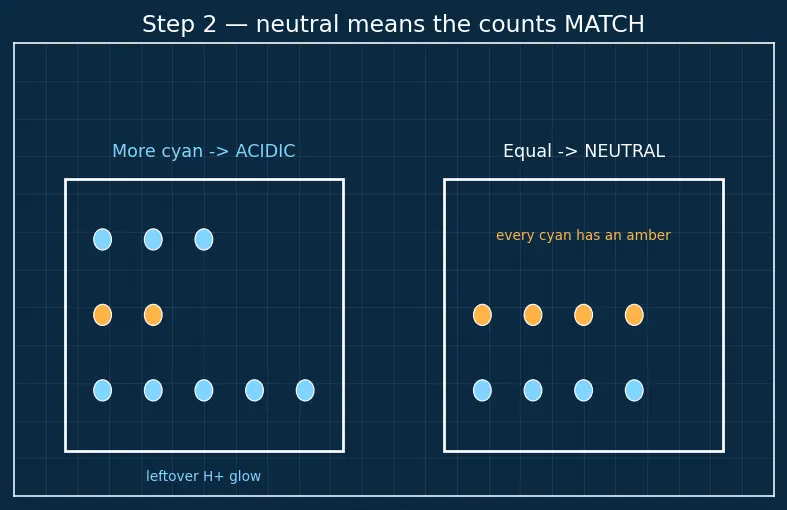

PICTURE. Figure s02 — two trays side by side: an acidic tray with leftover cyan $H^{+}$ glowing, and a neutral tray where every cyan pairs with an amber $O H^{-}$ . Left tray: more cyan than amber → acidic, leftover cyan glows. Right tray: perfectly matched → neutral, no leftovers.

So the true law is: count of $H^{+}$ = count of $O H^{-}$ . Now we just need a way to count particles we cannot see. That is Steps 3–5.

Step 3 — Counting particles with a bucket: MOLES

WHAT. We can't count $1 0^{23}$ dots by hand, so chemists count in moles. One mole is just "a fixed huge number of particles" ( $6.02 \times 1 0^{23}$ ), the way "a dozen" means 12. So instead of number of $H^{+}$ , we say moles of $H^{+}$ .

WHY. Multiplying both sides of the matching rule by the same bucket size $6.02 \times 1 0^{23}$ changes nothing: $count H^{+} = count O H^{-} ⟺ moles H^{+} = moles O H^{-}$ The rule survives translation into mole-language. That is why the whole formula will be written in moles.

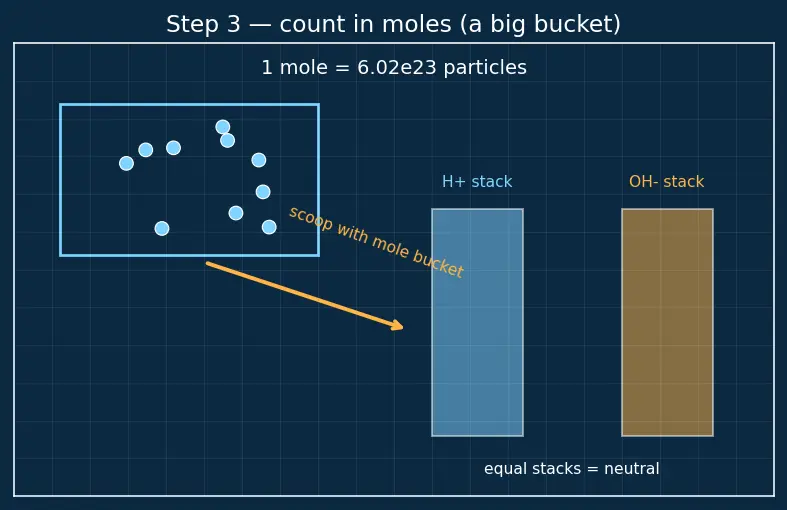

PICTURE. Figure s03 — a giant "1 mole = 6.02e23" bucket scooping loose dots into two equal stacks, one cyan ( $H^{+}$ ) and one amber ( $O H^{-}$ ). Two equal stacks = neutral.

Step 4 — How many moles in a measured volume? $M \times V$

WHAT. We measure liquid by volume $V$ , and it must be in litres (L), and by concentration, the molarity $M$ in moles per litre ( $mol L^{- 1}$ ). See Molarity and solution stoichiometry. Multiply them: $mol L^{- 1} M \times L V = moles$ The litre unit in $M$ (per litre) cancels the litre unit in $V$ , leaving pure moles — exactly the counter Step 3 needs. Units matter: if you measure $V$ in millilitres you must first convert to litres ( $1 mL = 0.001 L$ ), otherwise the litres do not cancel and the count is wrong by a factor of 1000.

WHY. $M$ tells you how crowded the liquid is; $V$ tells you how much of it you poured. Crowdedness times amount = total particles. This is the ONLY tool that turns a beaker reading into a particle count, which is why we use it here and not, say, mass or temperature.

PICTURE. Figure s04 — a tall thin column (small $V$ , high $M$ ) and a short fat column (large $V$ , low $M$ ) holding the SAME number of dots, showing $M \times V$ is what counts.

Step 5 — The hidden multiplier: how many $H^{+}$ per molecule ( $n$ )

WHAT. Here is the twist that trips people. One molecule of acid may carry more than one giveable proton. $H C l$ gives 1. $H_{2} S O_{4}$ gives 2. Call this number == $n_{a}$ == (acid) and, symmetrically, $n_{b}$ = how many $O H^{-}$ each base unit gives. So: $moles of H^{+} = n_{a} \times M_{a} \times V_{a}$ $moles of O H^{-} = n_{b} \times M_{b} \times V_{b}$ Each symbol earns its keep: $n_{a}$ = protons per molecule, $M_{a}$ = acid crowding, $V_{a}$ = acid amount (in litres).

WHY. $M_{a} V_{a}$ counts molecules of acid, but the reaction eats protons. If each molecule hands over 2 protons, you have twice as many reacting particles as molecules — so you must multiply by $n_{a}$ . Forgetting this is the parent note's "the $n$ factor bites" mistake.

PICTURE. Figure s05 — one $H C l$ box releasing 1 cyan $H^{+}$ dot, and one $H_{2} S O_{4}$ box releasing 2 cyan $H^{+}$ dots: same boxes, double the ammunition.

Step 6 — Snap the pieces together

WHAT. Substitute Step 5's two expressions into Step 3's matching rule (moles $H^{+}$ = moles $O H^{-}$ ): $protons each n_{a} crowd M_{a} amount V_{a} = hydroxides each n_{b} crowd M_{b} amount V_{b}$

WHY. The left side is the true count of protons supplied; the right side is the true count of hydroxides supplied; Step 2 said neutral = these are equal. Done — this is the parent's master formula, now earned rather than quoted.

PICTURE. Figure s06 — a level balance: left pan stacked with $n_{a} M_{a} V_{a}$ cyan chips, right pan with $n_{b} M_{b} V_{b}$ amber chips, the beam perfectly horizontal at the neutral point.

Step 7 — Edge & degenerate cases (never get ambushed)

WHAT & WHY — walk every scenario:

Case	What happens	Why
$n_{a} = n_{b} = 1$ (HCl+NaOH)	formula collapses to $M_{a} V_{a} = M_{b} V_{b}$	one proton, one hydroxide each
$n_{a} = 2$ (H₂SO₄)	need double the base moles	each molecule fires 2 protons
$V_{b} = 0$ (no base added)	left pan overloaded → acidic	nothing to cancel the $H^{+}$
$V_{a} = 0$ (no acid added)	right pan overloaded → basic	nothing to cancel the $O H^{-}$
$M_{a} = 0$ (pure water as "acid")	left side = 0, any base makes it basic	no protons to donate
$M_{b} = 0$ (pure water as "base")	right side = 0, any acid makes it acidic	no hydroxide to accept protons
weak acid salt formed	pH ≠ 7 after matching	leftover ion reacts with water — see Salt hydrolysis

Notice the top-to-bottom symmetry: $V_{b} = 0$ mirrors $V_{a} = 0$ , and $M_{a} = 0$ mirrors $M_{b} = 0$ . Removing the acid side leaves excess base (basic); removing the base side leaves excess acid (acidic). The formula stays true — one side just goes to zero.

The subtle degenerate case: the formula tells you when the dots match, not that pH = 7. If either parent was weak, the salt reacts with water afterwards (Example 4 of the parent). The matching point (called the equivalence point, see Titration and indicators) can sit at a pH that is basic or acidic — the pH and pOH scale still moves even though the counts were equal.

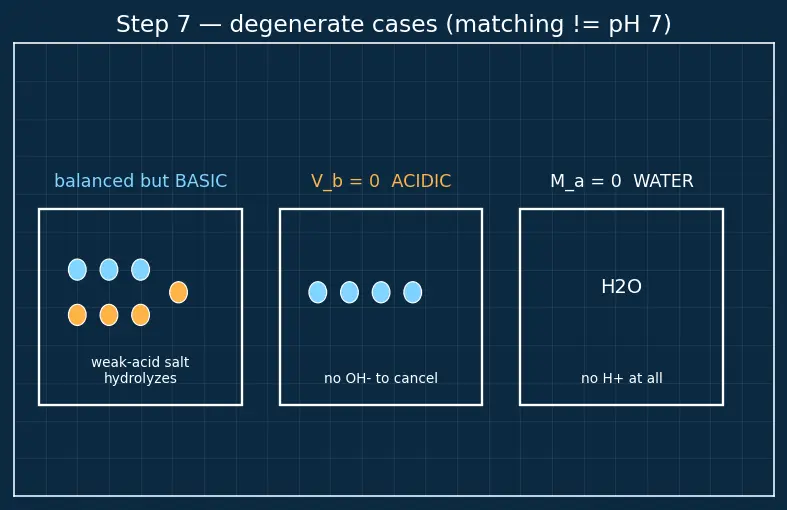

PICTURE. Figure s07 — three mini-panels: (a) pans balanced yet the liquid glows basic (weak-acid salt), (b) empty base pan → acidic, (c) both pans empty → just water.

The one-picture summary

The whole derivation on a single blueprint: measured beaker → $M \times V$ gives moles → $\times n$ gives protons/hydroxides → set equal at the level balance.

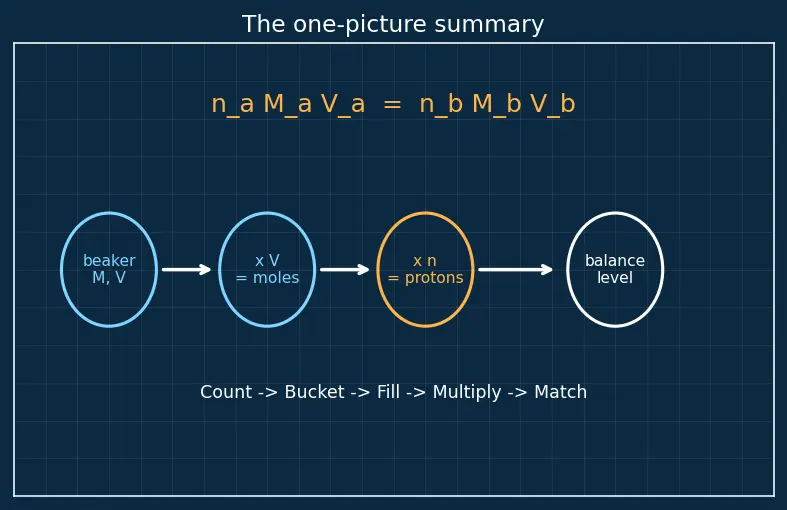

PICTURE. Figure s08 — four linked stages (beaker with $M, V$ → times $V$ gives moles → times $n$ gives protons → level balance), capped by the assembled formula $n_{a} M_{a} V_{a} = n_{b} M_{b} V_{b}$ .

Recall Feynman retelling (say it to a friend)

Imagine acid as a crowd of kids each holding balloons ( $H^{+}$ ) and base as kids with empty hands ( $O H^{-}$ ). The beaker is "cancelled" the moment there are exactly as many balloons as empty hands — that's Step 2. But I can't count kids one by one, so I count them in big buckets called moles (Step 3). To know how many kids are in a cup of liquid, I multiply how crowded it is ( $M$ ) by how much I poured ( $V$ , in litres) — that's Step 4. Sneaky part: some kids hold two balloons ( $H_{2} S O_{4}$ ), so I multiply by how many balloons each holds, $n$ (Step 5). Setting "total balloons = total empty hands" gives $n_{a} M_{a} V_{a} = n_{b} M_{b} V_{b}$ (Step 6). Last warning: even when balloons and hands match perfectly, the leftover salt kids might still whisper to the water and make it slightly grumpy (acidic) or calm (basic) — matching counts is not the same as pH 7 (Step 7).
