Before you can read a single line of the parent note, you must own every symbol it throws at you. This page builds them one at a time — no symbol appears in a formula until you have seen it drawn.
Why we need this: every acid-base story is really a story about where the tiny charged pieces go. If you cannot see charge, you cannot see why a proton jumps.
Look at the red particle in the figure: strip the electron off a hydrogen atom and all that remains is a bare positive core. That bare core is what the whole chapter calls a proton, written H+.
Why we need this: the parent note writes 2KOH and K2SO4. You must instantly tell that 2KOH means "two whole KOH units" but K2SO4 means "one unit that happens to contain two K atoms."
The red arrow in the figure shows the split: one intact particle enters water, two free charged particles come out. "Strong" acids and bases split completely — every single molecule breaks apart.
Why we need this: the net ionic equation H(aq)++OH(aq)−→H2O(l) only makes sense once you know (aq) means "free-floating ion" and (l) means "now locked into liquid water."

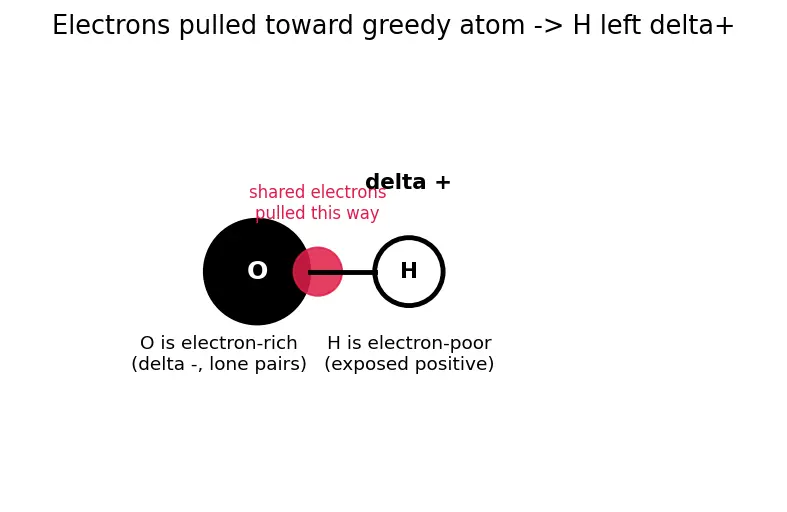

In the figure, the electron cloud (red) is pulled toward the greedy atom, leaving H exposed and δ+. A base, by contrast, carries a lone pair — a dense pocket of negative electrons with nothing attached.
Why we need this: the parent note claims "electron-rich attracts electron-poor → proton transfer." That sentence is empty unless you can picture δ+ and a lone pair.
Why we need this: the entire titration formula naMaVa=nbMbVb is just "count the protons on each side and set them equal." Every letter in it is M, V, or the counting factor n below.
Why we need this: the parent uses this fixed number as proof that only the proton-hydroxide pairing is really happening. See Enthalpy of reaction for the full treatment.
