Foundations — Limiting reagent problems

Before you can solve a single limiting-reagent problem, you must be able to read every symbol the parent note throws at you without flinching. This page builds each one from absolute zero — plain words first, then the picture, then why the topic cannot live without it. Read top to bottom; each block leans on the one above.

1. The atom and the molecule — the countable "thing"

Everything downstream depends on one fact: you can count these particles. A reaction is not a smooth blending of goo — it is a swap of discrete pieces, like Lego bricks snapping apart and reconnecting.

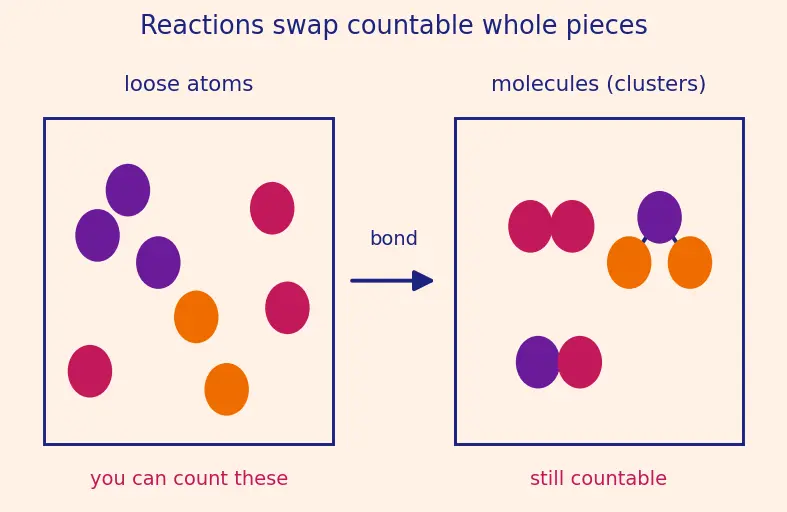

Look at the figure. The left box shows loose atoms; the right box shows them snapped into molecules. Because they are countable whole pieces, we will always end up asking "how many pieces do I have?" — never "how much continuous stuff." This is the seed of the entire limiting-reagent idea.

2. The chemical formula and the subscript

Read $N{H}_3$ as: one nitrogen atom ($N$) glued to three hydrogen atoms ($H_3$). Read $N_2$ as: two nitrogen atoms bonded into one molecule.

3. The coefficient ${\nu }_i$ — the recipe number

In $N_2+3H_2\to 2N{H}_3$:

• ${\nu }_{N_2}=1$ (an unwritten $1$ is always assumed),
• ${\nu }_{H_2}=3$,
• ${\nu }_{N{H}_3}=2$.

Why does the topic need this symbol? Because the coefficient is the exact demand ratio of the recipe. Later, the winning formula $R_i=n_i/{\nu }_i$ divides by this number — you literally cannot find the limiting reagent without it. That is why the parent's Step 1 is always "balance the equation": balancing is what produces these ${\nu }_i$ values. (See Balancing chemical equations.)

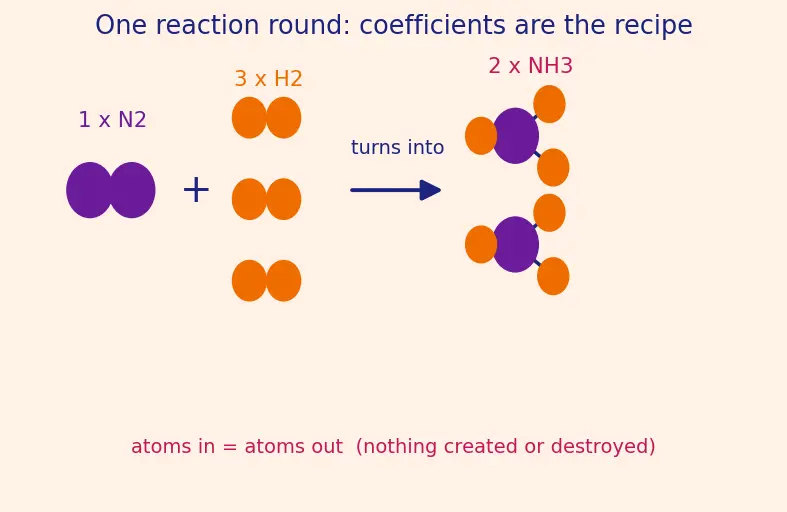

In the figure, one "reaction round" is drawn as a boxed recipe: 1 nitrogen molecule + 3 hydrogen molecules go in, 2 ammonia molecules come out. Count the atoms on each side — same number of N, same number of H. That conservation is why the coefficients are fixed and non-negotiable.

4. Mass $m$ and molar mass $M$

Think of $M$ as a conversion price tag: "$28$ grams buys you exactly one mole of $N_2$." Different substances have different tags because their molecules have different weights.

5. The mole $n$ — the currency of reactions

We get $n$ from mass with one small formula:

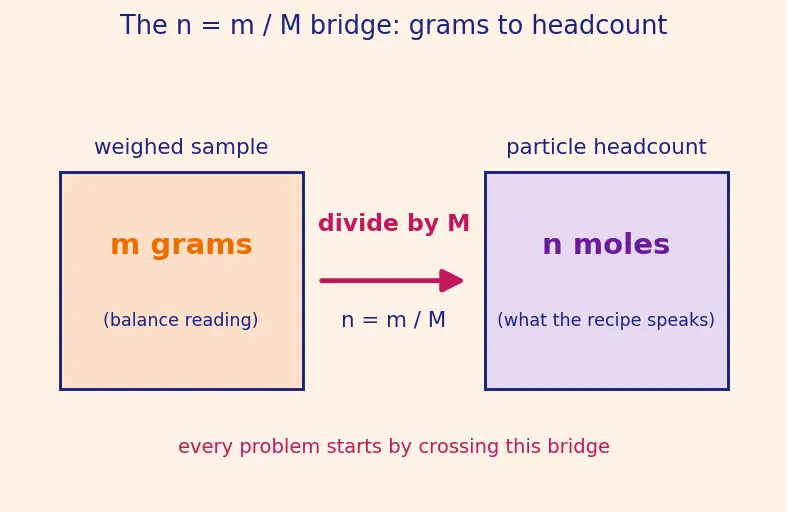

The figure is a two-pan picture. Left pan: your weighed sample in grams. The arrow labelled "÷ M" carries you to the right pan: the same stuff counted in moles. Every limiting-reagent problem starts by walking left-to-right across this arrow, because the recipe only speaks "moles." (Deep background in Mole concept and Avogadro number.)

6. The ratio $R_i$ — "how many full recipes can I fund?"

7. Yield symbols — theoretical, actual, percent

Now we close the last gap: how many product molecules does $R_{\min }$ actually make, and what does that weigh? Each reaction round produces ${\nu }_{\text{prod}}$ product molecules, and we run $R_{\min }$ rounds, so:

8. The arrow $\to$ and the plus $+$

Tiny symbols, but you must read them in the right direction: limiting-reagent logic always flows left to right (reactants decide products), never backwards.

Prerequisite map

Equipment checklist

Test yourself — cover the right side. If any answer is fuzzy, re-read that section before touching the parent note (Limiting reagent problems).
