Writing and balancing chemical equations: Visual walkthrough

We build from zero. No prior chemistry symbols are assumed except the plain idea that stuff is made of atoms.

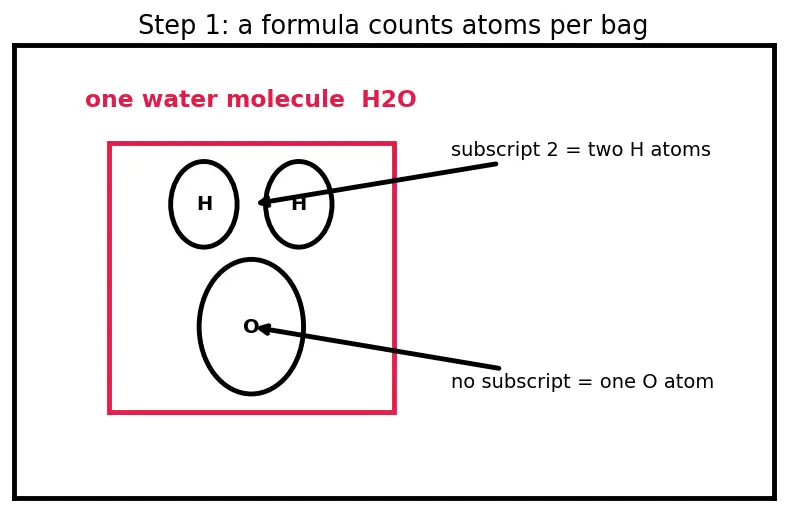

Step 1 — What a chemical formula actually counts

WHAT. A formula like $H_{2} O$ is a shorthand for "a little clump containing 2 hydrogen atoms and 1 oxygen atom." The small number just below-right of a letter — the subscript — tells you how many of that atom sit inside one clump. No subscript means "just 1."

WHY. Before we can balance anything, we must agree on how to read a count off a symbol. If we misread the count, every later step is wrong. So we lock this down first.

PICTURE. In the figure, the red clump is one molecule of water. Count the circles inside: two small ones (H) and one large one (O). That is what " $H_{2} O$ " means — a bag with a fixed number of marbles.

Figure — Writing and balancing chemical equations

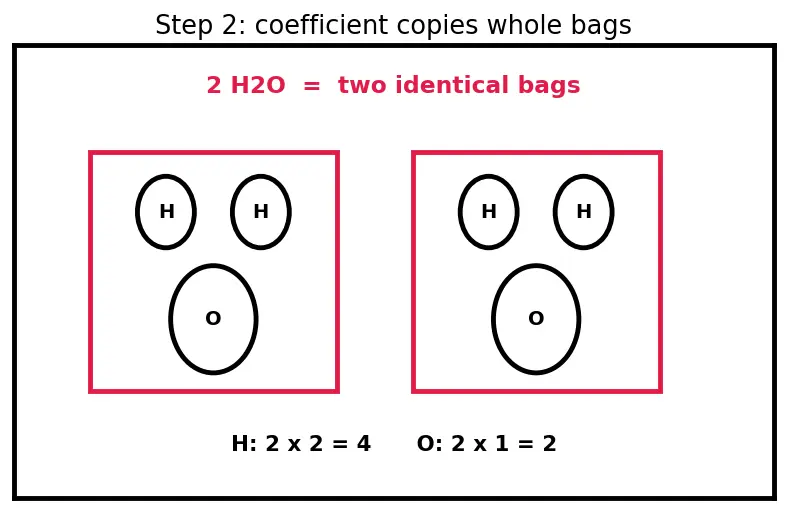

Step 2 — What a coefficient does: cloning whole clumps

WHAT. The big number written in front of a formula — the coefficient — means "take this many copies of the whole clump." So $2 H_{2} O$ = two separate water molecules.

WHY. We need a second, different number: one that multiplies the entire molecule without touching what's inside it. This is the ONLY dial we are allowed to turn while balancing. (Turning the subscript dial would swap water for a different chemical — forbidden. This is the classic trap in the parent note.)

PICTURE. Two identical red bags side by side. Each bag still has 2 H + 1 O inside — we never opened a bag. Total atoms now: $2 \times 2 = 4$ hydrogen, $2 \times 1 = 2$ oxygen.

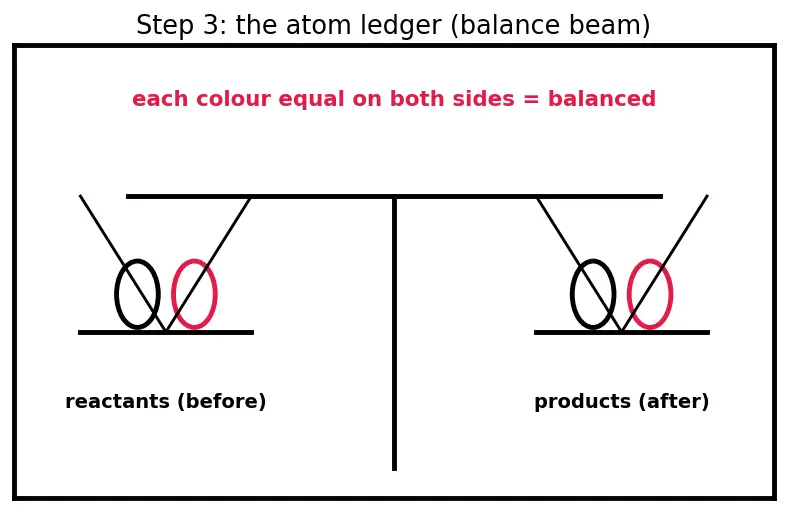

Step 3 — The ledger: atoms in must equal atoms out

WHAT. An equation has a left side (reactants, the "before") and a right side (products, the "after"), joined by an arrow $\to$ read "becomes." Balancing means: for every element, total atoms on the left = total atoms on the right.

WHY. Because atoms are never made or destroyed in a reaction — this is the Law of Conservation of Mass. The reaction only rearranges which atoms are bonded to which. So the count of each kind of atom cannot change; only its grouping can.

PICTURE. Two trays on a balance. Left tray: loose atoms of the reactants. Right tray: the same atoms re-clumped as products. The beam sits level only when each colour of marble is equal in number on both trays. Colour by colour — that is the whole game.

Step 4 — Set up the target: methane's skeleton

WHAT. Our worked example is burning methane in oxygen: $C H_{4} + O_{2} \to C O_{2} + H_{2} O (skeleton — not yet balanced)$

WHY. We start with the correct identities (right formulas) and blank coefficients, because the recipe says: get the substances right first, then adjust only the front numbers. Combustion is the classic case where H and O both appear, so it shows every subtlety.

PICTURE. Read each formula as a bag: $C H_{4}$ = 1 carbon + 4 hydrogen; $O_{2}$ = 2 oxygen; $C O_{2}$ = 1 carbon + 2 oxygen; $H_{2} O$ = 2 hydrogen + 1 oxygen. The tally strip under the figure shows the raw counts before any balancing — notice the two sides disagree (that's the red mismatch).

Raw counts (all coefficients $= 1$ ): Left C=1, H=4, O=2. Right C=1, H=2, O=3. C matches; H and O don't.

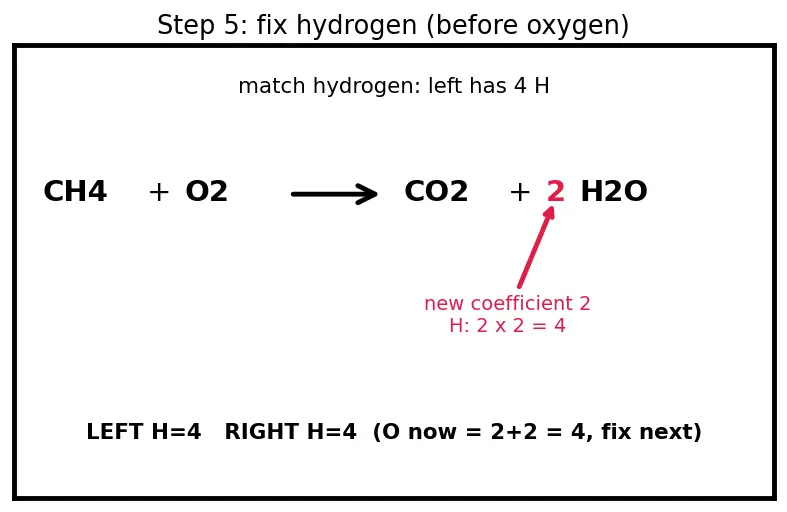

Step 5 — Fix hydrogen (non-metal before O)

WHAT. Left side has $4$ H (inside $C H_{4}$ ). Right side has $2$ H (inside one $H_{2} O$ ). Put a coefficient $2$ in front of water: $C H_{4} + O_{2} \to C O_{2} + 2 H_{2} O$

WHY. The recipe order is Metals → Non-metals → H → O last. There are no metals here, carbon already balances, so hydrogen is next. We save oxygen for last because oxygen appears in two product molecules ( $C O_{2}$ and $H_{2} O$ ) — it is the "slack" we adjust once everything else is fixed.

PICTURE. We cloned the water bag into two bags. Hydrogen on the right: $coeff 2 \times subscript 2 = 4$ — now equal to the $4$ on the left. Watch: cloning water also changed the oxygen count on the right, which is exactly why oxygen comes last.

After this step: Left C=1, H=4, O=2. Right C=1, H=4, O = $2$ (from $C O_{2}$ ) $+ 2$ (from $2 H_{2} O$ ) $= 4$ . Only oxygen left to fix.

Step 6 — Fix oxygen last

WHAT. The product side now needs $4$ oxygen atoms total. Each $O_{2}$ bag carries $2$ oxygen atoms, so we need $\frac{4}{2} = 2$ bags: $C H_{4} + 2 O_{2} \to C O_{2} + 2 H_{2} O$

WHY. We count all oxygen already committed on the right (it's frozen now that C and H are set), then supply exactly that many from $O_{2}$ on the left. Because we did H first, the right-side oxygen number stopped moving — so this last adjustment can't un-balance anything.

PICTURE. Two oxygen bags on the left, each holding $2$ O: $coeff 2 \times subscript 2 = 4$ oxygen atoms, matching the $4$ on the right. The balance beam is now level.

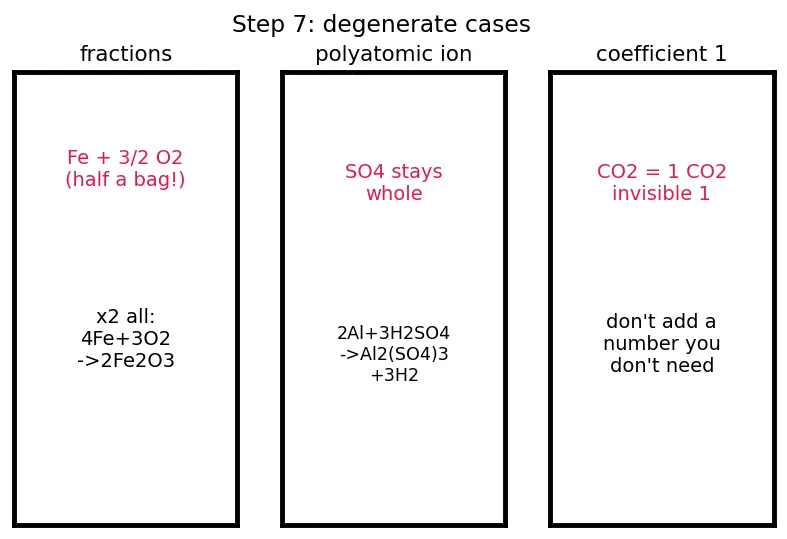

Step 7 — The degenerate cases you must never trip on

WHAT. Three edge situations that look scary but obey the same rule.

WHY. A method you can't push to its limits isn't a method. Each of these has broken a beginner before.

PICTURE. Three mini-panels, red-flag on the trap, tick on the fix.

Fractional coefficient. $F e + O_{2} \to F e_{2} O_{3}$ . The right side has $3$ oxygen; each $O_{2}$ holds $2$ , so you need $\frac{3}{2} O_{2}$ — a "half a bag," physically impossible. Fix: multiply every coefficient by $2$ : $4 F e + 3 O_{2} \to 2 F e_{2} O_{3}$ . (See Stoichiometric Calculations for why whole molecules matter.)
Polyatomic ion that survives whole. $A l + H_{2} S O_{4} \to A l_{2} (S O_{4})_{3} + H_{2}$ . The $S O_{4}$ group (Polyatomic Ions) enters and leaves intact, so treat it as one marble colour, not separate S and O. Balance $S O_{4}$ as a block: $3$ on the right $\to 3 H_{2} S O_{4}$ , giving $2 A l + 3 H_{2} S O_{4} \to A l_{2} (S O_{4})_{3} + 3 H_{2}$ .
Coefficient of 1. A lone $C O_{2}$ has an invisible " $1$ " in front. Zero atoms of an element ⇒ that element simply doesn't enter the ledger for it. Don't hunt for a number that isn't needed.

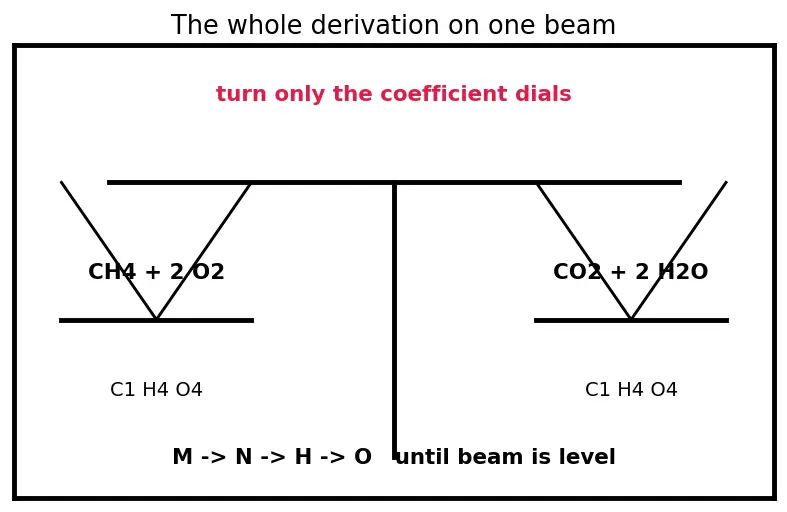

The one-picture summary

The whole derivation on one balance beam: start with a lopsided skeleton (red = mismatch), turn only the front-number dials in the order Metals → Non-metals → H → O, and stop when every atom-colour is equal on both trays. Coefficients scale bags; subscripts are untouchable; the beam levels because atoms are conserved.

Recall Feynman retelling — the whole walkthrough in plain words

Every molecule is a little bag of marbles. The small number (subscript) says how many marbles of one colour are inside a bag — you're never allowed to change that, because it is the recipe of the bag. The big number out front (coefficient) says how many identical bags you have — this is the only dial you may turn. A reaction just re-packs the same marbles into different bags, so no marble is ever gained or lost. Balancing is putting the before-bags on the left tray and the after-bags on the right tray of a scale, and turning the coefficient dials until each colour of marble is equal on both sides. We fix the easy colours first (metals, then other non-metals, then hydrogen) and leave oxygen for last, because oxygen usually hides in several bags and it's easiest to count once everything else is frozen. If a colour needs half a bag, we double everyone so bags stay whole. That's it — the level beam is the Law of Conservation of Mass made visible.

Quick self-check

Reading

2 H_{2} O

: how many hydrogen atoms and how many oxygen atoms?

2 \times 2 = 4

hydrogen and

2 \times 1 = 2

oxygen.

Which dial did we turn in Step 5, and by how much?

The coefficient of

H_{2} O

, set to

2

, to match the

4

hydrogens from

C H_{4}

Why is oxygen balanced last in methane combustion?

It appears in two product molecules (

C O_{2}

and

H_{2} O

), so it is the leftover "slack" once C and H are fixed.

Balance

F e + O_{2} \to F e_{2} O_{3}

and say why we multiply by 2.

4 F e + 3 O_{2} \to 2 F e_{2} O_{3}

; because

\frac{3}{2} O_{2}

is half a molecule (impossible), so scale all coefficients by 2.
