Calculation of atomic mass from isotopic abundance: Visual walkthrough

We are averaging the masses of isotopes: atoms of one element that carry the same number of protons but different numbers of neutrons, so they weigh slightly different amounts. If that word is new, read Isotopes and Mass Number first — here we just treat them as "two kinds of marble, one a bit heavier."

Step 1 — Two kinds of atom in one jar

WHY. Before we can average anything we must be honest about what a real sample is: not one atom, but a mixture. The whole reason the periodic-table mass isn't a whole number is that we are looking at a crowd, not an individual.

PICTURE. Below, light atoms are drawn as small teal dots and heavy atoms as larger plum dots. Count them by eye: there are clearly more teal (light) ones. That imbalance is the seed of everything.

Figure — Calculation of atomic mass from isotopic abundance

Let us name what we see:

$m_{1}$ ::: the mass of one light atom (here $34.969 u$ , measured in atomic mass units).
$m_{2}$ ::: the mass of one heavy atom ( $36.966 u$ ).
$N$ ::: the total number of atoms in the jar — we don't know it yet, and beautifully, we won't need to.

Step 2 — Turn "how common" into a fraction

WHY a fraction and not a raw count? A raw count ("18 teal atoms") depends on how big a scoop you took. A fraction (" $0.76$ of them are teal") is the same no matter the scoop size — it captures the proportion, which is the only thing that survives to the answer. This is exactly the idea behind a weighted average.

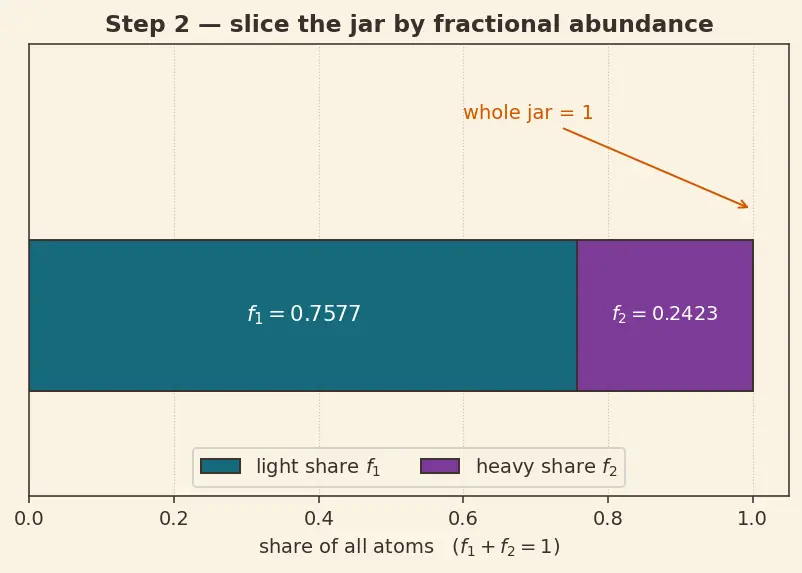

PICTURE. The bar below is the whole jar, sliced into two pieces. The teal slice covers fraction $f_{1}$ of the length, the plum slice fraction $f_{2}$ . Because every atom is one kind or the other, the two slices fill the bar completely:

$share that is light f_{1} + share that is heavy f_{2} = 1$

That " $= 1$ " is not a rule we impose — it is just the statement that the slices cover the whole bar with no gap and no overlap.

Step 3 — Count the atoms of each kind

$count of light N_{1} = their share f_{1} \times total atoms N, N_{2} = f_{2} N$

WHY. This is the plain meaning of the word fraction: "three-quarters of 100 atoms" is $0.75 \times 100 = 75$ atoms. Fraction × total = count. Nothing subtle here — but it is the bridge from proportions (Step 2) back to countable things we can weigh.

PICTURE. The bar from Step 2 is now stamped with tick marks: each tick is one atom. The teal region holds $N_{1}$ ticks, the plum region $N_{2}$ ticks, and together $N_{1} + N_{2} = N$ .

Step 4 — Weigh each pile, then the whole jar

$M_{total} = mass of light pile m_{1} N_{1} + mass of heavy pile m_{2} N_{2}$

WHY. Mass is additive — a jar weighs exactly as much as everything inside it added up. There is no cleverness; we are just putting the jar on a scale and trusting arithmetic.

Now substitute what we learned in Step 3, that $N_{1} = f_{1} N$ and $N_{2} = f_{2} N$ :

$M_{total} = m_{1} f_{1} N + m_{2} f_{2} N = N (m_{1} f_{1} + m_{2} f_{2})$

Notice the $N$ that we factored out and parked outside the bracket — hold that thought, it is the hero of Step 5.

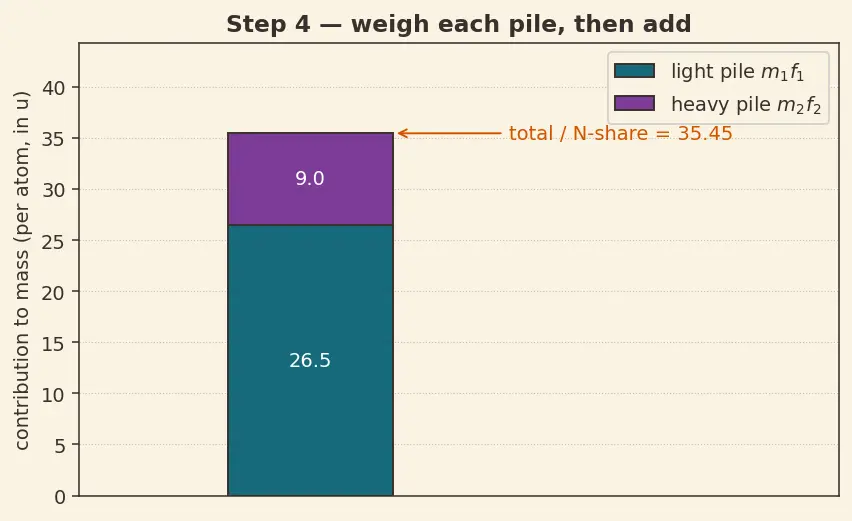

PICTURE. Two stacked bars: a short-but-many teal pile and a tall-but-few plum pile. Their combined height is $M_{total}$ . The teal pile is taller overall (more atoms) even though each plum atom is heavier — that visual tension is what the average has to resolve.

Step 5 — Divide by the number of atoms — and watch $N$ vanish

$A_{r} = \frac{M _{total}}{N} = \frac{N ( m _{1} f _{1} + m _{2} f _{2} )}{N}$

WHY this is the whole point. The $N$ upstairs (from totalling the mass) and the $N$ downstairs (from dividing per atom) are the same $N$ — so they cancel:

$A_{r} = \frac{N ( m _{1} f _{1} + m _{2} f _{2} )}{N} = m_{1} f_{1} + m_{2} f_{2}$

The answer does not contain $N$ . A teaspoon of chlorine and a truckload of chlorine give the same atomic mass, because only the proportions $f_{i}$ survived. That cancellation is the reason we can talk about "the atomic mass of chlorine" as one fixed number at all.

PICTURE. The tall stacked bar of Step 4 gets "smeared flat" into a single level line at height $A_{r}$ — same total mass, now spread evenly across every atom. The dashed line sits between $m_{1}$ and $m_{2}$ , closer to the teal (abundant) side.

Step 6 — Why the answer is trapped between the two masses

WHY. Write $f_{2} = 1 - f_{1}$ and expand:

$A_{r} = m_{1} f_{1} + m_{2} (1 - f_{1}) = m_{2} + f_{1} (m_{1} - m_{2})$

As $f_{1}$ slides from $0$ to $1$ , $A_{r}$ slides in a straight line from $m_{2}$ (all heavy) down to $m_{1}$ (all light). Every allowed value is somewhere on that segment — never outside it.

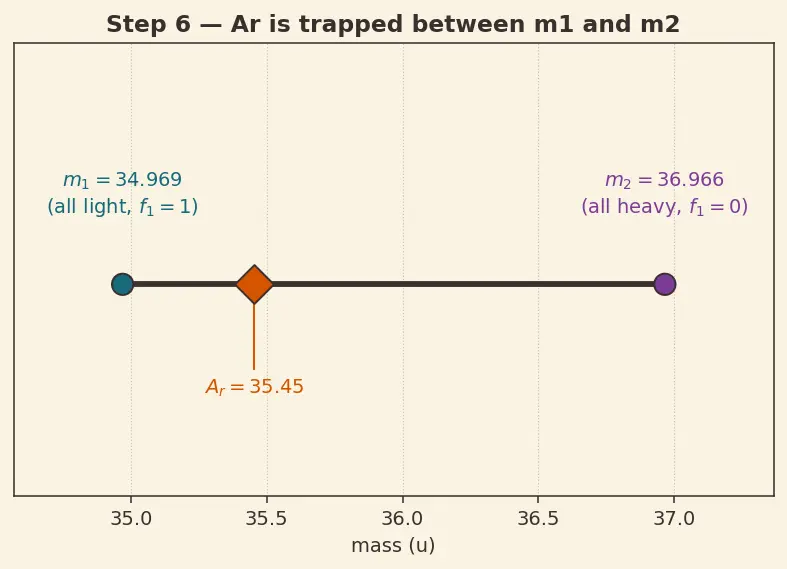

PICTURE. A number line with $m_{1}$ on the left and $m_{2}$ on the right. A slider dot for $A_{r}$ sits at the position $f_{1}$ of the way from $m_{2}$ toward $m_{1}$ . Drag $f_{1}$ up and the dot glides left; it can never leave the segment.

Step 7 — Edge and degenerate cases

Case A — one isotope only ( $f_{1} = 1$ , $f_{2} = 0$ ). $A_{r} = m_{1} \cdot 1 + m_{2} \cdot 0 = m_{1}$ The "average" of one thing is that thing. A pure sample (e.g. mono-isotopic $^{19}$ F) has $A_{r} = m_{1}$ , essentially a whole number.

Case B — a 50/50 mix ( $f_{1} = f_{2} = 0.5$ ). $A_{r} = \frac{1}{2} m_{1} + \frac{1}{2} m_{2} = \frac{m _{1} + m _{2}}{2}$ Now the naive "just add and halve" is correct — but only here. This is the exact special case the parent note warns about in its "just average the masses" mistake.

Case C — abundances that don't sum to 100 (rounding). If your two percentages are $75.8% + 24.1% = 99.9%$ , divide by the real total $99.9$ , not $100$ : $A_{r} = \frac{m _{1} p _{1} + m _{2} p _{2}}{p _{1} + p _{2}}$ This is the honest form of "divide by the total weight."

PICTURE. Three miniature bars: all-teal (Case A), half-half (Case B), and a bar that stops just short of full width (Case C) with the true total marked.

The one-picture summary

Read it left to right: the mixed jar becomes two piles whose combined mass, spread over all $N$ atoms, collapses to the single dashed level $A_{r} = m_{1} f_{1} + m_{2} f_{2}$ — pinned between $m_{1}$ and $m_{2}$ , pulled toward the taller (more abundant) pile.

Recall Feynman: retell the whole walkthrough to a friend

Imagine a jar of marbles: lots of light ones, a few heavy ones. You want the weight of a "typical" marble. Don't just take the middle of light and heavy — that ignores that there are way more light ones. Instead: figure out what share of the jar is light and what share is heavy (that's the fraction). Multiply each marble's weight by its share, add the two up, and that's your answer. When you do the bookkeeping carefully, the total number of marbles cancels out — a teaspoon or a truckload gives the same number — so it only depends on the proportions. And because you're mixing two weights, the answer always lands somewhere between them, sitting closest to whichever kind there are the most of. That in-between number, for chlorine, is $35.45$ .

Connections

1.2.6 Calculation of atomic mass from isotopic abundance — the parent topic this page illustrates.
Weighted Average (mathematics) — the general tool; here made physical with a jar of atoms.
Isotopes and Mass Number — the two "kinds of marble" we mix.
Atomic Mass Unit (u) and the Carbon-12 standard — the unit of every $m_{i}$ drawn here.
Mass Spectrometry — where the real $m_{i}$ and $f_{i}$ come from.
