Concentration units — mass %, volume %, ppm, ppb, molarity (M), molality (m), mole fraction: Visual walkthrough

Before we touch algebra, let us name every symbol we are about to use, and draw the one object the whole derivation lives inside: a single litre of solution.

Step 0 — The words and the beaker

The two units disagree only about the denominator: molarity divides by the total liquid; molality divides by just the solvent's mass. So the whole job of the derivation is: start from the total, peel off the solute, and see how much solvent is left.

Figure — Concentration units — mass %, volume %, ppm, ppb, molarity (M), molality (m), mole fraction

The picture shows our single beaker holding exactly 1 litre = 1000 mL of solution. Everything from here on is bookkeeping inside this one beaker. That fixed choice — "take 1 L" — is the trick; watch how it makes each step trivial.

Step 1 — Fix the basis: choose exactly 1 litre

WHAT we do: declare our sample size to be $V = 1 L = 1000 mL$ .

PICTURE: the beaker in the figure below is filled to the 1 L mark. Nothing is calculated yet — we have only committed to how much we are talking about.

Step 2 — Count the moles of solute

WHY: molarity literally means "moles per litre". Multiply by our 1 litre and the litres cancel, leaving pure moles.

PICTURE: the blue dots below represent the solute particles. There are " $M$ moles' worth" of them, floating in the litre.

Step 3 — Weigh the whole solution (density enters)

PICTURE: the beaker is placed on a balance; the readout is $1000 ρ$ grams. Notice the balance weighs everything in the beaker — solute plus solvent — because both have mass.

Step 4 — Weigh just the solute (molar mass enters)

PICTURE: imagine scooping only the dissolved particles out onto a tiny pan. That pan reads $M M_{w}$ grams — a slice of the total mass from Step 3.

Step 5 — Subtract: what's left is the solvent

PICTURE: a bar of length $1000 ρ$ grams. A red chunk of length $M M_{w}$ (the solute) is cut away; the remaining green bar is the solvent.

Step 6 — Assemble molality

WHY this is the final answer: we just wrote the definition of molality, $m = n / (kg of solvent)$ , and plugged in the two pieces we built. Every symbol was earned:

$M$ came from the litre we chose,
$ρ$ came from turning volume into mass,
$M_{w}$ came from turning moles into mass.

Step 7 — The dilute / degenerate case (why $M \approx m$ for water)

PICTURE: two beakers side by side. Left: a nearly-empty solute chunk → green solvent bar is almost the full $1000 ρ$ , so $m \approx M$ . Right: a fat solute chunk → green bar is much shorter, so dividing by a smaller kg pushes $m$ above $M$ .

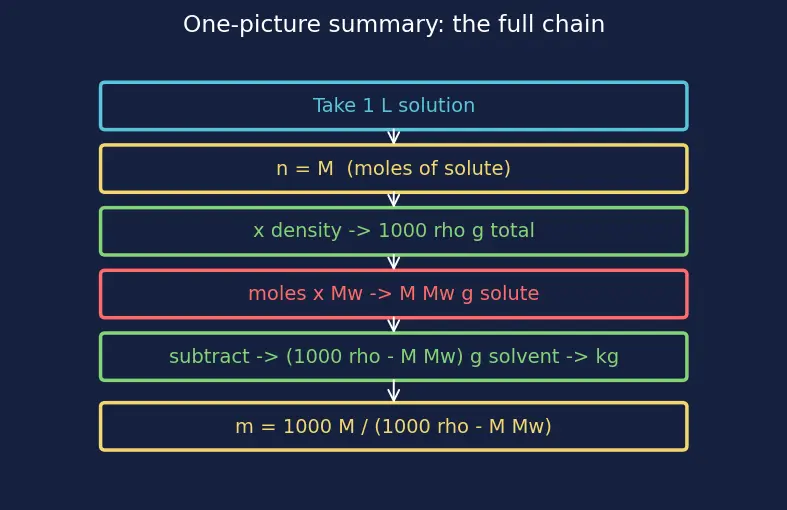

The one-picture summary

This final figure stacks the whole derivation into one flow: 1 L chosen → moles = $M$ → ×density gives total mass $1000 ρ$ → moles × $M_{w}$ gives solute mass → subtract → solvent kg → divide moles by it. Follow the arrows top to bottom and you have rebuilt the boxed formula without memorizing a thing.

Recall Feynman retelling — say it to a friend

Grab one litre of the solution — that's our whole world. Because molarity is "moles per litre," this litre holds exactly $M$ moles of solute; that number's free. Now I want weights, not volumes. Density tells me each mL weighs $ρ$ grams, so the full litre weighs $1000 ρ$ grams — solute and solvent stuck together. But molality only cares about the solvent's weight. So I weigh the solute by itself: $M$ moles times $M_{w}$ grams-per-mole $= M M_{w}$ grams. I chop that off the total. What's left, $1000 ρ - M M_{w}$ grams, is pure solvent. Turn it into kilograms (÷1000). Finally, molality is "moles of solute per kilogram of solvent," so I divide my $M$ moles by that kilogram figure — and out pops $m = \frac{1000 M}{1000 ρ - M M _{w}} .$ If barely any solute is dissolved, the chopped-off piece is tiny, the solvent is basically the whole litre, and for water ( $ρ \approx 1$ ) you get $m \approx M$ . That's the entire idea.

Recall Quick self-check

Why does density appear before molar mass in the chain? ::: Density converts our known volume into the total mass; molar mass then converts moles into the solute's mass to subtract. They do different jobs, in that order. In $1000 ρ - M M_{w}$ , what does each term physically represent? ::: $1000 ρ$ = mass of the whole solution (g); $M M_{w}$ = mass of the solute alone (g); the difference = mass of solvent (g). When is $m > M$ ? ::: When the solvent mass drops below 1 kg — i.e. concentrated and/or heavy solute (large $M M_{w}$ ) with density not much above 1.
