Explain Gram staining and cell wall differences

WHY do we even stain bacteria?

Bacteria are ~1 µm, nearly transparent, and look the same under a light microscope. We need contrast (a color) and, better yet, a color that also tells us something about the organism. Hans Christian Gram (1884) discovered a stain that does both: it colors cells and splits them into two clinically huge groups.

"Differential" = it distinguishes between two types (unlike a simple stain that just adds one color to everything).

WHAT is the cell wall made of?

The two groups differ in how much of this mesh they have and what surrounds it:

Feature	Gram-positive	Gram-negative
Peptidoglycan	Thick (many layers, ~20–80 nm)	Thin (1–3 layers, ~2–7 nm)
Outer membrane	Absent	Present (has LPS)
Teichoic acids	Present	Absent
Periplasmic space	Small/none	Prominent
Final Gram color	Violet	Pink/red
LPS / endotoxin	No	Yes (fever, shock)
Example	Staphylococcus, Bacillus	E. coli, Salmonella

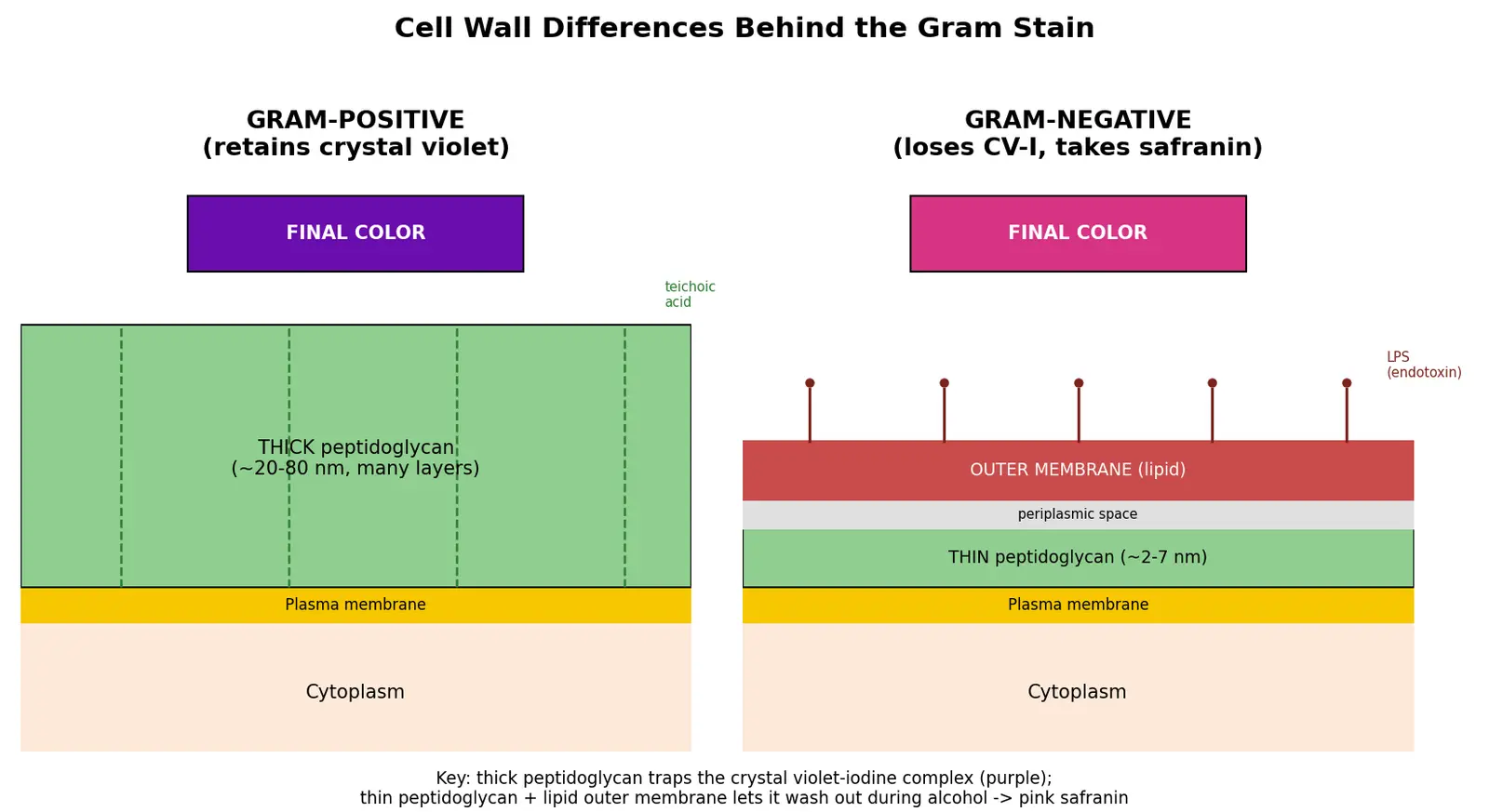

Figure — Explain Gram staining and cell wall differences

HOW the staining works — derive each step from first principles

There are 4 reagents applied in order. Track what each does physically.

Formula The 4 steps (with the "why")

Crystal violet (primary stain) → enters ALL cells → everyone is purple.
- Why: it's a basic dye that binds negatively charged cell components.
Gram's iodine (mordant) → forms a large crystal violet–iodine (CV–I) complex inside the cell.
- Why: iodine acts as a mordant — it locks the dye into a big, bulky, insoluble complex that can't easily diffuse out. This is the key that makes retention possible.
Alcohol/acetone (decolorizer) → the critical, discriminating step.
- Gram-positive: thick peptidoglycan dehydrates and shrinks, pores close → the big CV–I complex is trapped → stays purple.
- Gram-negative: alcohol dissolves the lipid outer membrane, and the thin peptidoglycan can't hold the complex → CV–I washes out → cell becomes colorless.
Safranin (counterstain) → stains the now-colorless Gram-negative cells pink. Gram-positive are already saturated with purple, so pink is masked.

Why thickness matters (the physics): think of the CV–I complex as a big ball and the wall as a net.

Thick net (Gram +): tiny holes, especially after alcohol shrinks it → ball can't escape.
Thin net over a dissolvable raincoat (Gram −): alcohol strips the raincoat and the thin net lets the ball out.

Worked examples

Common mistakes (Steel-man them)

Active recall

Recall Cover the answers first

Which step decides Gram result? → the alcohol decolorization step.
Why do Gram-positive stay purple? → thick peptidoglycan traps the CV–I complex; alcohol shrinks/closes pores.
Why do Gram-negative turn pink? → alcohol dissolves the outer membrane, thin peptidoglycan lets CV–I out, safranin colors them pink.
Function of iodine? → mordant: forms the large insoluble CV–I complex.
What is in the Gram-negative outer membrane that causes shock? → LPS (endotoxin).

Recall Feynman: explain to a 12-year-old

Imagine two kinds of bugs wearing sweaters. You throw purple paint on both — now both are purple. Then you sprinkle a "glue" (iodine) so the paint forms big blobs stuck inside. Now you spray them with paint-remover (alcohol). One bug has a super-thick woolly sweater — the big paint blobs get tangled and can't wash out, so it stays purple. The other bug has a thin sweater under a plastic raincoat; the remover melts the raincoat and the thin sweater lets the blobs slide out, so it goes colorless. Finally you throw pink paint so you can still see the colorless one. Purple bug = thick coat (Gram-positive), pink bug = thin coat (Gram-negative). The whole test is just: whose coat traps the purple blobs?

Connections

Bacterial Cell Wall Structure — peptidoglycan, NAG/NAM, teichoic acids
Antibiotics and Cell Wall Synthesis — why penicillin hits Gram-positive harder
Lipopolysaccharide (LPS) and Endotoxin — septic shock in Gram-negatives
Osmosis and Osmotic Pressure — why the wall prevents lysis
Differential vs Simple Staining — acid-fast, endospore stains
Bacterial Morphology — cocci, bacilli, spirilla

What type of stain is the Gram stain (simple or differential)?

Differential — it separates bacteria into two groups by cell wall structure.

Which single step determines the Gram result?

The alcohol/acetone decolorization step.

What is the role of Gram's iodine?

It is a mordant that forms the large insoluble crystal violet–iodine (CV–I) complex, locking the dye inside.

Why do Gram-positive cells stay purple?

Their thick peptidoglycan dehydrates/shrinks with alcohol and traps the bulky CV–I complex.

Why do Gram-negative cells become pink?

Alcohol dissolves their lipid outer membrane; the thin peptidoglycan can't retain CV–I, which washes out, then safranin stains them pink.

What is the primary stain and what is the counterstain?

Primary = crystal violet; counterstain = safranin.

Order of the four Gram reagents?

Crystal violet → iodine → alcohol (decolorizer) → safranin.

Which group has an outer membrane with LPS?

Gram-negative; LPS acts as endotoxin.

What are the two sugars of peptidoglycan?

N-acetylglucosamine (NAG) and N-acetylmuramic acid (NAM).

What happens if you over-decolorize a Gram-positive cell?

The CV–I complex washes out and it falsely appears Gram-negative (pink).

What happens if you skip the iodine mordant?

No large CV–I complex forms, so even thick walls lose the dye — false Gram-negative result.

Why can old Gram-positive cultures appear Gram-variable?

Damaged/aging cell walls lose the ability to retain the CV–I complex.

Teichoic acids are found in which group?

Gram-positive cell walls.

Approximate peptidoglycan thickness Gram+ vs Gram−?

Gram+ ~20–80 nm (thick, many layers); Gram− ~2–7 nm (thin, 1–3 layers).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Gram staining ek chhota sa rang-wala test hai jo bacteria ko do groups mein baant deta hai. Bacteria transparent aur bahut chhote hote hain, isliye pehle unko rang dena padta hai. Crystal violet (purple) dalte hain — sab purple ho jaate hain. Phir iodine dalte hain jo "mordant" ka kaam karta hai, matlab purple dye ke saath milke ek bada CV-I complex bana deta hai jo cell ke andar phas jaata hai.

Ab aata hai asli hero step: alcohol (decolorizer). Yahi step decide karta hai result. Gram-positive bacteria ke paas moti peptidoglycan ki deewar hoti hai — alcohol se ye deewar sikud jaati hai, pores band ho jaate hain, aur bada purple complex andar hi trap ho jaata hai. Isliye ye purple rehte hain. Gram-negative bacteria ke paas patli peptidoglycan hoti hai upar se ek lipid outer membrane (raincoat) — alcohol us raincoat ko ghula deta hai aur patli deewar complex ko rok nahi paati, toh purple wash out ho jaata hai. Ab ye colorless ho jaate hain, isliye last mein safranin (pink) dalte hain taaki ye dikhein — isliye Gram-negative pink.

Yaad rakho: safranin sirf pink rang deta hai, decolorize alcohol karta hai — ye common galti hai. Aur agar iodine chhod do ya alcohol zyada der laga do, to Gram-positive bhi galti se pink dikh sakta hai (false result). Isliye timing bahut important hai.

Ye test clinically kyun matter karta hai? Kyunki Gram-negative ke outer membrane mein LPS (endotoxin) hota hai jo bukhar aur shock kar sakta hai, aur ye antibiotics ko bhi rok deta hai — treatment mushkil. Gram-positive mein zyada peptidoglycan hota hai isliye penicillin type antibiotics jyada acche kaam karte hain. Ek chhota purple/pink test doctor ko turant treatment ka clue de deta hai — powerful!
