Describe the mechanics of breathing (diaphragm, intercostals)

WHY does air move at all?

This is governed by Boyle's Law, which we derive below.

Deriving Boyle's Law from first principles

WHAT is happening in a gas? A fixed number of gas molecules ( $N$ ) bounce around a container. Each collision with the wall gives a push. The pressure = number of collisions per second × force per collision / area.

HOW does volume matter? If we shrink the box (smaller volume $V$ ) but keep the same molecules moving at the same speed (same temperature $T$ ):

The molecules have less space, so they hit the walls more often.
More collisions per second → higher pressure.

So at constant temperature and fixed amount of gas, pressure and volume are inversely related:

Consequence for breathing: $V \uparrow \;\Rightarrow\; P \downarrow \;\Rightarrow\; \text{air rushes IN}$ $V \downarrow \;\Rightarrow\; P \uparrow \;\Rightarrow\; \text{air pushed OUT}$

The muscles: WHAT they are and HOW they act

Inspiration (breathing IN) — step by step

Inspiration is an active process — it always needs muscle contraction.

Expiration (breathing OUT) — step by step

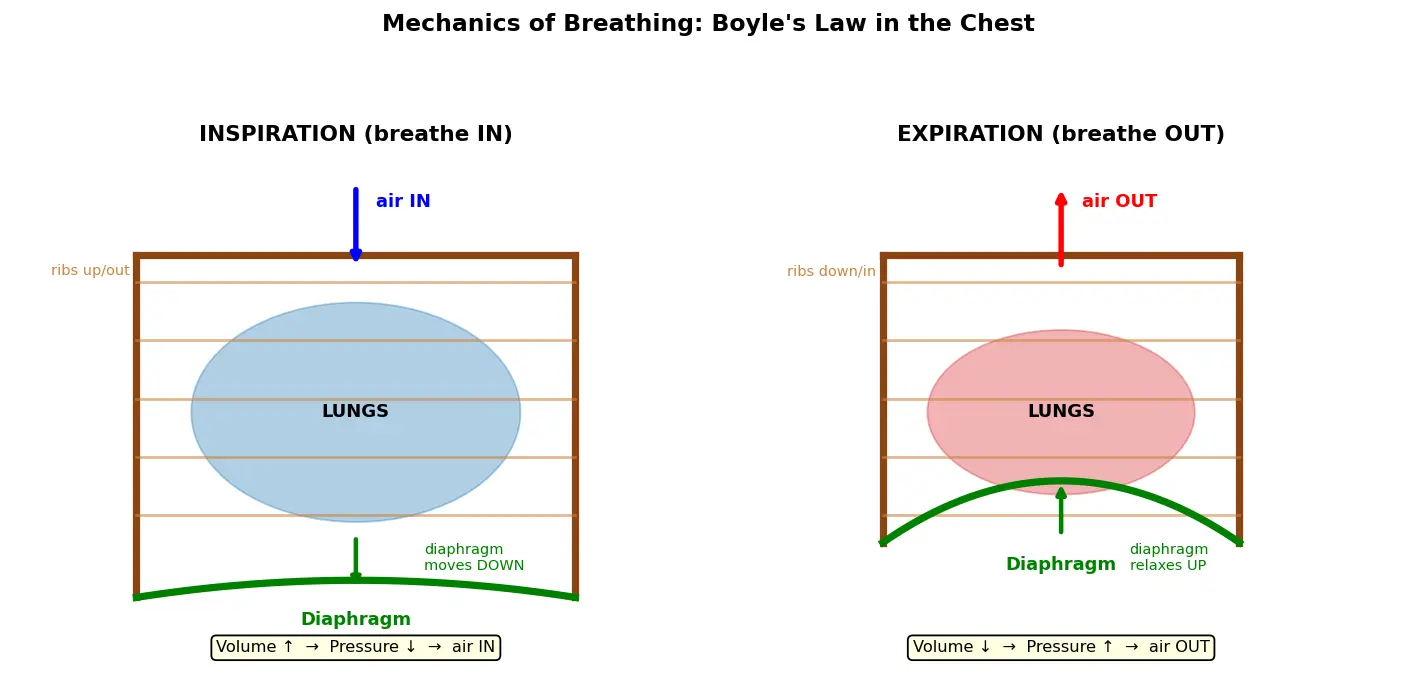

Figure — Describe the mechanics of breathing (diaphragm, intercostals)

Forecast-then-Verify

Recall Forecast: A person's diaphragm is paralysed but intercostals work. Predict what happens to breathing, then check.

Forecast: Chest can still expand a little via ribs, but the main vertical volume change is lost → shallow, difficult breathing. Verify: Correct — the diaphragm normally does ~70% of quiet breathing volume, so loss cripples ventilation. This is why the phrenic nerve (which controls the diaphragm) is vital.

Common mistakes (Steel-manned)

Mnemonic

Feynman: explain to a 12-year-old

Recall Explain it simply

Imagine your chest is a stretchy balloon inside a box. The floor of the box (the diaphragm) drops down and the walls (ribs) swing out, so the box gets bigger. When a space gets bigger, the air inside spreads out and gets "thin" (low pressure), so fresh air from outside rushes in to fill it — that's breathing in! To breathe out, the floor and walls relax, the box shrinks, the air gets "crowded" (high pressure) and pushes itself out. Your lungs don't suck — the outside air does the pushing!

Active-recall flashcards

#flashcards/biology

Why can lungs not pull air in by themselves?

They contain no muscle; breathing depends on muscles changing chest volume and thus pressure.

State Boyle's Law.

At constant temperature,

P_1V_1 = P_2V_2

; pressure and volume are inversely proportional.

During inspiration, what does the diaphragm do?

Contracts, flattens, and moves DOWN, increasing chest volume.

During inspiration, which intercostals contract and how do ribs move?

External intercostals contract; ribs move up and out.

Why does air flow into the lungs during inspiration?

Increased volume lowers internal pressure below atmospheric, so air flows high→low pressure.

Is quiet expiration active or passive, and why?

Passive — driven by elastic recoil of lungs/chest, no muscle contraction needed.

Which muscles cause forced expiration?

Internal intercostals and abdominal muscles.

What happens to lung pressure during expiration?

Volume decreases, so pressure rises above atmospheric, pushing air out.

Air always moves from ___ to ___ pressure.

high to low.

What are the "pump handle" and "bucket handle" movements?

Sternum swings up/forward (pump) and ribs swing outward (bucket), increasing chest volume.

Connections

Boyle's Law
Gas Exchange in Alveoli
Pleural Membranes and Pleural Fluid
Control of Breathing (Medulla & Phrenic Nerve)
Lung Volumes and Spirometry
Pressure and Diffusion

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, sabse important baat: humaare lungs khud saans andar nahi kheench sakte, kyunki unme koi muscle nahi hoti. Saans lene ka poora kaam hota hai chest ke andar ki volume badal ke. Jab hum inhale karte hain, diaphragm (chest ke neeche wali dome-shaped muscle) contract hoke neeche ja ke flat ho jaati hai, aur external intercostal muscles ribs ko upar-bahar kheench leti hain. Isse chest ka volume badh jaata hai.

Ab yahan Boyle's Law ka jaadu hota hai: $P_1V_1 = P_2V_2$ . Matlab volume badhega toh pressure kam ho jaayega. Lungs ke andar pressure atmosphere se kam ho jaata hai, aur air hamesha high pressure se low pressure ki taraf move karti hai — toh bahar ki hawa apne aap andar push ho jaati hai. Yaad rakho, hum "suck" nahi karte, atmosphere hume air "push" karta hai.

Exhale ke time ulta hota hai. Normal (quiet) exhale passive hota hai — diaphragm aur intercostals bas relax ho jaati hain, lungs ka elastic recoil chest ko chhota kar deta hai. Volume kam → pressure zyaada → air bahar. Zabardasti (forced) exhale ke liye internal intercostals aur abdominal muscles kaam karti hain.

Exam trick: mnemonic yaad rakho — "DID": Diaphragm Down, Intercostals out, pressure Decreases, air In. Bas iska ulta karo toh exhale samajh aa jaayega. Ye concept isliye important hai kyunki agla topic — alveoli me gas exchange — bhi pressure aur diffusion pe based hai.
