Binning and discretization: Worked examples — AI-ML deep dive

This page is the "throw everything at it" companion to Binning and discretization. The parent note built the three strategies (equal-width, equal-frequency, custom). Here we grind through every case class binning can hit — skewed data, ties, outliers, zero-range degenerate input, negative numbers, edge-boundary points, and a couple of exam twists — so that when you meet one in the wild you have already seen its cousin.

Before we start, three symbols we will lean on constantly:

The scenario matrix

Every worked example below is tagged with the cell it covers. The goal: no empty cells.

Cell	Case class	What could break	Covered by
A	Equal-width, well-spread data	nothing — baseline	Ex 1
B	Equal-width, right-skewed + outlier	empty middle bins	Ex 2
C	Equal-frequency on the same skewed data	interpolation between points	Ex 3
D	Point sitting exactly on an edge	double-membership / off-by-one	Ex 4

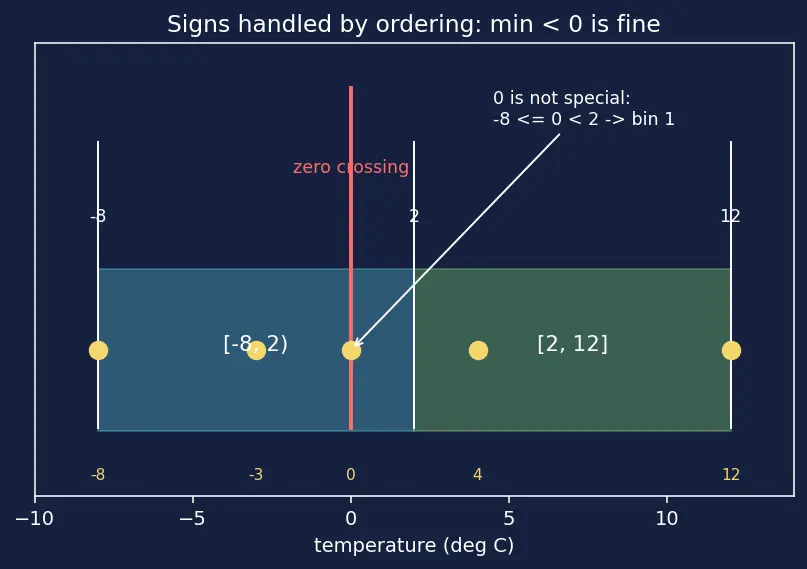

E	Negative values + zero crossing	sign handling, min < 0	Ex 5
F	Degenerate: all values identical ( $R = 0$ )	divide-by-zero in width	Ex 6
G	Ties at a quantile boundary	equal-frequency can't split	Ex 7
H	Word problem: custom domain bins	choosing edges from meaning	Ex 8
I	Exam twist: choose $k$ via Sturges	log rounding, off-by-one	Ex 9
J	Limiting behaviour: $k = 1$ and $k = n$	total loss vs. no compression	Ex 10

Worked examples

Worked example Ex 1 — Cell A: Equal-width baseline

Data: exam scores $[10, 20, 35, 50, 65, 80, 90]$ , want $k = 3$ bins.

Forecast: guess the three edges before reading — will the bins be balanced?

Range $R = max - min = 90 - 10 = 80$ . Why this step? Equal-width slices the span, so we need the span first.
Width $w = R / k = 80/3 \approx 26.667$ . Why? Three equal slabs of the number line.
Edges $b_{i} = 10 + i w$ : $b_{0} = 10, b_{1} \approx 36.67, b_{2} \approx 63.33, b_{3} = 90$ . Why? Start at min, add width repeatedly (parent's step-3 recipe).
Assign using $[b_{i - 1}, b_{i})$ :
- Bin 1 $[10, 36.67)$ : $10, 20, 35$ → 3 points
- Bin 2 $[36.67, 63.33)$ : $50$ → 1 point
- Bin 3 $[63.33, 90]$ : $65, 80, 90$ → 3 points Why this step? We must convert edges into memberships by the half-open rule — this is the moment binning actually happens; each score is tested against the walls (left included, right excluded) to find its home bucket.

Verify: counts sum to $3 + 1 + 3 = 7 = n$ . ✓ Every point placed once. Because the data was spread out, no bin is empty — this is the happy case.

Worked example Ex 2 — Cell B: Equal-width breaks on skew

Data: house prices $[100, 150, 200, 250, 300, 350, 900]$ (thousands), $k = 3$ .

Forecast: one huge value at 900. What happens to the middle bin?

$R = 900 - 100 = 800$ . Why? span again.
$w = 800/3 \approx 266.667$ . Why? equal slabs.
Edges $= [100, 366.67, 633.33, 900]$ . Why? $100 + i \cdot 266.67$ .
Assign each price by the half-open rule $[b_{i - 1}, b_{i})$ :
- $[100, 366.67)$ : $100, 150, 200, 250, 300, 350$ → 6 points
- $[366.67, 633.33)$ : nothing → 0 points (empty!)
- $[633.33, 900]$ : $900$ → 1 point Why this step? Only by walking every point through the walls do we discover the middle bucket catches nothing — the failure is invisible from the edges alone.

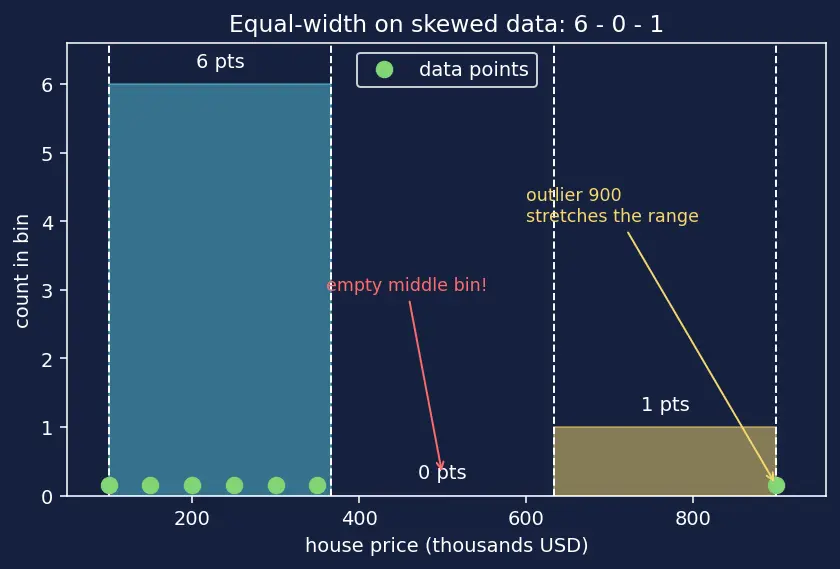

Verify: $6 + 0 + 1 = 7$ . ✓ The single outlier at 900 stretched the range so far that the middle slab landed in a data desert. See figure s02 — the whole crowd is jammed into bucket 1.

Worked example Ex 3 — Cell C: Equal-frequency rescues the same data

Data: $[100, 150, 200, 250, 300, 350, 900]$ , $k = 3$ , $n = 7$ .

Forecast: target $\approx 7/3 = 2.33$ per bin. Where do the edges land?

We use linear interpolation between order statistics. With $n$ points, the quantile at fraction $p$ sits at position $h = (n - 1) p$ (0-indexed), value $= x_{(⌊ h ⌋)} + (h - ⌊ h ⌋) (x_{(⌊ h ⌋ + 1)} - x_{(⌊ h ⌋)})$ .

Why $(n - 1)$ and not $n$ ? We are placing $p$ on a ruler whose endpoints are the smallest and largest data points. With $n$ points there are exactly $n - 1$ gaps between them. So $p = 0$ must land on the first point (position 0) and $p = 1$ on the last point (position $n - 1$ ). Multiplying by $(n - 1)$ is what stretches the fraction $p \in [0, 1]$ across those $n - 1$ gaps; using $n$ would push $p = 1$ past the last point, off the ruler. (This is NumPy's default "linear" convention.)

Sort (already sorted). Why? quantiles need order.
$Q (1/3)$ : $h = 6 \cdot \frac{1}{3} = 2.0$ → exactly $x_{(2)} = 200$ (0-indexed → the 3rd value). Why? $h$ landed on an integer, no interpolation needed.
$Q (2/3)$ : $h = 6 \cdot \frac{2}{3} = 4.0$ → exactly $x_{(4)} = 300$ .
Edges $= [100, 200, 300, 900]$ . Assign with the half-open rule $[b_{i - 1}, b_{i})$ :
- $[100, 200)$ : $100, 150$ → 2
- $[200, 300)$ : $200, 250$ → 2
- $[300, 900]$ : $300, 350, 900$ → 3 Why this step? The quantile edges are only promises of balance; we confirm the promise by actually assigning each point through the walls and counting.

Verify: $2 + 2 + 3 = 7$ . ✓ Now the outlier is quarantined in the last bin and no bin is empty. Trade-off: widths are $100, 100, 600$ — the last bin is a huge, hard-to-interpret price range. Compare with figure s02 (equal-width) vs the balanced counts here.

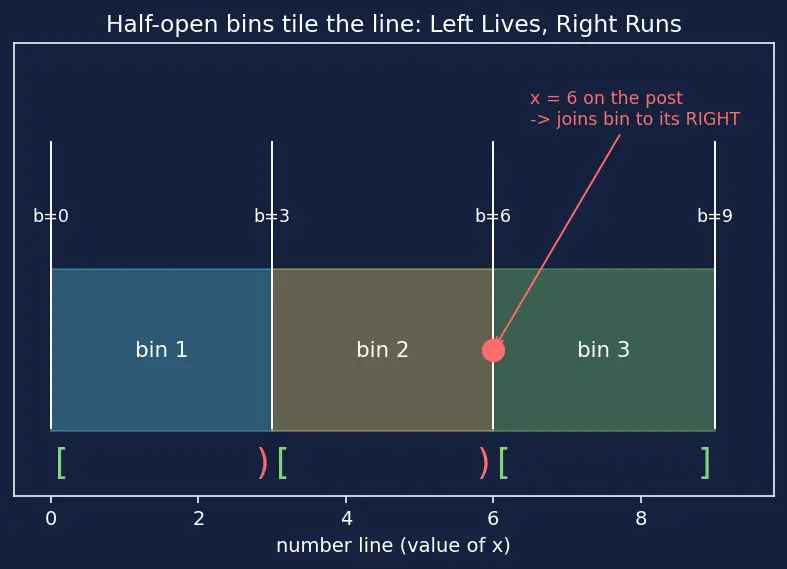

Worked example Ex 4 — Cell D: A point sitting exactly on an edge

Data: $[0, 5, 10, 15, 20]$ , edges chosen as $[0, 10, 20]$ ( $k = 2$ ). Which bin gets 10?

Forecast: naive intuition says "10 is on the boundary, flip a coin." The rule says otherwise.

Apply $[b_{i - 1}, b_{i})$ : bin 1 $= [0, 10)$ , bin 2 $= [10, 20]$ (last bin closed). Why this step? Half-open means the left edge belongs to the bin; $10 = b_{1}$ is the left edge of bin 2.
So $10 \to$ bin 2, not bin 1. Why? "left included, right excluded" — a point on a post joins the bucket to its right.
Assign all:
- Bin 1 $[0, 10)$ : $0, 5$ → 2
- Bin 2 $[10, 20]$ : $10, 15, 20$ → 3

Verify: $2 + 3 = 5$ . ✓ Also check $0$ (the very first left edge) is included — it is, because bin 1 is $[0, \dots)$ . And $20$ (the max) is included because the last bin is closed. Two potential off-by-one traps, both handled.

Worked example Ex 6 — Cell F: Degenerate, all values identical

Data: $[7, 7, 7, 7]$ , ask for $k = 3$ equal-width bins.

Forecast: something must break — spot it before computing.

$R = 7 - 7 = 0$ . Why? span of a constant is zero.
$w = R / k = 0/3 = 0$ . Why? the formula plows ahead and gives width $0$ .
Edges $= [7, 7, 7, 7]$ — all collapse to a single point. Bins are $[7, 7)$ which is empty as an interval, so no well-defined half-open bin can hold anything except the closed last one $[7, 7]$ . Why does this matter? You cannot slice a point into 3 pieces. Libraries either raise an error or dump everything into one bin.
Correct handling: detect $R = 0$ up front and return a single degenerate bin containing all $n$ points.

Verify: all 4 values equal, so any sensible discretizer must output the same label for all of them — entropy $H (f (X)) = 0$ (one symbol, nothing to predict; see the entropy definition above). ✓ There is nothing to distinguish, so a constant feature after binning is (correctly) useless — a good reason to drop constant columns before binning.

Worked example Ex 7 — Cell G: Ties at a quantile boundary

Data: $[1, 2, 2, 2, 2, 3]$ , equal-frequency $k = 2$ , $n = 6$ .

Forecast: the median wants to split the four 2's. Can it?

Target $n / k = 3$ per bin. Why? balanced counts.
Median edge $Q (1/2)$ : position $h = (n - 1) \cdot 0.5 = 2.5$ → interpolate $x_{(2)}$ and $x_{(3)}$ , both $= 2$ → edge $= 2$ . Why? the ties make interpolation return the tie value.
Assign $[1, 2)$ then $[2, 3]$ :
- $[1, 2)$ : only $1$ → 1 point
- $[2, 3]$ : $2, 2, 2, 2, 3$ → 5 points

Verify: $1 + 5 = 6$ . ✓ But we wanted 3-and-3 and got 1-and-5! Why equal-frequency failed: a bin edge cannot fall inside a run of identical values — all four 2's must go to the same bin, so no edge can separate them. This is the fundamental limit: equal-frequency can only balance bins when there are enough distinct values. Fix: merge to fewer bins, or accept the imbalance, or add a tiny jitter (with caution — that fabricates precision).

Worked example Ex 8 — Cell H: Word problem, custom domain bins

Statement: A lender scores applicants by annual income (USD). Policy says: below the poverty line $15k = high risk; $15k–$50k working class; $50k–$100k middle class; above $100k upper class. Applicant incomes: $[8 k, 15 k, 42 k, 100 k, 250 k]$ . Assign each to a custom bin.

Forecast: two applicants sit exactly on policy thresholds (15k, 100k). Which side do they fall?

Custom edges from policy: $[0, 15 k, 50 k, 100 k, \infty]$ , giving 4 bins. Why this step? Edges come from meaning (poverty line, class thresholds), not from data spread — this is the whole point of custom binning (parent's Strategy 3).
Apply half-open $[b_{i - 1}, b_{i})$ :
- $8 k \in [0, 15 k)$ → high risk
- $15 k \in [15 k, 50 k)$ → working class (on the post → right bucket)
- $42 k \in [15 k, 50 k)$ → working class
- $100 k \in [100 k, \infty)$ → upper class (again post → right bucket)
- $250 k \in [100 k, \infty)$ → upper class Why this step? We must use the same half-open convention here as everywhere else (Ex 4), otherwise a threshold applicant like the $15k one would be assigned inconsistently; "left included, right excluded" fixes each borderline case to the bucket on its right.
Counts per bin: high 1, working 2, middle 0, upper 2. Why is middle empty and that's OK? With custom bins we don't require balance — an empty class is meaningful information ("no middle-class applicants today").

Verify: $1 + 2 + 0 + 2 = 5$ applicants placed. ✓ The threshold applicants (15k→working, 100k→upper) landed via the half-open rule exactly as Ex 4 predicted — consistency across the page. A model can now emit a readable rule: IF income < 15k THEN flag_high_risk. This pairs naturally with one-hot encoding to feed the bin labels to a linear model, and with decision trees which effectively bin on their own.

Worked example Ex 9 — Cell I: Exam twist, pick

$k$ with Sturges' rule Statement: You have $n = 1000$ samples. How many histogram bins does Sturges' rule recommend, and roughly what does $k \approx n$ give instead?

Forecast: these two heuristics disagree a lot — guess which is larger.

Sturges: $k = 1 + lo g_{2} n$ , then round to an integer. Why this tool? $lo g_{2}$ answers "how many yes/no splits distinguish $n$ points?" — each bin edge is roughly one binary split, so $2^{k} \approx n \Rightarrow k \approx lo g_{2} n$ (parent's derivation).
$lo g_{2} 1000 = ln 1000/ ln 2 \approx 9.9658$ . So $1 + lo g_{2} n \approx 10.97$ . Why round? bin count must be a whole number. Rounding convention matters: this page uses floor $⌊ \cdot ⌋$ (round down, defined above), giving $⌊ 10.97 ⌋ = 10$ . Other formulations use ceiling $⌈ \cdot ⌉$ (round up) $⌈ 10.97 ⌉ = 11$ , or nearest-integer rounding ( $round (10.97) = 11$ ); NumPy's bin='sturges' uses ceiling. So expect $10$ or $11$ depending on the library — state your convention on an exam.
Square-root rule: $k \approx n$ , so $1000 \approx 31.6 \Rightarrow ⌊ 31.6 ⌋ = 31$ bins. Why $n$ as a tool, and where does it come from? It answers a different question than Sturges: "how do I keep each bin populated as the sample grows?" If you want $k$ bins each holding about $k$ samples, then $k \times k = n$ , i.e. $k = n$ — bins and their occupancy grow together at the same rate. This is the default heuristic in several spreadsheet/BI tools (and Excel's histogram helper) precisely because it never leaves bins near-empty. It grows far faster than Sturges' $lo g_{2} n$ , giving finer resolution but risking noisier, sparser bins.

Verify: Sturges (floor) $\to 10$ , Sturges (ceiling) $\to 11$ , sqrt (floor) $\to 31$ . ✓ For a smooth roughly-normal dataset Sturges' coarser $\approx$ 10 bins avoids overfitting the histogram; for revealing multimodal structure the sqrt's 31 bins may be safer. Neither is a law — the parent insists you cross-validate. The bias/variance dial behind this choice lives in the bias–variance tradeoff.

Worked example Ex 10 — Cell J: The two limiting cases

$k = 1$ and $k = n$ Statement: Take any data, say $[3, 7, 7, 11, 20]$ ( $n = 5$ , distinct values ${3, 7, 11, 20}$ ). What happens at the extremes $k = 1$ and $k = n$ ?

Forecast: one extreme destroys all information, the other keeps everything — which is which?

$k = 1$ : one bin $[min, max] = [3, 20]$ swallows all 5 points. Every $x$ maps to label 1. Why? one bucket = one symbol out. The binned feature is constant ⇒ output entropy $H (f (X)) = 0$ bits (recall the entropy definition above: one label means zero information). What it looks like: the whole number line painted a single color — maximal compression, maximal information loss.
$k = n = 5$ : five bins, but the data has only 4 distinct values (two 7's tie). At best you recover 4 usable labels; the two 7's cannot be separated (same lesson as Ex 7). Why? binning is a function of value, so identical inputs give identical outputs. With ties you can never reach $n$ distinct bins. What it looks like: nearly one-point-per-bucket — almost no compression, almost no denoising benefit.

Verify: at $k = 1$ , number of distinct output labels $= 1$ . At $k = n$ , distinct labels $\leq$ number of distinct input values $= 4 < 5$ . ✓ So the useful range of $k$ is bounded above by the count of distinct values — a hard ceiling the sqrt/Sturges heuristics silently assume you respect.

Recall Quick self-check

On which side of an edge does a point that equals $b_{1}$ fall? ::: Into the bin to its right, $[b_{1}, b_{2})$ — left edge included, right excluded. Why does equal-width leave empty middle bins on skewed data? ::: A far outlier stretches $max - min$ , so the width is huge and the sparse middle range catches no points (Ex 2). Why can't equal-frequency always give equal counts? ::: An edge cannot split a run of identical (tied) values, so all ties share one bin (Ex 7, Ex 10). What is the width formula's output when all values are equal? ::: $w = 0$ ; degenerate, must be handled as a single bin (Ex 6). What does $H (f (X)) = 0$ tell you about a binned feature? ::: It has only one label — it is constant and carries no information, so drop it. Sturges' bin count for $n = 1000$ ? ::: $⌊ 1 + lo g_{2} 1000 ⌋ = 10$ (or $11$ with ceiling rounding).

Related dives: outliers that these bins tame connect to handling missing/anomalous data, and once binned you can multiply bin labels together as feature interactions.
