Binning and discretization

Why Bin Data?

Three fundamental reasons:

Noise Reduction: Raw measurements contain random fluctuations. Grouping [25.1, 24.9, 25.3, 24.8]°C into "Room Temperature (20-26°C)" eliminates measurement noise while preserving the meaningful signal.
Non-linearity Capture: A linear model sees salary as one continuous slope. But reality: $30k→$ 50k matters hugely for spending habits, while $130k→$ 150k barely changes behavior. Binning ["<50k", "50-100k", ">100k"] lets even simple models capture this step-function relationship.
Outlier Robustness: Age [22, 25, 23, 187 24] has a typo. Binning into ["18-30", "30-50", "50+"] automatically contains the outlier—187 becomes "50+" just like valid 67.

Binning Strategies: The Three Fundamental Approaches

1. Equal-Width Binning (Uniform Binning)

What: Divide the data range into $k$ bins of equal size.

How (Derivation from scratch):

Find data range: $R = \max(x) - \min(x)$
Compute bin width: $w = R / k$
Create edges: $b_i = \min(x) + i \cdot w$ for $i = 0, 1, \ldots, k$

$\text{Bin width} = \frac{\max(x) - \min(x)}{k}$

Why this works: Geometrically partitions the number line. Simple, interpretable, preserves original scale.

When it fails: Skewed distributions! If data is [1, 2, 3, 4, 5, 100] with $k=3$ :

Bins: [1, 34), [34, 67), [67, 100]
Result: 5 points in first bin, 0 in second, 1 in third—terrible imbalance.

2. Equal-Frequency Binning (Quantile Binning)

What: Divide data so each bin contains approximately equal number of samples.

How (Derivation):

Sort data: $x_{(1)} \leq x_{(2)} \leq \cdots \leq x_{(n)}$
For $k$ bins, target $n/k$ samples per bin
Edges at quantiles: $b_i = Q(i/k)$ where $Q$ is the quantile function

$b_i = \text{quantile}(x, \, i/k) \quad \text{for } i = 1, \ldots, k-1$

Why this works: Ensures balanced bins by adapting to data density. Where data is dense, bins are narrow; where sparse, bins are wide.

Trade-off: Bin widths become irregular, losing interpretability. A bin might be [20-21] while another is [100-500].

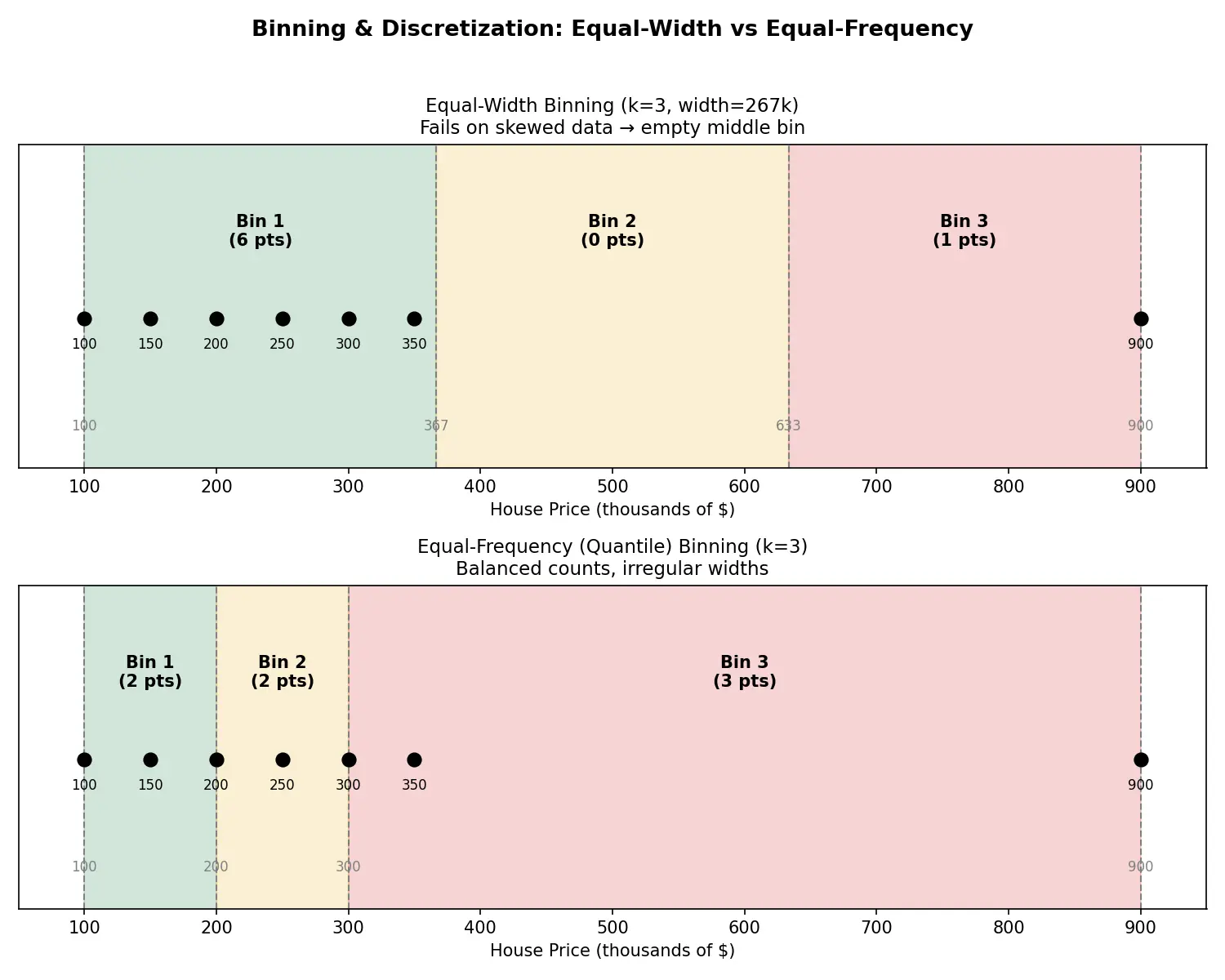

Worked example Equal-Frequency Example

Same data: [100, 150, 200, 250, 300, 350, 900], $k=3$ bins, $n=7$

Target: $7/3 \approx 2.33$ samples per bin

Step 1: Sort (already sorted) Why? Quantiles require ordered data.

Step 2: Find 33rd and 67th percentiles

$Q(1/3)$ : Position $7 \times 1/3 = 2.33$ → interpolate between $x_{(2)}=150$ and $x_{(3)}=200$ → $\approx 167$
$Q(2/3)$ : Position $7 \times 2/3 = 4.67$ → interpolate between $x_{(4)}=250$ and $x_{(5)}=300$ → $\approx 283$ Why interpolate? Exact quantile positions fall between data points.

Step 3: Edges = [100, 167, 283, 900] Result:

Bin 1 [100-167): [100, 150] → 2 samples
Bin 2 [167-283): [200, 250] → 2 samples
Bin 3 [283-900]: [300, 350, 900] → 3 samples

Success: Balanced bins, but widths are 67k, 116k, `617—hard to interpret as price ranges!

3. Custom Binning (Domain-Driven)

What: Use expert knowledge to define meaningful boundaries.

How: Define edges based on real-world thresholds, regulations, or natural breakpoints.

Why this is powerful: Aligns bins with causal mechanisms that drive the target. Age bins [0-18, 18-65, 65+] match legal/biological stages better than arbitrary quantiles.

Mathematical Foundation: Information Loss vs. Generalization

The Central Trade-off:

Binning is a lossy compression. You're replacing exact value $x$ with bin label $f(x)$ .

Information loss (measured by mutual information reduction): $I_{\text{loss}} = H(X) - H(f(X))$ where $H$ is entropy. Fewer bins → more loss.

Generalization gain (bias-variance perspective):

Bias: Increases (you're averaging within bins, assuming flatness)
Variance: Decreases (less sensitivity to individual noise)

Optimal $k$ : Minimize validation error. As a heuristic: $k \approx \sqrt{n} \quad \text{or} \quad k = \left\lfloor 1 + \log_2(n) \right\rfloor \text{ (Sturges' rule)}$

But always validate with cross-validation—there's no universal formula.

Common mistake Common Mistake: Equal-Width on Skewed Data

Wrong approach:

bins = pd.cut(skewed_data, bins=10)  # Equal-width on income data

Result: [0-100k): 95% of data, [100-200k): 4%, [200-300k): 1%, … [900k-1M]: 0% Why it feels right: "I want10 evenly spaced categories for interpretability."

Why it's wrong: Equal-width assumes uniform distribution. Skewed data (income, wealth, website traffic) concentrates in low values. You get 8 empty bins and 1 overloaded bin—wasting representational power.

The fix: Use pd.qcut() (equal-frequency) or log-transform first: np.log1p(skewed_data) then equal-width. Steel-man the mistake: Equal-width IS correct when bins need physical interpretability—"every $100k bracket" for reporting. But for ML features, equal-frequency or custom bins work better.

Common mistake Mistake: Bining Leakage in Cross-Validation

Wrong approach:

X_bined = pd.qcut(X, bins=5)  # Bin on full dataset
cv_scores = cross_val_score(model, X_binned, y, cv=5)

Why it feels right: "I need to bin my data before modeling, so I'll do it upfront."

Why it's wrong: The quantiles for qcut() are computed from the entire dataset, including test folds! The test set "sees" training data statistics through the bin edges. This is data leakage—you'll get optimistically biased CV scores.

The fix: Compute bin edges only on training folds:

from sklearn.preprocessing import KBinsDiscretizer
binner = KBinsDiscretizer(n_bins=5, encode='ordinal', strategy='quantile')
# Fit on train, transform both train and test (bin edges from train only)
X_train_bined = binner.fit_transform(X_train)
X_test_binned = binner.transform(X_test)  # Uses train edges

Why this matters: Test samples might fall outside training bin ranges—that's valid! They'd be clipped to the nearest bin, which is the correct behavior. Leakage makes your model look better than it is.

Encoding After Binning

After binning, you have categorical labels ["low", "medium", "high"] or integers [0, 1, 2]. For ML:

Ordinal encoding: Keep as integers [0, 1, 2] when order matters (age groups, income brackets). Tree models understand this naturally.

One-hot encoding: Convert to binary vectors when order doesn't matter or for linear models:

"low"    → [1, 0, 0]
"medium" → [0, 1, 0]
"high"   → [0, 0, 1]

Why one-hot for linear models? A linear model treats ordinal [0, 1, 2] as equally spaced—it assumes bin2 is "twice bin 1." One-hot lets each bin have an independent coefficient.

When to skip one-hot? Tree-based models (Random Forest, XGBoost) split on thresholds anyway—ordinal encoding is sufficient and more compact.

Worked example Full Pipeline Example: Age Bining for Titanic Survival

Goal: Predict survival from age. Raw age has 80+ unique values; let's bin into life stages.

Step 1: Define bins (Custom strategy)

bins = [0, 12, 18, 60, 100]  # Child, Teen, Adult, Senior
labels = ['Child', 'Teen', 'Adult', 'Senior']

Why these edges? Childhood (0-12), adolescence (12-18), working age (18-60), retirement (60+)—matches biological/social stages that might affect survival chances (e.g., "women and children first").

Step 2: Apply binning

df['AgeGroup'] = pd.cut(df['Age'], bins=bins, labels=labels)

What happened? Age=5 → Child, Age=25 → Adult, Age=75 → Senior.

Step 3: Handle edge cases

Age=NaN → stays NaN (handle separately with imputation)
Age=12 → goes into Teen (bins are [a, b) left-closed, right-open by default)

Step 4: Encode for modeling For logistic regression (linear model):

pd.get_dummies(df['AgeGroup'], prefix='Age')
# Creates: Age_Child, Age_Teen, Age_Adult, Age_Senior columns

Step 5: Validate improvement

# Model A: Raw age (continuous)
# Model B: Binned age
# Compare CV accuracy/AUC

If B > A, bining captured non-linearity (e.g., kids had higher survival, non-linear in raw age).

When NOT to Bin

Don't bin if:

Smooth relationships exist: If target varies smoothly with feature (temperature vs. ice cream sales), binning introduces artificial steps. Use the continuous variable or polynomial features instead.
You have enough data for non-parametric models: Neural nets, kernel methods, and deep trees learn complex functions directly. Binning is pre-imposing structure that these models discover automatically. You're reducing their flexibility.
Interpretability demands exact values: Reporting "average income: $67,342" vs. "most in$ 50-100k bin" loses precision for business decisions.

Do bin when:

Working with simple models (linear, naive Bayes)
Data is noisy or has outliers
Feature has natural thresholds (legal ages, medical cutoffs)
Computational constraints (fewer unique values = faster training)

Recall Explain to a12-year-old

Imagine your teacher gives everyone a grade from 0-100 on a test. But then she says, "Actually, I'm going to give letter grades: A (90-100), B (80-89), C (70-79), D (60-69), F (below 60)."

Why did she do that?

Easier to understand: Saying "you got a B" is clearer than "you got an83.7."
Small differences don't matter: 83 vs 84 is basically the same performance—both are B's. It prevents fighting over one tiny point!
Fair to everyone: If some questions were accidentally too hard, grouping into letters makes it less sensitive to those unfair questions.

That's bining! Instead of tracking every exact number (continuous), you group them into meaningful categories (discrete). It's like organizing a messy closet into labeled boxes—you lose track of exactly where each item is, but you gain the ability to find "shirts" vs. "pants" quickly

In machine learning, we do this with data like age, income, or temperature to make patterns easier for the computer to spot.

Connections

2.1.07-Feature-scalingand-normalization: Binning is an alternative to scaling for handling outliers and non-linearity
2.2.03-One-hot-encoding: Bining often precedes one-hot encoding (continuous → discrete → binary vectors)
3.1.04-Decision-trees: Trees perform implicit binning via splits; manual binning can help shallow trees
2.1.09-Feature-interactions: Binned features enable cleaner interaction terms (e.g., AgeGroup × Income)
4.3.02-Bias-variance-tradeoff: Binning increases bias (loss of detail) but decreases variance (less overfitting)
2.3.01-Handling-missing-data: Missing values can be treated as a separate bin category

#flashcards/ai-ml

What is binning in feature engineering? :: Converting continuous numerical features into discrete categories (bins/buckets) by dividing the range into intervals

What are the three main bining strategies?

1) Equal-width (uniform intervals), 2) Equal-frequency (quantile-based, equal samples per bin), 3) Custom (domain-driven boundaries)

When does equal-width binning fail?

On skewed distributions—creates imbalanced bins with most data in one bin and many empty bins

What is Sturges' rule for choosing number of bins?

k = 1 + \log_2(n)

where

n

is sample size; balances resolution and stability for normally distributed data

What is bining leakage in cross-validation?

Computing bin edges on the full dataset (including test folds) instead of only on training data, causing data leakage and optimistic evaluation

When should you use one-hot encoding after binning instead of ordinal?

For linear models, when bin order doesn't represent equal spacing, or when you want each bin to have independent coefficients

What are three reasons to bin continuous data?

1) Noise reduction, 2) Capturing non-linear relationships, 3) Robustness to outliers

What is the formula for equal-width bin width?

w = (\max(x) - \min(x)) / k

where

k

is the number of bins

When should you NOT bin data?

When relationships are smooth/continuous, using flexible models (neural nets, trees) that learn non-linearity, or when exact values are needed for interpretability

How do you prevent binning leakage?

Fit binning transformer only on training data, then transform both train and test using the same training-derived bin edges

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Binning ka matlab hai continuous data (jaise ki exact salary, age, temperature) ko discrete categories mein todna. Socho ki tumhare pas ek bahut bada box hai jisme bohot sare items hain, aur tum unhe chhote-chhote labeled boxes mein organize kar rahe ho—"Budget Items", "Mid-Range Items", "Premium Items". Har exact price track karna mushkil hai, lekin ye categories se patterns easily dikhte hain.

Teen main strategies hain. Equal-width mein number line ko equal parts mein kaat dete hain (jaise ruler pe marks)—simple hai but skewed data pe fail ho jata hai kyunki ek bin mein sab data aa jayega aur baki empty rahenge. Equal-frequency (quantile bining) mein har bin mein approximately same number of samples rakhte hain—ye balanced hota hai but bin widths irregular ho jate hain. Custom bining sabse powerful hai jab tumhe domain knowledge hai—jaise income ke liye poverty line, middle class threshold use karo, kyunki ye real-world factors capture karte hain.

Bining kyun karte hain? Pehla, noise reduction—agar tumhare pas [24.9°C, 25.1°C, 25.3°C] jaise measurements hain, toh "Room Temperature" bin mein daal do, minor fluctuations ignore ho jayenge. Dosra, non-linearity capture—linear models straight lines samajhte hain, but real life mein $30k to $50k salary jump bohot impactful hai while $130k to $150k barely matters for spending behavior. Bining se simple models bhi ye step-functions seekh sakte hain. Tesra, outliers se protection—agar data mein [22, 25, 23, 187 24] age hai (187 clearly typo hai), toh binning se wo automatically "50+" bin mein chala jayega, model ko distort nahi karega.

Lekin dhyan rakho: agar smooth relationship hai (jaise temperature se ice cream sales), toh binning artificial steps introduce karega—galat approach hai. Flexible models (neural nets, deep trees) khud patterns seekh lete hain, unke liye manual binning unnecessary hai. Aur cross-validation mein binning leakage se bacho—bin edges sirf training data se calculate karo, pore dataset se nahi, warna test performance optimistically biased hoga. Binning ek powerful tool hai jab sahi jagah use karo—noise, outliers, aur simple models ke liye perfect, but over-bining se information loss hota hai.
