Intuition The core idea in one breathIn modern markets, information is money , but information travels at a finite speed. If your competitor sees a price change and reacts even 1 microsecond before you, they take the profitable trade and leave you the scraps. Latency is the time delay between "something happens" and "you can act on it." Co-location is the practice of physically renting rack space next to the exchange's matching engine so your signal has less distance (and thus less time) to travel. It's a literal race, and the finish line is measured in millionths of a second.
Latency is the total time delay between a market event occurring and a trader's order reaching the exchange's matching engine (and back) . It is measured in milliseconds (ms), microseconds (µs), or even nanoseconds (ns).
1 ms = 10 − 3 s , 1 μ s = 10 − 6 s , 1 ns = 10 − 9 s 1\text{ ms} = 10^{-3}\text{ s}, \quad 1\ \mu\text{s} = 10^{-6}\text{ s}, \quad 1\text{ ns} = 10^{-9}\text{ s} 1 ms = 1 0 − 3 s , 1 μ s = 1 0 − 6 s , 1 ns = 1 0 − 9 s
WHY split it up? Because you can only optimize what you can measure. Total latency is a sum of independent delays , so we derive it from first principles by tracing a signal's journey.
Co-location is renting server space inside the exchange's own data centre , sometimes within metres of the matching engine, so your d d d t prop t_{\text{prop}} t prop
Intuition Why equal-length cables?If Firm A were 3 m away and Firm B were 30 m away, A would always win. To sell co-location as fair , exchanges coil every cable to the same length — so a firm at the far corner of the room has the same propagation delay as one right next to the engine. The race then depends on your hardware and code , not your rack luck.

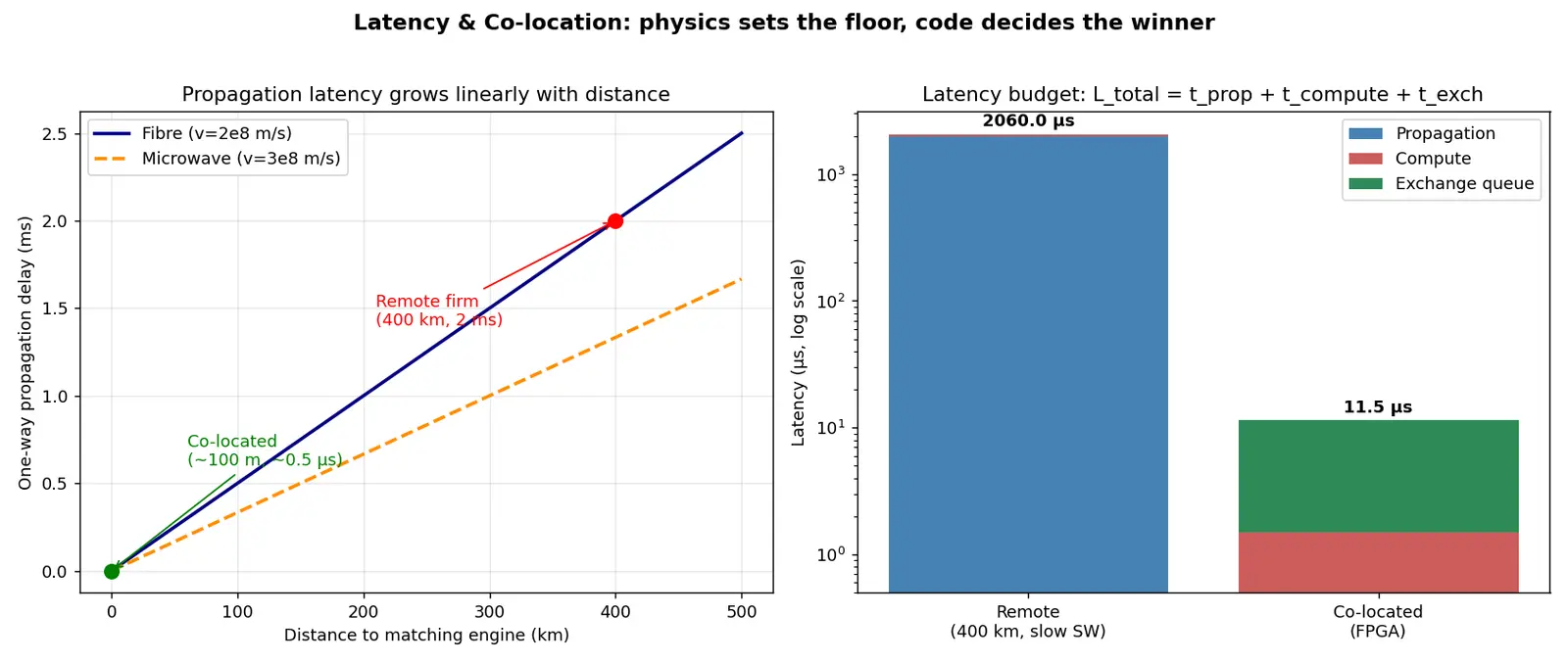

Worked example Example 1 — The distance advantageFirm X sits 400 km away in another city; Firm Y co-locates 100 m from the engine. How much faster is Y on a one-way trip?
Step 1 — Firm X delay. t X = d v = 400,000 m 2 × 10 8 m/s = 2 × 10 − 3 s = 2 ms t_X = \dfrac{d}{v} = \dfrac{400{,}000\ \text{m}}{2\times10^8\ \text{m/s}} = 2\times10^{-3}\ \text{s} = 2\ \text{ms} t X = v d = 2 × 1 0 8 m/s 400 , 000 m = 2 × 1 0 − 3 s = 2 ms Why this step? We use t = d / v t=d/v t = d / v
Step 2 — Firm Y delay. t Y = 100 2 × 10 8 = 5 × 10 − 7 s = 0.5 μ s t_Y = \dfrac{100}{2\times10^8} = 5\times10^{-7}\ \text{s} = 0.5\ \mu\text{s} t Y = 2 × 1 0 8 100 = 5 × 1 0 − 7 s = 0.5 μ s
Step 3 — Advantage. Δ t = 2 ms − 0.5 μ s ≈ 2 ms \Delta t = 2\text{ ms} - 0.5\ \mu\text{s} \approx 2\text{ ms} Δ t = 2 ms − 0.5 μ s ≈ 2 ms Why this step? Co-location's delay is so tiny it's negligible; the whole 2 ms gap is Y's edge — an eternity in HFT.
Worked example Example 2 — Does faster code beat distance?Firm X is co-located but runs slow software: t compute = 50 μ s t_{\text{compute}} = 50\ \mu\text{s} t compute = 50 μ s t compute = 1 μ s t_{\text{compute}} = 1\ \mu\text{s} t compute = 1 μ s
Step 1 — Firm X total. Distance ≈ 0, so L X ≈ 50 μ s L_X \approx 50\ \mu\text{s} L X ≈ 50 μ s
Step 2 — Firm Y total. Propagation = 5000 2 × 10 8 = 25 μ s =\dfrac{5000}{2\times10^8}=25\ \mu\text{s} = 2 × 1 0 8 5000 = 25 μ s 1 μ s 1\ \mu\text{s} 1 μ s L Y = 26 μ s L_Y = 26\ \mu\text{s} L Y = 26 μ s Why this step? We sum sequential delays per our derived formula.
Step 3 — Compare. 26 μ s < 50 μ s 26\ \mu\text{s} < 50\ \mu\text{s} 26 μ s < 50 μ s Y wins despite being farther. Why? Co-location removes distance but not slow logic — the total latency is what matters.
Worked example Example 3 — Microwave vs fibreBetween two cities 1000 km apart, fibre gives v = 2 × 10 8 v=2\times10^8 v = 2 × 1 0 8 microwave link travels through air at nearly c = 3 × 10 8 c=3\times10^8 c = 3 × 1 0 8
Fibre: t = 10 6 2 × 10 8 = 5 ms t = \dfrac{10^6}{2\times10^8}=5\ \text{ms} t = 2 × 1 0 8 1 0 6 = 5 ms Microwave: t = 10 6 3 × 10 8 = 3.33 ms t = \dfrac{10^6}{3\times10^8}=3.33\ \text{ms} t = 3 × 1 0 8 1 0 6 = 3.33 ms Why this matters: saving ~1.67 ms over 1000 km is why HFT firms built microwave towers between Chicago and New York — physics, not code, wins here.
Common mistake "Latency is just about internet speed / bandwidth."Why it feels right: in daily life a "fast connection" means big downloads, so we equate speed with bandwidth (GB/s).
The fix: Latency is about delay (time), not throughput (data volume) . A fat pipe moves more data but doesn't make each bit arrive sooner . HFT sends tiny messages; it needs low delay, not high bandwidth.
Common mistake "Co-location makes markets unfair for everyone."Why it feels right: rich firms pay for a physical edge — sounds like cheating.
The fix: Exchanges argue co-location is offered to all at published prices with equal cable lengths , so it standardizes the advantage rather than hiding it. The debate is real, but the mechanism is designed for equal access among those who pay.
Common mistake "You can eliminate latency completely."Why it feels right: co-location gets you so close it seems like zero.
The fix: The speed of light is a hard floor . Even at 1 m, t = 5 ns ≠ 0 t = 5\ \text{ns} \ne 0 t = 5 ns = 0
Recall Feynman: explain to a 12-year-oldImagine a class where whoever shouts the right answer FIRST gets the prize. The teacher whispers a hint. If you sit at the back of the room, the sound takes longer to reach you, so a kid in the front row always shouts first. Co-location is like paying to sit in the front row, right next to the teacher. But even in the front row, if you think slowly (slow computer/code), a faster-thinking kid two rows back can still beat you. And no matter how close you sit, sound still takes a tiny moment to arrive — you can never react at literally zero time.
Mnemonic Remember the latency chain"Please Compute, Please Enqueue" → P ropagation-in, C ompute, P ropagation-out, E xchange-queue. And for co-location: "Same cable, different brains" — everyone gets equal cable length, so your brains (hardware+code) decide the winner.
What is latency in market microstructure? The total time delay between a market event occurring and a trader's order reaching (and being processed by) the exchange, measured in ms/µs/ns.
What is co-location? Renting server space inside the exchange's data centre so the physical distance — and thus propagation delay — to the matching engine is minimized.
Why do exchanges give co-located clients equal-length cables? To keep the propagation delay identical for all paying clients, so the advantage depends on hardware/code, not physical rack position.
What is the approximate signal speed in fibre optic cable? About
2 × 10 8 2\times10^8 2 × 1 0 8 m/s, roughly two-thirds the speed of light in vacuum.
Formula for one-way propagation delay over distance d in fibre? t p r o p = d / v = d / ( 2 × 10 8 m/s ) t_{prop} = d / v = d / (2\times10^8\ \text{m/s}) t p r o p = d / v = d / ( 2 × 1 0 8 m/s ) .
What are the four sequential components of round-trip latency? Propagation-in + Compute time + Propagation-out + Exchange queue/matching time.
Latency vs bandwidth — what's the difference? Latency is delay (time per message); bandwidth is throughput (data volume per second). HFT cares about latency.
Why do firms use microwave links instead of fibre between cities? Microwaves travel through air near c (3×10⁸ m/s) and take straighter paths, giving lower propagation delay than fibre (2×10⁸ m/s).
Can latency be reduced to zero? No — the speed of light is a hard floor, plus compute and exchange-queue times never fully vanish.
One-way fibre delay over 400 km? t = 400,000 / ( 2 × 10 8 ) = 2 ms t = 400{,}000 / (2\times10^8) = 2\ \text{ms} t = 400 , 000/ ( 2 × 1 0 8 ) = 2 ms .
Intuition Hinglish mein samjhoDekho, stock market ke high-frequency trading mein latency ka matlab hai — "koi event hua, aur aap us par react kar paaye, iske beech kitna time laga." Yeh time milliseconds, microseconds, ya nanoseconds mein naapa jaata hai. Kyunki market mein sabse pehle react karne wala hi profitable trade le leta hai, isliye har microsecond ki keemat paise mein hoti hai. Ek din ka fast internet aur HFT ki latency alag cheezein hain — bandwidth ka matlab "kitna data" jaa sakta hai, jabki latency ka matlab "kitni jaldi" ek chhota message pahunch jaaye. HFT ko latency chahiye, bandwidth nahi.
Ab co-location samjho. Signal fibre cable mein light se bhi thoda dheere chalta hai — around 2 × 10 8 2\times10^8 2 × 1 0 8 d d d
Ek interesting baat: exchange sabko same length ki cable deta hai, taaki koi firm room ke corner mein ho ya engine ke bilkul bagal mein, dono ka propagation delay barabar rahe. Isse race "fair" ho jaati hai — ab jeet distance se nahi, balki aapke hardware aur code ki speed se decide hoti hai. Isiliye firms FPGA aur super-optimized code use karti hain. Aur yaad rakho — chahe kitna bhi paas baith jaao, light ki speed ek hard limit hai, latency kabhi bilkul zero nahi ho sakta.
