Learn MACD crossovers and divergence

Overview

The MACD (Moving Average Convergence Divergence) is a momentum indicator that reveals both trend direction and momentum strength through the relationship between two exponential moving averages. MACD crossovers signal potential entry/exit points, while MACD divergence warns of weakening trends before price reversals occur.

The MACD Components

Derivation from First Principles

The MACD system consists of three elements derived from price:

WHY this formula?

• We subtract the slow (26-period) from fast (12-period) EMA to measure the gap between short-term and long-term momentum
• When short-term momentum exceeds long-term, the gap is positive (bullish)
• When short-term lags, the gap is negative (bearish)

HOW EMA works: $\text{EMA}_t = P_t \times \alpha + \text{EMA}_{t-1} \times (1 - \alpha)$ where $\alpha = \frac{2}{n+1}$ (smoothing factor), $n$ is the period, $P_t$ is current price.

For12-period: $\alpha_{12} = \frac{2}{13} \approx 0.1538$
For 26-period: $\alpha_{26} = \frac{2}{27} \approx 0.0741$

WHY exponential weighting? Recent prices matter more for momentum—yesterday's move is more relevant than last month's.

WHY take another EMA? The Signal Line smooths the MACD, creating a baseline. Crossovers between MACD and Signal generate trading signals.

WHAT it shows: The distance between MACD and Signal. Growing histogram = accelerating momentum. Shrinking histogram = decelerating momentum.

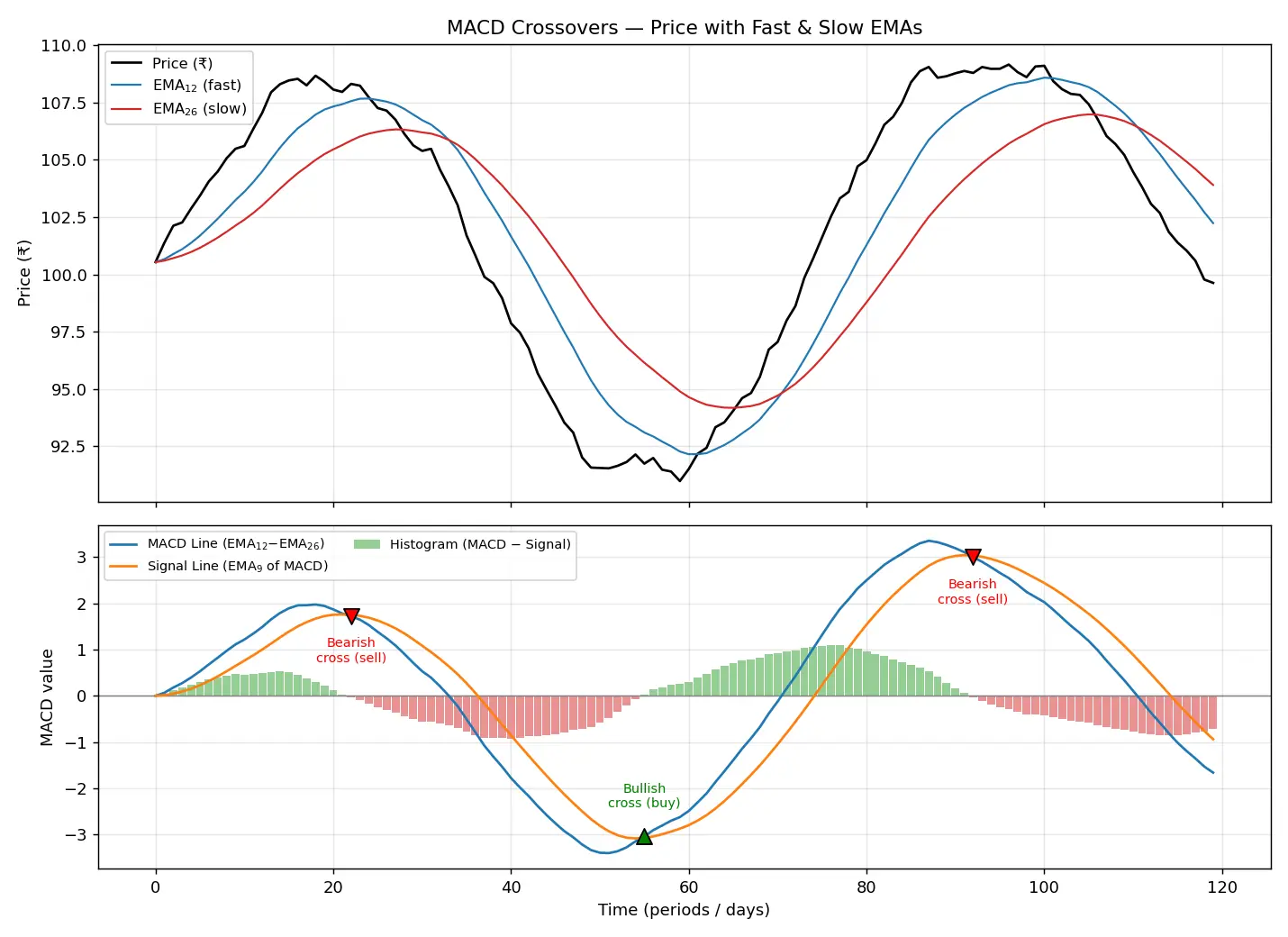

MACD Crossovers

Bullish Crossover (Golden Cross)

HOW to identify:

1. MACD Line was below Signal Line (histogram negative)
2. MACD Line crosses upward through Signal Line
3. Histogram transitions from negative to positive
4. Preferably occurs in or near zero line (stronger signal)

Day 6: Price rallies to ₹105

• $\text{EMA}_{12}$ rises faster than $\text{EMA}_{26}$ due to lower α value capturing recent surge
• MACD Line = 51.5 - 52.0 = -0.5 (still negative but rising)

Day 7: Price ₹107

• $\text{EMA}_{12}$ = 52.8, $\text{EMA}_{26}$ = 52.3
• MACD = +0.5 (crossed zero line)
• Signal still at -0.2 (slower to respond)
• Histogram = 0.5 - (-0.2) = +0.7

Day 8: Price ₹108

• MACD = +0.9, Signal = +0.1
• CROSSOVER OCCURS: MACD crosses above Signal
• Histogram = +0.8 (positive and growing)

Why this step-by-step matters: The crossover confirms the trend change after momentum shifted. You're not catching the bottom but confirming the reversal.

Bearish Crossover (Death Cross)

HOW to identify:

1. MACD Line was above Signal Line (histogram positive)
2. MACD Line crosses downward through Signal Line
3. Histogram transitions from positive to negative
4. Crossing below zero line adds conviction

Day 1 decline: Price drops to ₹147

• Short-term EMA falls faster
• MACD = +1.8, Signal = +1.6 (Signal catches up slower)
• Histogram shrinks to +0.2

Day 2: Price ₹145

• MACD = +1.5, Signal = +1.6
• CROSSOVER: MACD crosses below Signal
• Histogram = -0.1 (negative)

Day 3: Price ₹142

• MACD = +0.8, Signal = +1.3
• Histogram = -0.5 (widening, confirming bearish momentum)

Why this matters: The bearish crossover warned of the trend weakening before the steper decline to ₹142.

Centerline Crossovers

• MACD crosses above zero: $\text{EMA}_{12} > \text{EMA}_{26}$ → Confirmed uptrend
• MACD crosses below zero: $\text{EMA}_{12} < \text{EMA}_{26}$ → Confirmed downtrend

MACD Divergence

Regular Bullish Divergence

WHY it predicts reversals:

• Price driven by late sellers (panic, stop-losses)
• But underlying momentum (MACD) shows selling pressure weakening
• Buyers stepping in at higher prices than previous low
• The gap between appearance (price) and reality (momentum) eventually closes

Rally to Day 10: Price recovers to ₹100, MACD = -0.5

Low 2 (Day 20): Price = ₹88 (lower low), MACD = -1.8 (higher low than -2.5)

Analysis:

• Price dropped₹2 lower (₹90 → ₹88)
• But MACD improved by0.7 (from -2.5 to -1.8)
• WHY? $\text{EMA}_{12}$ declining slower than before
  • First drop: $\text{EMA}_{12}$ fell from 92to 87.5 (Δ = 4.5)
  • Second drop: $\text{EMA}_{12}$ fell from 101 to 98(Δ = 3.0)
• Sellers exhausted, buyers absorbing supply

Day 25: Price bounces to ₹95, confirming divergence signal

Why each step: We compare the rate of change in momentum vs. price. Price made a marginal new low, but momentum improved significantly—the reversal indicator.

Regular Bearish Divergence

The mechanics:

• Price pushed by late buyers (FOMO, breakout chasers)
• Momentum weakening: fewer buyers at each new high
• The uptrend is "running out of gas"

Dip to Day 10: Price = ₹190, MACD = +1.5

High 2 (Day 20): Price = ₹205 (higher high), MACD = +2.8(lower high than +3.2)

Detailed calculation for Day 20:

• At High 1: $\text{EMA}_{12}$ = 202, $\text{EMA}_{26}$ = 198.8, MACD = 3.2
• At High 2: $\text{EMA}_{12}$ = 207, $\text{EMA}_{26}$ = 204.2, MACD = 2.8
• WHY lower MACD despite higher price?
  • The 26-period EMA "caught up" more than the 12-period extended
  • Gap narrowing = momentum slowing
  • $\text{EMA}_{26}$ rose 5.4 points vs. $\text{EMA}_{12}$ only 5points

Day 25: Price drops to ₹195, confirming divergence

Hidden Divergence

Use case: Identifies buying opportunities in existing uptrends. Not a reversal signal but a continuation signal.

Use case: Identifies shorting opportunities in existing downtrends.

Swing Low1 (Day 40): Price = ₹70, MACD = +1.5 (during pullback)

Swing Low 2 (Day 60): Price = ₹75(higher low), MACD = +0.9 (lower low)

Interpretation:

• Price held higher low = uptrend structure intact
• MACD lower = momentum reset (healthy profit-taking)
• Not a weakening trend, just a breather before next leg up

Day 65: Price resumes to ₹85

Why this works: In strong trends, pullbacks are shallow in price but deeper in momentum (traders book profits). This "reloads" the indicator for the next push.

Trading Strategies

Strategy 1: Signal Line Crossover with Histogram Confirmation

Entry rules:

1. Wait for MACD to cross Signal Line
2. Confirm histogram is expanding in the direction of crossover
3. Volume should increase on crossover day
4. Preferably near zero line

Exit rules:

• Opposite crossover OR
• Histogram starts shrinking (momentum fading)

Why histogram matters: A crossover with flat histogram = weak signal (sideways chop). Growing histogram = strong momentum follow-through.

Strategy 2: Divergence Trading

Setup:

1. Identify divergence (price vs. MACD mismatch)
2. Wait for MACD to cross Signal in divergence direction
3. Enter on crossover confirmation

Risk management:

• Stop-loss below recent swing low (bullish) or above swing high (bearish)
• Target = 1.5x to 2x the risk

Strategy 3: Zero Line Rejection

Concept: In strong trends, MACD pulls back to zero line but doesn't cross—it "bounces" off zero.

Bullish setup:

• Uptrend: MACD above zero
• MACD dips toward zero but holds (doesn't cross below)
• MACD turns up from near-zero → BUY THE DIP

Bearish setup:

• Downtrend: MACD below zero
• MACD rises toward zero but fails to cross above
• MACD turns down from near-zero → SHORT THE BOUNCE

Mistake 2: Ignoring histogram Why it feels right: "MACD crossed Signal, that's the signal." The problem: A crossover with shrinking histogram = dying momentum. You're entering as the move exhausts. The fix: Only trade crossovers where histogram is expanding for at least 2 bars after crossover.

Mistake 3: Expecting immediate moves Why it feels right: "I got the signal, price should move NOW." The problem: MACD is a lagging indicator (built on EMAs of past prices). The actual low/high occurred 3-5 days earlier. The fix: Use MACD for confirmation, not prediction. Combine with leading indicators (RSI, price action) for entries.

Mistake 4: Forgetting timeframe context Why it feels right: "Bullish divergence on 5-min chart, let's buy!" The problem: Lower timeframes = more noise, more false signals. A5-min divergence may be irrelevant to daily trend. The fix: Trade MACD on daily/weekly for swing trades. Use intraday only if aligned with higher timeframe trend.

Mistake 5: Divergence without price confirmation Why it feels right: "I see the divergence forming, jump in early!" The problem: Divergence is a warning, not a signal. Price can continue trending for days before reversing. The fix: Wait for MACD crossover + price breaking key level (swing high/low, trendline) before entering.

Crossover rhyme: "MACD goes above? Bulls show love. MACD drops below? Bears steal the show."

Divergence rule: "Price and MACD disagree? Wait for them to agree (crossover) before you act."

Connections

• 3.4.02-Calculate-moving-averages - MACD built on EMA foundation
• 3.4.01-Understand-support-and-resistance - Divergence forms at S/R levels
• 3.4.08-ApplyBollinger-Bands - Combine MACD + Bollinger for mean reversion
• 3.4.03-Identify-trend-lines - MACD confirms trendline breaks
• 3.2.04-Recognize-candlestick-patterns - Divergence + engulfing candle = high-probability
• 3.4.05-Use-RSI-for-momentum - RSI + MACD divergence double confirmation
• 2.3.02-Assess-stock-volatility - Higher volatility = wider MACD swings
• 4.1.03-Set-stop-loss-orders - Place stops beyond MACD divergence swing points

Now, here's the weird part: Sometimes the race results (price) say your friend won the last three races, BUT your notebook shows you're actually closing the gap each time (divergence). Even though it looks like you're losing, you're getting faster—and soon you'll win. That's what divergence tells traders: the scoreboard (price) and your actual speed (momentum) don't match, so something's about to change.

The histogram? That's just a quick-glance bar chart showing if the gap is growing (you're pulling away) or shrinking (race is tightening). If the bars get shorter, you're slowing down even if you're still ahead.

#flashcards/stock-market

What are the three components of the MACD system? :: MACD Line (12-EMA minus 26-EMA), Signal Line (9-EMA of MACD), and Histogram (MACD minus Signal).
