Understand MACD line, signal, histogram

What Is MACD and Why Does It Exist?

MACD was created by Gerald Appel in the 1970s to solve a specific problem: moving averages lag. By the time a single MA signals a trend change, you've missed the early move. MACD fixes this by:

1. Comparing two speeds (fast vs slow MA) to catch momentum shifts early
2. Adding a signal line to filter noise and confirm the shift
3. Visualizing acceleration with a histogram

Deriving the MACD From First Principles

Step 1: Why exponential moving averages?

Simple moving averages treat all days equally. But yesterday's price is more relevant than last month's. The EMA weights recent prices exponentially:

$\text{EMA}_t = \alpha \cdot P_t + (1-\alpha) \cdot \text{EMA}_{t-1}$

where $\alpha = \frac{2}{N+1}$ is the smoothing factor for an $N$-day EMA.

Why this step? We want responsiveness without jitter. The EMA decay constant $\alpha$ gives more weight to recent data while retaining history.

Step 2: Construct the MACD line

Choose two timescales:

• Fast EMA (12-day): $\alpha_{12} = \frac{2}{13} \approx 0.154$ — captures short-term price action
• Slow EMA (26-day): $\alpha_{26} = \frac{2}{27} \approx 0.074$ — captures longer trend

The MACD line is:

$\text{MACD}_t = \text{EMA}_{12}(P_t) - \text{EMA}_{26}(P_t)$

Why subtract? When price rises, EMA(12) rises faster than EMA(26), creating a positive divergence. This quantifies momentum direction and strength.

Step 3: Add the signal line (trigger)

Raw MACD is noisy. Apply another EMA to smooth it:

$\text{Signal}_t = \text{EMA9}(\text{MACD}_t)$

Why this step? A9-day EMA of MACD filters day-to-day fluctuations. Crossovers between MACD and signal become actionable events rather than noise.

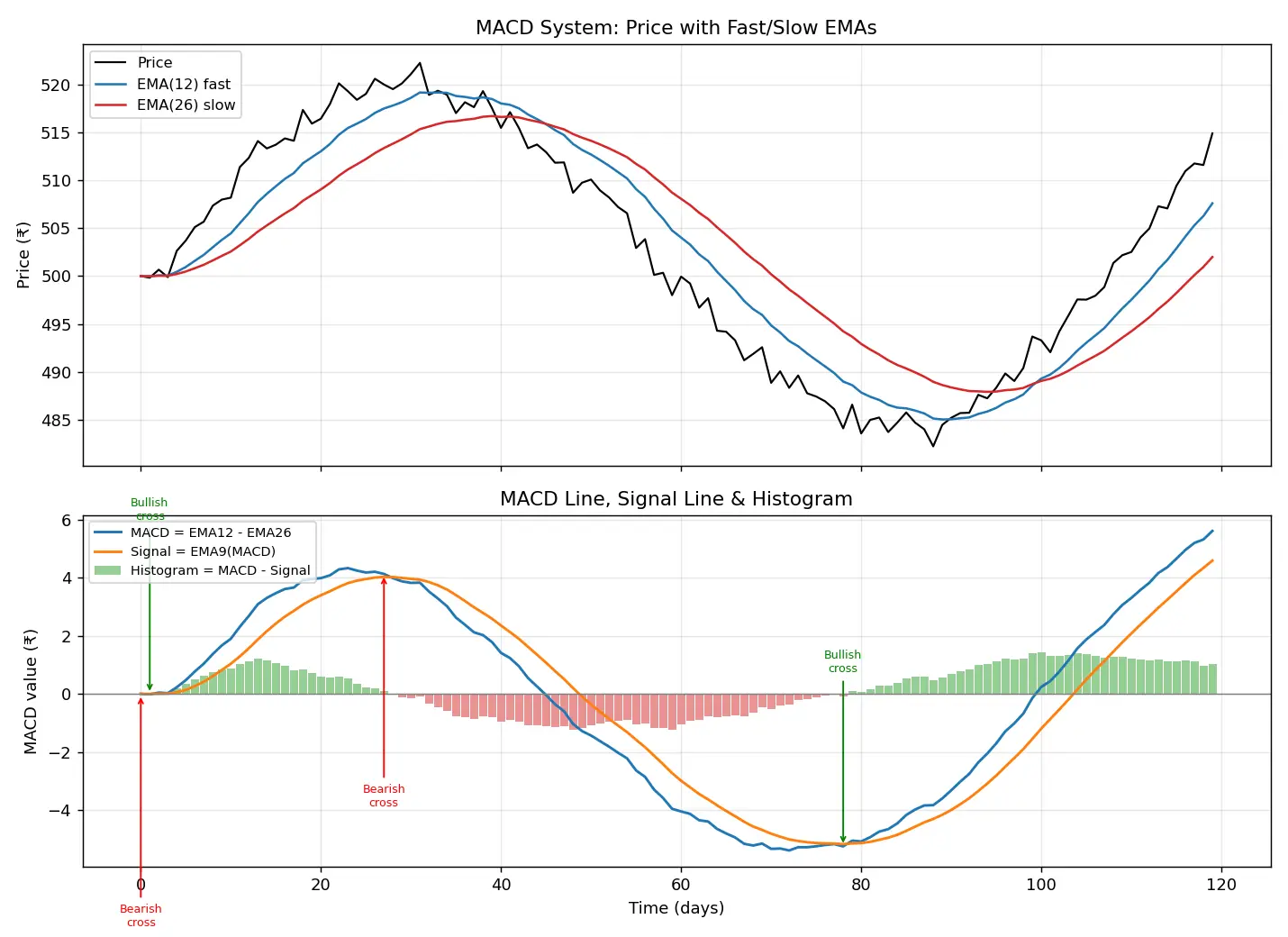

Step 4: Visualize with the histogram

$\text{Histogram}_t = \text{MACD}_t - \text{Signal}_t$

Why this step? The histogram shows how far apart MACD and signal are. It's a momentum-of-momentum indicator:

• Histogram expanding → momentum accelerating
• Histogram contracting → momentum decelerating (even if MACD is still positive)

Worked Examples

Common Mistakes and How to Fix Them

How to Use MACD in Practice

Signal Interpretation

| Condition | Meaning | Action | |------------------------------------|------------------------------------| | MACD > 0, rising | Strong uptrend | Hold long | | MACD > 0, histogram shrinking | Uptrend weakening | Tighten stops | | MACD crosses above signal | Bullish reversal/continuation | Enter long | | MACD crosses below signal | Bearish reversal/continuation | Enter short/exit | | MACD diverges from price | Momentum exhaustion | Prepare for reversal | | Histogram expanding | Momentum accelerating | High conviction |

Why These Parameters? (12, 26, 9)

• 12 days ≈ 2.5 trading weeks (short-term sentiment)
• 26 days ≈ 1trading month (intermediate trend)
• 9 days ≈ 2weeks (signal smoothing)

These are Appel's defaults from the 1970s, optimized for stocks. They work because they capture:

• Weekly cycles (12)
• Monthly cycles (26)
• Enough smoothing to filter noise (9)

Can you change them? Yes, but be careful:

• Shorter periods (e.g., 5/13/6) → more sensitive, false signals
• Longer periods (e.g., 19/39/9) → more reliable, but slower

Connections

• Exponential Moving Average — MACD's building block
• RSI — Combine for momentum + overbought/oversold
• Divergence Trading — MACD divergence is a classic setup
• Support/Resistance — Context for MACD signals
• Stochastic Oscillator — Alternative momentum oscillator
• Volume Analysis — Confirm MACD crossovers with volume

#flashcards/stock-market

What are the three components of MACD? :: MACD line (EMA(12) - EMA(26)), Signal line (EMA(9) of MACD), Histogram (MACD - Signal)

What does a shrinking histogram indicate, even when MACD is positive? :: Momentum is decelerating; the trend is losing strength even though it's still technically bullish

What does the zero line represent in MACD? :: The point where EMA(12) equals EMA(26); when short-term and long-term momentum are balanced
