Question bank — Space environment — LEO radiation (SAA, Van Allen), atomic oxygen, MMOD debris
Before we start, one shared vocabulary reminder so no symbol surprises you:
The two figures below are the mental pictures behind the trickiest reveals — glance at them before answering.
True or false — justify
True or false: The Van Allen belts exist because Earth's magnetic field creates charged particles.
False — the field only traps particles that already come from the solar wind and cosmic rays; it acts as a magnetic bottle, not a particle factory.
True or false: A satellite in a low, near-equatorial 400 km orbit spends most of its time deep inside the inner Van Allen belt.
False — at 400 km it is normally below the belt; it only dips into intense proton flux where the inner belt sags to LEO, i.e. inside the SAA.
True or false: The Lorentz force on a trapped particle does work on it and speeds it up as it spirals.
False — is always perpendicular to velocity, so it changes direction but does zero work; the particle's speed (and energy) is unchanged by the magnetic field alone.

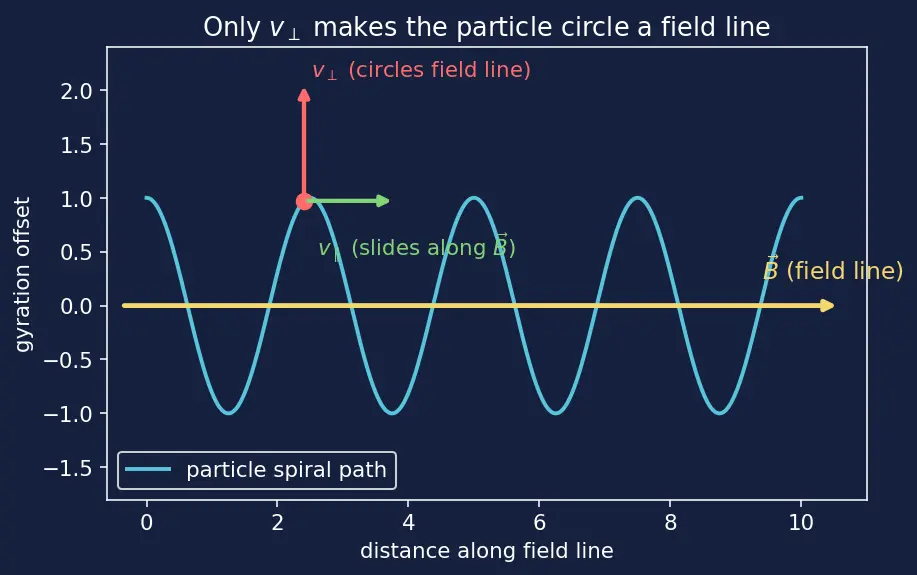

True or false: Doubling the magnetic field strength doubles the gyration radius , where is the speed perpendicular to .
False — is inversely proportional to , so doubling halves the radius; tighter spirals in stronger field.
True or false: Atomic oxygen is dangerous mainly because oxygen is chemically corrosive at rest, like rust on a car.
False — ambient O is only reactive enough to erode surfaces because the 7.7 km/s ram velocity boosts the collision energy to ~4.9 eV, above chemical bond energies; a still O atom would barely touch the surface.
True or false: Orbital debris and micrometeoroids arrive from all directions with the same speed distribution.
False — micrometeoroids are natural, isotropic, and fast (11–72 km/s), while orbital debris is man-made, concentrated near the orbital plane, and slower (0–15 km/s) because it shares similar orbits.
True or false: A Whipple shield works by being thicker and therefore harder to punch through than a single wall of the same mass.
False — it works by being spaced, not thick; the thin bumper shatters and vaporizes the projectile, and the gap lets the debris cloud spread out so its energy hits the inner wall over a wide area.
True or false: If a particle has a low probability of hitting you per year, the ten-year probability is just ten times bigger.

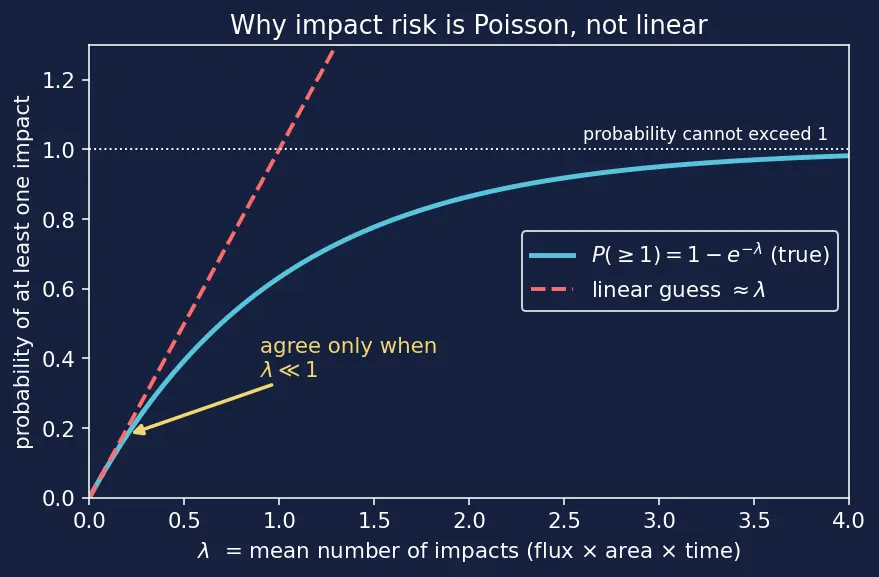

False for anything but tiny values — impacts follow a Poisson process, so where is the mean number of impacts over the whole exposure; the "×10" linear rule is only an approximation valid when .
True or false: The SAA is a permanent fixed hole in the atmosphere over South America.
False — it is not a hole in the air; it is the region where the magnetic field is weakest (dipole offset ~500 km toward the western Pacific), letting the radiation belt dip down to LEO altitudes.
Spot the error
"Electronics survive TID because a single big particle rarely hits." — where's the confusion?
TID is a cumulative dose failure from many particles adding up over time; it is a different failure mode from a SEU, which is a single particle flipping one bit. See Single-event effects.
"We shield against the SAA by adding aluminum, which absorbs the protons completely." — what's wrong?
SAA protons can be so energetic (10–100 MeV) that thin Al only partially attenuates them and can even generate secondary particles; operators mostly power down sensitive electronics during passes rather than rely on shielding alone.
"Kapton lasts for years because 189 μm of erosion sounds tiny." — spot the trap.
A typical Kapton film is only ~25 μm thick, far less than the 189 μm eroded in the example, so it would be completely consumed in months; the erosion depth must be compared to the actual film thickness, not judged in absolute terms.
"Just add more aluminum shielding — mass is the only thing that matters against debris." — why is this dangerously wrong?
For hypervelocity impacts a solid plate can be worse than a spaced shield of the same mass, because a monolithic wall gives the projectile no room to fragment and spread; a properly spaced Whipple shield stops larger particles per kilogram.
"Orient the sensitive surface toward the Sun to reduce atomic-oxygen erosion." — find the mistake.
AO erosion depends on the ram direction (velocity vector), not the Sun; you must point the vulnerable face away from ram, which is generally unrelated to the Sun direction.
"The 51.6° inclined orbit gets the same radiation dose as an equatorial one at the same altitude." — error?
The inclined orbit repeatedly crosses high-latitude and SAA regions of intense flux, so it accumulates far more TID than an equatorial orbit at the same altitude.
"Crater diameter equals projectile diameter, so a 1 mm particle makes a 1 mm hole." — correct it.
In aluminum the crater diameter is roughly , where is the projectile diameter, so the crater is about twice the projectile size because the projectile and target both vaporize and excavate material well beyond the projectile's own footprint.
Why questions
Why does a charged particle bounce back and forth between the magnetic poles instead of just spiralling forever in one place?
Field lines converge (get stronger) near the poles; the "magnetic mirror" effect converts forward motion into gyration and reflects the particle, so it oscillates pole-to-pole — one of the three trapped motions. See Magnetic field modeling.
Why do we integrate dose rate over time, , instead of just using a single dose number?
Because dose rate varies along the orbit — high in the SAA, low elsewhere — so only the time-integral captures the true accumulated damage, exactly like fluence integrates a varying flux.
Why is a 0.1 mm particle a near-certain threat while a 1 mm particle is rare, even though the small one is far less energetic?
Debris flux rises steeply as size falls (roughly more 0.1 mm particles), so their sheer number makes surface erosion a certainty even though each individual hit is minor.
Why do coatings like SiO₂ and Al₂O₃ resist atomic oxygen when organic polymers do not?
These are already fully oxidized, stable oxides — atomic oxygen has nothing left to react with — whereas organics have C–C and C–H bonds (3.6–4.3 eV) that the ~4.9 eV impacts can break.
Why does impact pressure let a small particle punch through metal it "shouldn't" be able to?
Above ~3 km/s the pressure vastly exceeds the material's yield strength, so the metal behaves like a fluid and is displaced rather than resisting as a solid — strength stops mattering.
Why do operators track >10 cm debris but only shield against sub-cm debris?
Large objects are rare, radar-trackable, and catastrophic, so the right response is a collision-avoidance maneuver (ISS collision avoidance); sub-cm debris is untrackable but survivable, so you build passive shielding instead.
Edge cases
Edge case: what happens to a particle whose velocity is exactly parallel to (so )?
Then and the magnetic force ; the particle streams straight along the field line with no gyration, so it is not trapped by the mirror and can escape into the atmosphere.
Edge case: the ballistic-limit formula gives critical diameter — where does the exponent come from, and what does it predict as ?
Take the parent note's raised to the outer power (from ): , so the exponent is just those two experimentally-tuned exponents multiplied. Because it is negative, grows without bound as : slow impacts need enormous particles to perforate.
Edge case: at the geographic equator far from the SAA, why can a LEO satellite feel almost no belt radiation despite belts "surrounding" Earth?
Away from the SAA the field is strong enough to hold the inner belt's lower edge well above 400 km, so the satellite orbits underneath it and sees little trapped flux.
Edge case: in the impact-probability model, what does physically mean (recall is the mean impact count), and is then still useful?
means many impacts are expected, so (near-certain) — the useful question shifts from "will it be hit?" to "how many hits and how much cumulative damage?" See Kessler Syndrome.
Edge case: what limits atomic-oxygen erosion at very high altitude (say 800 km)?
The ambient atomic-oxygen density falls off sharply with altitude, so flux drops and erosion becomes negligible; AO is mainly a 200–700 km problem, tied to Orbital lifetime in LEO.
Recall Quick self-test
Cover the answers above and re-derive: (1) why the Lorentz force does no work, (2) why AO needs the ram velocity to be destructive, (3) why Poisson (not linear) governs impact probability, defining as you go. If any of the three stalls you, revisit that section of the parent note.
