This page is the drill hall for shell buckling . The parent note built the classical formula
σ cr = 3 ( 1 − ν 2 ) E R t ≈ 0.605 E R t , γ = 1 − 0.901 ( 1 − e − ϕ ) , ϕ = 16 1 R / t .
Here we hammer it against every kind of input a problem can throw at you — normal numbers, tiny and huge geometry ratios, degenerate limits, a word problem, and an exam-style trap. Before we start, let us name what "every kind" means.
Every symbol below was earned in the parent note. Just so we never trip: E = Young's modulus (stiffness of the material), t = wall thickness, R = cylinder radius, ν = Poisson ratio, σ cr = perfect-cylinder buckling stress , P cr = the axial load (force, in newtons) that stress corresponds to via P cr = σ cr ⋅ A where A = 2 π R t is the wall cross-section, γ = knockdown factor (the fraction of the perfect value a real dented cylinder actually reaches), σ a l l o w = γ σ cr = realistic allowable stress, P a l l o w = σ a l l o w ⋅ A = realistic allowable load, and σ Y = yield stress (where the material itself gives).
Definition Boundary conditions and length assumptions behind the classical formula
The classical σ cr = 0.605 E t / R is derived for a cylinder that is simply supported at both ends (ends held round but free to rotate) and "moderately long" — roughly 1 ≲ L / R and not so long that it behaves like an Euler column . In that middle band the buckle chooses a short-wavelength diamond pattern and the length L drops out of the answer. Two edge cases sit outside this band: very short cylinders (L / R ≪ 1 ) buckle at higher stress (the ends stiffen them), and very long / slender ones (L / R huge) switch to whole-body column bending governed by Euler column buckling , not shell dimpling. Every example below assumes we are inside the moderately-long, simply-supported band unless stated.
Cell
What the case stresses
Covered by
A. Standard forward
plug numbers in, get σ cr , P cr
Ex 1
B. Scaling law
how the answer responds to a change
Ex 2
C. Buckling vs yield
which failure mode actually wins
Ex 3
D. Thick-wall limit (R / t small)
formula meaning at the edge of validity
Ex 4
E. Thin-wall / large-R / t limit
knockdown γ → 0 danger zone
Ex 5
F. Degenerate input (t = 0 , ν → 1 )
what breaks and why
Ex 6
G. Inverse / design problem
solve for t given a required load
Ex 7
H. Real-world word problem
translate a mission into numbers
Ex 8
I. Exam twist
a hidden trap (mixing γ , area, units)
Ex 9
We now walk one worked example per cell.
Worked example Example 1 — Cell A: Standard forward calculation
Aluminium interstage: E = 70 GPa, ν = 0.3 , R = 1.8 m, t = 3 mm. Find classical σ cr , then P cr , then the realistic allowable using the knockdown.
Forecast: Will the realistic load be closer to the classical value, or a small fraction of it? Guess a fraction.
Step 1 — Geometry ratio t / R = 0.003/1.8 = 1.667 × 1 0 − 3 .
Why this step? The classical stress depends on geometry only through t / R , so compute it once.
Step 2 — σ cr = 0.605 E ( t / R ) = 0.605 × 70 × 1 0 9 × 1.667 × 1 0 − 3 = 70.6 MPa.
Why this step? ν = 0.3 collapses the coefficient to 0.605 , so we can use it directly.
Step 3 — Wall area A = 2 π R t = 2 π ( 1.8 ) ( 0.003 ) = 0.03393 m 2 .
Why this step? Load = stress × the area that actually carries axial force, which is the thin ring of wall.
Step 4 — P cr = σ cr A = 70.6 × 1 0 6 × 0.03393 = 2.40 MN (perfect cylinder).
Step 5 — Knockdown: ϕ = 16 1 R / t = 16 1 600 = 1.531 , so γ = 1 − 0.901 ( 1 − e − 1.531 ) = 0.298 .
Why this step? Real cylinders are imperfection-sensitive — see Imperfection sensitivity and knockdown factors . We must scale down.
Step 6 — σ a l l o w = 0.298 × 70.6 = 21.0 MPa, P a l l o w ≈ 0.71 MN.
Verify: P a l l o w / P cr = 0.71/2.40 = 0.298 = γ . ✓ Units: (Pa)(m²) = N. ✓ The realistic load is under a third of the classical — the knockdown dominates.

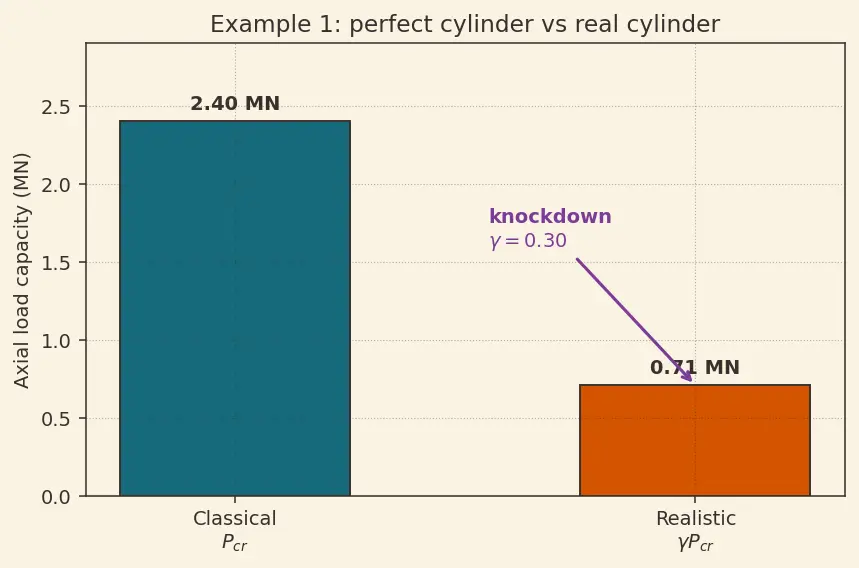

Figure s01 below draws this result as two bars — the tall teal bar is the perfect-cylinder load P cr , the short orange bar is the honest γ P cr ; the plum arrow is the knockdown chopping the capacity down. Read it as "the number the formula promises vs the number nature delivers."
Worked example Example 2 — Cell B: Scaling law (forecast then verify)
Take Example 1's tank. What happens to σ cr and P cr if we double the thickness to t = 6 mm (all else equal)?
Forecast: Both double? Both quadruple? One of each? Commit before reading.
Step 1 — σ cr ∝ t / R . Doubling t doubles the stress: 70.6 → 141.2 MPa.
Why this step? R , E , ν are fixed, so only the linear-in-t factor moves.
Step 2 — Area A = 2 π R t ∝ t , so it also doubles: 0.03393 → 0.06786 m 2 .
Why this step? P cr = σ cr A has two factors of t hidden in it.
Step 3 — P cr ∝ σ cr ⋅ t ∝ t 2 : the load quadruples , 2.40 → 9.59 MN.
Why this step? We multiply the two independent effects — stress up ×2 and area up ×2 — to get the load's response; combining them is the whole point of a scaling argument.
Verify: Direct compute σ cr = 0.605 ( 70 × 1 0 9 ) ( 0.006/1.8 ) = 141.2 MPa ✓ and P = 141.2 × 1 0 6 × 0.06786 = 9.58 MN ✓ (rounding). Stress doubles, load quadruples — the t 2 law.
Worked example Example 3 — Cell C: Does buckling or yield win?
Steel shell: E = 200 GPa, yield σ Y = 250 MPa, R / t = 400 , ν = 0.3 . Which fails first?
Forecast: Steel is strong — will it reach 250 MPa yield, or buckle first?
Step 1 — Classical σ cr = 0.605 E / ( R / t ) = 0.605 × 200000/400 = 302.5 MPa.
Why this step? σ cr = 0.605 E ( t / R ) and t / R = 1/400 ; this is the perfect buckling stress.
Step 2 — 302.5 > 250 : naively you might say "yield wins." But apply the knockdown first.
Why this step? The perfect value is a fantasy; the honest comparison uses σ a l l o w . This is the Yield vs stability failure modes decision.
Step 3 — ϕ = 16 1 400 = 16 1 ( 20 ) = 1.25 , γ = 1 − 0.901 ( 1 − e − 1.25 ) = 1 − 0.901 ( 0.7135 ) = 0.357 .
Why this step? ϕ measures how imperfection-prone this geometry is; feeding it through the SP-8007 formula turns the perfect stress into a realistic one — without γ we would compare a fantasy against yield.
Step 4 — σ a l l o w = 0.357 × 302.5 = 108 MPa.
Why this step? This is the actual stress the shell can hold; only this number is fair to compare against the 250 MPa yield.
Verify: 108 MPa ≪ 250 MPa yield ✓ — the shell buckles at ~108 MPa , far below yield. Using σ Y would over-predict strength by more than 2×. Stability governs.
Worked example Example 4 — Cell D: Thick-wall edge of validity (
R / t small)
A stubby titanium bottle: E = 110 GPa, yield σ Y = 830 MPa (typical Ti-6Al-4V), ν = 0.3 , R / t = 25 . Compute σ cr and γ , and comment on whether the formula is even trustworthy.
Forecast: With such a thick wall, is the buckling stress huge or tiny? And is γ close to 1?
Step 1 — σ cr = 0.605 × 110000/25 = 2662 MPa.
Why this step? Small R / t makes t / R large, so the classical stress rockets up.
Step 2 — ϕ = 16 1 25 = 16 1 ( 5 ) = 0.3125 , γ = 1 − 0.901 ( 1 − e − 0.3125 ) = 0.758 .
Why this step? Fewer near-degenerate modes when the wall is thick, so imperfections hurt less — γ climbs toward 1.
Step 3 — Sanity flag: even σ a l l o w = γ σ cr = 0.758 × 2662 = 2018 MPa is more than twice the titanium yield of 830 MPa. So the wall would yield at 830 MPa long before it reaches 2018 MPa buckling — the elastic formula's assumption (buckling in the elastic range) is violated.
Why this step? The parent defined "thin" as R / t ≳ 30 . Below that, buckling is not the governing mode; comparing concrete numbers (2018 > 830 ) proves it rather than hand-waving.
Verify: σ a l l o w = 2018 MPa > σ Y = 830 MPa ✓ — buckling does not govern; yield does. At R / t = 25 < 30 the formula returns a stress no real metal survives elastically → correctly signals stability is not the failure mode here. The math is self-consistent; the physics tells us to switch modes. ✓
Worked example Example 5 — Cell E: Thin-wall / huge-
R / t danger zone
A giant lightweight tank: R / t = 1600 , E = 70 GPa (aluminium), ν = 0.3 . Find γ and σ a l l o w , and compare γ against the R / t = 600 case of Example 1.
Forecast: Bigger R / t (thinner) — does γ go up or crash down?
Step 1 — σ cr = 0.605 × 70000/1600 = 26.5 MPa.
Why this step? Thinner wall ⇒ smaller t / R ⇒ smaller classical stress.
Step 2 — ϕ = 16 1 1600 = 16 1 ( 40 ) = 2.5 , γ = 1 − 0.901 ( 1 − e − 2.5 ) = 0.173 .
Why this step? Larger R / t pushes ϕ up, so e − ϕ → 0 and γ → 1 − 0.901 = 0.099 (the asymptotic floor).
Step 3 — σ a l l o w = 0.173 × 26.5 = 4.58 MPa.
Why this step? The classical stress is already small; multiplying by the tiny γ shows how brutally thin shells lose capacity — this is the number an engineer must actually respect.
Verify: Compare with Ex 1 (R / t = 600 ): γ fell from 0.298 to 0.173 as the wall got thinner ✓ — thinner shells are more imperfection-sensitive. As R / t → ∞ , γ → 0.099 , never zero: the SP-8007 curve has a floor. ✓ See NASA SP-8007 buckling of thin-walled cylinders .

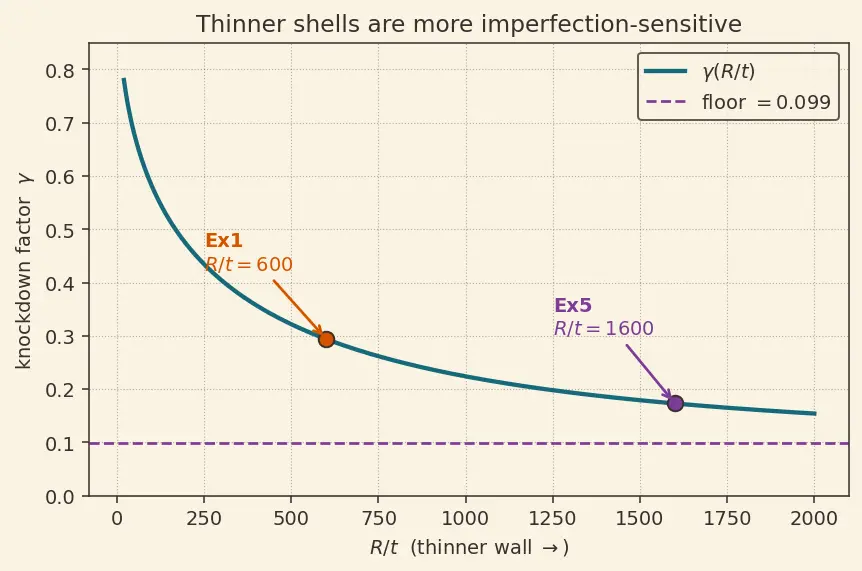

Figure s02 below plots γ against R / t : the teal curve sags downward as the wall thins, the plum dashed line is the 0.099 floor it never crosses, and the two dots mark Example 1 (R / t = 600 ) and Example 5 (R / t = 1600 ) — read the falling curve as "the thinner you build, the less of the promised strength you get to keep."
Worked example Example 6 — Cell F: Degenerate inputs (what breaks?)
Two "trick" inputs. (a) Set t = 0 . (b) Let ν → 1 . What does the formula say, and does it make physical sense?
Forecast: Will σ cr go to zero, infinity, or blow up?
Step 1 (a) — With t = 0 : σ cr = 0.605 E ( 0/ R ) = 0 . A wall of zero thickness carries zero buckling stress.
Why this step? No material means no restoring stiffness at all — the trivial correct limit.
Step 2 (a) — But ϕ = 16 1 R /0 → ∞ and γ → 0.099 . Product σ a l l o w = γ ⋅ 0 = 0 . Consistent: no wall, no strength.
Why this step? Check both factors so no accidental 0 × ∞ slips through; here it cleanly gives 0 .
Step 3 (b) — With ν → 1 : denominator 3 ( 1 − ν 2 ) = 3 ( 1 − 1 ) = 0 , so σ cr → ∞ .
Why this step? ν = 0.5 is the incompressible limit for real solids; ν → 1 is unphysical . The blow-up is the formula telling you the input is illegal, not a real infinite strength.
Verify: (a) t = 0 ⇒ σ cr = 0 ✓, physically sensible. (b) ν = 1 ⇒ division by zero ✓, flags an impossible material. Both degenerate cases behave: one gives a true limit, one signals a forbidden input.
Worked example Example 7 — Cell G: Inverse design problem (solve for
t )
An aluminium interstage (E = 70 GPa, ν = 0.3 , R = 1.5 m) must safely carry an axial load of P = 1.2 MN. Using the realistic allowable (with knockdown), find the minimum wall thickness t . (Iterate, since γ depends on t .)
Forecast: Roughly millimetres or centimetres?
Step 1 — Required allowable stress if wall area is A = 2 π R t :
σ a l l o w = 2 π R t P .
And σ a l l o w = γ ( t ) ⋅ 0.605 E R t . Why this step? We equate demand and capacity; both depend on t , so we iterate.
Step 2 — First guess ignore knockdown drift, take γ ≈ 0.3 . Then
2 π R t P = 0.3 ⋅ 0.605 E R t ⇒ t 2 = 2 π ( 0.3 ) ( 0.605 ) E P .
t 2 = 2 π ( 0.3 ) ( 0.605 ) ( 70 × 1 0 9 ) 1.2 × 1 0 6 = 1.503 × 1 0 − 5 m 2 , so t = 3.88 × 1 0 − 3 m = 3.88 mm.
Why this step? R cancels (both sides carry 1/ R ), giving a clean t 2 equation. Keep everything in SI (metres) so units stay consistent.
Step 3 — Refine γ at t = 3.88 × 1 0 − 3 m. With R = 1.5 m, the ratio R / t = 1.5/0.00388 = 386.6 (both in metres — dimensionless). Then ϕ = 16 1 386.6 = 1.229 , γ = 1 − 0.901 ( 1 − e − 1.229 ) = 0.363 .
Why this step? Our first γ was a guess; recompute at the found thickness, with R and t in the same unit so R / t is a pure number.
Step 4 — Re-solve with γ = 0.363 : t 2 = 2 π ( 0.363 ) ( 0.605 ) ( 70 × 1 0 9 ) 1.2 × 1 0 6 = 1.242 × 1 0 − 5 m 2 , t = 3.52 × 1 0 − 3 m = 3.52 mm. One more pass (R / t = 1.5/0.00352 = 426 , γ ≈ 0.371 ) shifts t by under 0.02 mm → converged near t ≈ 3.5 mm.
Why this step? Each iteration changes γ less than the last (the SP-8007 curve is flat here), so the correction shrinks geometrically — stopping once the change is far below manufacturing tolerance is justified.
Verify: At t = 3.52 × 1 0 − 3 m: σ cr = 0.605 ( 70 × 1 0 9 ) ( 0.00352/1.5 ) = 99.4 MPa, R / t = 426 , γ = 0.371 , σ a l l o w = 36.9 MPa. Capacity = 36.9 × 1 0 6 × 2 π ( 1.5 ) ( 0.00352 ) = 1.22 MN ≳ 1.2 MN ✓. Millimetres, as forecast. See Rocket tank and interstage structural design .
Worked example Example 8 — Cell H: Real-world word problem
A launch team stacks a 40-tonne upper stage on top of an aluminium interstage during vertical integration on the pad (no thrust yet, just gravity). The interstage has R = 1.6 m, t = 2.5 mm, E = 70 GPa, ν = 0.3 . Take g = 9.81 m/s 2 . Does it survive the stack-up, with a safety factor of 1.5?
Forecast: 40 tonnes sounds huge — will a 2.5 mm wall hold it?
Step 1 — Applied axial load: P = m g = 40000 × 9.81 = 3.92 × 1 0 5 N = 0.392 MN.
Why this step? On the pad the only axial load is the weight above; convert tonnes to newtons.
Step 2 — Classical σ cr = 0.605 ( 70 × 1 0 9 ) ( 0.0025/1.6 ) = 66.2 MPa. Area A = 2 π ( 1.6 ) ( 0.0025 ) = 0.02513 m 2 .
Why this step? Build the capacity side.
Step 3 — Knockdown: R / t = 1.6/0.0025 = 640 , ϕ = 16 1 640 = 1.581 , γ = 1 − 0.901 ( 1 − e − 1.581 ) = 0.284 . So σ a l l o w = 0.284 × 66.2 = 18.8 MPa.
Why this step? The bare classical stress is optimistic; the knockdown converts it into the stress a real, slightly-dented interstage can actually hold, which is what safety must be judged on.
Step 4 — Allowable load P a l l o w = σ a l l o w A = 18.8 × 1 0 6 × 0.02513 = 0.472 MN.
Why this step? Turn the allowable stress back into a force so it can be compared directly with the applied weight P .
Step 5 — Safety factor = P a l l o w / P = 0.472/0.392 = 1.20 .
Why this step? Compare capacity to demand as a ratio.
Verify: Required SF is 1.5 , achieved SF is 1.20 < 1.5 ✗ — it does not meet the margin. Physically believable: a 2.5 mm can holding 40 t sits on a knife-edge. The team must thicken the wall or add stiffeners. ✓
Worked example Example 9 — Cell I: Exam twist (the hidden trap)
Exam question: "A cylinder has classical σ cr = 150 MPa and knockdown γ = 0.4 . A student computes the allowable load as P = σ cr × A using the classical stress, then separately says 'the stress is safe because 150 < 250 MPa yield.' Find both of the student's mistakes and the correct allowable stress." (Given A = 0.02 m 2 , σ Y = 250 MPa.)
Forecast: Spot the two traps before computing.
Step 1 — Trap 1: The allowable stress must include the knockdown: σ a l l o w = γ σ cr = 0.4 × 150 = 60 MPa, not 150 MPa.
Why this step? Using the perfect-cylinder value ignores imperfection sensitivity — the whole point of γ .
Step 2 — Trap 2: Comparing to yield is the wrong test . The governing limit is the lower of buckling-allowable and yield: min ( 60 , 250 ) = 60 MPa. Buckling governs.
Why this step? A structure fails at whichever mode triggers first; 60 < 250 so stability wins.
Step 3 — Correct allowable load: P a l l o w = σ a l l o w A = 60 × 1 0 6 × 0.02 = 1.2 MN. The student's 150 × 1 0 6 × 0.02 = 3.0 MN over-predicts by 2.5 × .
Why this step? The load is the quantity the launch vehicle actually experiences; converting the correct stress into a force (and contrasting with the student's inflated force) exposes the size of the error.
Verify: Correct σ a l l o w = 60 MPa ✓; correct P a l l o w = 1.2 MN vs student's 3.0 MN ✓; the 2.5 × error is exactly 1/ γ = 1/0.4 ✓. Two traps: (1) forgot γ , (2) compared against yield instead of taking the min. ✓
Recall Which cell did each example hit? (click to reveal)
Ex1 A standard · Ex2 B scaling · Ex3 C buckle-vs-yield · Ex4 D thick limit · Ex5 E thin/danger · Ex6 F degenerate · Ex7 G inverse design · Ex8 H word problem · Ex9 I exam trap. Every cell covered.
Mnemonic The one habit that survives every cell
"Classical → Knockdown → Compare → Load." Compute σ cr , multiply by γ , take min with yield, then multiply by area for P . Skip a step and you fall into Example 9's trap.
In an inverse (t -solving) problem, why must you iterate? Because γ depends on R / t , which depends on the unknown t — one pass gives a guess, then you refine γ and re-solve.
As R / t → ∞ , what value does γ approach? The floor 1 − 0.901 = 0.099 ; thinner shells never quite reach zero but get very fragile.
In Example 3, why isn't "302.5 MPa > 250 MPa yield" the right comparison? You must apply the knockdown first: σ a l l o w = 0.357 × 302.5 = 108 MPa, which is well below yield — buckling governs.
Two mistakes in the Example 9 exam trap? (1) Forgetting the knockdown γ on the stress; (2) comparing to yield instead of taking the minimum of buckling-allowable and yield.
What end conditions and length range does the classical 0.605 E t / R assume? Simply-supported ends and a moderately-long cylinder; very short shells buckle higher, very long ones become Euler columns.
Links: Shell buckling — thin-walled cylinder under axial load · Imperfection sensitivity and knockdown factors · NASA SP-8007 buckling of thin-walled cylinders · Yield vs stability failure modes · Rocket tank and interstage structural design · Euler column buckling · Hoop stress in pressurised cylinders · Plate bending and flexural rigidity D
