Foundations — Bode plot — magnitude and phase vs frequency

This page assumes nothing. If the parent note used a symbol without building it, we build it here, in the order that lets each idea rest on the one before.

1. A sine wave, and its three knobs

Before we can talk about "how big" or "how late", we need to agree on what a sine wave is and what we are allowed to change about it.

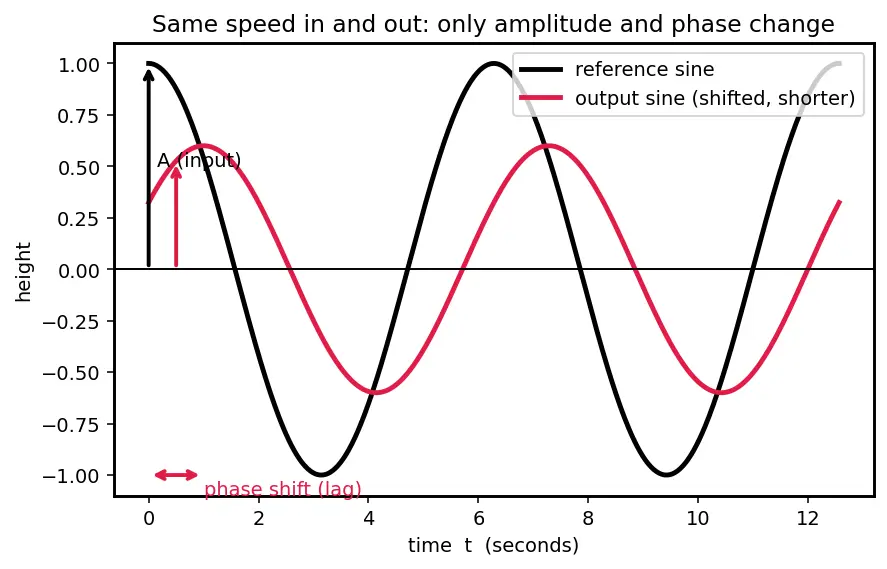

Look at the figure. The black wave is the reference. The red wave has the same speed but is shifted — that shift is the phase $\varphi$. Its height is different — that is the amplitude $A$. These two differences, amplitude and phase, are the only two things a well-behaved system does to a sine. That is why the whole topic is exactly two graphs.

2. Frequency $\omega$ and the log axis

$\omega$ (the Greek letter omega) is our shaking speed. A control system cares about speeds from very slow (fuel sloshing, ~0.01 rad/s) to very fast (metal bending, ~1000 rad/s) — a range of a hundred thousand to one.

Why we need it: on a normal ruler, 0.01 and 1000 can't share a page — one is a speck at the origin, the other is off in the next room. On a log axis, each ×10 step (a decade) takes the same amount of space, so all the speeds fit and spread out evenly.

3. Complex numbers: one arrow that stores both answers

Here is the clever bit. We need to report two numbers at each frequency (amplitude change and phase shift). A complex number is a single object that packs exactly two numbers — a length and an angle. Perfect fit.

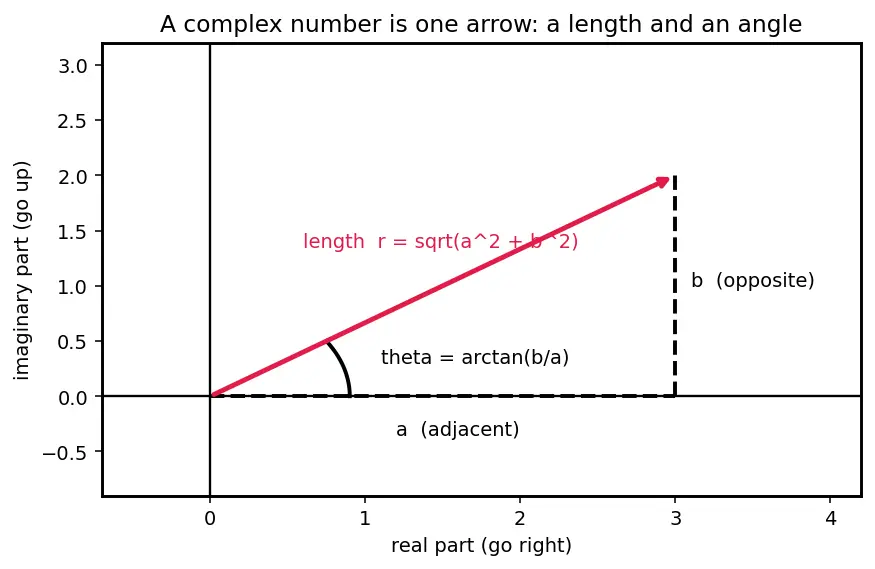

In the figure the red arrow is the complex number. Its length $r$ is drawn; its angle $\theta$ from the rightward axis is marked. The two descriptions are the same arrow.

Why the topic needs this: the frequency response $G(j\omega )$ is an arrow whose length tells you the amplitude change and whose angle tells you the phase shift. One complex number, both answers — then we split it into the two Bode graphs.

4. $\arctan$ — the angle-finder (why this tool)

The parent note keeps writing $\arctan (\omega /{\omega }_c)$. Where does it come from?

Look again at the arrow in §3. Its tilt angle sits inside a right triangle: the horizontal side $a$ (adjacent to the angle) and the vertical side $b$ (opposite the angle). The tangent of that angle is defined as

$\tan \theta =\frac{\text{opposite}}{\text{adjacent}}=\frac{b}{a}.$

This ratio is the arrow's steepness — a steep arrow (big $b$, small $a$) has a large tangent. So the ratio $b/a$ secretly encodes the angle.

Why this tool and not another: to get the phase we have an arrow's side lengths and want its angle. Tangent maps angle → ratio; we have the ratio and want the angle, so we need tangent's inverse. That is exactly $\arctan$.

5. $e^{j\theta }$ — a spinning unit arrow

The parent writes $e^{j\omega t}$ and $e^{j\varphi }$. What is this?

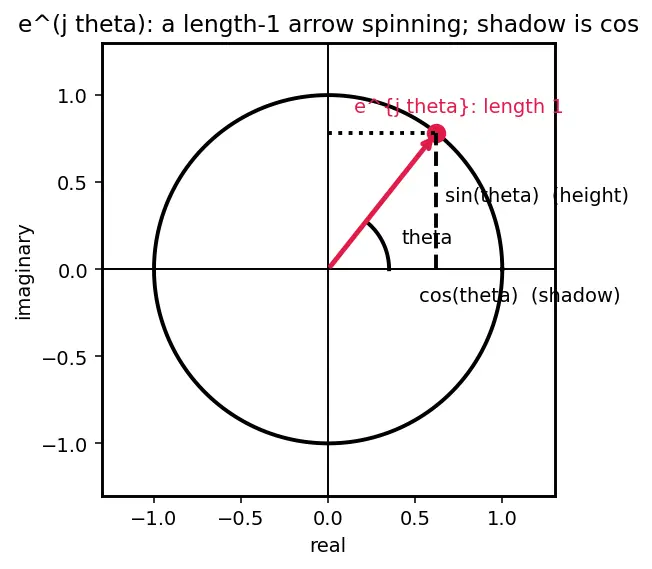

In the figure the red dot rides the unit circle; its height is $\sin \theta$ and its shadow on the floor is $\cos \theta$. So $e^{j\omega t}$ is a hand spinning at speed $\omega$ — and its horizontal shadow is exactly $\cos \omega t$, our sine wave. This is why the topic uses $e^{j\omega t}$: it is a sine wave in disguise, and complex exponentials are far easier to push through a system than raw sines.

6. Transfer function $G(s)$ and the substitution $s=j\omega$

7. Decibels: turning gain into a friendly number

Why the 20 and not 10: a Bode magnitude is an amplitude ratio, but power grows as amplitude squared. Since $\log (A^2)=2\log A$, the power-decibel $10{\log }_{10}$ becomes $20{\log }_{10}$ for amplitude. (This is one of the parent's main "mistakes to avoid".)

Why decibels at all: combined with the log-frequency axis, they make each simple factor's contribution a straight line, and products become sums of lines you add by eye.

8. How it all feeds the topic

Every arrow in this map is a "you need this before that". Trace any path and you reach the two Bode graphs.

Equipment checklist

Reveal each only after you can answer it out loud.

When every line above reveals nothing new, you are ready for the parent note.
