0. What is a "state" and why an arrow?

Plain words. The state of a system is the shortest list of numbers that fully describes "where it is right now". For a spinning spacecraft it might be [tilt angle, tilt speed]. We stack that list into a column called the state vector $\mathbf{x}$.

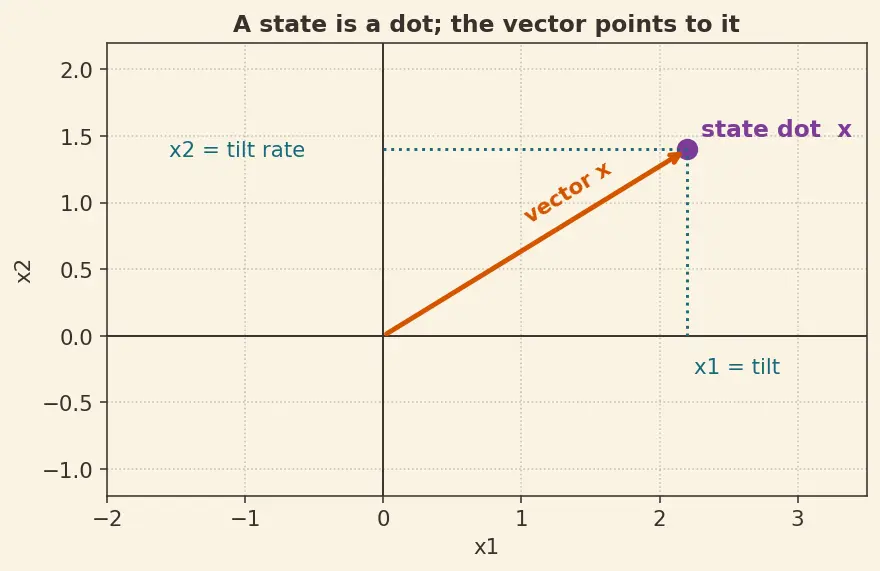

The picture. Think of a dot living in a room. Its position along each wall is one number. Two numbers = a dot on a flat page; three = a dot in a box. The dot is the state.

Why the topic needs it. Eigenvalues describe how a whole state moves through time. No state vector, nothing to move. Built more carefully in State-Space Representation.

1. The dot symbol: $\dot{\mathbf{x}}$ (a rate of change)

Plain words. A dot over a letter means "how fast this thing is changing, right now, per second". $\dot{x}$ reads "x-dot" = the speed of $x$.

The picture. Stand on the moving dot from before. The little arrow showing which way it drifts next second — that arrow is $\dot{\mathbf{x}}$. Long arrow = changing fast; no arrow = frozen.

Why the topic needs it. The whole subject is one equation, $\dot{\mathbf{x}}=A\mathbf{x}$: "the drift arrow at any point is decided by the matrix $A$ acting on where you are."

2. The matrix $A$: a machine that bends arrows

Plain words. A matrix is a grid of numbers that eats a vector and spits out a new vector. $A\mathbf{x}$ means "run the state through the grid".

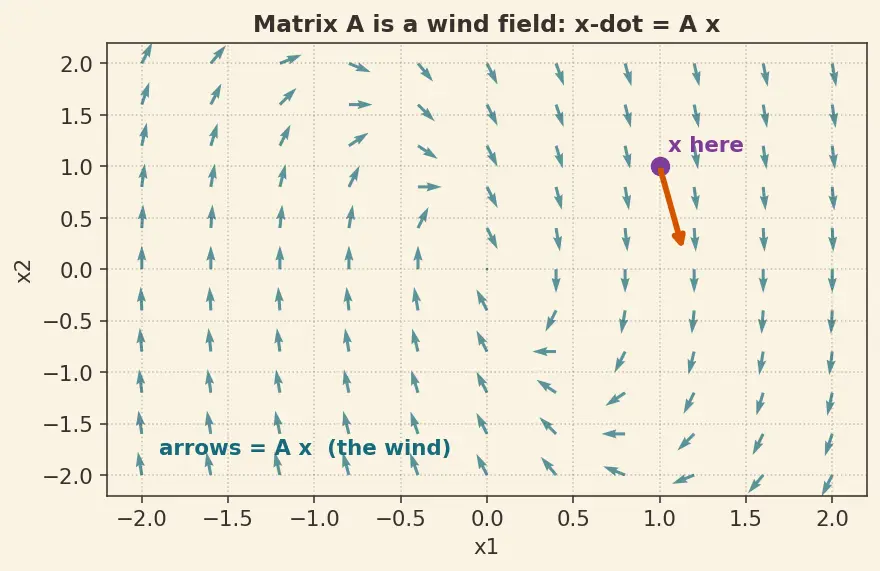

The picture. Feed the room a wind pattern: at every point the wind blows a certain direction and strength. $A$ is that wind field. Where you are ($\mathbf{x}$) decides the wind you feel ($\dot{\mathbf{x}}=A\mathbf{x}$).

Why the topic needs it. $A$ carries every rate, every coupling, all the physics. Everything else is decoding $A$.

3. Eigen-direction: where the wind blows straight

Plain words. Most arrows get turned by $A$. But a few special arrows come out pointing the same way — only longer or shorter. Those are eigenvectors $\mathbf{v}$; the stretch factor is the eigenvalue $\lambda$.

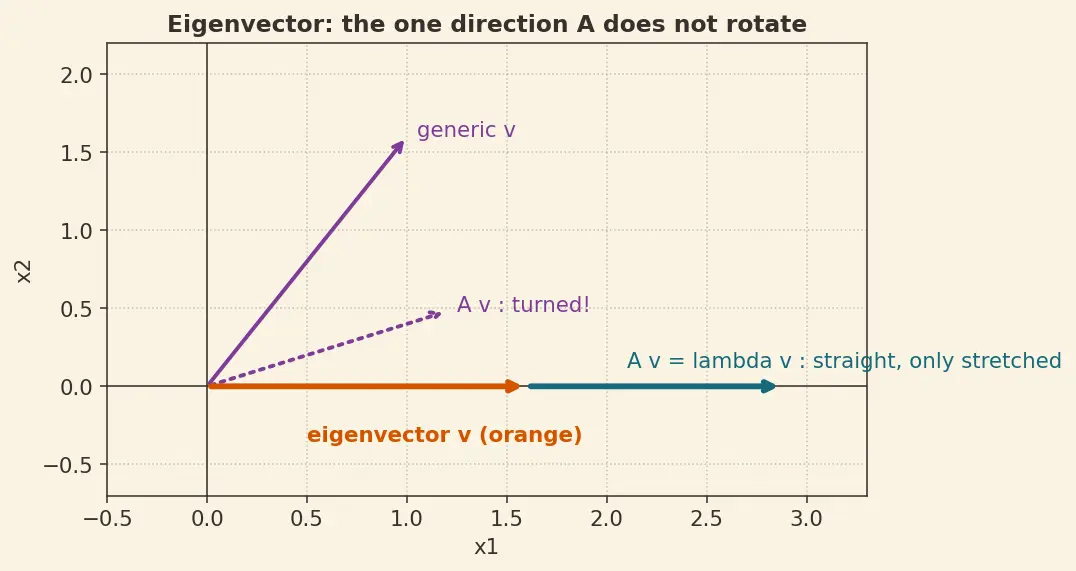

The picture. Walk the wind field. On most paths the wind shoves you sideways. On the eigen-line the wind pushes exactly along the line you're standing on — straight out or straight back in. No turning, pure scaling.

Why the "eigen"? German for "own / characteristic". These are $A$'s own directions. Along them the swirling matrix becomes plain multiplication — a scalar. That single fact is what collapses the coupled mess into $n$ easy pieces. Deepened in Diagonalization and Modal Decomposition.

4. The letters $I$, $\det$, and the hunt for $\lambda$

Plain words. $I$ is the identity matrix — the "do-nothing" grid ($I\mathbf{v}=\mathbf{v}$), 1's on the diagonal, 0's elsewhere. We need it so $\lambda \mathbf{v}$ can be written as $\lambda I\mathbf{v}$ (a matrix times $\mathbf{v}$), letting us factor.

$A\mathbf{v}=\lambda \mathbf{v}\Rightarrow A\mathbf{v}-\lambda I\mathbf{v}=0\Rightarrow (A-\lambda I)\mathbf{v}=0.$

Plain words for $\det$. The determinant $\det (M)$ of a matrix is one number measuring how much $M$ scales area (in 2-D) or volume (in 3-D). If $\det (M)=0$, $M$ squashes the whole space flat onto a line or point.

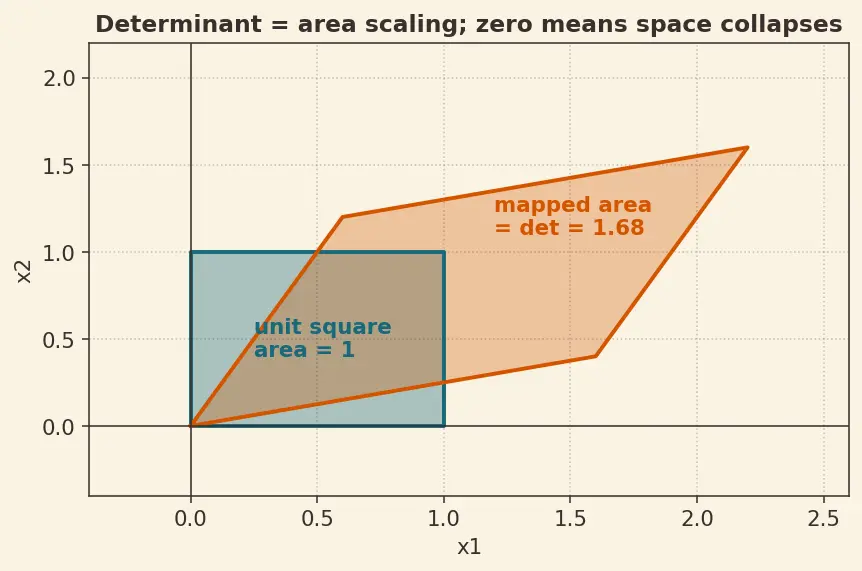

The picture. Take the unit square. Apply $M$ to its corners. The area of the resulting parallelogram = $|\det M|$. Zero area means everything collapsed — the map is not reversible.

Why this tool and not trial-and-error? Setting the determinant to zero turns "search all $\lambda$" into a single polynomial equation whose roots ARE the eigenvalues. See Characteristic Polynomial & Determinants.

5. The exponential $e^{\lambda t}$: the shape of "grow or shrink"

Plain words. $e$ is a fixed number, about $2.718$. The function $e^{\lambda t}$ is the unique curve that grows in proportion to its own size — the natural language of anything whose speed depends on its amount (radioactivity, interest, decaying wobbles).

The picture. Three curves versus time:

• $\lambda <0$: swoops down to zero (decay). ← stable.
• $\lambda =0$: flat line (holds).
• $\lambda >0$: rockets up (blow-up). ← unstable.

Why the topic needs it. Once $A\mathbf{v}=\lambda \mathbf{v}$ shrinks the vector ODE to $\dot{s}=\lambda s$, the answer is $s(t)=e^{\lambda t}$. Every "mode" of the system is one of these curves riding along its eigenvector.

6. Complex numbers and $j$: where oscillation hides

Plain words. Some eigenvalues are complex: $\lambda =\sigma +j\omega$, where $j=\sqrt{-1}$ (engineers write $j$, not $i$). $\sigma$ (real part) and $\omega$ (imaginary part) are just two ordinary numbers glued together.

The picture — the complex plane. A flat map: go right by $\sigma$, up by $\omega$. Each eigenvalue is a dot on this map. The parent's whole stability rule is "which side of the vertical line is the dot on?"

More on how $\sigma ,\omega$ map to physical damping in Damping Ratio and Natural Frequency and Transfer Functions and Poles.

7. Putting the alphabet together

$\underset{\text{drift arrow}}{\underbrace{\dot{\mathbf{x}}}}=\underset{\text{wind machine}}{\underbrace{A}}\underset{\text{state dot}}{\underbrace{\mathbf{x}}}\underset{\text{eigen-directions}}{\overset{A\mathbf{v}=\lambda \mathbf{v}}{\to }}\underset{\text{one scalar}}{\underbrace{\dot{s}=\lambda s}}\Rightarrow \underset{\text{grow/shrink}}{\underbrace{s=e^{\lambda t}}}$

Every symbol in the parent note is now one of these earned pieces.
