WHAT is going on

WHY does the middle angle matter? The middle rotation is what tilts the last axis relative to the first. Push it to 90°90° and the last axis lies exactly along the first axis.

HOW to derive the lock from first principles

We don't memorize "lock at 90°" — we watch it happen in the matrices.

Elemental rotations (right-handed, active):

Rz(ψ)=(cψ−sψ0sψcψ0001),Ry(θ)=(cθ0sθ010−sθ0cθ),Rx(ϕ)=(1000cϕ−sϕ0sϕcϕ)R_z(\psi)=\begin{pmatrix}c_\psi & -s_\psi & 0\\ s_\psi & c_\psi & 0\\ 0&0&1\end{pmatrix},\quad R_y(\theta)=\begin{pmatrix}c_\theta & 0 & s_\theta\\ 0&1&0\\ -s_\theta&0&c_\theta\end{pmatrix},\quad R_x(\phi)=\begin{pmatrix}1&0&0\\0&c_\phi&-s_\phi\\0&s_\phi&c_\phi\end{pmatrix}

where cα=cos⁡α, sα=sin⁡αc_\alpha=\cos\alpha,\ s_\alpha=\sin\alpha.

Step — set the pitch to the singular value θ=+90°\theta = +90°. Why this step? Because we suspect the singularity lives there; we test it directly. Then cθ=0, sθ=1c_\theta = 0,\ s_\theta = 1: Ry(90°)=(001010−100)R_y(90°)=\begin{pmatrix}0&0&1\\0&1&0\\-1&0&0\end{pmatrix}

Step — multiply out Rz(ψ)Ry(90°)Rx(ϕ)R_z(\psi)R_y(90°)R_x(\phi). Why this step? We want to see if ψ\psi and ϕ\phi still act independently.

Doing the algebra, the full matrix collapses to:

R=(0sin⁡(ϕ−ψ)cos⁡(ϕ−ψ)0cos⁡(ϕ−ψ)−sin⁡(ϕ−ψ)−100)R = \begin{pmatrix} 0 & \sin(\phi-\psi) & \cos(\phi-\psi)\\ 0 & \cos(\phi-\psi) & -\sin(\phi-\psi)\\ -1 & 0 & 0 \end{pmatrix}

Step — read the result. Why this step? This is the punchline. Every entry depends on ψ\psi and ϕ\phi only through the combination (ϕ−ψ)(\phi-\psi). So changing ψ\psi by +δ+\delta and ϕ\phi by +δ+\delta leaves RR unchanged. Two knobs, one effect.

HOW it wrecks the rates (the practical disaster)

Orientation isn't static — GNC integrates body angular rates (p,q,r)(p,q,r) into Euler angles. The kinematic relation is:

(ϕ˙θ˙ψ˙)=(1sin⁡ϕtan⁡θcos⁡ϕtan⁡θ0cos⁡ϕ−sin⁡ϕ0sin⁡ϕcos⁡θcos⁡ϕcos⁡θ)(pqr)\begin{pmatrix}\dot\phi\\\dot\theta\\\dot\psi\end{pmatrix} = \begin{pmatrix} 1 & \sin\phi\tan\theta & \cos\phi\tan\theta\\ 0 & \cos\phi & -\sin\phi\\ 0 & \dfrac{\sin\phi}{\cos\theta} & \dfrac{\cos\phi}{\cos\theta} \end{pmatrix} \begin{pmatrix}p\\q\\r\end{pmatrix}

WHY the blow-up: look at tan⁡θ\tan\theta and 1/cos⁡θ1/\cos\theta. As θ→±90°\theta\to\pm90°, cos⁡θ→0\cos\theta\to0, so ϕ˙\dot\phi and ψ˙\dot\psi diverge to infinity. The math demands an infinite angle rate to represent a perfectly finite physical rotation — the coordinates are singular, not the physics.

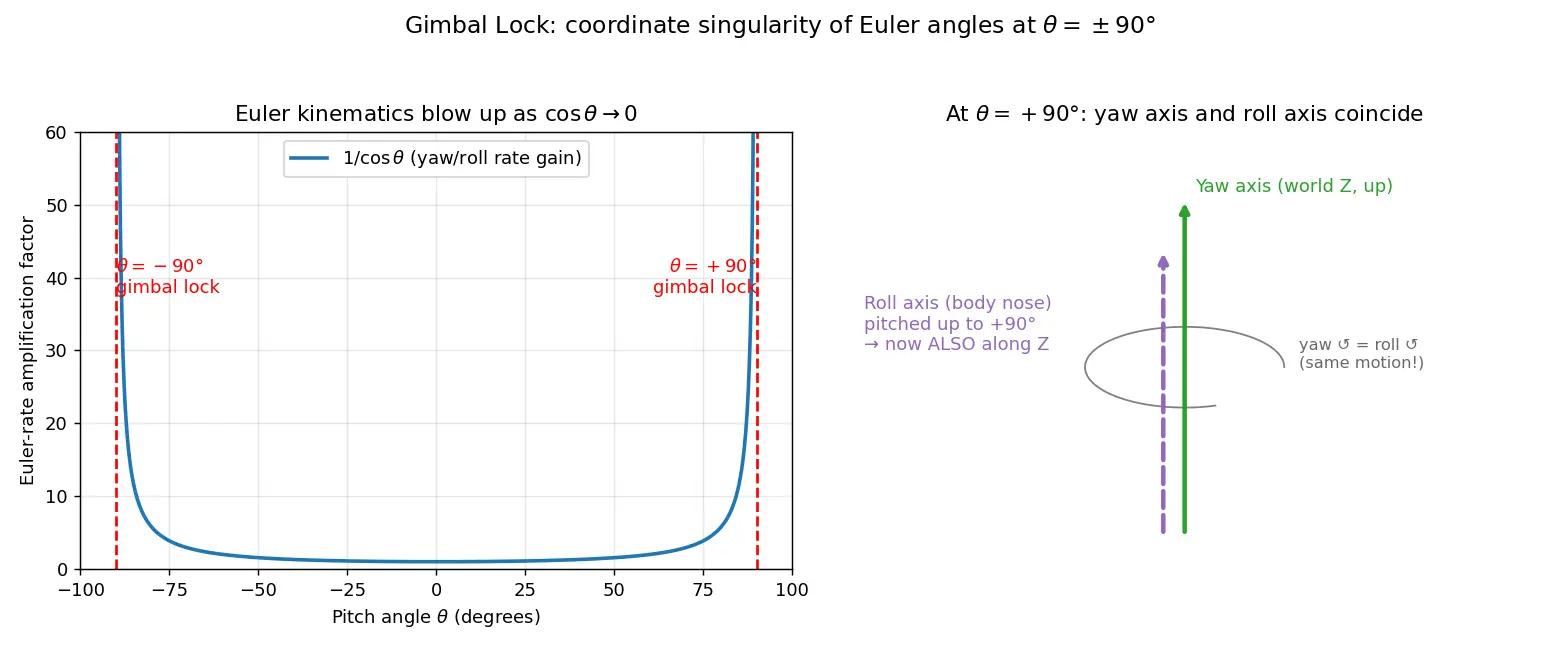

Figure — Gimbal lock — problem with Euler angles at θ = ±90°

Worked examples

Steel-manned mistakes

The engineer's fix

  • Represent orientation with quaternions (or rotation matrices / axis-angle) internally.
  • Convert to Euler angles only for human display, and handle the θ=±90°\theta=\pm90° special case explicitly.
  • 80/20 takeaway: the physics is never singular; only the Euler chart is. Change charts.
Recall Feynman: explain to a 12-year-old

Imagine steering a toy plane with three dials: turn-left/right, nose-up/down, and barrel-roll. Now point the nose straight up at the ceiling. Now the "turn left/right" dial and the "barrel-roll" dial both just spin the plane like a top around the same up-down line — they do the exact same thing! You've lost one way of steering. The plane can still tumble any way it likes; it's your three dials that got confused. Astronauts fixed this by using a smarter set of "dials" called quaternions that never get stuck.

Flashcards

What is gimbal lock in one sentence?
The loss of one rotational degree of freedom in an Euler-angle representation when the middle (pitch) angle reaches ±90°\pm90°, causing the first and third rotation axes to align.
At which Euler angle does ZYX gimbal lock occur?
When pitch θ=±90°\theta=\pm90°.
Why do Euler rates blow up near lock?
The kinematic map contains tan⁡θ\tan\theta and 1/cos⁡θ1/\cos\theta; as θ→±90°\theta\to\pm90°, cos⁡θ→0\cos\theta\to0 so ϕ˙,ψ˙→∞\dot\phi,\dot\psi\to\infty.
At θ=+90°\theta=+90° the rotation matrix depends on yaw/roll only through what combination?
Only through (ϕ−ψ)(\phi-\psi) (and (ϕ+ψ)(\phi+\psi) at θ=−90°\theta=-90°).
Is gimbal lock a physical limitation of the rigid body?
No — the body rotates freely; only the coordinate chart (and analog gimbals implementing it) loses a DOF.
Standard engineering fix for gimbal lock?
Use quaternions (or rotation matrices) internally; Euler angles only for display.
Do quaternions suffer gimbal lock?
No; they form a smooth global cover of SO(3)SO(3) with no singular orientations (only a harmless q≡−qq\equiv-q sign ambiguity).
Why is avoiding exactly θ=90°\theta=90° insufficient?
The 1/cos⁡θ1/\cos\theta term makes a whole neighborhood numerically unstable, not just the single point.
