Direction cosine matrix (DCM) — construction from Euler angles

80/20 core: A DCM is just a rotation matrix built by stacking three simple rotations. If you can write one 2D rotation and multiply matrices in the right order, you can build any attitude matrix. Master the 3-2-1 sequence and everything else is a variation.

1. What is a DCM? (WHAT)

WHY it matters (GNC): Sensors (star trackers, gyros) and actuators live in the body frame; guidance commands and orbits live in the inertial frame. The DCM is the translator between them. Every attitude estimate is ultimately a DCM (or something equivalent to one).

2. Building block: a single-axis rotation (DERIVE)

Rotate a frame by angle $\theta$ about the 3-axis ( $z$ ). A vector's components in the new frame:

Intuition Derive the 2D rotation from scratch

Take a point at angle $\phi$ , radius $r$ in the old frame: $x = r\cos\phi,\quad y = r\sin\phi.$ Rotate the axes by $+\theta$ (equivalently rotate the point by $-\theta$ ). The point's angle relative to the new axes is $\phi-\theta$ : $x' = r\cos(\phi-\theta) = r\cos\phi\cos\theta + r\sin\phi\sin\theta = x\cos\theta + y\sin\theta$ $y' = r\sin(\phi-\theta) = -r\cos\phi\sin\theta + r\sin\phi\cos\theta = -x\sin\theta + y\cos\theta$ The 3rd component is untouched.

3. Composing three rotations — the 3-2-1 (yaw-pitch-roll) sequence (HOW)

Why this step (the multiplication): multiply $R_2 R_3$ first, then premultiply by $R_1$ . The middle row/column mixing comes entirely from $R_1$ 's $\phi$ terms interacting with $R_2R_3$ 's pitch/yaw block. Notice the clean bottom-left-ish structure: the entry $C_{13}=-s\theta$ is untouched by roll and yaw — a great sanity anchor.

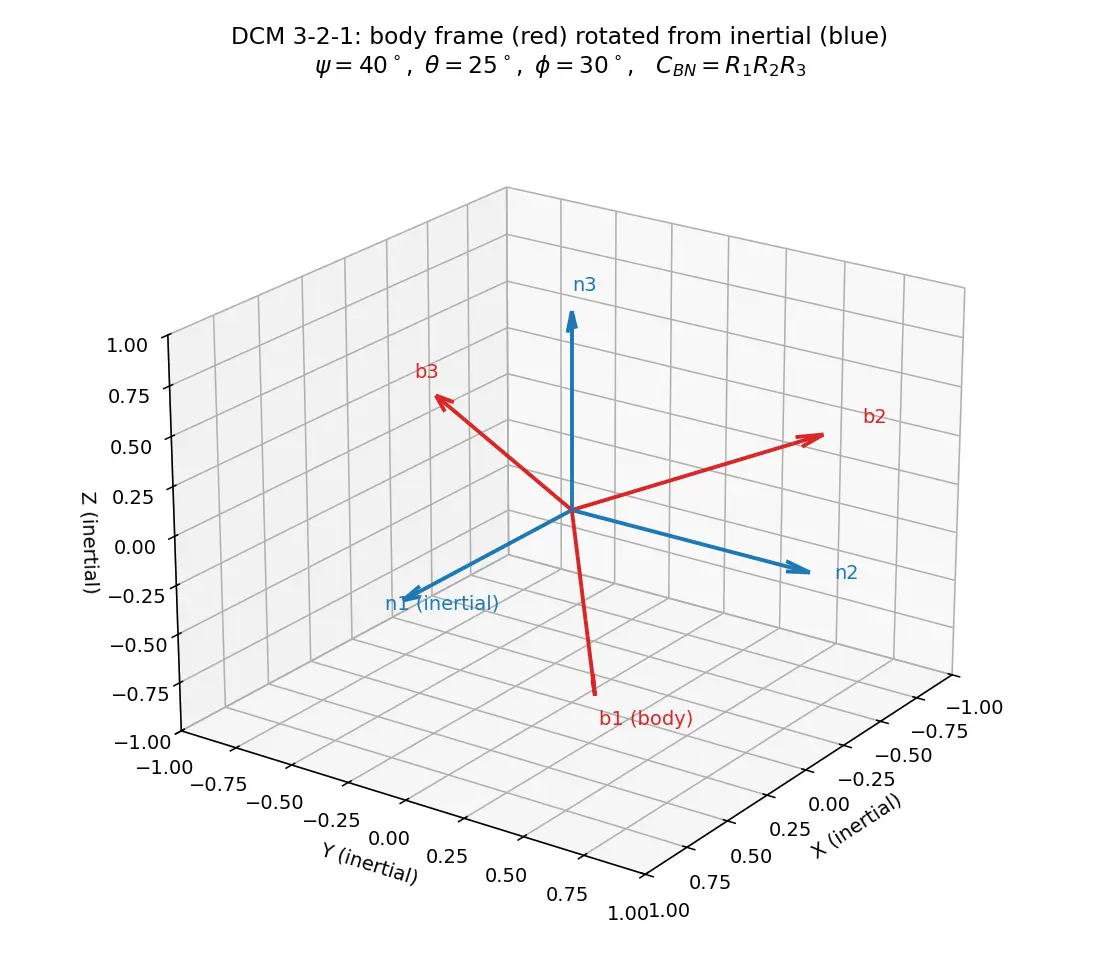

Figure — Direction cosine matrix (DCM) — construction from Euler angles

4. Key properties (WHY they must hold)

5. Worked examples

6. Flashcards

What does entry

C_{ij}

of a DCM equal physically?

The cosine of the angle between body axis

i

and inertial axis

j

, i.e.

\hat b_i\cdot\hat n_j

Why is

C^{-1}=C^T

for a DCM?

Rotations preserve lengths/angles

\Rightarrow

columns are orthonormal

\Rightarrow C^TC=I

Order of multiplication for a 3-2-1 sequence (N→B)?

C_{BN}=R_1(\phi)R_2(\theta)R_3(\psi)

— last rotation is leftmost.

Why does

R_2

have

-\sin

in the top-right unlike

R_1,R_3

The rotation plane for axis 2 is the 3–1 plane, so cyclic ordering flips the sign placement.

What is

\det C

for a proper rotation and why?

+1

; a right-handed rotation has no reflection.

When does gimbal lock occur in 3-2-1 Euler angles?

When pitch

\theta=\pm90^\circ

, so

\cos\theta=0

and yaw & roll act about the same axis.

How do you recover pitch from the DCM?

\theta=-\arcsin(C_{13})

Small-angle form of a DCM?

C\approx I-[\boldsymbol\alpha\times]

with

\boldsymbol\alpha=(\phi,\theta,\psi)

Recall Feynman: explain to a 12-year-old

Imagine two people describing the same paper airplane. One faces North; the other has spun around a bit. To translate "the nose points there" between them, you need to know exactly how much the second person turned. The DCM is a little number-table that says "your left is a bit of my forward and a bit of my left." You build it by turning three times in a row — spin, tilt nose, roll wings — and multiplying three simple turn-tables together. Turning it back is easy: just flip the table on its diagonal (that's $C^T$ ).

Connections

Quaternions — avoiding gimbal lock
Euler angles — kinematic differential equations
Rotation group SO(3) and orthogonal matrices
Attitude determination — TRIAD & QUEST
Kalman filter — linearized attitude error state
Angular velocity and skew-symmetric matrices

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, DCM ka matlab hai ek 3x3 rotation matrix jo ek vector ke coordinates ko ek frame se doosre frame me convert karta hai — jaise inertial (navigation) frame se body frame me. Har entry $C_{ij}$ basically do unit vectors ka dot product hai, aur dot product of unit vectors toh ek cosine hi hota hai — isliye naam "direction cosine". Simple funda: "inertial axis $j$ ka kitna hissa body axis $i$ ki direction me point kar raha hai."

Banate kaise hain? Teen simple single-axis rotations ko multiply karke. 3-2-1 sequence (yaw-pitch-roll) me pehle 3-axis pe yaw, phir naye 2-axis pe pitch, phir naye 1-axis pe roll. Yaad rakho: last rotation leftmost aata hai, yaani $C_{BN}=R_1(\phi)R_2(\theta)R_3(\psi)$ . Ek chhota trap: $R_2$ thoda "rebel" hai — uska minus sign top-right me aata hai, kyunki uska rotation plane 3–1 plane hai, na ki 1–2.

Sabse mast property: DCM orthonormal hota hai, toh uska inverse bas transpose hai ( $C^{-1}=C^T$ ) aur $\det=+1$ . Flight software me yeh bahut time bachata hai. Lekin ek warning — jab pitch $\theta=\pm90^\circ$ ho jaye, toh gimbal lock ho jata hai: yaw aur roll same axis ke around ghoomne lagte hain aur ek degree of freedom kho jati hai. Isiliye real satellites me attitude aksar quaternion me store karte hain, aur Euler angles sirf display ke liye nikalte hain. Chhote angles ke liye DCM simplify hoke $C\approx I-[\alpha\times]$ ban jata hai — yahi Kalman filter attitude estimation ka base hai.
