Visual walkthrough — DCM kinematics — Ċ = −[ω×]C

---

Step 0 — The three words we need before anything else

Before we write a single symbol, let us agree on three plain-English pictures.

---

Step 1 — The stubborn fact, drawn

WHAT. The three body arrows ${\hat{b}}_1,{\hat{b}}_2,{\hat{b}}_3$ stay length-1 and stay mutually perpendicular forever, at every instant of the tumble.

WHY. They are painted on a rigid spacecraft. Rigid means distances and angles between painted marks can never change. That is the whole physical input to this derivation — literally the only thing we assume.

PICTURE. Look at the red body-triad in the figure: at two different times it has swung to a new orientation, but the little right-angle squares between the arrows are identical. Nothing stretched, nothing sheared.

We package "unit length + mutually perpendicular" into one tidy statement about $C$. Because the rows of $C$ are those three body arrows written in world numbers, saying "they are perpendicular unit vectors" is exactly: $\underset{\text{rows}=\text{body arrows}}{\underbrace{C(t)}}\underset{\text{same arrows, as columns}}{\underbrace{C(t{)}^T}}=\underset{\begin{array}{c}\text{1’s on diagonal}=\text{unit length}\\ \text{0’s off-diagonal}=\text{perpendicular}\end{array}}{\underbrace{I}}$

---

Step 2 — Differentiate the stubborn fact

WHAT. We take $\frac{d}{dt}$ of both sides of $C{C}^T=I$.

WHY. We want to know how fast $C$ changes ($\dot{C}$). The only equation we have so far is the orthonormality equation. So we differentiate it and squeeze out the rule it forces on $\dot{C}$. This is the classic trick: differentiate the constraint you cannot break.

The right side $I$ is constant, so its rate is $0$. The left side needs the product rule (rate of a product = rate of first × second + first × rate of second): $\underset{\begin{array}{c}\text{first arrow-set}\\ \text{changing}\end{array}}{\underbrace{\dot{C}{C}^T}}+\underset{\begin{array}{c}\text{second arrow-set}\\ \text{changing}\end{array}}{\underbrace{C{\dot{C}}^T}}=\underset{\text{because }I\text{ is frozen}}{\underbrace{0}}$

PICTURE. The figure shows the arrow ${\hat{b}}_1$ nudged over a tiny time $dt$. Its tip moves, but because its length cannot change, the nudge (red) must be perpendicular to the arrow itself. That perpendicular-nudge is the geometric seed of everything: a velocity that is always sideways to the thing it moves is a rotation.

---

Step 3 — Name the twist, prove it is skew

WHAT. Give the combination $\dot{C}{C}^T$ a name, $\Omega$, and discover its shape.

WHY. $\dot{C}{C}^T$ keeps showing up; naming it lets us reason about it. And its shape turns out to be extremely restrictive — that restriction is the payoff.

Notice the second term in Step 2 is just the transpose of the first: $C{\dot{C}}^T=(\dot{C}{C}^T{)}^T={\Omega }^T$. So Step 2 becomes $\underset{\dot{C}{C}^T}{\underbrace{\Omega }}+\underset{\text{its mirror}}{\underbrace{{\Omega }^T}}=0⟹\Omega =-{\Omega }^T.$

A matrix equal to minus its own transpose is called skew-symmetric. Concretely that means:

• its diagonal is all zeros (each diagonal entry equals its own negative, so it must be $0$),
• flipping across the diagonal flips the sign.

PICTURE. The figure lays a $3\times 3$ grid over a mirror line (the diagonal). Zeros sit on the mirror; every off-diagonal cell is the negative of its reflection. Count the free numbers: only the three entries above the diagonal are independent. Three numbers. Hold that thought — a spin has exactly three numbers too (how fast about $x$, about $y$, about $z$).

$\Omega =\left[\begin{array}{ccc}0& -c& b\\ c& 0& -a\\ -b& a& 0\end{array}\right]\leftarrow \text{only }a,b,c\text{ are free}$

---

Step 4 — A skew matrix is a cross product

WHAT. Show that hitting a vector with our skew $\Omega$ does the exact same thing as crossing it with a vector $\vec{w}=(a,b,c)$.

WHY. We suspect the "three free numbers" are an angular velocity. To confirm it, we connect the skew matrix to the operation everyone already knows for spinning: the cross product $\vec{\omega }\times \vec{r}$, whose meaning is "velocity of a point on a spinning wheel."

Multiply $\Omega$ by a test vector $\vec{r}=(x,y,z)$ and compare to the cross product: $\underset{\Omega \vec{r}}{\underbrace{\left[\begin{array}{ccc}0& -c& b\\ c& 0& -a\\ -b& a& 0\end{array}\right]\left[\begin{array}{c}x\\ y\\ z\end{array}\right]}}=\left[\begin{array}{c}bz-cy\\ cx-az\\ ay-bx\end{array}\right]=\underset{\vec{w}\times \vec{r}}{\underbrace{\left[\begin{array}{c}a\\ b\\ c\end{array}\right]\times \left[\begin{array}{c}x\\ y\\ z\end{array}\right]}}$

They match, entry for entry. So we are allowed to write $\Omega =[\vec{w}\times ]$, read "the cross-product operator of $\vec{w}$." (This is the hat / vee map machinery.)

PICTURE. The figure shows the wheel picture: $\vec{w}$ is the axle (red), $\vec{r}$ is a spoke, and $\vec{w}\times \vec{r}$ is the tip's velocity — perpendicular to both, exactly the "sideways nudge" from Step 2. The abstract skew matrix and the physical spinning wheel are the same object.

---

Step 5 — Find which vector, and why a minus sign

WHAT. Pin down that $\vec{w}$ is the body's angular velocity in body coordinates, ${\vec{\omega }}_{\mathcal{B}}$, and that it carries a minus sign.

WHY. "Some vector" is not good enough; we need its physical identity and sign so the equation is usable. We get it by tracking one arrow $\vec{p}$ that is bolted to the body.

Because $\vec{p}$ is painted on the ship, its body numbers never change: ${\vec{p}}_{\mathcal{B}}=C{\vec{p}}_{\mathcal{N}}$ is constant, so its rate is zero. Product-rule that: $0={\dot{\vec{p}}}_{\mathcal{B}}=\underset{\text{translator changing}}{\underbrace{\dot{C}{\vec{p}}_{\mathcal{N}}}}+\underset{\text{the arrow, seen from world, spinning}}{\underbrace{C{\dot{\vec{p}}}_{\mathcal{N}}}}$

Now feed in the two facts we know:

1. Seen from the world, a body-fixed arrow spins: ${\dot{\vec{p}}}_{\mathcal{N}}={\vec{\omega }}_{\mathcal{N}}\times {\vec{p}}_{\mathcal{N}}$ (Step 4's wheel, in world numbers).
2. Angular velocity translates like any vector: ${\vec{\omega }}_{\mathcal{B}}=C{\vec{\omega }}_{\mathcal{N}}$.

Rearrange and use the rotation identity $C(\vec{a}\times \vec{b})=(C\vec{a})\times (C\vec{b})$: $\dot{C}{\vec{p}}_{\mathcal{N}}=-C({\vec{\omega }}_{\mathcal{N}}\times {\vec{p}}_{\mathcal{N}})=-(C{\vec{\omega }}_{\mathcal{N}})\times (C{\vec{p}}_{\mathcal{N}})=-[{\vec{\omega }}_{\mathcal{B}}\times ]C{\vec{p}}_{\mathcal{N}}$

This holds for every possible ${\vec{p}}_{\mathcal{N}}$, so the matrices in front must be equal: $\boxed{\dot{C}=-[{\vec{\omega }}_{\mathcal{B}}\times ]C}$

WHY the minus, in one sentence, with a picture: $C$ reports the world as seen from the cockpit. When you (the body) turn your head left, the whole world appears to swing right. Forward body-spin $\Rightarrow$ backward apparent world-spin $\Rightarrow$ minus.

---

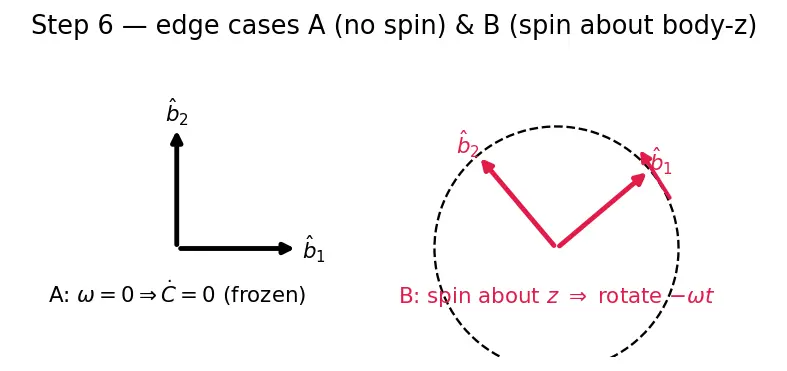

Step 6 — Edge & degenerate cases (never leave a scenario unshown)

---

The one-picture summary

The whole derivation is one arrow: rigid axes stay orthonormal ($C{C}^T=I$) $\to$ differentiate ($\dot{C}{C}^T+C{\dot{C}}^T=0$) $\to$ the twist is skew ($\Omega =-{\Omega }^T$, 3 free numbers) $\to$ skew = cross product ($\Omega =[\vec{w}\times ]$) $\to$ that vector is $-{\vec{\omega }}_{\mathcal{B}}$ $\Rightarrow \dot{C}=-[{\vec{\omega }}_{\mathcal{B}}\times ]C$.

Recall Feynman retelling of the whole walkthrough

You are strapped into a tumbling spaceship. Painted on the walls are three arrows at right angles — your body frame. Outside, the stars sit still — the world frame. The DCM $C$ is your translator: give it "where the Sun is, in star-coordinates," it tells you "where the Sun is, in wall-coordinates." As you tumble, the translator keeps changing. But your painted arrows can never stretch or bend — they stay length-1 and square to each other. Write that promise as $C{C}^T=I$ and ask "how does it change per second?" Differentiate: the change of the translator, times its transpose, plus the mirror of that, equals zero. Meaning: that change-object equals minus its own mirror. Such objects have only three loose numbers. Three numbers... how fast you spin about each of your three arrows! And multiplying a vector by such an object is exactly crossing it with your spin axle — the wheel-and-spoke picture. So the change of $C$ is your spin, crossed in. The last twist: because $C$ reports the world as seen from your cockpit, spinning your head left makes the world swing right — a minus sign. Put it together: $\dot{C}=-[{\vec{\omega }}_{\mathcal{B}}\times ]C$. The whole thing fell out of one stubborn fact: rigid axes stay square.

---

Recall

State the derivation chain from the orthonormality constraint to the final equation. ::: $C{C}^T=I\Rightarrow \dot{C}{C}^T+C{\dot{C}}^T=0\Rightarrow \Omega =\dot{C}{C}^T$ is skew $\Rightarrow \Omega =[\vec{w}\times ]\Rightarrow$ tracking a body-fixed vector gives $\vec{w}=-{\vec{\omega }}_{\mathcal{B}}$, so $\dot{C}=-[{\vec{\omega }}_{\mathcal{B}}\times ]C$. Why does a $3\times 3$ skew matrix carry exactly the information of an angular velocity? ::: It has only 3 independent entries (zeros on the diagonal, off-diagonals paired by sign), matching the 3 spin components; and $\Omega \vec{r}=\vec{w}\times \vec{r}$. Where does the minus sign come from, in one sentence? ::: $C$ maps world→body (cockpit view), so forward body spin makes the world appear to spin backward.
