Fairing separation — altitude, dynamic pressure requirements: Question bank

Symbols and reference facts you'll need

Every trap below leans on the same handful of quantities. So you are never asked about a symbol you have not met, here they are in plain words first.

Definition The vocabulary of this page

$ρ$ (rho) — air density, kilograms of air per cubic metre. Thick low air = large $ρ$ ; near-vacuum = tiny $ρ$ .
$ρ_{0}$ — the density at sea level (the ground), about $1.2 kg/m^{3}$ . It is the starting value the atmosphere thins away from as you climb.
$H$ — the scale height, about $7.5$ km. It is the vertical distance over which density drops by a factor $e \approx 2.718$ . It is not the top of the atmosphere. See Atmospheric Density Model — Scale Height.
$v$ — the vehicle's speed through the air, metres per second.
$q = \frac{1}{2} ρ v^{2}$ — the dynamic pressure, the pressure-like push of the oncoming air. See Dynamic Pressure (Max-Q).
$\overset{q}{˙} = \frac{1}{2} ρ v^{3}$ — the heat flux, energy delivered to the exposed payload per square metre per second (units W/m²).
$A$ — the frontal area of the vehicle facing the flow (m²); $C_{D}$ — the dimensionless drag coefficient, a shape factor of order 1. They appear only in the aerodynamic-force relation $F = C_{D} q A$ .
$m_{0}, m_{f}, m_{f r}$ — initial mass, final (burnout) mass, and fairing mass of the stage.

The two figures below show why the traps are traps: how $q$ and $\overset{q}{˙}$ diverge, and how the density-versus-altitude curve inverts into an altitude answer.

Figure — Fairing separation — altitude, dynamic pressure requirements

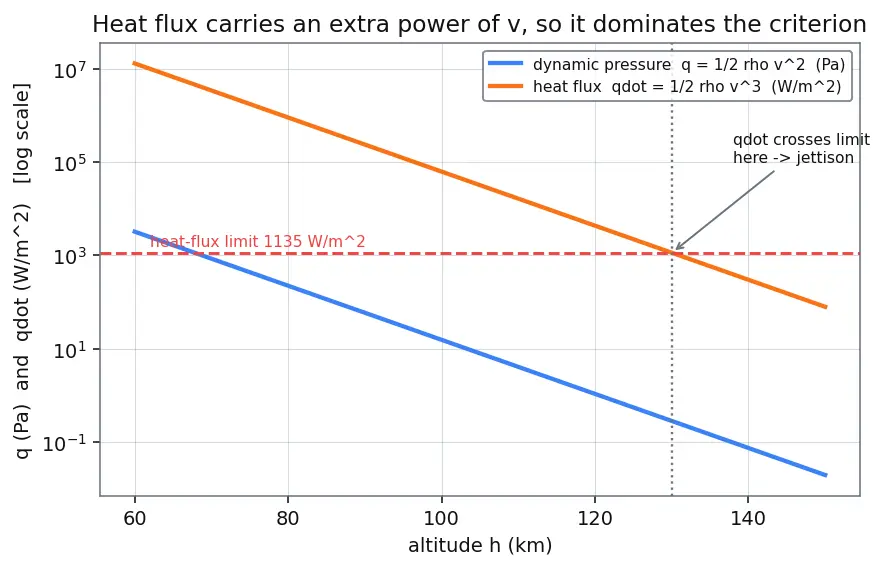

Look at the orange heat-flux curve versus the blue dynamic-pressure curve: they cross their respective safe limits at different altitudes because $\overset{q}{˙}$ carries an extra power of $v$ .

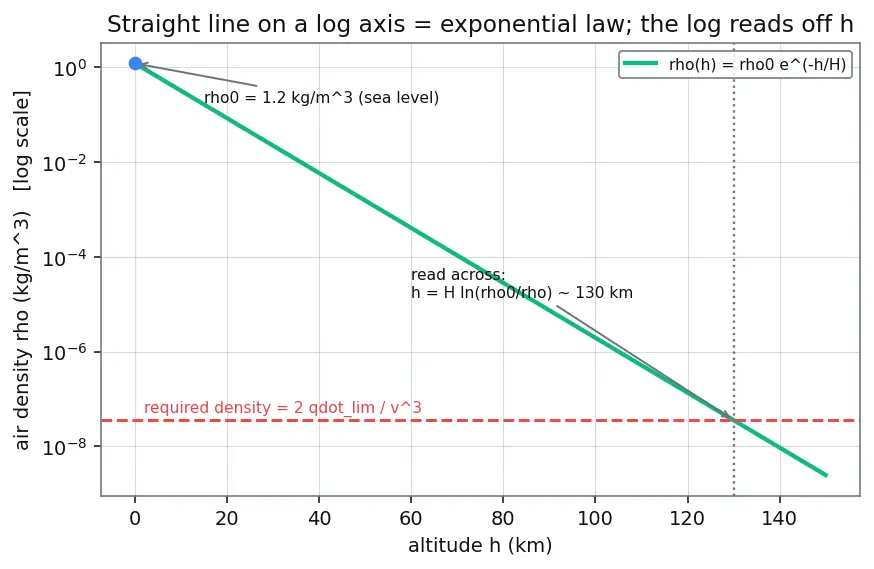

The density curve is a straight line on this log-vertical plot — that straightness is the exponential law, and reading across from the required density to the altitude axis is exactly what the $ln$ does algebraically.

True or false — justify

Heating on the payload scales with velocity squared, exactly like aerodynamic force.

False — aerodynamic force goes as

ρ v^{2}

, but heat flux (energy per area per time) equals that force-like momentum flux multiplied by the vehicle speed, so

\overset{q}{˙} \propto ρ v^{3}

. One extra power of

v

The fairing should always be dropped as early as physically possible to save the most

Δ v

False — the

Δ v

math alone favours early, but below the heating limit the payload cooks. The optimum is at the flux limit, a constrained optimization, not "as low as possible."

Because launch manuals quote "~110 km," altitude by itself fully determines when to jettison.

False — 110 km is only a proxy for a

\overset{q}{˙} = \frac{1}{2} ρ v^{3}

condition. A faster or steeper trajectory has larger

v^{3}

and needs a higher jettison altitude.

Dynamic pressure

q = \frac{1}{2} ρ v^{2}

and heat flux

\overset{q}{˙}

peak at the same instant of flight.

False —

q

peaks at Max-Q (low altitude, moderate speed) where

ρ v^{2}

maximizes, while

\overset{q}{˙} \propto ρ v^{3}

weights speed more heavily and its relevant threshold is crossed much later and higher.

Once above ~110 km the air is thin enough that carrying the fairing longer costs essentially no extra fuel.

False — the fairing is dead mass, and by the rocket equation every kilogram carried through the remaining burn reduces the achievable

Δ v

regardless of altitude.

The factor of

\frac{1}{2}

q = \frac{1}{2} ρ v^{2}

comes from the same

\frac{1}{2}

as kinetic energy.

True — the raw momentum-flux force per area is

ρ v^{2}

; the

\frac{1}{2}

is inserted so

q

matches the stagnation kinetic-energy density

\frac{1}{2} ρ v^{2}

and appears as the coefficient in

F = C_{D} q A

(with

C_{D}

the drag coefficient and

A

the frontal area).

Free-molecular flow means the individual air molecules collide with each other constantly near the vehicle.

False — free-molecular flow is the opposite: the mean free path exceeds the vehicle size, so molecules strike the surface without colliding with each other first. See Aerodynamic Heating & Free-Molecular Flow.

Dropping the fairing lowers the mass ratio

m_{0} / m_{f}

and therefore reduces

Δ v

False — subtracting the same fairing mass

m_{f r}

from both

m_{0}

and

m_{f}

raises the ratio

\frac{m _{0} - m _{f r}}{m _{f} - m _{f r}}

, which frees

Δ v

. That is exactly why we drop it.

Spot the error

"Since

ρ

falls exponentially, at 115 km the density is basically zero, so heating is automatically safe."

The density is tiny but not zero, and it multiplies a huge

v^{3}

(with

v > 3

km/s,

v^{3} \sim 1 0^{10}

). The 115 km reference case above gives

\overset{q}{˙} \approx 8400

W/m² — still above the 1135 limit.

"To find jettison altitude I set

q = q_{j e tt}

and solve, because

q

is what damages the payload."

The damaging quantity is the heat flux

\overset{q}{˙}

, not

q

. You must set

\overset{q}{˙} = \frac{1}{2} ρ v^{3}

equal to the flux limit; using

q

drops a factor of

v

and gives the wrong altitude.

"The scale height

H \approx 7.5

km is the altitude where the atmosphere ends."

H

is the distance over which density falls by a factor

e

, not an edge. The atmosphere continues far above; it just keeps thinning by another factor

e

each

H

"Heat flux

\overset{q}{˙} = ρ v^{3}

Missing the

\frac{1}{2}

: each unit mass carries kinetic energy

\frac{1}{2} v^{2}

and the mass flux is

ρ v

, giving

\overset{q}{˙} = \frac{1}{2} ρ v^{3} = q v

h_{j e tt} = H ln \frac{q ˙ _{l imi t}}{\frac{1}{2} ρ _{0} v ^{3}}

The ratio is upside-down — required density is smaller than

ρ_{0}

, so the log argument

\frac{ρ _{0}}{ρ} = \frac{\frac{1}{2} ρ _{0} v ^{3}}{q ˙ _{l imi t}}

must be greater than 1. Flipping it gives a negative altitude.

"A slower rocket at the same altitude has more heating because it spends more time in the air."

No — instantaneous flux

\overset{q}{˙} \propto v^{3}

decreases with speed at fixed

ρ

. Slower means less heat flux, so a slower trajectory can jettison at a lower altitude.

"At jettison altitude the only heating that matters is convective free-molecular heating."

Usually true here because speeds are moderate, but the fuller picture has more regimes — see the Edge cases.

Why questions

Why is the heating criterion, not a temperature criterion, used to time jettison?

Because

\overset{q}{˙}

(energy delivered per area per second) is what the density-times-velocity physics directly produces; the payload's temperature rise follows from integrating

\overset{q}{˙}

, so bounding the flux bounds the thermal load cleanly.

Why does a steeper (more vertical) ascent trajectory require a higher jettison altitude?

A steeper climb keeps the vehicle in denser air while gaining speed, so both

ρ

and

v

stay large together —

ρ v^{3}

falls below the limit only at greater altitude. See Ascent Trajectory Optimization.

Why is the

v^{3}

dependence the reason we "wait for altitude" instead of "waiting to slow down"?

The rocket keeps accelerating during ascent, so

v

only grows — you cannot reduce the

v^{3}

factor. The only lever left is

ρ

, which you shrink by climbing higher.

Why does the logarithm appear in the jettison-altitude formula?

Density is exponential in

h

(

ρ = ρ_{0} e^{- h / H}

), so inverting for

h

requires the inverse of the exponential — the natural log — which conveniently turns an enormous density ratio (

\sim 1 0^{7}

) into a small, workable number (

\sim 17

Why is dropping the fairing worth ~500 m/s of

Δ v

even though the fairing is a small fraction of total mass?

The rocket equation is logarithmic in mass ratio, and the fairing is subtracted from the final mass too. Shedding it late in the burn, when little propellant remains, disproportionately improves the ratio.

Why is "too early" a real danger and not just conservatism?

Before the density has dropped enough, free-molecular heating and dynamic pressure exceed what the exposed payload and its instruments can survive — dropping early exposes hardware never designed for that flux.

Edge cases

At the exact jettison instant, what is the relationship between the mission flux limit and

\overset{q}{˙}

They are equal: the optimum is the boundary

\overset{q}{˙} = \overset{q}{˙}_{l imi t}

, the earliest moment that is still payload-safe — earlier would exceed it, later wastes

Δ v

If the velocity were somehow held constant during ascent, how would jettison altitude change with a higher

v

A higher constant

v

raises

v^{3}

, so a smaller

ρ

(higher altitude) is needed to hit the same

\overset{q}{˙}_{l imi t}

— jettison altitude increases logarithmically with

v^{3}

In the limiting case

ρ \to 0

(deep vacuum), what happens to both

q

and

\overset{q}{˙}

Both vanish because each is proportional to

ρ

; with no molecules there is no momentum flux and no convective heating — the fairing is pure dead mass and should long since be gone.

What happens to the jettison-altitude formula if you set

\overset{q}{˙}_{l imi t}

larger than

\frac{1}{2} ρ_{0} v^{3}

(an extremely tolerant payload)?

The log argument drops below 1, giving a negative

h_{j e tt}

— physically meaning the surface density already satisfies the limit, so the fairing could be dropped at (or below) sea level by heating alone.

If two rockets reach 120 km but one is going 3 km/s and the other 5 km/s, which is safe to jettison?

The 3 km/s vehicle: at equal

ρ

\overset{q}{˙} \propto v^{3}

, so

5^{3} / 3^{3} \approx 4.6 \times

more heating on the faster one — it may still exceed the limit and need to climb further.

Low down (dense air, short mean free path) the flow is continuum, not free-molecular — does the

\frac{1}{2} ρ v^{3}

estimate still apply there?

Not directly — in the continuum regime a shock and boundary layer form, and convective heating follows a different scaling (roughly

ρ^{0.5} v^{3}

Sutton–Graves form). The

\frac{1}{2} ρ v^{3}

free-molecular estimate is valid only once the mean free path exceeds the vehicle, which is why the jettison window sits in the upper, rarefied atmosphere. See Aerodynamic Heating & Free-Molecular Flow.

At very high speeds (fast re-entry rather than ascent), what other heating channel can dominate that this convective model ignores?

Radiative heating from the glowing shock-heated gas, which scales with a high power of velocity (

\sim v^{8}

range) and negligible at ascent jettison speeds but crucial for high-energy entries — a reminder that "

\overset{q}{˙} = \frac{1}{2} ρ v^{3}

" is the free-molecular convective channel only.

Recall The single sentence that resolves most traps

Fairing timing is set by convective free-molecular heat flux $\overset{q}{˙} = \frac{1}{2} ρ v^{3}$ (not force, not $q$ , not altitude alone), driven to the payload-safe limit as early as that limit permits — because everything after is a $Δ v$ penalty.
