Foundations — Dynamic stability — pitch - yaw damping derivatives

Before you can read the parent note Pitch/Yaw Damping Derivatives, you must own every symbol it throws at you. We build them one at a time. Nothing is used before it is drawn.

1. The rocket, the CG, and the axis $x$

Why the topic needs it: every force on the rocket acts at some station, and its distance from the CG is what decides how much twisting it causes. Without a zero point and a direction, "distance behind" has no meaning. The Moments of Inertia of a Rocket and Static Stability — Center of Pressure & Margin both measure from this same CG.

2. Angle, and the angle of attack $\alpha$

We measure $\alpha$ in radians, not degrees. A radian is just "arc length divided by radius" — a natural, unit-free way to state an angle, so that later formulas don't carry clumsy conversion factors.

3. Reading $\alpha$ off a triangle — where $\tan$ and small angles come in

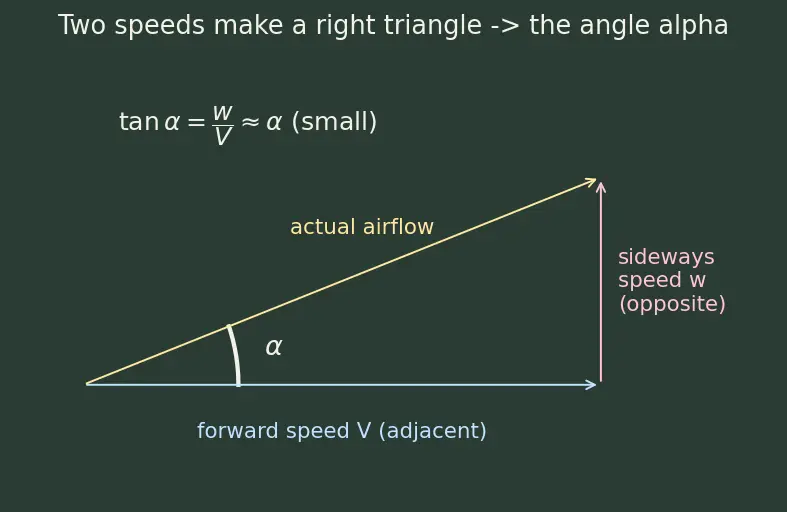

Suppose the air comes at the rocket with a forward speed $V$ (along the body) and a small sideways speed $w$ (across the body). Those two speeds are the two legs of a right triangle, and the actual airflow arrow is the hypotenuse.

Why this tool and not another? We need to turn two velocities into one angle. The tangent is the exact function that answers "given the opposite and adjacent legs, what is the angle's steepness?" — it is built for right triangles.

4. Rotation rates $q$ and $r$

Why the topic needs it: damping does not fight how far the rocket is tilted — it fights how fast it is turning. So we need a name for turning speed. That is $q$ (and $r$). A key fact: because a rocket is round (axially symmetric), pitch and yaw are mirror-image situations, which is why the parent says $C_{n_r}=C_{m_q}$.

5. The air: density $\rho$, speed $V$, dynamic pressure

Why the topic needs it: every force in the derivation is (dynamic pressure) × (area) × (a coefficient). Because $\rho$ shrinks with altitude, the physical damping shrinks as the rocket climbs — even though the number $C_{m_q}$ stays fixed. That is the subtlety behind one of the parent's "common mistakes."

6. From force to twist: moment $M$ and lever arm

Why the topic needs it: a sideways air-force at station $x$ produces a moment $\approx \text{force}\times x$. Combined with §4 (the force itself grows with $x$), the moment grows like $x\times x=x^2$. That $x^2$ — the second moment of area — is the geometric heart of damping and the reason moving fins back is so powerful.

7. Coefficients: making forces unit-free

Rockets of every size and speed should share the same tables, so engineers strip out the size and speed and keep only the shape's contribution. They divide a force by dynamic pressure and a reference area $S$, and a moment additionally by a reference length $d$ (the diameter).

8. The derivative $\partial /\partial \hat{q}$

Why this tool? Damping is precisely "how much extra opposing twist appears per extra unit of turning rate." That is a slope. The derivative is the exact language for a slope, so $C_{m_q}\equiv \partial C_m/\partial \hat{q}$. A negative slope means: turn faster, get pushed back harder — a shock absorber.

9. The spring-and-dashpot picture

The parent note ends by writing pitch motion as a damped harmonic oscillator. Two ingredients:

• Spring (static stability): tilt the rocket by angle $\theta$, get a restoring twist proportional to $\theta$. Controlled by $C_{m_{\alpha }}<0$.
• Dashpot (damping): turn at rate $\dot{\theta }$, get an opposing twist proportional to $\dot{\theta }$. Controlled by $C_{m_q}<0$.

You need both for the wobble to shrink. The full behaviour lives in Damped Harmonic Oscillator.

Prerequisite map

Equipment checklist

Self-test: can you say each in one plain sentence and draw its picture?
