Aerodynamic coefficients — CA (axial force), CN (normal force), Cm (pitching moment): Visual walkthrough

Step 1 — Air carries momentum, so it pushes

WHAT. A rocket sits in a stream of air moving at speed $V$ (metres per second). Each little parcel of air carries momentum — mass times velocity. When that parcel is stopped or deflected by the rocket's skin, its momentum changes, and by Newton's law a change of momentum is a force. So the air pushes on the rocket.

WHY start here. We are not allowed to write $\frac{1}{2} ρ V^{2}$ until we know where it comes from. It comes from counting the momentum in the oncoming air.

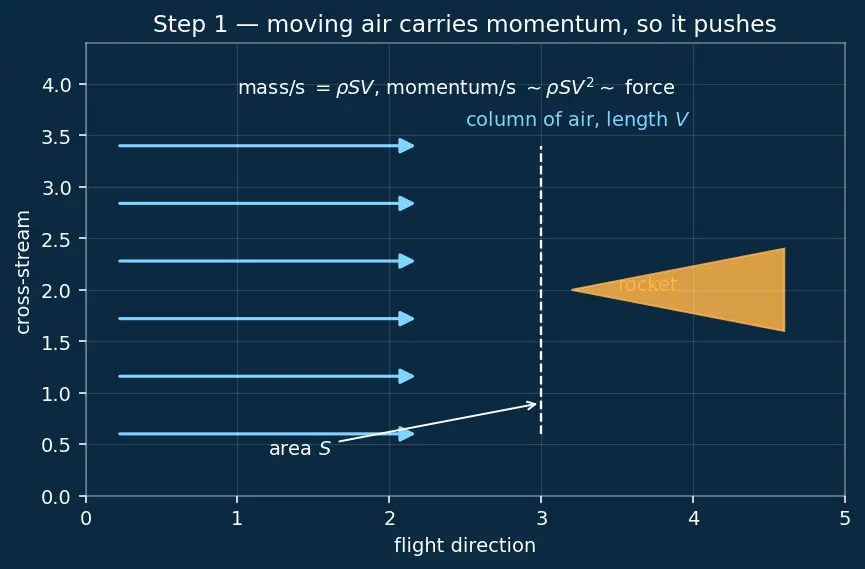

PICTURE. Look at the arrows streaming from the left. In one second, a column of air of length $V$ and cross-section $S$ arrives. Its mass is $ρ \cdot S \cdot V$ (density $ρ$ in $kg/ m^{3}$ times volume). That mass arrives carrying speed $V$ , so momentum per second $\approx (ρS V) \cdot V = ρS V^{2}$ . A force is momentum per second — so the force scales like $ρ V^{2} S$ .

Figure — Aerodynamic coefficients — CA (axial force), CN (normal force), Cm (pitching moment)

Step 2 — Package the boring part into dynamic pressure $q$

WHAT. Half of $ρ V^{2}$ shows up so often it gets its own name: dynamic pressure $q = \frac{1}{2} ρ V^{2}$ . Its units are $N/ m^{2}$ — a pressure.

WHY the $\frac{1}{2}$ . As flagged in Step 1, it is not cosmetic: $\frac{1}{2} ρ V^{2}$ is exactly the kinetic energy per unit volume of the moving air, the same $\frac{1}{2} m v^{2}$ you know, just per cubic metre. That is the "pushing power" packed into the stream.

WHY split it off. Every aerodynamic force carries the same $q$ and the same reference area $S$ (the one we just fixed in Step 1). If we peel those off, whatever number is left describes only the shape and attitude — and that number is transferable between a wind-tunnel model and the real rocket. That is the entire game.

PICTURE. The stream now carries a labelled "energy tank" $q$ . Multiply $q$ (force per area) by the area $S$ it acts on, and you recover a force $q S$ measured in Newtons.

Step 3 — Divide out $q S$ : a coefficient is born

WHAT. Take any aerodynamic force and divide it by $q S$ . Whatever the force is, this division does something magical to its units — that is all this step establishes. (We have not yet said what the specific forces on a rocket are; that is Step 4's job.)

WHY. We just showed $q S$ is a force (Newtons). Dividing any force by a force leaves a pure number — dimensionless. Check: $\frac{N}{N} = 1$ . No metres, no kilograms, no seconds survive. What remains depends only on shape and angle of attack, so it transfers between model and full-scale.

PICTURE. A "units cancelling" ladder: a force (Newtons) on top, $q S$ (Newtons) below, and the two Newton-labels annihilate, leaving a bare coefficient.

Step 4 — One force, but which direction? Split into axial + normal

WHAT. The single resultant force on the rocket is one arrow, but engineers store it as two numbers glued to the rocket's own body. Here, for the first time, we name them: $A$ = the axial force, pointing along the nose–tail axis (positive pointing toward the tail); $N$ = the normal force, pointing perpendicular to that axis (positive pointing "up" out of the reference side of the body).

WHY these two directions. A body-mounted accelerometer sits inside the rocket; it can only feel "forward/back" and "sideways" relative to the rocket, never relative to the invisible wind. So we resolve the force onto the body's own axes. Now apply the Step-3 recipe to each — dividing $A$ and $N$ by the same $q S$ — to get the two body coefficients.

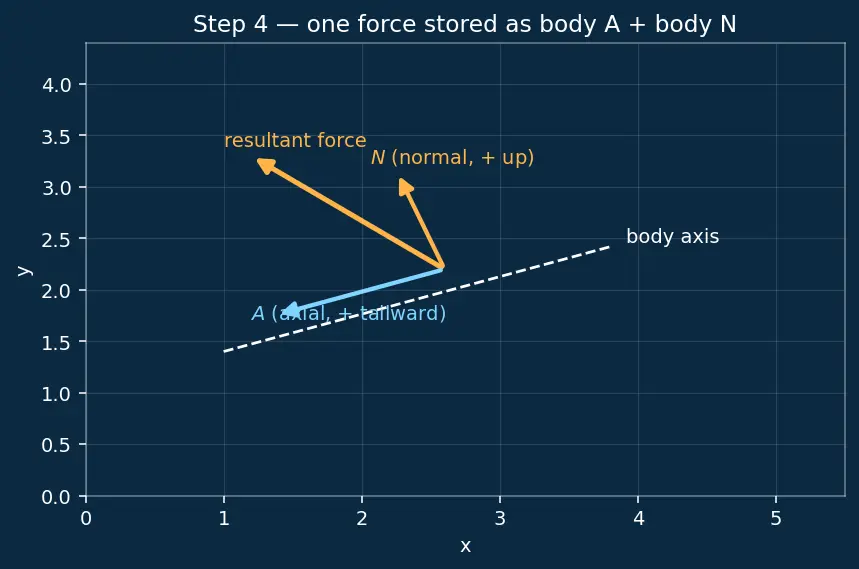

PICTURE. The resultant (amber) drops two dashed shadows onto the body axes: a long backward one ( $A$ , positive toward the tail) and a shorter sideways one ( $N$ , positive up).

Step 5 — The body is tilted from the wind by $α$ : rotate the frame

WHAT. The nose rarely points exactly where the rocket is moving. The gap between the body axis and the velocity vector is the angle of attack $α$ . The wind frame stores force as Drag $D$ and Lift $L$ . Body $(A, N)$ and wind $(D, L)$ describe the same arrow seen in two frames tilted by $α$ .

WHY rotate. Nothing physical changed — only our choice of axes. A rotation by $α$ converts one description to the other. This is the same trick as in Angle of attack $\alpha$ and Drag and Lift in wind axes.

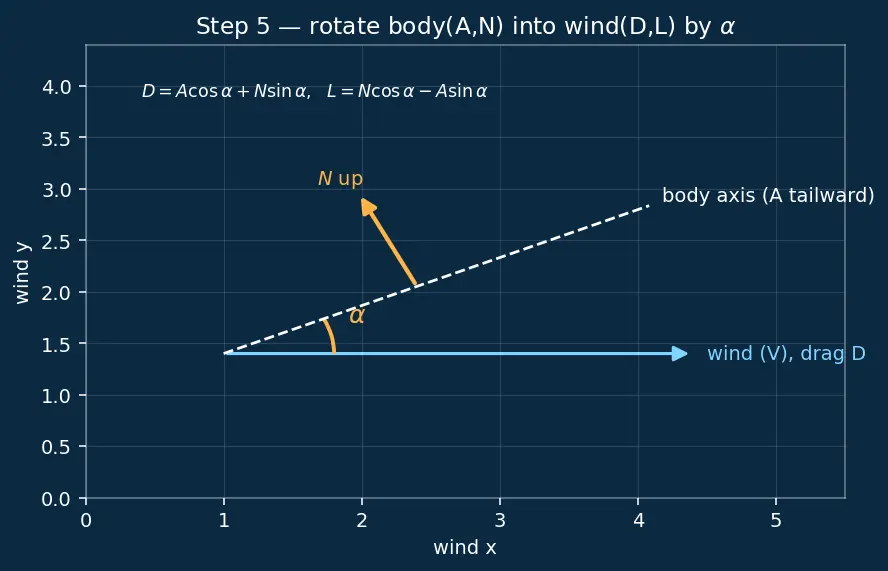

PICTURE. The body axis is tilted up by $α$ from the wind axis. Project $A$ and $N$ onto the wind directions. Because $A$ points tailward and $D$ points downstream, tilting by $α$ leaves $A$ 's downstream share as $A cos α$ ; the up-pointing $N$ also gains a downstream share $N sin α$ . For lift, $N$ gives $N cos α$ while the tailward $A$ , tilted up, has a small upward slip that must be subtracted: $- A sin α$ .

Step 6 — The moment: where does $N$ act, and about what point?

WHAT. Besides pushing, the air also twists the rocket. That twist is the pitching moment $M$ — a force times a lever arm, measured in Newton-metres ( $N m$ ), that tries to rotate the nose up or down. Where does the twist come from? The normal force $N$ does not act at a dot you can choose freely; it effectively acts at the center of pressure (CP), a distance $x_{c p}$ from the nose. The twist about the center of gravity (CG) at $x_{c g}$ equals $N$ times the lever arm $(x_{c p} - x_{c g})$ . Made dimensionless, this is the pitching-moment coefficient $C_{m}$ — the third and last coefficient, defined here for the first time.

WHY a length appears. A moment is force × distance, so its coefficient needs one extra length to stay dimensionless — the reference length $d$ (body diameter). Hence $C_{m} = M / (q S d)$ , and the same reference area $S$ from Step 1 still appears. Check the units: $\frac{N m}{Pa \cdot m ^{2} \cdot m} = \frac{N m}{N m} = 1$ . ✔

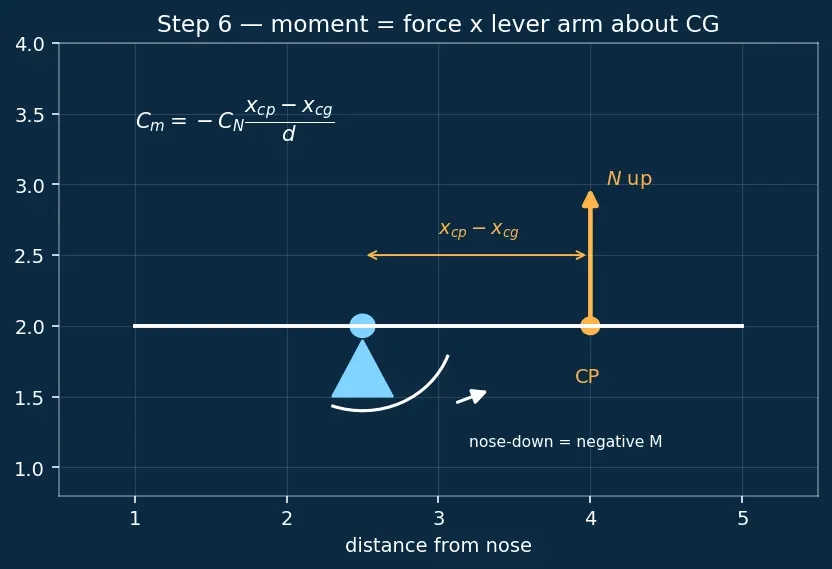

PICTURE. A see-saw: pivot at CG, the normal force $N$ pushing at CP behind it, the lever arm drawn as the amber gap $(x_{c p} - x_{c g})$ .

Step 7 — Degenerate case: fly perfectly straight ( $α = 0$ )

WHAT. Set $α = 0$ . For a rocket symmetric about its axis, the air hits top and bottom equally, so the sideways force cancels: $C_{N} (0) = 0$ . With no normal force there is no lever arm to twist about, so $C_{m} (0) = 0$ as well. But head-on drag never vanishes: $C_{A} (0) \neq = 0$ .

WHY show this. It is the anchor point of every graph. Every curve of $C_{N}$ vs $α$ and $C_{m}$ vs $α$ must pass through the origin; only $C_{A}$ has a non-zero intercept. (Now that $C_{m}$ is defined in Step 6, saying $C_{m} (0) = 0$ is meaningful.)

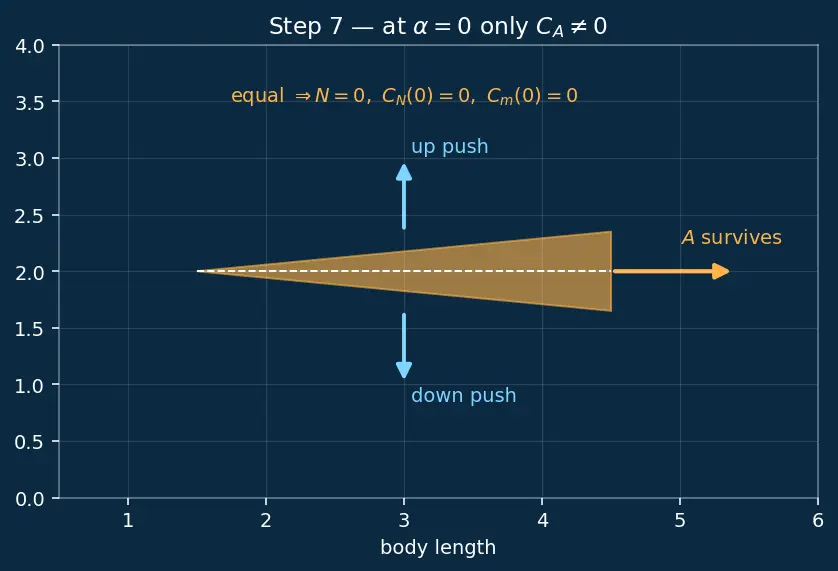

PICTURE. Symmetric rocket, equal-length up/down pressure arrows cancelling to zero net $N$ , while a lone backward $A$ arrow survives.

Step 8 — The sign that decides everything ( $C_{m α} < 0$ )

WHAT. Nudge the nose up: $α$ becomes positive. If the resulting moment is negative (nose-down, by the Step-6 convention), it pushes the nose back — restoring. In slope language: $C_{m α} < 0$ ⇒ statically stable. If $C_{m α} > 0$ , the disturbance grows and the rocket tumbles.

WHY. With CP behind CG, static margin is positive, and $C_{m} = - C_{N} \cdot (margin) = - C_{N α} α \cdot (margin)$ , so $C_{m α} = - C_{N α} \cdot (margin) < 0$ . The negativity is bought by keeping CP behind CG — that is what fins do.

Intuition What the static margin physically means

The static margin $= (x_{c p} - x_{c g}) / d$ is not just algebra — it measures how far behind the CG the pressure force acts, counted in body diameters. Picture the rocket as a weathervane: the CG is the pin it pivots on, and the normal force is the wind grabbing the tail feathers. The farther behind the pin that grab happens (larger margin), the longer the lever arm, and the harder the nose is yanked back into the wind — a stronger restoring twist per degree of upset. A margin of $0$ means CP sits right on the CG: no lever, no correction, neutral. A negative margin (CP ahead of CG) flips the lever the wrong way, so every wobble is amplified. Designers typically want a margin of about $1$ – $2$ diameters: enough to self-correct, not so much the rocket over-reacts to gusts. More in Static and dynamic stability of rockets.

WHY. With CP behind CG, static margin is positive, and $C_{m} = - C_{N} \cdot (margin)$ ; near zero angle $C_{N} = C_{N α} α$ , so $C_{m α} = - C_{N α} \cdot (margin) < 0$ .

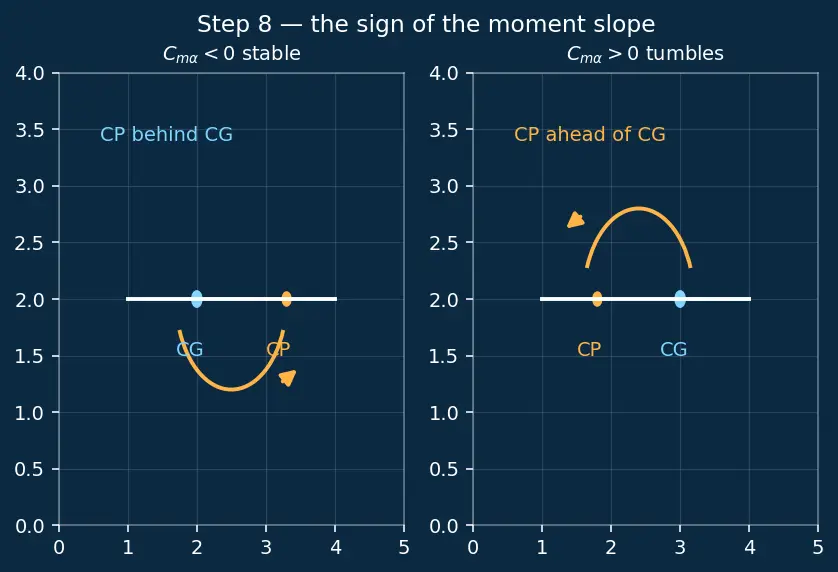

PICTURE. Two rockets: one with CP behind CG (arrow curls back to straight — stable), one with CP ahead of CG (arrow curls away — divergent).

The one-picture summary

The whole chain on one blueprint: momentum in the air → $q = \frac{1}{2} ρ V^{2}$ → multiply by the reference area $S$ to get a force → divide out $q S$ for a pure number → split into $C_{A}$ (body-axial) and $C_{N}$ (body-normal) → rotate by $α$ into $C_{D}, C_{L}$ → multiply $C_{N}$ by the static-margin lever for $C_{m}$ → read its slope sign for stability.

Recall Feynman retelling — the whole walk in plain words

Air is a river of tiny masses. A river pushes harder when it's faster (twice over, since fast means both more mass per second and more punch each), so the push grows like $ρ V^{2} S$ . That momentum count gives the shape of the answer; the tidy universal number out front is $\frac{1}{2} ρ V^{2}$ , the air's kinetic energy per unit volume, which we call $q$ . Multiply $q$ by area $S$ and you have a force in Newtons. Then divide the real force by that force, and everything with units cancels, leaving a naked "shape number." Because it's naked, a small model at Mach 2 wears the exact same number as the giant rocket at Mach 2 — provided you agree on which $S$ you divided by (for rockets, the body cross-section, used identically everywhere). The one force arrow gets stored as two, glued to the rocket's body: a backward push $C_{A}$ and a sideways shove $C_{N}$ . But the rocket points a little off from where it's actually going — that gap is $α$ — so to talk about drag and lift (which follow the wind, not the body) you rotate the picture by $α$ ; that's where the $cos α$ and $sin α$ come from. The sideways shove acts at one special spot, the center of pressure. The distance from the balance point (CG) to that spot, measured in diameters, is the static margin — how long a lever the wind has. If that spot is behind the balance point, the shove twists the nose back toward straight whenever it wanders — a self-correcting weathervane. That "twists back" is a minus sign (nose-down is negative $M$ ), and that single minus, $C_{m α} < 0$ , is the whole difference between a rocket that flies and one that tumbles.

Recall Quick self-check

Why is a coefficient dimensionless? ::: Because it is a force divided by $q S$ , which is itself a force — Newtons over Newtons cancel. Why does $q$ carry a factor $\frac{1}{2}$ ? ::: It is the kinetic energy per unit volume of the air, $\frac{1}{2} ρ V^{2}$ ; the momentum count only fixes the shape $ρ V^{2} S$ . Must $S$ be the same in every coefficient? ::: Yes — the same chosen reference area (body cross-section for rockets) divides $C_{A}, C_{N}, C_{m}, C_{D}, C_{L}$ ; a coefficient only means something relative to its stated $S$ . At $α = 0$ , which of $C_{A}, C_{N}, C_{m}$ is nonzero? ::: Only $C_{A}$ ; symmetry kills $C_{N}$ and $C_{m}$ . Why does $C_{m}$ need an extra length $d$ ? ::: A moment is force×distance; the extra length keeps the ratio dimensionless. What sign convention makes the moment minus sign work? ::: Nose-up is positive $M$ ; an up-force behind the CG pitches the nose down, giving negative $M$ . What does the static margin physically measure? ::: How far behind the CG the pressure force acts (in diameters) — the lever arm of the restoring twist. What sign of $C_{m α}$ means stable? ::: Negative — nose-up produces a restoring nose-down moment.
