Solid rocket Isp derivation from grain properties: Question bank

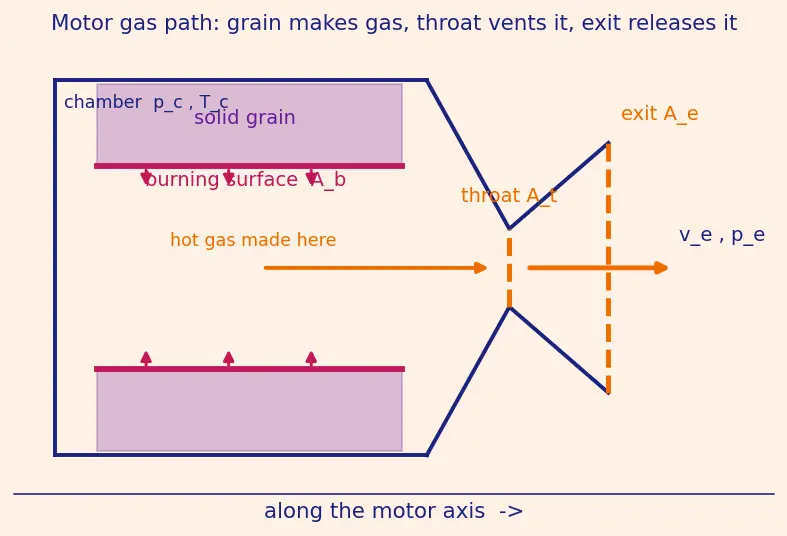

Before you start, meet the three "geometry-of-the-hardware" symbols the traps below lean on. Look at the figure — it is just a labelled cross-section of the motor's gas path from the burning grain, through the narrow throat, out to the exit.

Figure — Solid rocket Isp derivation from grain properties

The core split you are being tested on, in one line:

The formula the traps keep pointing back to (from the parent note, shown here so nothing is "invisible"):

True or false — justify

A firework twice the diameter but made of the identical propellant has twice the

I_{s p}

False. Doubling the grain scales the burning area

A_{b}

, which doubles

\overset{m}{˙}

and thrust — but

I_{s p} = F / (\overset{m}{˙} g_{0})

A_{b}

cancels; same chemistry means same exhaust speed, same

I_{s p}

Two motors with the same

I_{s p}

must produce the same thrust.

False.

I_{s p}

fixes exhaust speed

c = g_{0} I_{s p}

, but

F = \overset{m}{˙} c

still scales with

\overset{m}{˙} = ρ_{p} A_{b} r

; a bigger burning surface gives more thrust at identical

I_{s p}

Lowering the exhaust molar mass

M

raises

I_{s p}

True.

v_{e} \propto 1/ M

, so lighter exhaust molecules (like

H_{2} O

H_{2}

) fly out faster per unit energy — this is why hydrogen-rich propellants score high (see Nozzle Isentropic Expansion).

g_{0} = 9.81

in the

I_{s p}

formula becomes smaller for a rocket operating in space.

False.

g_{0}

is a fixed bookkeeping constant that converts velocity into "seconds"; it is not the local gravitational field. It stays

9.81

everywhere, even in deep space.

A propellant with pressure exponent

n = 1.2

can run stably if you just keep the chamber pressure low.

False. With

n \geq 1

the equilibrium pressure

p_{c} \propto (\cdot)^{1/ (1 - n)}

has no stable fixed point — any small pressure rise boosts burn rate faster than the throat

A_{t}

can vent, driving thermal runaway regardless of the starting pressure.

For a perfectly matched nozzle (

p_{e} = p_{a}

I_{s p} = v_{e} / g_{0}

exactly.

True. The pressure-thrust term

(p_{e} - p_{a}) A_{e}

(where

A_{e}

is the nozzle exit area) vanishes when

p_{e} = p_{a}

, so all thrust is momentum thrust and

I_{s p}

reduces to

v_{e} / g_{0}

Expanding the nozzle so that

p_{e} / p_{c} \to 0

makes

v_{e}

grow without bound.

False. The bracket

[1 - (p_{e} / p_{c})^{(γ - 1) / γ}] \to 1

, so

v_{e}

saturates at

\frac{2 γ}{γ - 1} \frac{R T _{c}}{M}

— you can only extract the finite chamber enthalpy

c_{p} T_{c}

, never more (see Tsiolkovsky Rocket Equation for why finite

v_{e}

caps

Δ v

Raising chamber pressure

p_{c}

directly raises

I_{s p}

a lot.

Mostly false.

I_{s p}

depends on

p_{c}

only through the ratio

p_{e} / p_{c}

inside the bracket — a weak, logarithmic-like gain.

T_{c}

and

M

dominate;

p_{c}

mainly sets thrust via

\overset{m}{˙}

Spot the error

"Star-shaped grain cores are used to boost specific impulse."

Error: star cores boost burning area

A_{b}

(hence thrust and a flatter thrust profile) — they touch

\overset{m}{˙}

, not

I_{s p}

. See Grain Geometry and Thrust Profiles.

\overset{m}{˙} = ρ_{p} A_{b} r

, so if I halve the density

ρ_{p}

I halve

I_{s p}

Error: halving

ρ_{p}

halves

\overset{m}{˙}

(and thrust), but

I_{s p} = F / (\overset{m}{˙} g_{0})

—

ρ_{p}

never enters

v_{e}

, so

I_{s p}

is untouched.

"Since burn rate

r = a p_{c}^{n}

rises with pressure, more pressure means more mass burned per kg of propellant."

Error: higher

p_{c}

speeds recession, so more mass per second, but the propellant burned per kilogram of propellant is fixed by chemistry.

r

changes rate, not efficiency.

"The characteristic velocity

c^{*}

measures how fast exhaust leaves the nozzle."

Error:

c^{*} = \frac{1}{Γ} R T_{c} / M

measures chamber-and-throat efficiency (how well the chemistry pressurizes the chamber), upstream of the nozzle; here

Γ

is the fixed throat factor,

R

the gas constant,

M

the molar mass. Nozzle expansion quality is a separate thrust-coefficient factor. See Characteristic Velocity c-star.

"To find thrust I just multiply

\overset{m}{˙}

v_{e}

and I'm always done."

Error: that gives only the momentum term. Off-design (

p_{e} \neq = p_{a}

) you must add

(p_{e} - p_{a}) A_{e}

, with

A_{e}

the nozzle exit area; at altitude

p_{a}

falls and this term grows, so ignoring it underestimates high-altitude thrust.

"Equilibrium chamber pressure is set by the chemistry alone."

Error:

p_{c} = (ρ_{p} a c^{*} A_{b} / A_{t})^{1/ (1 - n)}

depends on the geometric ratio

A_{b} / A_{t}

(burning area over throat area) too — this is exactly where grain geometry does reach into the chamber.

I_{s p}

has units of impulse, so bigger

I_{s p}

means bigger total push."

Error:

I_{s p}

has units of seconds (impulse per unit weight). Total impulse is

\int F d t

;

I_{s p}

is efficiency per kilogram, decoupled from how many kilograms you carry.

Why questions

Why does grain geometry cancel out of the final

I_{s p}

formula but not out of thrust?

I_{s p} = F / (\overset{m}{˙} g_{0})

and

F = \overset{m}{˙} v_{e}

; the same

\overset{m}{˙}

that grain geometry controls appears in numerator and denominator and cancels, leaving only the chemistry-driven

v_{e}

. Thrust keeps one factor of

\overset{m}{˙}

, so geometry survives there.

Why must the pressure exponent

n

be strictly less than 1 for a stable motor?

Stability needs the pressure feedback (more area burned → more pressure → faster burn) to converge to a fixed point; the exponent

1/ (1 - n)

stays finite and positive only for

n < 1

. At

n = 1

it diverges — self-reinforcing runaway.

Why is

g_{0}

chosen as a fixed constant rather than local gravity?

So that

I_{s p}

is a single universal figure of merit comparable across sea level, altitude, and vacuum — a rocket's efficiency shouldn't change just because you moved it to a different gravity field.

Why does lighter exhaust (

s ma l l M

) beat heavier exhaust for

I_{s p}

The same chamber enthalpy is shared among fewer, lighter molecules, so each gains more speed:

v_{e} \propto R T_{c} / M

. Speed, not mass, is what

I_{s p}

rewards.

Why can't you get infinite

v_{e}

by making the nozzle infinitely long?

A longer nozzle drives

p_{e} \to 0

, but the extractable energy is capped at the finite chamber enthalpy

c_{p} T_{c}

; the bracket saturates at 1. There is simply no more energy to convert.

Why does the burn rate law couple to chamber pressure at all?

Higher pressure pushes hot gas and heat flux harder onto the solid surface, accelerating pyrolysis and recession — an empirical response captured by Saint-Robert Burn Rate Law as

r = a p_{c}^{n}

Edge cases

What happens to

\overset{m}{˙}

at the instant the burning surface area

A_{b} \to 0

(grain nearly consumed)?

\overset{m}{˙} = ρ_{p} A_{b} r \to 0

, so gas production and thrust collapse toward zero — this is natural burnout/tail-off, even though the chemistry (hence

I_{s p}

of the last gas) is unchanged.

What is the "ideal" case in the boxed

I_{s p}

formula shown above, and when does it break down?

Ideal means optimum-expanded,

p_{e} = p_{a}

, so the pressure-thrust term

(p_{e} - p_{a}) A_{e}

vanishes. It breaks down at off-design altitudes where

p_{e} \neq = p_{a}

and that correction reappears.

In the limit

p_{e} / p_{c} \to 1

(nozzle barely expands), what is

v_{e}

The bracket

[1 - (p_{e} / p_{c})^{(γ - 1) / γ}] \to 0

, so

v_{e} \to 0

: no expansion means no enthalpy converted to kinetic energy — essentially a plugged nozzle.

n \to 0

, how does equilibrium chamber pressure behave?

The exponent

1/ (1 - n) \to 1

, so

p_{c}

scales linearly with

ρ_{p} a c^{*} A_{b} / A_{t}

and burn rate becomes pressure-independent — a very stable, easily-tuned motor.

If two motors share identical chemistry but one has throat area

A_{t}

twice as large, what changes?

Larger

A_{t}

vents gas more easily, lowering equilibrium

p_{c}

(via the

A_{b} / A_{t}

factor).

I_{s p}

barely moves (only through the weak

p_{e} / p_{c}

term); thrust level and burn time shift.

What does

I_{s p}

predict for a motor fired in perfect vacuum vs sea level, same chemistry?

Vacuum

I_{s p}

is higher because

p_{a} = 0

adds the full

p_{e} A_{e}

pressure thrust; the underlying

v_{e}

is unchanged, but the extra term makes vacuum performance the quoted "best-case" number.
