Intuition The one core ideaA solid rocket is a shaped block of fuel that burns on its exposed surface, and how much surface is on fire right now decides how hard the rocket pushes right now . So if you carve the hollow channel through the fuel into a clever shape, you control how the burning surface grows or shrinks over time — and that is how you sculpt the entire thrust-vs-time curve without changing a single chemical.
This page assumes you have seen nothing . Every letter, every shape, every idea the parent topic leans on gets built here, in an order where each piece rests on the one before it.
The grain is the solid block of rocket propellant — the fuel-and-oxidiser mixture pressed into one rubbery-to-hard chunk. Picture a fat cylinder of grey clay sitting inside a metal tube (the motor case).
The port is the hollow channel bored through the middle of the grain — the empty space where hot gas collects. Picture the hole down the centre of a tube of toothpaste.

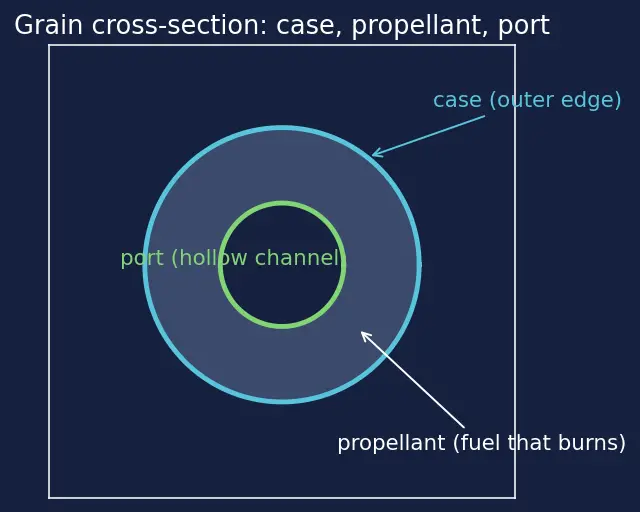

Look at the figure below: the outer circle is the propellant's outer edge (touching the case), and the inner shape is the port. The grey ring between them is the actual fuel that will burn.
Why we need these words: the whole topic is about the shape of that inner hole . Change the hole, change the rocket. Everything downstream is a consequence of the port's shape.
Intuition A candle that burns sidewaysA candle flame eats down the wick. A solid rocket is different: the flame sits on every exposed face of the fuel at once , and each little patch of surface eats straight into the propellant, perpendicular to itself. No flame travels along the fuel — the whole surface peels inward like the skin of a shrinking apple.
Definition Burning surface area — the symbolA b A b b b urning) is the total area of propellant that is on fire at this instant , measured in square metres (m 2
The word area just means "amount of surface", the way the area of a wall tells you how much paint it needs. Here it tells you how much fuel is turning to gas each second.
Definition Normal recession"Normal" is a maths word meaning perpendicular — at a right angle (90°) to the surface. Each point on the burning surface moves along its own normal direction, i.e. straight out of the surface like a nail hammered flat into a wall.

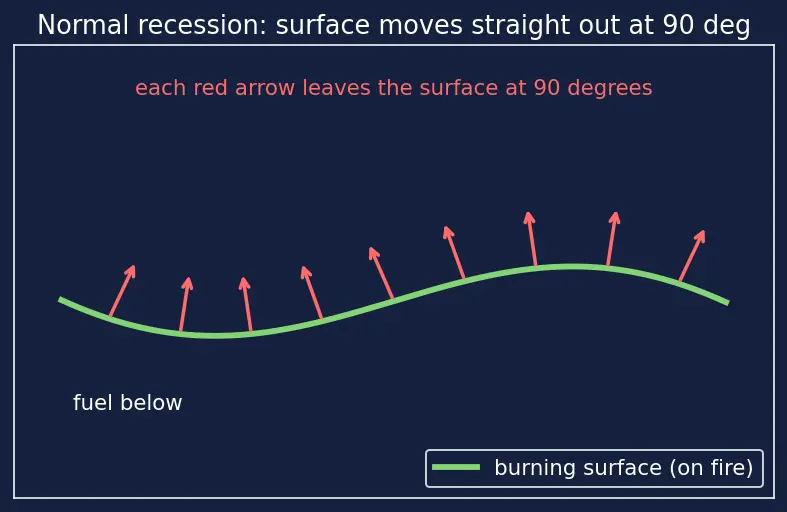

The figure below shows a curved burning edge in green with little red arrows: every arrow leaves the surface at 90°. That is what "recede normally" means — no arrow slants along the surface, they all shoot straight out.
Why we need this: if we know every surface moves perpendicular to itself at the same speed, we can predict the new shape of the port after any amount of burning — pure geometry, no chemistry.
Definition Web burned — the symbolw w perpendicular distance the burning surface has already receded into the fuel . At the start, w = 0 w
The full thickness of fuel from the port out to the case is called the web thickness ; w
distance burned , not time ?
Two motors with the same shape but different burn speeds recede at different rates — but at the same w shape , hence the same burning area. So A b w A b ( w ) w
Definition Linear burn rate — the symbolr r m/s speed at which the surface recedes along its normal. If r = 5 × 1 0 − 3 m/s 5
Think of r how fast , and w how far — the two are linked exactly like speed and distance: distance = speed × time. Over a tiny time slice d t r d t
Definition Density — the symbolρ p ρ p kg/m 3 propellant density : how many kilograms of fuel are packed into each cubic metre. Water is 1000 ρ p ≈ 1750 kg/m 3 1 m × 1 m × 1 m
Why we need density: burning area tells us how much surface turns to gas; density converts that volume of burnt fuel into mass of gas produced. Mass is what the nozzle throws out to make thrust.
Now we combine the three geometric quantities into one physical rate.
Definition Mass generation rate — the symbolm ˙ m per second " (a rate of change in time). So m ˙ kg/s the kilograms of gas the burning surface makes each second .
Here is the picture-logic, step by step:
WHAT: in a tiny instant d t r d t A b WHY: volume of that skin = area × thickness = A b ⋅ r d t A t A t CONVERT: multiply volume by density to get mass: d m = ρ p A b r d t RATE: divide by d t
The last cluster of symbols links the gas we make to the push we get. The parent note derives the chain; here we only name and picture each symbol so nothing is a surprise.
Definition Chamber pressure — the symbolp c p c Pa how hard the gas presses on the inside of the motor . Picture the tightness of a balloon: more gas crammed in → higher p c
Definition Throat area — the symbolA t A t m 2 narrowest point of the nozzle , the pinch the gas must squeeze through on its way out. Picture the neck of a bottle.
K K n K = A t A b K how big the fire is (A b how small the exit is (A t Chamber pressure & throat area (Kn ratio) topic is built around.
Definition Burn-law constants — the symbolsa n Saint-Robert burn rate law :
r = a p c n a n pressure exponent , usually 0.2 0.5 sensitive the speed is to pressure. Picture n
Definition Thrust and its coefficient — the symbolsF C F c ∗
F N thrust — the actual forward push on the rocket.C F thrust coefficient ) and c ∗ characteristic velocity ) are near-constant numbers describing how efficiently the nozzle and the chemistry work. Treat them as fixed dials for now.
F = C F p c A t C F A t thrust simply tracks p c , which tracks A b

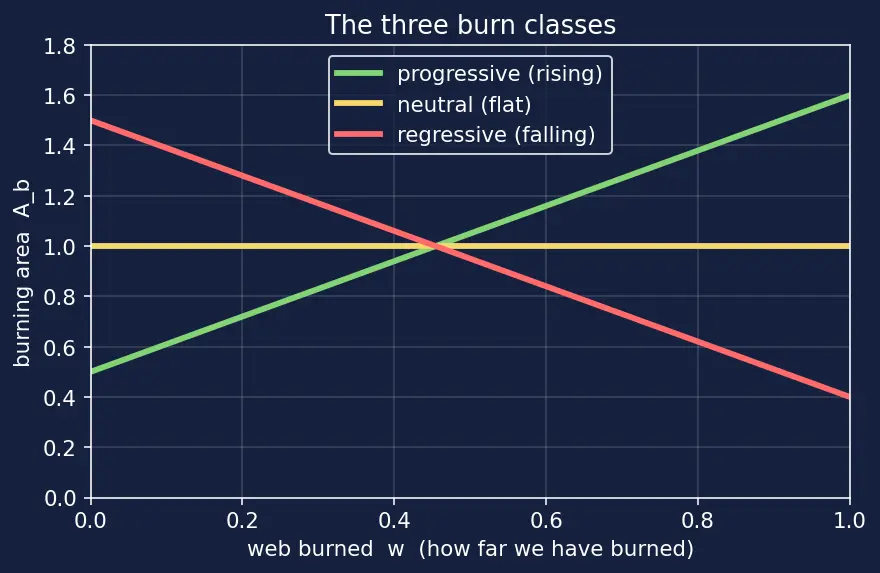

The figure shows the three archetype curves. Read the horizontal axis as "how far we've burned" (w A b
Mnemonic Keep the three straightPro gressive P oints up. Re gressive Re cedes down. Neu tral is a flat line in the middle. (P-up, R-down, N-flat.)
Ratio K equals A_b over A_t
Burn law r equals a p_c to the n
Thrust F equals C_F p_c A_t
Neutral progressive regressive
Read it top to bottom: shape → area → gas → pressure → thrust , with the burn class riding alongside as the shape of the whole story.
Cover the right side and say each answer aloud before revealing.
What is the grain ? The shaped solid block of propellant.
What is the port ? The hollow channel through the grain where gas collects.
What does A b Total burning surface area on fire right now, in m 2
What does "recede normally" mean? Every point of the surface moves perpendicular (90°) to itself.
What is the web burned w The perpendicular distance the burning surface has already receded into the fuel.
Why express area as A b ( w ) A b ( t ) The port's shape — hence its area — depends only on how far it has burned, not on how fast.
What is the linear burn rate r The speed the surface recedes along its normal, in m/s
What is ρ p Propellant density (kg/m 3 volume into gas mass .
State the mass generation rate in words and symbols. Gas made per second = density × area × speed: m ˙ = ρ p A b r
What is chamber pressure p c How hard the gas presses inside the motor, in pascals.
What is throat area A t The area of the narrowest point of the nozzle.
Define the ratio K K = A b / A t
What do a n r = a p c n a n
Write the thrust equation and say what tracks what. F = C F p c A t C F , A t p c A b
Name the three burn classes by what A b Neutral (constant), progressive (rising), regressive (falling).
