Intuition What this page is for
The parent note gave you a handful of formulas. This page throws every kind of number at them: normal cases, zeros, degenerate collisions, extreme limits, a word problem, and an exam twist. If you can follow all of these, no injector question can surprise you.
We reuse four tools from the parent — the orifice law (metering), the impingement momentum balance (impinging jets), the coaxial momentum ratio J (shear atomization), and the swirl-cone tangent (spray angle). Every symbol is re-explained the moment it appears, so start from line one with zero memory.
Before we use any formula, let us name every symbol in plain words so nothing sneaks in undefined.
Definition Every symbol, defined before use
m ˙ (say "m-dot") = mass flow rate , kilograms of propellant crossing the hole each second. Units: kg/s . The dot means "per second".
Δ p (say "delta-p") = the pressure drop across the injector, i.e. how much harder the manifold pushes than the chamber pushes back. Units: Pa (pascals, where 1 Pa = 1 N/m 2 ).
ρ (say "rho") = density of the propellant, how many kilograms fit in a cubic metre. Units: kg/m 3 .
A = orifice area , the cross-sectional area of the hole the fluid squirts through. Units: m 2 .
C d (say "C-d") = discharge coefficient , a pure number (no units) between 0 and 1 that shrinks the ideal flow to the real flow — it accounts for the jet contracting and rubbing against the hole's edge. Typical 0.6 –0.9 .
Δ p must not be too small (the stability floor, derived here)
The orifice law says m ˙ ∝ Δ p . Differentiate the sensitivity : a small wobble δ ( Δ p ) produces a flow wobble δ m ˙ / m ˙ = 2 1 δ ( Δ p ) /Δ p . If Δ p is large compared to any chamber-pressure ripple, that ripple is a tiny fraction of Δ p , so δ m ˙ is tiny — the feed barely notices the chamber. If Δ p is small , a chamber ripple of a given size is a large fraction of Δ p , so it strongly modulates the flow, and the modulated flow feeds the ripple back — a self-amplifying loop (see Combustion Instability ). Engineers therefore keep Δ p at least ∼ 15% of chamber pressure p c ; we write this floor as Δ p ≳ 0.15 p c and use it below.
Now that the symbols exist, let us list every situation these formulas can be pushed into. Each row is a "cell" the reader must be able to survive. Every example below is tagged with the cell it kills.
Cell
Tool
The tricky part
A normal metering
orifice law
plain plug-and-chug, get area & diameter
B inverse metering
orifice law
solve for Δ p given fixed hole
C zero / degenerate
orifice law
what if Δ p → 0 ? What does m ˙ → 0 mean physically
D balanced impinging
momentum balance
transverse terms cancel → straight spray (α = 0 )
E unbalanced impinging
momentum balance
one jet stronger → spray tilts, which sign?
F extreme impinging
momentum balance
one jet dies (m ˙ 2 → 0 ) → sheet follows the survivor
G coaxial normal
momentum ratio J
light fast gas vs heavy slow liquid, is J > 1 ?
H coaxial limit
momentum ratio J
Δ v → 0 → no shear → atomization fails
I swirl angle
tan ϕ = v t / v x
spin vs axial, all four "how wide is the cone" cases
J word problem
orifice + d 2 -law
pick number of holes for burn time in a short chamber
K exam twist
orifice law
Δ p given as percent of p c , hidden units
Worked example Example 1 (Cell A) — size a single orifice
Deliver m ˙ = 0.80 kg/s of liquid oxygen, ρ = 1140 kg/m 3 , with Δ p = 4 bar = 4 × 1 0 5 Pa and C d = 0.80 . Find the orifice area A and diameter d .
Forecast: More flow needs more area; higher Δ p makes the jet faster so we can shrink the hole. Guess: a few square millimetres, so a few mm across.
Rearrange the orifice law for A . Why this step? Everything is known except A , so isolate it.
A = C d 2 ρ Δ p m ˙
Compute the root 2 ρ Δ p . Why? This radicand is the product of density and the ideal kinetic-energy term; it is not the jet speed. (The true ideal jet speed is v = 2 Δ p / ρ ; here we deliberately keep ρ inside the root so that C d A 2 ρ Δ p comes out directly as a mass flow. The radicand's job is simply to convert pressure-and-density into the quantity ρ v .)
2 ( 1140 ) ( 4 × 1 0 5 ) = 9.12 × 1 0 8 = 3.020 × 1 0 4
Divide. Why? Now plug the pieces in.
A = 0.80 × 3.020 × 1 0 4 0.80 = 3.311 × 1 0 − 5 m 2
Diameter from A = π d 2 /4 . Why? Real orifices are round holes.
d = π 4 A = π 4 ( 3.311 × 1 0 − 5 ) = 6.49 × 1 0 − 3 m ≈ 6.5 mm
Verify: Units of 2 ρ Δ p are ( kg/m 3 ) ( Pa ) = kg 2 / ( m 4 s 2 ) = kg / ( m 2 s ) , so A ⋅ that = kg/s ✓. Cross-check the true jet speed v = 2 Δ p / ρ = 2 ( 4 × 1 0 5 ) /1140 = 26.5 m/s , and indeed ρ v = 1140 × 26.5 = 3.02 × 1 0 4 matches the radicand ✓. Plug back: 0.80 × 3.311 × 1 0 − 5 × 3.020 × 1 0 4 = 0.80 kg/s ✓.
Worked example Example 2 (Cell K, exam twist) —
Δ p hidden as a percentage
Same LOX (ρ = 1140 ), same m ˙ = 0.80 kg/s , C d = 0.80 , but now you are told chamber pressure p c = 70 bar and Δ p = 15% of p c . Find A .
Forecast: 15% of 70 bar is about 10 bar — bigger Δ p than Example 1, so the hole should be smaller than 6.5 mm.
Turn the percent into a pressure in pascals. Why? The formula needs Pa, not "percent". This is where exam students lose marks.
Δ p = 0.15 × 70 bar = 10.5 bar = 1.05 × 1 0 6 Pa
Root. Why? Same converter as before.
2 ( 1140 ) ( 1.05 × 1 0 6 ) = 2.394 × 1 0 9 = 4.893 × 1 0 4
Area. Why? Isolate A again.
A = 0.80 × 4.893 × 1 0 4 0.80 = 2.044 × 1 0 − 5 m 2 ⇒ d = 5.10 mm
Verify: Higher Δ p → smaller hole, as forecast (5.1 mm < 6.5 mm) ✓. And Δ p / p c = 15% sits exactly on the stability floor Δ p ≳ 0.15 p c that we derived above the matrix, so this design is at the minimum safe margin.
Worked example Example 3 (Cell B) — the hole is fixed, find the
Δ p it demands
A finished injector has total effective area A = 3.0 × 1 0 − 5 m 2 , C d = 0.80 , flowing kerosene ρ = 810 kg/m 3 . You must push m ˙ = 0.60 kg/s . What Δ p is required?
Forecast: Since m ˙ ∝ Δ p , to raise flow you raise Δ p quadratically — expect a large pressure.
Square the orifice law to free Δ p . Why? Δ p lives inside a square root; squaring both sides lifts it out.
m ˙ 2 = C d 2 A 2 ( 2 ρ Δ p )
Solve for Δ p . Why? Isolate the unknown.
Δ p = 2 ρ C d 2 A 2 m ˙ 2 = 2 ( 810 ) ( 0.80 ) 2 ( 3.0 × 1 0 − 5 ) 2 0.6 0 2
Crunch it. Why? Get the number.
Δ p = 2 ( 810 ) ( 0.64 ) ( 9.0 × 1 0 − 10 ) 0.36 = 9.331 × 1 0 − 7 0.36 = 3.86 × 1 0 5 Pa ≈ 3.86 bar
Verify: Feed it back into the forward law: 0.80 × 3.0 × 1 0 − 5 × 2 ( 810 ) ( 3.86 × 1 0 5 ) = 0.80 × 3.0 × 1 0 − 5 × 2.500 × 1 0 4 = 0.600 kg/s ✓.
Worked example Example 4 (Cell C) — the degenerate zero case
In Example 3's injector, what happens to m ˙ as Δ p → 0 ? And what if the pumps fail so Δ p = 0 exactly?
Forecast: No push → no jet → no flow. But how fast does it die?
Read the law's dependence. Why? m ˙ = C d A 2 ρ Δ p has Δ p under a root, so m ˙ ∝ Δ p .
Take the limit. Why? We want the behaviour, not just one point.
lim Δ p → 0 + m ˙ = C d A 2 ρ ⋅ 0 = 0
Note the shape of the approach. Why? The square root means the curve comes into zero with infinite slope — halving Δ p only cuts flow by a factor 2 ≈ 1.41 , not by 2. So flow drops slowly at first, then plunges near zero.
Verify: At Δ p = 3.86 bar , m ˙ = 0.60 . Halve to 1.93 bar : m ˙ = 0.60/ 2 = 0.424 kg/s ✓ — not 0.30 . This is exactly why a tiny Δ p is dangerous: flow is barely metered and chamber pressure can shove backwards → instability.
Definition The sign convention (fix this in your mind first)
Point the axis straight down the chamber. Call rightward the positive transverse direction. Each jet's momentum P = m ˙ v (a "push", units of newtons) splits into a downward part P cos θ and a sideways part P sin θ . We give each jet a signed angle θ : measured from the axis, positive if the jet leans to the right, negative if it leans to the left . With this one rule, sin θ automatically comes out positive for a right-leaning jet and negative for a left-leaning jet — no ad-hoc extra minus signs needed.
With that convention, the transverse-momentum balance gives the resultant sheet angle α from the axis:
tan α = total downward push m ˙ 1 v 1 cos θ 1 + m ˙ 2 v 2 cos θ 2 m ˙ 1 v 1 sin θ 1 + m ˙ 2 v 2 sin θ 2 net sideways push
Intuition Why this is just vector addition
When the jets collide they merge into one sheet, and momentum is conserved: the sheet leaves along the vector sum of the two pushes. Add the sideways parts (top) and the downward parts (bottom); their ratio is tan α because tangent is "sideways over downward" for the resultant arrow. If the sideways parts cancel, the top is zero and the sheet flies straight down (α = 0 ).

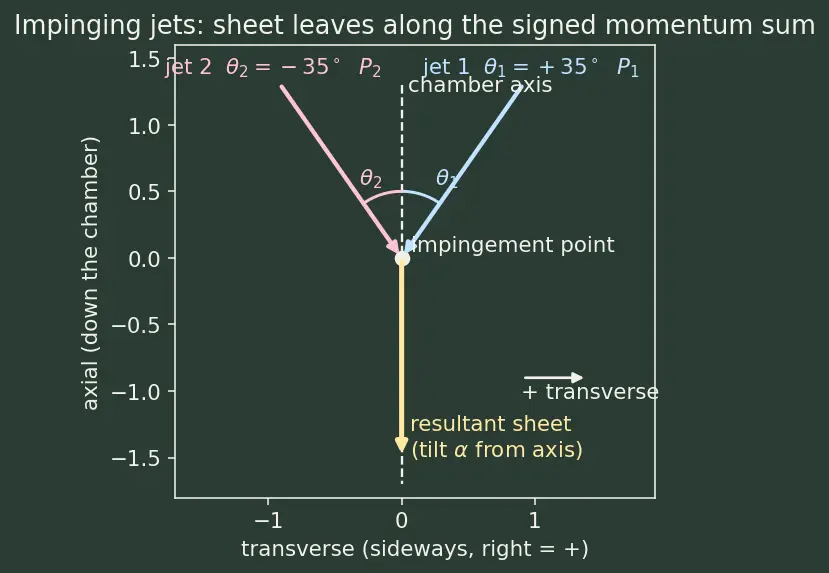

Look at the figure below as you read Examples 5–7. The blue arrow is jet 1 (leaning right, θ 1 = + 3 5 ∘ ), the pink arrow is jet 2 (leaning left, θ 2 = − 3 5 ∘ ), and the yellow arrow is the resultant sheet whose tilt from the dashed axis is the angle α we solve for. Notice the small horizontal "+ transverse" arrow at the bottom right: that marks which sideways direction counts as positive, so a positive α means the sheet leans right .
Worked example Example 5 (Cell D) — balanced doublet
Two jets of equal push P 1 = P 2 = P (where P = m ˙ v ), aimed symmetrically: jet 1 leans right at θ 1 = + 3 5 ∘ , jet 2 leans left at θ 2 = − 3 5 ∘ . Find α .
Forecast: Perfectly symmetric → the two sideways pushes are equal and opposite → they cancel → straight down, α = 0 .
Write each transverse component using the signed angles. Why? The sign convention does the bookkeeping: jet 1's sideways push is + P sin 3 5 ∘ , jet 2's is P sin ( − 3 5 ∘ ) = − P sin 3 5 ∘ .
Add them (numerator = net sideways push). Why? The formula sums signed components.
num = P sin ( + 3 5 ∘ ) + P sin ( − 3 5 ∘ ) = P sin 3 5 ∘ − P sin 3 5 ∘ = 0
Denominator (both push down). Why? cos ( + 3 5 ∘ ) = cos ( − 3 5 ∘ ) , so downward parts add.
den = P cos 3 5 ∘ + P cos 3 5 ∘ = 2 P cos 3 5 ∘
Ratio. Why? tan α = 0/ ( 2 P cos 3 5 ∘ ) = 0 ⇒ α = 0 ∘ .
Verify: tan − 1 ( 0 ) = 0 ∘ ✓. A balanced doublet sprays down the axis, away from the wall — exactly the design goal.
Worked example Example 6 (Cell E) — unbalanced doublet, which way does it tilt?
Same symmetric aiming — jet 1 at θ 1 = + 3 5 ∘ , jet 2 at θ 2 = − 3 5 ∘ — but jet 1 is stronger: P 1 = 120 N , P 2 = 80 N . Find α and its direction.
Forecast: The stronger right-leaning jet's sideways push no longer fully cancels, so a net rightward push survives → the sheet leans right (positive α ) by a few degrees.
Transverse components with signed angles. Why? Same convention: jet 1 gives + 120 sin 3 5 ∘ , jet 2 gives 80 sin ( − 3 5 ∘ ) = − 80 sin 3 5 ∘ .
num = 120 sin 3 5 ∘ + 80 sin ( − 3 5 ∘ ) = ( 120 − 80 ) sin 3 5 ∘ = ( 40 ) ( 0.5736 ) = 22.94 N
Denominator = total downward push. Why? cos ( − 3 5 ∘ ) = cos 3 5 ∘ , so both add.
den = 120 cos 3 5 ∘ + 80 cos 3 5 ∘ = ( 200 ) ( 0.8192 ) = 163.8 N
Take arctan. Why? tan α = (sideways)/(down); arctan answers "which angle has this tan?"
α = tan − 1 ( 163.8 22.94 ) = tan − 1 ( 0.1400 ) = 7.9 7 ∘
Verify: With equal jets num→0 and α → 0 (Example 5) ✓. Positive num → positive α : the sheet tilts ≈ 8 ∘ toward the stronger jet's side — this could scrub the wall, so a designer would re-balance the momenta.
Worked example Example 7 (Cell F) — one jet dies (extreme limit)
Jet 2 clogs: P 2 → 0 , while jet 1 keeps P 1 = 120 N at θ 1 = + 3 5 ∘ . What is α ?
Forecast: With nothing to collide against, the "sheet" is just jet 1 flying along its own line → α = θ 1 = 3 5 ∘ .
Set P 2 = 0 in the formula. Why? Model the failure — jet 2 contributes nothing.
tan α = 120 c o s 3 5 ∘ + 0 120 s i n 3 5 ∘ + 0 = c o s 3 5 ∘ s i n 3 5 ∘ = tan 3 5 ∘
Read off. Why? tan α = tan 3 5 ∘ ⇒ α = 3 5 ∘ .
Verify: The lone jet simply continues at its injection angle ✓. This is why a clogged orifice is a wall-burn hazard : the surviving jet aims straight at the chamber wall at its full 35°.
Definition The coaxial symbols
A coaxial injector has an inner jet (subscript i ) surrounded by an outer annular stream (subscript o ). Each stream has a density ρ and an axial velocity v . The quantity ρ v 2 is the stream's momentum flux (how hard it drives forward per unit area, units Pa ). The momentum flux ratio compares outer to inner:
J = ρ i v i 2 ρ o v o 2
J > 1 means the outer stream out-pushes the inner jet and shreds it into fine droplets. Because velocity is squared , a light-but-fast gas can still win.
Worked example Example 8 (Cell G) — normal coaxial (heavy slow LOX, light fast H₂)
Inner LOX: ρ i = 1140 kg/m 3 , v i = 12 m/s . Outer gaseous hydrogen: ρ o = 2.0 kg/m 3 , v o = 320 m/s . Find J .
Forecast: Hydrogen is ~570× lighter but ~27× faster; because velocity is squared , it may still win. Guess J near 1.
Inner momentum flux. Why? Denominator.
ρ i v i 2 = 1140 × 1 2 2 = 1140 × 144 = 1.642 × 1 0 5
Outer momentum flux. Why? Numerator.
ρ o v o 2 = 2.0 × 32 0 2 = 2.0 × 1.024 × 1 0 5 = 2.048 × 1 0 5
Ratio. Why? Definition of J .
J = 1.642 × 1 0 5 2.048 × 1 0 5 = 1.247
Verify: J > 1 ✓ — despite being 570× lighter, the fast hydrogen out-punches the LOX because of v 2 . Good shear atomization.
Worked example Example 9 (Cell H) — the velocity-matched limit (shear fails)
Keep the same densities, but a throttling fault drops the hydrogen to v o = 12 m/s , equal to the LOX v i = 12 m/s . Find J and the relative velocity Δ v = v o − v i .
Forecast: Equal speeds → no relative motion → no shredding. J should collapse far below 1.
Relative velocity. Why? Shear atomization runs on Δ v , the velocity difference between the streams.
Δ v = 12 − 12 = 0 m/s
Momentum ratio. Why? Show J crashes.
J = 1140 × 1 2 2 2.0 × 1 2 2 = 1140 2.0 = 1.75 × 1 0 − 3
Verify: Δ v = 0 means zero shear; J ≈ 0.0018 ≪ 1 ✓. With no relative velocity the outer gas cannot strip the inner jet — big droplets, poor combustion, exactly the failure mode a coaxial injector must avoid.
Definition The swirl symbols
A fluid element leaving a swirl injector carries two velocities: a tangential velocity v t (its spin around the axis, units m/s ) and an axial velocity v x (its speed down the chamber, units m/s ). The spray leaves as a hollow cone; the half-cone angle ϕ (measured from the axis) obeys:
tan ϕ = v x v t
Sign/convention: both v t and v x are taken as magnitudes (non-negative speeds), so ϕ lives in [ 0 ∘ , 9 0 ∘ ) — a physical cone can open from a pencil-thin jet (0 ∘ ) up to (but not reaching) a flat disc (9 0 ∘ ). There is no "negative cone": swapping the spin direction just spins the cone the other way, it does not change the half-angle.
Intuition Why tangent, and why this exact ratio
Picture the element's velocity as an arrow. Its downward part is v x , its sideways (spin) part is v t . The arrow's tilt from the axis is the cone half-angle. "Tangent = opposite over adjacent" = sideways over downward = v t / v x . More spin → wider cone; more axial speed → tighter cone.

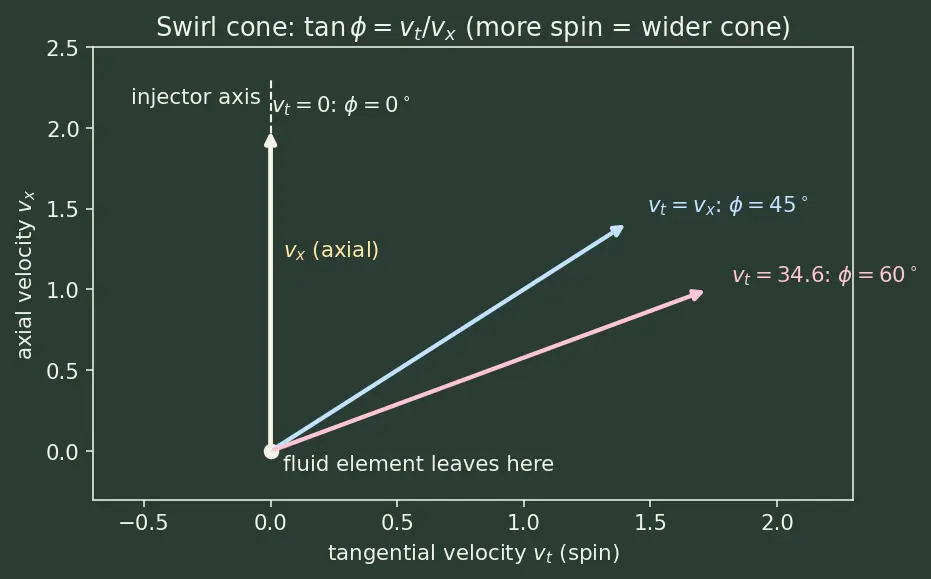

In the figure below , the yellow arrow is the axial velocity v x (straight down the dashed injector axis), and the three coloured arrows show the element's total velocity for increasing spin. As the sideways (tangential) part grows, each arrow tilts further from the axis — that tilt is the half-cone angle ϕ . Watch the labelled angles climb 0 ∘ → 4 5 ∘ → 6 0 ∘ as spin increases.
Worked example Example 10 (Cell I) — four spin/axial combinations
For fixed v x = 20 m/s , compute ϕ for four tangential speeds and read the trend.
Forecast: As v t climbs from 0 upward, ϕ grows from 0 ∘ toward 9 0 ∘ . At v t = 0 the "cone" is a pencil-thin axial jet; as v t → ∞ it flattens toward a flat disc.
v t = 0 (no swirl, degenerate case). Why? Check the zero end.
tan ϕ = 0/20 = 0 ⇒ ϕ = 0 ∘ ( straight jet, worst atomization )
v t = 20 m/s (equal spin and axial). Why? The symmetric middle case.
tan ϕ = 20/20 = 1 ⇒ ϕ = 4 5 ∘
v t = 34.6 m/s (a wide practical cone). Why? A typical design value.
tan ϕ = 34.6/20 = 1.732 ⇒ ϕ = 6 0 ∘
v t → ∞ (huge spin, limit). Why? Check the other extreme.
lim v t → ∞ tan ϕ = ∞ ⇒ ϕ → 9 0 ∘ ( flat sheet, sprays sideways )
Verify: tan − 1 ( 1 ) = 4 5 ∘ , tan − 1 ( 1.732 ) = 60. 0 ∘ ✓. Trend: more spin → wider, thinner cone → finer atomization — but past ~90° the sheet would hit the wall, so real cones sit around 45–60°.
Worked example Example 11 (Cell J) — hole count from the
d 2 -law
An injector must flow m ˙ = 2.0 kg/s kerosene (ρ = 810 ) at Δ p = 5 bar = 5 × 1 0 5 Pa , C d = 0.75 . The chamber is short, so droplets must burn in the available time — that caps droplet diameter at d drop ≤ 50 μ m . Finer sprays come from smaller orifices , and empirically halving the orifice diameter roughly halves droplet size. If a single orifice of the required total area gives d drop = 100 μ m , how many equal holes do you need, and what is each hole's diameter?
Forecast: Total area is fixed by metering; splitting it into more holes shrinks each hole and hence each droplet. To halve droplet size we need smaller orifices → several holes.
Total area from the orifice law. Why? Metering fixes total A regardless of hole count.
A tot = C d 2 ρ Δ p m ˙ = 0.75 2 ( 810 ) ( 5 × 1 0 5 ) 2.0 = 0.75 × 2.846 × 1 0 4 2.0 = 9.371 × 1 0 − 5 m 2
Single-hole diameter. Why? Sets the baseline that gives 100 µm droplets.
d 1 = 4 A tot / π = 4 ( 9.371 × 1 0 − 5 ) / π = 1.092 × 1 0 − 2 m = 10.92 mm
Required orifice diameter for 50 µm droplets. Why? Halving droplet size needs half the orifice diameter (given rule).
d hole = d 1 /2 = 5.462 × 1 0 − 3 m = 5.46 mm
Number of holes (total area conserved). Why? N holes each of area π d hole 2 /4 must sum to A tot ; since each hole has ( 1/2 ) 2 = 1/4 the single-hole area, N = 4 .
N = π d hole 2 /4 A tot = π ( 5.462 × 1 0 − 3 ) 2 /4 9.371 × 1 0 − 5 = 4
Verify: 4 holes × area each = 4 × 2.343 × 1 0 − 5 = 9.371 × 1 0 − 5 m 2 = A tot ✓, and by the d 2 -law halving droplet diameter cuts burn time to a quarter — safe for the short chamber. Links to Atomization and the d-squared Law and Characteristic Velocity c-star (unburned fuel would lower c ∗ ).
Recall Quick self-test (reveal after guessing)
If Δ p is halved, mass flow changes by what factor? ::: By 1/ 2 ≈ 0.71 — because m ˙ ∝ Δ p .
A balanced impinging doublet sprays at what angle from the axis? ::: 0 ∘ (straight down; the two signed transverse pushes cancel).
One of two impinging jets clogs — where does the surviving sheet aim? ::: Along the survivor's own injection angle (35° in Example 7) — a wall-burn hazard.
Why can light hydrogen still atomize heavy LOX in a coaxial injector? ::: Momentum flux goes as ρ v 2 ; the fast gas wins on the squared velocity , giving J > 1 .
A swirl injector with zero tangential velocity produces what? ::: ϕ = 0 ∘ — a straight pencil jet, the worst possible atomization.
Mnemonic Ordering the four tools
"Meter with root, aim with sum, shred with ratio, spin with tangent."
— m ˙ ∝ Δ p (metering), sheet direction = vector sum of jet momenta (impinging), atomization set by J = ρ o v o 2 / ρ i v i 2 (coaxial), cone angle from tan ϕ = v t / v x (swirl).
Related: Bernoulli Equation (source of the root law), Combustion Instability (why Δ p must stay high), O/F Ratio and Mixture Ratio (mixing sets the local ratio), Regenerative Cooling (wall-scrub from tilted sprays).
