Foundations — Expander cycle — hydrogen-cooled nozzle drives turbine

Before we can talk about turbines and cooling channels, we need a shared vocabulary. Every symbol below is a measurement of the moving fluid. We build them one at a time, each on top of the last.

---

1. Flow: what "moving fluid" even means

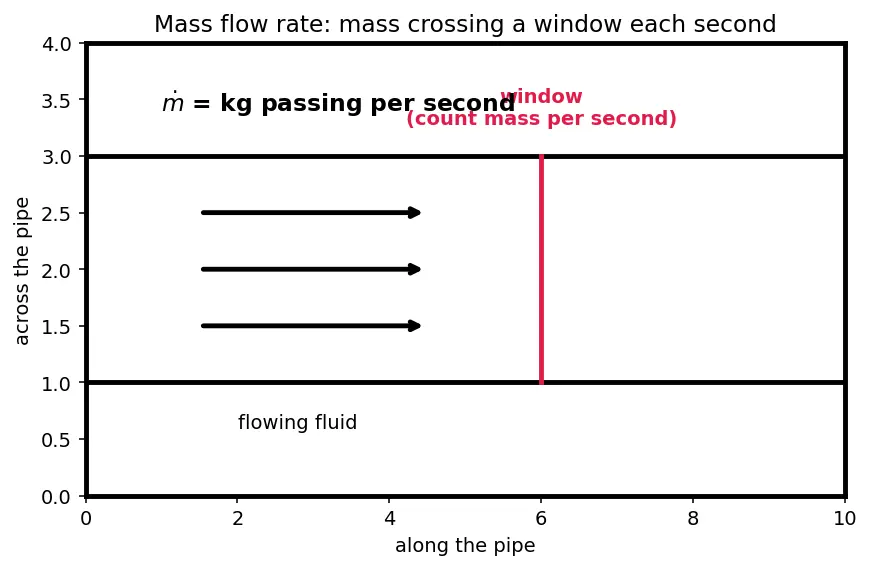

The picture. Imagine a pipe. Draw an imaginary flat window across it. Count the mass of fluid that pushes through that window in one second — that count is $\dot{m}$. The little dot on top is standard notation for "per second" (a rate).

Why the topic needs it. Every energy quantity in the parent note is a rate — heat per second, work per second (that is, power). To get a rate of energy you always multiply an energy-per-kilogram by $\dot{m}$. So $\dot{m}$ is the bridge between "per kilogram" facts and "per second" facts.

Recall

What does the dot in $\dot{m}$ mean? ::: "per second" — it makes a rate.

---

2. Pressure $p$ — how hard the fluid pushes

The picture. Squeeze a balloon: the air inside pushes back equally on every part of the skin. That push-per-area is pressure. In a rocket chamber the burning gas pushes outward at ~$10\text{MPa}$ — about 100 times atmospheric.

Why the topic needs it. A pump's whole job is to raise pressure so fuel can be forced into the high-pressure chamber. We write that rise as $\Delta p$ (Greek capital delta = "the change in"). A turbine does the opposite: it lets pressure fall and harvests the released energy. So pressure — and its rise/fall — is the currency of the whole cycle.

---

3. Density $\rho$ — how tightly packed

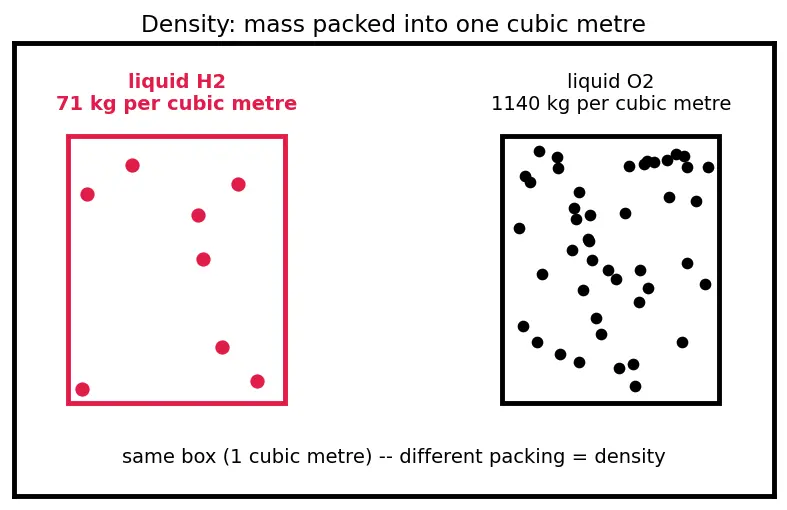

The picture. A cubic metre of liquid oxygen weighs $1140\text{kg}$; the same box of liquid hydrogen weighs only $71\text{kg}$. Oxygen is dense, hydrogen is fluffy.

Why the topic needs it. A pump handles volume, but we track mass. Density converts between them: volume flow $=\dot{m}/\rho$. This single fact is why the parent note says the oxygen pump is "cheaper" — dense oxygen means small volume per kilogram, so less work to push it. Light hydrogen means large volume per kilogram, so a hungrier pump. See Liquid hydrogen properties.

Recall

Volume flow in terms of $\dot{m}$ and $\rho$? ::: $\dot{m}/\rho$ (kilograms-per-second divided by kilograms-per-cubic-metre gives cubic-metres-per-second).

---

4. Temperature $T$ and its change $\Delta T$

The picture. Cold H₂ enters the wall channels; the flame outside pumps heat into it; it leaves hotter. The rise is $\Delta T=T_{\text{out}}-T_{\text{in}}$.

Why the topic needs it. The entire trick of the cycle is that heat raises the hydrogen's temperature. How much heat per kelvin depends on the next symbol.

---

5. Specific heat $c_p$ (and its partner $c_v$)

Why this tool, and not something simpler? We need a bookkeeping number that turns "how many degrees hotter" into "how many joules absorbed." That is exactly what $c_p$ is defined to be. So the heat rate follows directly:

$Q=\dot{m}{c}_p\Delta T$

Read left to right: (kilograms per second) × (joules per kg per kelvin) × (kelvin) = joules per second = watts. Every unit cancels perfectly into power.

The picture. Think of each kilogram as a bucket. $c_p$ is the bucket's size: hydrogen's bucket is huge (14 000 J per degree), so a little mass soaks up a lot of heat. That is why only hydrogen makes this cycle work — see the Regenerative cooling jacket where all this heat is grabbed.

---

6. Enthalpy $h$ — the gas's usable energy content

The picture. Picture the hot gas as a loaded spring plus its heat. As it flows through the turbine and its temperature drops from $T_1$ to $T_2$, the enthalpy drops too, and the released energy $c_p(T_1-T_2)$ spins the blades.

Why the topic needs it. Turbine work per kilogram is the enthalpy drop, $c_p(T_1-T_2)$. Multiply by $\dot{m}$ to get power. This is the direct link from "heat we stole" (Step 1) to "power we make" (Step 2). For the deeper flow relations see Isentropic flow relations.

---

7. The heat-capacity ratio $\gamma$ and the pressure–temperature link

Why this tool? When a gas expands smoothly and without leaking heat (an "isentropic" expansion — a clean, ideal one; here again the ideal-gas assumption of §6 is in force), its temperature and pressure are locked together by

$\frac{T_2}{T_1}={\left(\frac{p_2}{p_1}\right)}^{\frac{\gamma -1}{\gamma }}$

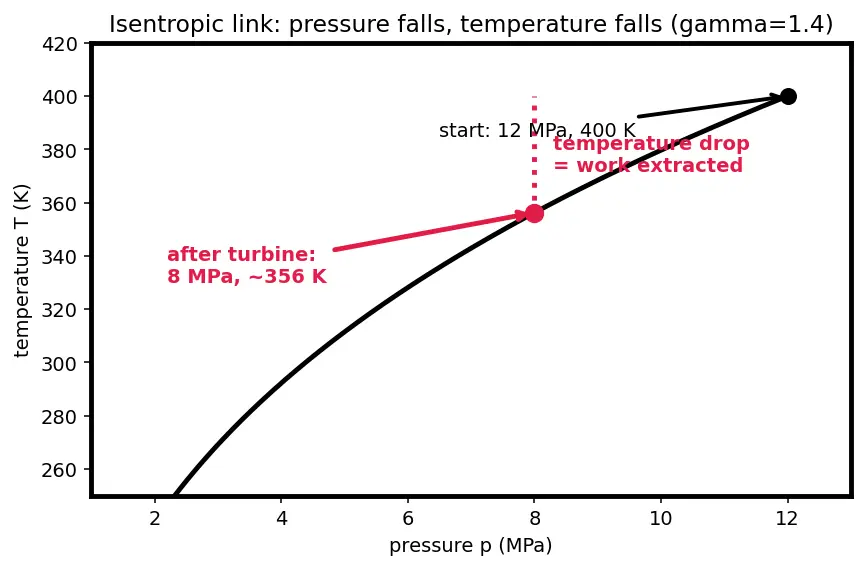

We need this because a turbine is driven by a pressure drop, but the energy it releases is a temperature drop. $\gamma$ is the exact conversion knob between the two. Without it we could not turn "pressure fell from $12$ to $8\text{MPa}$" into "here is how many degrees it cooled, hence how much power came out."

The picture. Steeper pressure fall → steeper temperature fall → more work. The exponent $\frac{\gamma -1}{\gamma }$ (about $0.286$ for $\gamma =1.4$) controls how steep.

Recall

What links the temperature ratio to the pressure ratio in a clean expansion? ::: $T_2/T_1=(p_2/p_1{)}^{(\gamma -1)/\gamma }$

---

8. Efficiency $\eta$ — the "real machines waste some" factor

Why it matters here. Turbines multiply by ${\eta }_t$ (you get less than ideal). Pumps divide by ${\eta }_p$ (you must supply more than ideal). Both push the self-sustaining balance closer to failure — the cycle only "closes" if the turbine, after its losses, still beats the pumps, after theirs. See Turbopump design.

---

9. Putting symbols into the two work formulas

Now that every symbol is defined, we can write the two expressions the parent note bookkeeps.

---

How it all feeds the cycle

Read each node as the symbol it stands for: m-dot is $\dot{m}$, cp is $c_p$, delta-T is $\Delta T$, Q is the heat rate, h is enthalpy, gamma is $\gamma$, p is pressure, rho is $\rho$, delta-p is $\Delta p$, eta-t and eta-p are the two efficiencies, and the two W nodes are turbine and pump power.

Read it top-down: the raw measurements (mass flow, specific heat, temperature) build the heat rate and enthalpy; $c_v$ and $c_p$ build $\gamma$, which with pressure builds the turbine's expansion; density and $\Delta p$ build the pump demand; efficiencies trim both; and everything meets at the single inequality that decides whether the engine can power itself.

---

Equipment checklist

Cover the right side and test yourself — you are ready for the parent note only if each comes instantly.
