Combustion thermodynamics — stoichiometry, adiabatic flame temperature: Question bank

Symbols and setup you need before the traps

Before any trap makes sense, pin down every symbol used on this page. Do not skip this — most "traps" are really disguised symbol confusions.

Definition The players (plain words + sign conventions)

Enthalpy $H$ — the total "heat content" bookkeeping variable of a gas at constant pressure; measured in joules. We only ever care about differences in $H$ , never its absolute value.
Standard enthalpy of formation $Δ H_{f}^{\circ}$ — the enthalpy change to build 1 mole of a species from its pure elements at the reference state ( $298 K$ , $1 atm$ ). Elements in their standard state are assigned $Δ H_{f}^{\circ} = 0$ by convention. A negative value means heat is released when the species forms (it sits lower on the energy ladder).
Enthalpy of reaction $Δ H_{r x n}$ — (products' formation enthalpies) minus (reactants' formation enthalpies). Negative $Δ H_{r x n}$ = exothermic (heat released); the released heat is the positive quantity $- Δ H_{r x n}$ .
Specific heat $c_{p}$ — the joules needed to raise 1 mole of a gas by $1 K$ at constant pressure. It grows with temperature as vibrational modes switch on.
Molar mass $M$ — the mass (in kg) of one mole of the product gas mixture. Lighter products = smaller $M$ .
Exhaust velocity $v_{e}$ — the speed at which gas leaves the nozzle; it scales as $v_{e} \propto T_{c} / M$ . See Specific Impulse and Exhaust Velocity.

Formula The energy balance that

defines $T_{a d}$ (why $Q = 0$ , $p = const$ matters) Start from the assumption up front: combustion in the chamber is adiabatic ( $Q = 0$ ) and at constant pressure. The first law at constant pressure says the heat exchanged equals the enthalpy change, so $Q = 0 \Rightarrow Δ H = 0$ for the whole process — total enthalpy is conserved: $H_{r e a c t} (T_{0}) = H_{p r o d} (T_{a d})$ Now split each side into "form the species at $T_{0}$ " plus "heat it from $T_{0}$ up to its temperature." Reactants enter at $T_{0}$ , so their heating term is zero: $\sum_{r e a c t} n_{j} Δ H_{f, j}^{\circ} = \sum_{p r o d} n_{i} Δ H_{f, i}^{\circ} + \sum_{p r o d} n_{i} \int_{T_{0}}^{T_{a d}} c_{p, i} (T) d T$ Rearranging, and recognising $Δ H_{r x n} = \sum_{p r o d} n_{i} Δ H_{f, i}^{\circ} - \sum_{r e a c t} n_{j} Δ H_{f, j}^{\circ}$ : $- Δ H_{r x n} = p r o d \sum n_{i} \int_{T_{0}}^{T_{a d}} c_{p, i} (T) d T$ Reading: heat released by chemistry (left, positive) = heat soaked up by the product gases as their temperature climbs to $T_{a d}$ (right). This is the equation every trap below quietly relies on. A step-by-step picture of the split is below.

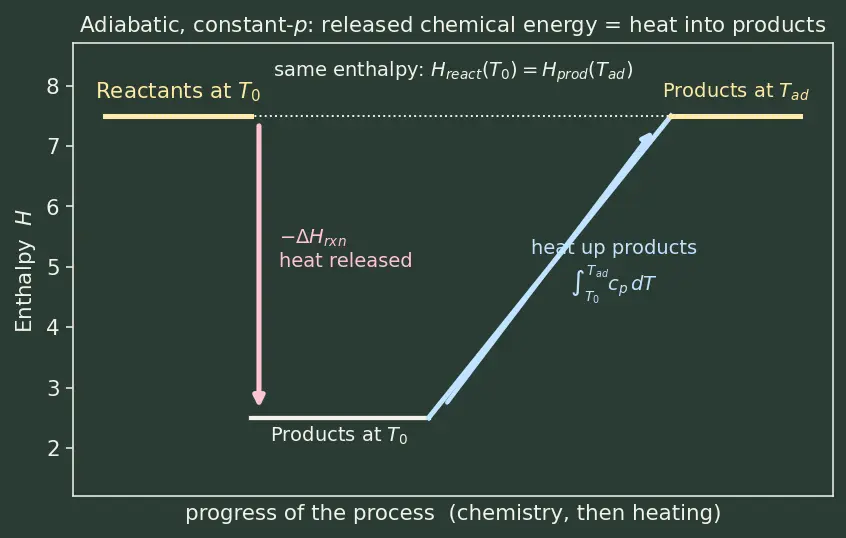

Figure — Combustion thermodynamics — stoichiometry, adiabatic flame temperature

True or false — justify

A stoichiometric mixture is always the one that burns hottest.

Nearly true but not exactly — peak flame temperature sits just slightly rich of

ϕ = 1

for many fuels because dissociation and product composition shift the optimum; the safe statement is "near stoichiometric," not "exactly at it."

Combustion in a rocket chamber is adiabatic because the walls are perfect insulators.

False — the walls are actively cooled, not insulating; it is adiabatic because the reaction is so fast that negligible heat leaves during the burn (

Q \approx 0

from timescale, not from insulation).

Since

Δ H_{r x n}

is negative, the products end up at a lower enthalpy than the reactants.

False for the adiabatic case — the chemical enthalpy drops, but that energy is dumped into raising the products' temperature, so total enthalpy

H_{r e a c t} (T_{0}) = H_{p r o d} (T_{a d})

is conserved.

Adding more fuel beyond stoichiometric always increases the released heat, so it must raise

T_{a d}

False — the extra fuel does not react (no oxidizer left for it); it becomes inert mass that absorbs heat, so

T_{a d}

actually drops past the peak.

Elements in their standard state have

Δ H_{f}^{\circ} = 0

by measurement.

False — it is a convention (the chosen zero of the enthalpy scale), not a measured value; only differences of enthalpy are physical.

The naïve constant-

c_{p}

estimate of

T_{a d}

is a lower bound on the real value.

False — it is an upper bound; ignoring dissociation and the rise of

c_{p}

with temperature both make the true

T_{a d}

lower.

Dissociation is bad for a rocket in every way.

False — dissociation lowers

T_{a d}

(a loss), but it also produces lighter species that reduce mean molar mass

M

, and it can recombine in the nozzle releasing energy downstream; the net effect is subtle. See Chemical Equilibrium and Dissociation.

Running fuel-rich lowers the flame temperature, so it must always lower exhaust velocity.

False —

v_{e} \propto T_{c} / M

; fuel-rich also lowers

M

, and the drop in

M

can outweigh the drop in

T

, giving higher

v_{e}

Spot the error

2 H_{2} + O_{2} \to 2 H_{2} O

, so the O/F mass ratio is

1/2

because there is one

O_{2}

per two

H_{2}

The error is using the mole ratio as the mass ratio; you must weight by molar mass:

(1 \times 32) / (2 \times 2) = 8

, not

1/2

"Combustion is exothermic, so

Δ H_{r x n} > 0

Sign error — exothermic means heat is released, which makes

Δ H_{r x n} < 0

; the released heat is

- Δ H_{r x n} > 0

"To get

T_{a d}

, subtract the reactant enthalpy from the product enthalpy and set it equal to zero."

Incomplete — you must split each species into formation enthalpy plus the sensible-heat integral

\int_{T_{0}}^{T_{a d}} c_{p} d T

; without the heating term there is no temperature to solve for.

"The reader integrated

c_{p}

from

T_{0}

T_{a d}

for the reactants too."

Error — reactants enter at

T_{0}

, so their sensible-heat term is zero; only the products are heated up to

T_{a d}

T_{a d}

came out at

5670 K

, so that's how hot an H₂/O₂ engine actually runs."

The constant-

c_{p}

, no-dissociation number is a naïve ceiling; the real value is

\approx 3000

–

3500 K

once dissociation and rising

c_{p}

are included.

"Equivalence ratio

ϕ = 2

means twice the oxidizer of stoichiometric."

Backwards —

ϕ = (F / O)_{a c t u a l} / (F / O)_{s t}

, so

ϕ > 1

means excess fuel (fuel-rich), i.e. less oxidizer than stoichiometric, not more.

"We can use Hess's law here only if we know the exact reaction path inside the flame."

The whole point of Hess's law is that enthalpy is a state function — it is path-independent, so the messy intermediate steps do not matter.

Why questions

Why is high

T_{a d}

alone not the design goal?

Because exhaust speed scales as

T_{c} / M

— you can win more by lowering molar mass

M

than by chasing the last few hundred kelvin of temperature. Details in Specific Impulse and Exhaust Velocity.

Why does

c_{p}

grow with temperature for combustion products?

At higher

T

the molecules' vibrational modes get thermally activated and start storing energy, so more heat is needed per degree of temperature rise — a direct consequence of extra internal degrees of freedom.

Why does the governing equation put "heat released by chemistry" on one side and "heat absorbed by gases" on the other?

Because with

Q = 0

at constant pressure the total enthalpy is conserved, so every joule freed by rearranging bonds must reappear as sensible heat in the product gas — an energy-conservation bookkeeping from the First Law of Thermodynamics.

Why do we evaluate formation enthalpies at a fixed reference (

298 K

1 a t m

) rather than at the flame temperature?

Because tabulated

Δ H_{f}^{\circ}

are defined at that reference; we then transport species to

T_{a d}

using the sensible-heat integral, keeping the chemistry and the heating cleanly separated.

Why is the naïve estimate acceptable for methane-in-air (

\approx 2200 K

) but bad for H₂/O₂?

Below about

2500 K

dissociation is negligible and

c_{p}

varies little, so constant-

c_{p}

is fine; H₂/O₂ blows well past that threshold where both effects bite hard.

Why does solving for the real

T_{a d}

require minimizing Gibbs free energy rather than just balancing enthalpy?

Because the product composition itself is unknown (how much dissociates depends on

T

), so you must solve chemistry and temperature simultaneously via equilibrium — the subject of Chemical Equilibrium and Dissociation.

Why does recombination in the nozzle matter to overall performance?

Dissociated fragments can re-form stable molecules as the gas cools while expanding, releasing energy that adds to the kinetic energy of the exhaust — a bonus that frozen-flow assumptions miss. See Nozzle Theory and Isentropic Expansion.

Edge cases

What happens to

T_{a d}

ϕ \to 0

(extremely lean, almost pure oxidizer)?

It plummets toward the initial temperature — there is almost no fuel to release energy, and the vast excess oxidizer acts as a cold heat sink.

What happens to

T_{a d}

ϕ \to \infty

(almost pure fuel)?

It also collapses toward

T_{0}

— negligible oxidizer means negligible reaction, and the excess fuel just absorbs what little heat is released.

If you feed reactants in pre-heated above

298 K

, what happens to

T_{a d}

It rises — the reactants already carry extra sensible heat, so the same chemical release lands them at a higher final temperature (the LHS gains, the products start warmer).

For a reaction that produces water as liquid rather than gas, is more or less heat available to raise

T

More heat is nominally released (condensation adds the latent enthalpy), but at flame temperatures water is always vapour, so the gas-phase

Δ H_{f}^{\circ}

is the physically relevant one — using the liquid value would overstate

T_{a d}

At the exact stoichiometric point, is there any leftover reactant to soak up heat?

No — by definition both fuel and oxidizer are fully consumed, which is precisely why the temperature is near its maximum there. See Propellant Selection.

What is the limiting behaviour of

v_{e}

if you could keep raising

T_{c}

while

M

stays fixed?

It grows like

T_{c}

— diminishing returns, since doubling temperature only multiplies exhaust speed by

2

; this is why lowering

M

is often the better lever.

Active Recall

Recall One-line self-check

Sign of $Δ H_{r x n}$ for an exothermic burn? ::: Negative; the released heat is $- Δ H_{r x n}$ .
Why is the naïve $T_{a d}$ an upper bound? ::: It ignores endothermic dissociation and the rise of $c_{p}$ with temperature, both of which cool the products below the estimate.
Does $ϕ > 1$ mean rich or lean? ::: Fuel-rich — excess fuel, less oxidizer than stoichiometric.
What two assumptions make total enthalpy conserved in the $T_{a d}$ derivation? ::: Adiabatic ( $Q = 0$ ) and constant pressure, so $Δ H = Q = 0$ .
