This page builds every symbol and idea the parent note leans on, starting from things a 12-year-old already knows: pushing, squeezing, and funnels. Nothing here assumes you have seen the parent note first — read this one before the topic note.

1. Pressure $p$ — how hard a gas pushes

Picture a box of bouncing gas molecules, as drawn on the left of the figure below. Each collision with a wall is a tiny shove; add up billions of shoves per second over the wall's area and you get a steady outward push — that steady push per unit area is the pressure.

We need three different pressures on this page, so name them now:

The figure below has two panels: the left panel shows the bouncing molecules that make pressure, and the right panel shows a nozzle with all three pressures labelled and the atmosphere squeezing inward.

Why the topic needs it: the entire subject is about matching $p_e$ (what the nozzle produces) to $p_a$ (what the sky provides). When they match, the jet is "perfectly expanded." $p_a$ falls from about $101\text{ kPa}$ at sea level to nearly $0$ in space, and that falling number is the whole problem.

The two ways a nozzle can be mismatched

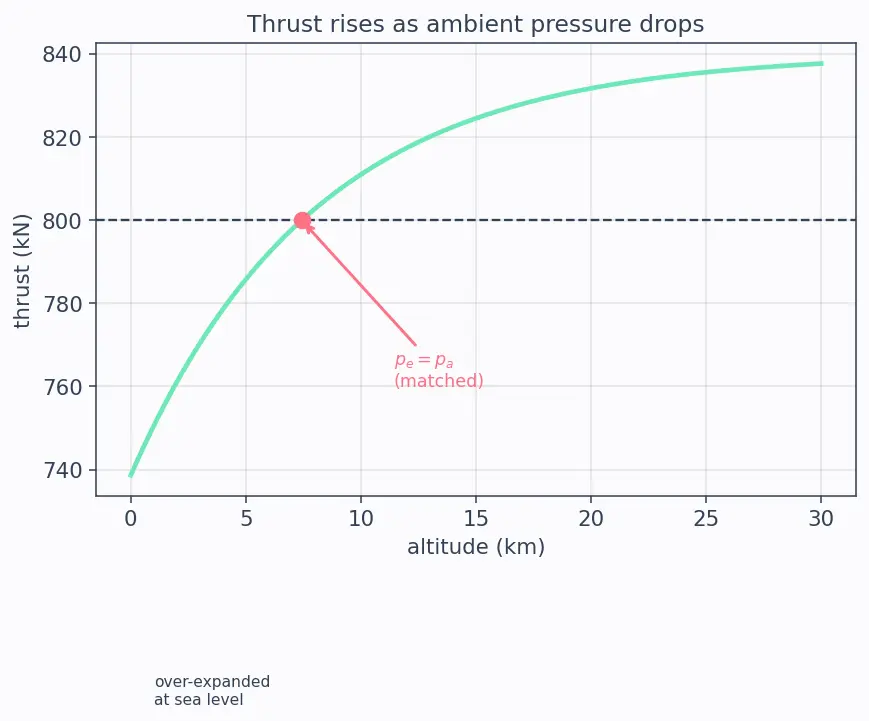

There are two opposite ways the exit pressure can fail to equal the ambient pressure, and the next figure shows them side by side — study it now, one panel at a time.

Between these two extremes sits the perfectly-expanded case, $p_e=p_a$, where the jet leaves straight and parallel — the target of the whole topic.

2. Area $A$ — the size of a circular opening

The figure below draws the nozzle in side view with both slices marked — trace the flow arrow from left to right as you read.

The nozzle is shaped like an hourglass laid on its side: gas rushes in, squeezes through the tight throat (the red slice), then flares out through the widening cone to the exit (the lavender slice). The throat is where the flow reaches the speed of sound; past it the gas keeps accelerating as the tube widens.

Why the topic needs it: the ratio of these two areas controls how much the gas expands and speeds up — which brings us to the single most important symbol on the page.

3. Expansion ratio $ϵ$ — the funnel's "flare"

Because both areas are circles, $ϵ=(R_e/R_t{)}^2$ — the squared ratio of the radii. Double the radius, quadruple the area, quadruple $ϵ$.

Why the topic needs it: every "altitude compensation" trick is really a trick for changing $ϵ$, or getting its benefits, as the rocket climbs. Extendable nozzles literally grow $ϵ$; aerospikes fake a continuously-changing $ϵ$.

4. The cone geometry — how radius grows with length

The nozzle flare is (roughly) a straight-walled cone. Two symbols describe it:

As shown in the figure below, walking down a cone of length $L$, the wall rises by $L\tan \alpha$. So the exit radius is: $R_e=R_t+L\tan \alpha$

Why the topic needs it: this is how an extendable nozzle works — sliding out extra length $L$ makes $R_e$ bigger, which makes $ϵ$ bigger. The parent note's formula ${ϵ}_2={\left(1+\frac{L_2}{R_t}\tan \alpha \right)}^2$ is just $ϵ=(R_e/R_t{)}^2$ with this cone rule plugged in.

5. Mach number $M$ — speed measured in "sound-speeds"

We especially name $M_e$, the exit Mach number — how supersonic the jet is as it leaves the mouth.

Why the topic needs it: the geometry ($ϵ$) and the speed ($M_e$) are locked together by the area–Mach relation — the formula, defined next, that turns a chosen flare into a definite exit speed.

The area–Mach relation — geometry sets the speed

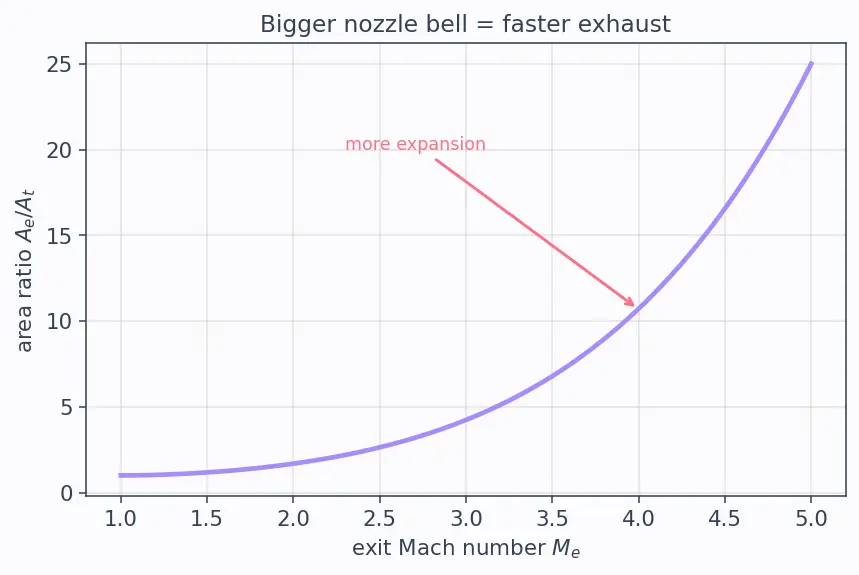

The figure below plots this relation for $\gamma =1.2$: the more you flare the nozzle (bigger $ϵ$, going up the axis), the higher the exit Mach number it forces (going right). Follow the two dashed guide-lines: $ϵ=21$ lands near $M_e\approx 3.8$, and $ϵ=84$ near $M_e\approx 4.75$ — the very numbers the parent's worked example uses.

6. Gas properties: $\gamma$, $R$, $T$

Why the topic needs it: these three fix how much speed you actually get out of a given pressure drop. They appear inside the exhaust-velocity formula (next section). You do not need to derive them here — just recognise them when the parent writes them.

7. Putting speed on the exhaust: $v_e$, $\dot{m}$, thrust $F$

The parent's master equation is: $F=\dot{m}{v}_e+(p_e-p_a)A_e$

Read it in two pieces:

• $\dot{m}{v}_e$ — the momentum push: throwing mass ($\dot{m}$) fast ($v_e$) shoves you the other way (Newton's third law).
• $(p_e-p_a)A_e$ — the pressure push: if the jet leaves at higher pressure than the sky ($p_e>p_a$, the under-expanded case) there's leftover push on the exit disc; if lower ($p_e<p_a$, the over-expanded case) the sky pushes back and this term goes negative.

The exhaust velocity itself (which you'll meet in the parent's boxed formula) comes from energy conservation: $v_e=\sqrt{\frac{2\gamma }{\gamma -1}R{T}_0\left[1-{\left(\frac{p_e}{p_0}\right)}^{(\gamma -1)/\gamma }\right]}$ Notice it uses every symbol we built: $\gamma$, $R$, $T_0$, $p_e$, $p_0$. That is why we defined them first.

8. Specific impulse $I_{sp}$ — fuel efficiency score

Why the topic needs it: it is the single number engineers quote to compare nozzles. A better-matched nozzle at altitude gives a higher $v_e$, hence a higher $I_{sp}$ — the payoff of altitude compensation in one figure of merit.

How these foundations feed the topic

The dependency runs as a single chain, drawn below. The geometry block ($A_t$, $A_e$, cone $\alpha$/$L$) alone fixes the expansion ratio $ϵ$ — no pressure enters here, $ϵ$ is purely a shape number. That $ϵ$ then feeds the area–Mach relation to set $M_e$, which sets $p_e$; combine with exhaust velocity (fed by the gas properties and chamber conditions) to get thrust and finally specific impulse. The mismatch between $p_e$ and $p_a$ is what altitude compensation exists to fix.
