Plane change maneuvers — Δv = 2v·sin(Δi - 2)

WHAT is a plane change?

Because it changes only direction, the ideal plane change is a pure rotation of $\vec v$ by angle $==\Delta i==$ .

HOW to derive $\Delta v = 2v\sin(\Delta i/2)$ from scratch

Formula Derivation — the vector triangle

Setup. Before the burn the spacecraft has velocity $\vec v_1$ with magnitude $v$ . After the burn it has $\vec v_2$ with the same magnitude $v$ , but rotated by angle $\Delta i$ .

The required burn is the vector that closes the triangle: $\Delta \vec v = \vec v_2 - \vec v_1$

Why the same magnitude? A pure plane change keeps the orbit's shape and size, so speed is unchanged: $|\vec v_1| = |\vec v_2| = v$ .

Step 1 — Law of cosines on the triangle with two sides $v$ , $v$ and included angle $\Delta i$ : $\Delta v^2 = v^2 + v^2 - 2\,v\,v\cos(\Delta i) = 2v^2\bigl(1-\cos\Delta i\bigr)$ Why this step? The angle between $\vec v_1$ and $\vec v_2$ is exactly the rotation $\Delta i$ , and $|\Delta\vec v|$ is the third side.

Step 2 — Half-angle identity $1-\cos\theta = 2\sin^2(\theta/2)$ : $\Delta v^2 = 2v^2 \cdot 2\sin^2\!\left(\tfrac{\Delta i}{2}\right) = 4v^2\sin^2\!\left(\tfrac{\Delta i}{2}\right)$ Why this step? It turns the messy $1-\cos$ into a perfect square so we can take the square root cleanly.

Step 3 — Take the square root (both quantities positive): $\boxed{\;\Delta v = 2v\sin\!\left(\frac{\Delta i}{2}\right)\;}$

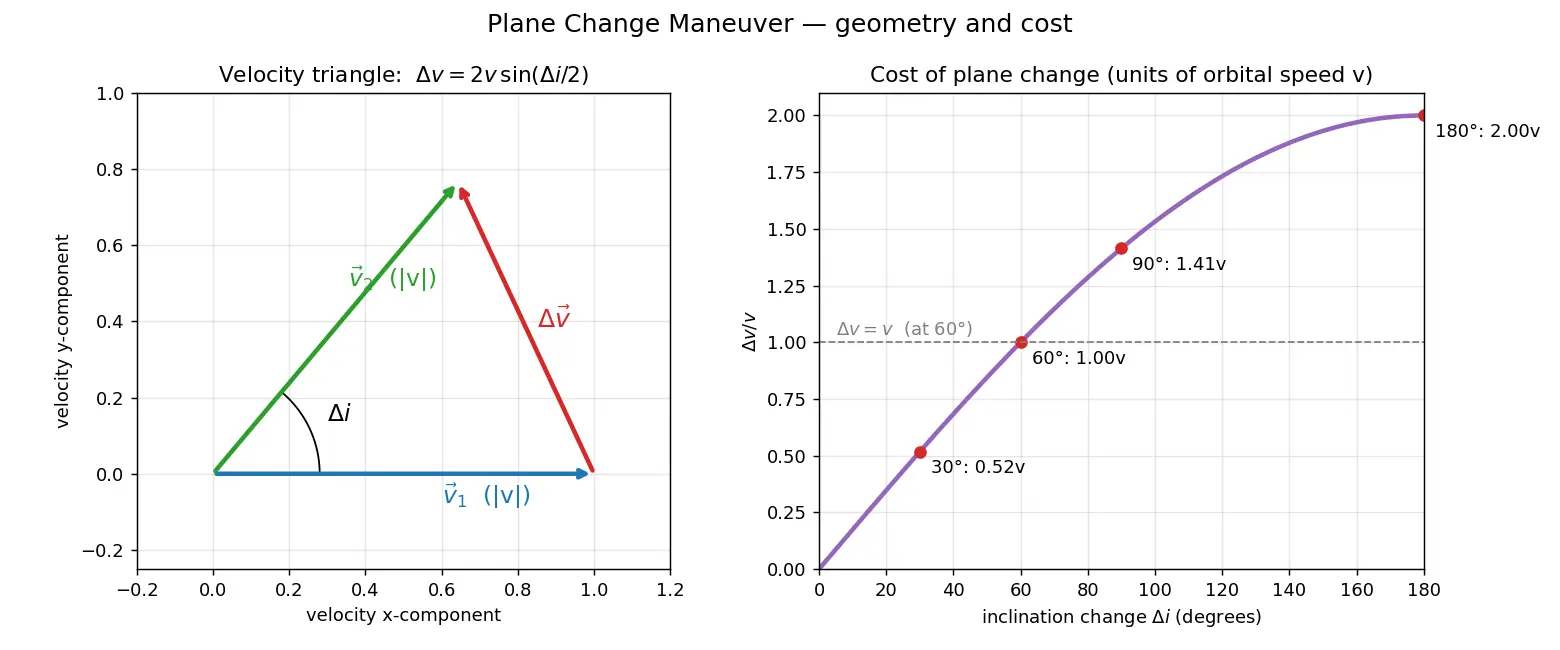

Figure — Plane change maneuvers — Δv = 2v·sin(Δi - 2)

WHY it matters: plane changes are brutally expensive

Common mistakes (steel-manned)

Active recall

Recall Can you rebuild it?

Why is $|\Delta v| \ne 0$ even when speed is unchanged?
Derive $\Delta v = 2v\sin(\Delta i/2)$ using the law of cosines.
Where in an orbit should you do a plane change, and why?
What's $\Delta v$ for a $60°$ change in terms of $v$ ?

Answers: (1) velocity is a vector, direction changes cost thrust; (2) law of cosines + half-angle identity; (3) at apoapsis where $v$ is smallest, since $\Delta v\propto v$ ; (4) exactly $v$ .

Recall Feynman: explain to a 12-year-old

Imagine you're on a merry-go-round holding a ball, running full speed. Your orbit is a circle you keep tracing. Now someone says "run the same speed, but face a different direction." To do that you have to skid and turn — and turning while moving fast takes a big shove. The faster you're already going, the harder that sideways shove has to be. That shove is the $\Delta v$ . If you only turn a little, the shove is small; turn a lot (like spinning halfway around), and you need a shove twice as strong as your speed. That's why space engineers turn their orbit only when the spacecraft is coasting slowly.

Flashcards

Plane change Δv formula

\Delta v = 2v\sin(\Delta i/2)

Why isn't Δv zero when speed is unchanged?

velocity is a vector; rotating its direction requires thrust — subtract vectors, then take magnitude

Which two tools derive the formula?

law of cosines on the isosceles velocity triangle + half-angle identity

1-\cos\theta = 2\sin^2(\theta/2)

Δv for a 60° plane change (in terms of v)?

exactly

v

, since

2v\sin(30°)=v

Δv for a 180° reversal?

2v

, since

2v\sin(90°)=2v

Best place in an orbit to do a plane change?

at apoapsis, where speed

v

is minimum (Δv ∝ v)

Combined speed+plane change formula?

\Delta v = \sqrt{v_1^2+v_2^2-2v_1v_2\cos\Delta i}

Why does combining burns save fuel?

triangle inequality — one vector step is shorter than two sequential steps

Why does Δv translate to huge fuel cost?

Tsiolkovsky: mass ratio

= e^{\Delta v/v_e}

grows exponentially with Δv

Connections

Orbital velocity — vis-viva equation (gives the $v$ you plug in)
Inclination and orbital elements (defines $i$ and $\Delta i$ )
Hohmann transfer orbit (where plane changes get combined)
Tsiolkovsky rocket equation (turns $\Delta v$ into propellant mass)
Apoapsis and periapsis (the slow point strategy)
Vector addition and law of cosines (the math engine here)

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, orbit ek plane (talii) me hota hai jo Earth ke center se hokar guzarta hai. Jab hum us plane ko tilt karna chahte hain — yaani inclination $i$ badalni ho — toh humein apni speed nahi badalni, sirf apne velocity vector ki direction ghumani hoti hai angle $\Delta i$ se. Lekin yahan trick ye hai: velocity ek vector hai, aur vector ko ghumana bhi ek change hai. Isiliye $\Delta v$ zero nahi hota, chahe speed same rahe.

Formula nikalte kaise hain? Ek isosceles triangle socho jiski do bhujaayein $v$ aur $v$ hain, aur beech ka angle $\Delta i$ . Law of cosines lagao: $\Delta v^2 = 2v^2(1-\cos\Delta i)$ . Fir half-angle identity $1-\cos\theta = 2\sin^2(\theta/2)$ use karo, aur mil jaata hai $\Delta v = 2v\sin(\Delta i/2)$ . Woh "half angle" geometry se aata hai — triangle ke apex se perpendicular giraao toh base do barabar hisso me bat jaata hai.

Ab sabse important baat — ye maneuver bahut mehnga hai. $60°$ ka change karne me $\Delta v = v$ lagta hai, matlab poore orbital speed jitna! LEO me ye lagbhag $7.7$ km/s hai — jitna orbit tak pahunchne me lagta hai. Isiliye engineers plane change tab karte hain jab satellite sabse dheere chal raha ho, yaani apoapsis par, kyunki $\Delta v \propto v$ . Aur agar speed change bhi karna ho toh dono burn ko ek saath (combined) kar do — triangle inequality ke wajah se ye alag-alag karne se sasta padta hai.

Yaad rakhna: "Turn slow to spend less" — dheere chalte waqt ghumo, fuel bachao. Aur $\Delta v$ ka chhota sa badhna bhi Tsiolkovsky equation ke through fuel ka exponential jump laata hai, isiliye mission planning me plane changes se bacha jaata hai.
