Intuition The one core ideaA satellite orbit is a fixed oval floating in tilted 3D space , and six numbers pin it down completely: two for its shape, three for how it is tilted and turned, one for where the satellite sits right now. To even read those six numbers you first need a small toolbox of pictures — a level "floor," an arrow that never changes direction, and a few angles measured from agreed starting lines — and this page builds every one of those tools from nothing.
Before you can appreciate the six orbital elements , you must be fluent with a handful of symbols the parent note uses without pausing . Below, each one gets: plain words → the picture → why the topic needs it , in an order where every item leans only on the ones above it.
Definition Vector, writtenr v vector is an arrow with both a length and a direction . We write it with a little arrow on top: r r = ( r x , r y , r z )

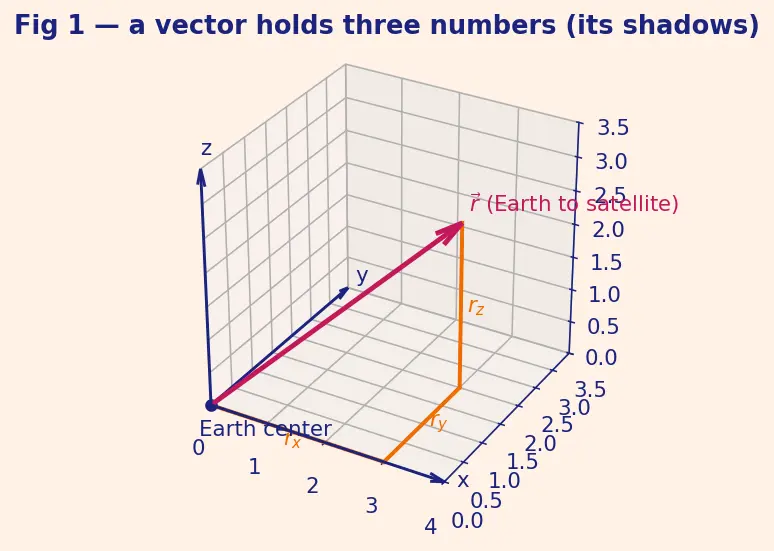

Look at Figure 1. The three axes are the coordinate lines we agree on. The arrow r r x , r y , r z
r r = ∣ r ∣ v right now . Its length v = ∣ v ∣
Intuition Why the topic needs vectorsThe parent note says a satellite's motion is fixed by "r v re-packaging of these same six numbers into shapes you can picture.
Definition Magnitude (length), written∣ r ∣ r "how long is this arrow." By the 3D Pythagoras rule:
r = ∣ r ∣ = r x 2 + r y 2 + r z 2
Stretch the arrow out straight and measure it with a ruler. That single number is r − μ / r r this length — a plain distance, never an arrow.
The topic writes r ⋅ v h ⋅ K ^ n ⋅ e dot products , and they all answer one question: how much do two arrows point the same way?
a ⋅ b = a x b x + a y b y + a z b z = ∣ a ∣ ∣ b ∣ cos θ θ one ordinary number , not an arrow.
Intuition Read the sign like a traffic light
Result positive → arrows lean the same way (angle under 9 0 ∘
Result zero → arrows are perpendicular (angle exactly 9 0 ∘
Result negative → arrows lean opposite ways (angle over 9 0 ∘

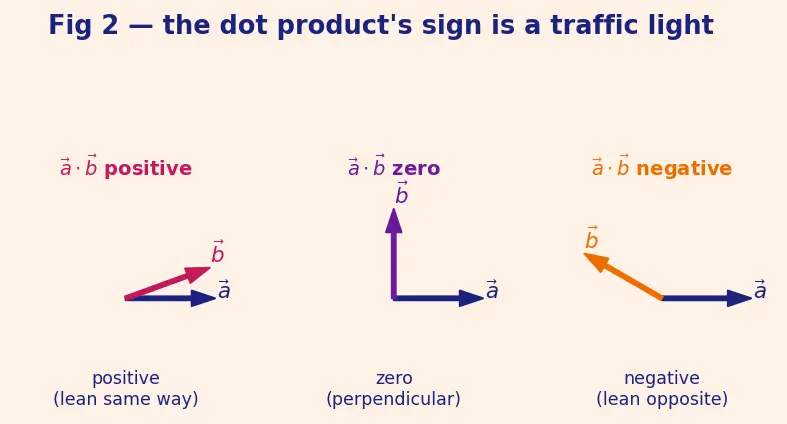

Figure 2 shows all three cases side by side.
r ⋅ v r outward (Earth to satellite). v r ⋅ v > 0 climbing away from Earth. If < 0 falling inward. Later this exact sign test will resolve one of the position angles — but you can already read it purely as "climbing vs. falling."
Why this tool and not another? To turn "the angle between two arrows" into a number you can compute from coordinates, the dot product is the only simple operation that does it — and its sign for free tells you which side of 9 0 ∘
The topic builds h = r × v n = K ^ × h cross product , which answers a different question: give me a new arrow perpendicular to two others.
a × b new vector that
points perpendicular to both a b
has length ∣ a ∣∣ b ∣ sin θ
points along your right thumb when your right hand's fingers curl from a b

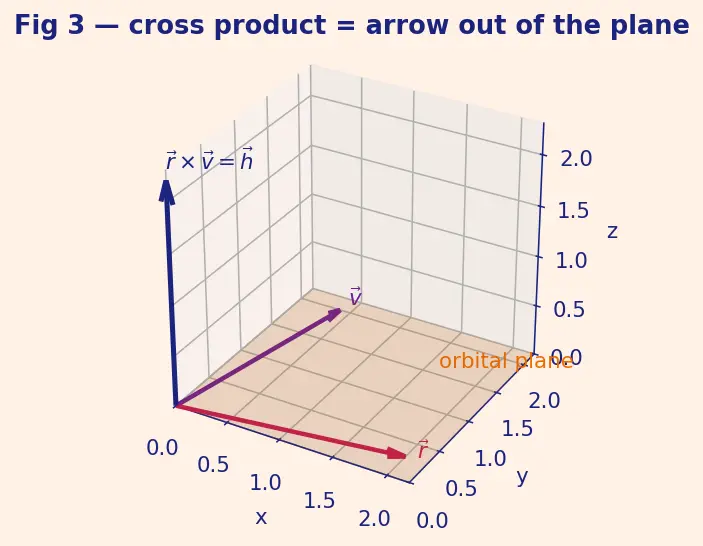

Intuition Why the orbit needs itThe satellite's position and velocity lie inside the orbital plane. Their cross product r × v straight out of that plane — it is a flagpole naming the plane's tilt. That flagpole is the angular momentum h Angular momentum in orbits for the physics; here it is just "the perpendicular arrow."
Common mistake "Cross product order doesn't matter."Why it feels right: dot product ignores order.
The fix: a × b = − b × a h = r × v v × r
Definition Unit vector, the little hat ^ unit vector is an arrow of length exactly 1 . Its only job is to name a direction — like a signpost with no distance. We mark it with a hat: K ^

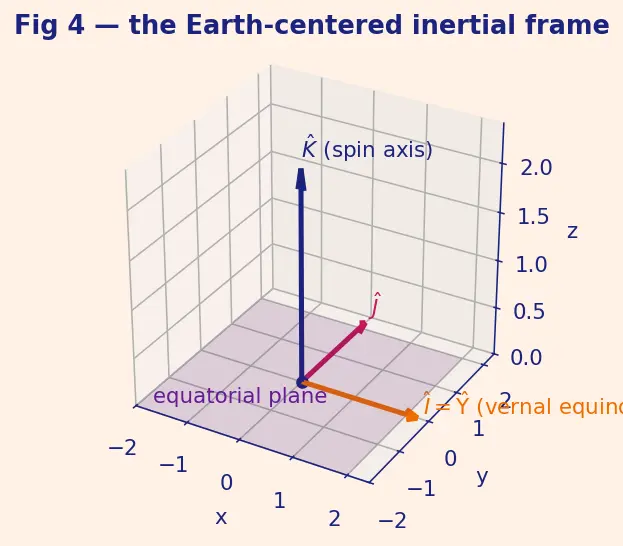

You can't say "tilted" without a level floor to tilt away from. The topic fixes a whole set of three signposts — the reference frame I ^ , J ^ , K ^
I ^ x in the equatorial plane. It is chosen to point at the vernal equinox (see Υ ^ I ^ = Υ ^ J ^ y in the equatorial plane, exactly 9 0 ∘ I ^ I ^ J ^ K ^ z spin axis (out the North Pole). It is the normal (perpendicular arrow) to the equatorial reference plane, standing straight up from the I ^ , J ^ Υ ^ is the I ^ Ω
fixed direction matters
Angles must be measured from something . Υ ^ I ^ Ω
μ = GM G M μ strength of the gravity well . It is easier to measure μ G M
Think of μ how deep and steep the funnel is that the satellite rolls around inside. Bigger μ
Definition Specific orbital energyε ε total energy per kilogram of satellite: ε = 2 v 2 − r μ v constant all the way around one orbit.
Definition Orbital periodT T time for one full lap of the orbit — one complete trip around the oval. It appears as T = 2 π a 3 / μ Kepler's third law .) It also depends on the size number a
Intuition Where these show upμ ε T Vis-viva equation v 2 = μ ( r 2 − a 1 )
You will meet these in full in the shape deep-dive, but the parent already uses them (in r p = a ( 1 − e ) T
Definition Semi-major axisa a longest diameter — the oval's overall size . It is a constant for one orbit and sets both the energy ε = − μ /2 a T
e e squashed the oval is: e = 0 e 1 Eccentricity vector e e both the squash amount and the pointing direction at once.
Definition Periapsis / apoapsis distancesr p , r a r p closest the satellite gets to Earth; ==r a farthest . From the oval's geometry r p = a ( 1 − e ) r a = a ( 1 + e ) a e
Three of the elements are orientation angles and one is a position angle . Anchor each as a plain picture now; the element deep-dives derive them.
Definition The four orbit angles
==i steeply the orbit plane is tilted away from the equatorial floor. i = 0 ∘ i = 9 0 ∘ i = 18 0 ∘
==Ω which compass direction the tilt faces — how far the plane is swung around the K ^ Υ ^
==ω which way the oval points inside its own plane — the angle from the plane-crossing line to the closest point r p
==ν where the satellite is right now on the oval, the angle from periapsis to the satellite. This is the only angle that changes with time; 0 < ν < 18 0 ∘ 18 0 ∘ < ν < 36 0 ∘
Definition Cosine of an angleOn a right triangle, cos θ = hypotenuse adjacent cos 0 ∘ = 1 cos 9 0 ∘ = 0 cos 18 0 ∘ = − 1
cos − 1 Why it feels right: you punch it into a calculator and get a number.
The fix: cos − 1 0 ∘ 18 0 ∘ cos θ = cos ( 36 0 ∘ − θ ) same cosine (one in the top half of the circle, one in the bottom). So a cosine alone can't tell "swung left" from "swung right."
The rescue: a sign check on one extra number. That is why the element deep-dives add rules like:
for Ω > 18 0 ∘ n y < 0 x
for ω > 18 0 ∘ e z < 0
for ν > 18 0 ∘ r ⋅ v < 0
Common mistake "The angles are always well-defined."Why it feels right: every orbit surely has all six numbers.
The fix — degenerate cases: some angles vanish or become undefined at special shapes.
Circular orbit (e = 0 the eccentricity vector e ω ν Equatorial orbit (i = 0 ∘ 18 0 ∘ the orbit plane lies flat on the reference floor, so it never crosses it — the node vector n = K ^ × h Ω argument of latitude or true longitude ) that the conversion routines fall back on. See State vector to orbital elements conversion .
Unit vectors I J K and vernal equinox
Sign checks fix quadrants
Distance r in energy and orbit eq
Gravity mu energy eps period T
Read it top to bottom: arrows and their length/dot/cross products build the angular-momentum flagpole h n μ ε r T a , e six orbital elements .
Cover the right side and test yourself — you're ready for the element deep-dives when every line is instant.
What does the little arrow on r It's a vector — an arrow with length and direction — and in 3D it holds three numbers ( r x , r y , r z )
What do the bars in ∣ r ∣ The length of the arrow,
r x 2 + r y 2 + r z 2 — a plain distance, not an arrow.
What single question does the dot product a ⋅ b How much the two arrows point the same way; its sign says aligned (+), perpendicular (0), or opposite (−).
Why does r ⋅ v > 0 Positive dot product means the motion leans outward (same way as the outward position arrow), so it's heading away from Earth.
What does the cross product r × v A new arrow perpendicular to both — sticking straight out of the orbital plane; that arrow is the angular momentum
h .
Why must you write r × v v × r Cross product is anti-commutative; swapping flips the arrow, so the order encodes prograde vs retrograde direction.
What are I ^ , J ^ , K ^ The reference frame's three unit signposts: I ^ J ^ I ^ K ^
What is Υ ^ The vernal equinox direction (= I ^ Ω
What is μ ε T μ = GM ε T
In one line each, what do a e r p r a a e r p a ( 1 − e ) r a a ( 1 + e )
What do the four angles i , Ω , ω , ν i Ω ω ν
Why can't cos − 1 Ω ω ν It only returns
0 ∘ –
18 0 ∘ ; a sign check fixes the half —
n y for
Ω ,
e z for
ω ,
r ⋅ v for
ν .
When do the angles become undefined? ω , ν e = 0 Ω i = 0 ∘ 18 0 ∘
