Orbit shape from eccentricity — circle (e=0), ellipse (0 - e - 1), parabola (e=1), hyperbola (e - 1)

One number — the eccentricity $e$ — decides whether a body loops forever (bound) or escapes to infinity (unbound). This note derives WHY from the conic equation.

The big picture

Deriving the orbit equation (first principles)

HOW. Newton's gravity gives radial acceleration $-\mu/r^2$ with $\mu = GM$ . Use the substitution $u = 1/r$ and the specific angular momentum $h = r^2\dot\theta$ (angular momentum per unit mass; the total is $L = m\,h = m\,r^2\dot\theta$ ). The Binet equation then comes out as:

$\frac{d^2 u}{d\theta^2} + u = \frac{\mu}{h^2}$

Solution: $u = \dfrac{\mu}{h^2}\left(1 + e\cos\theta\right)$ , where $e$ is the integration constant (set by initial conditions). Inverting $u=1/r$ :

$\boxed{\,r(\theta) = \frac{p}{1 + e\cos\theta}\,}, \qquad p = \frac{h^2}{\mu}$

This is the polar equation of a conic with focus at the origin (the central mass sits at a focus). $p$ is the semi-latus rectum ( $r$ at $\theta=90^\circ$ ).

The four shapes

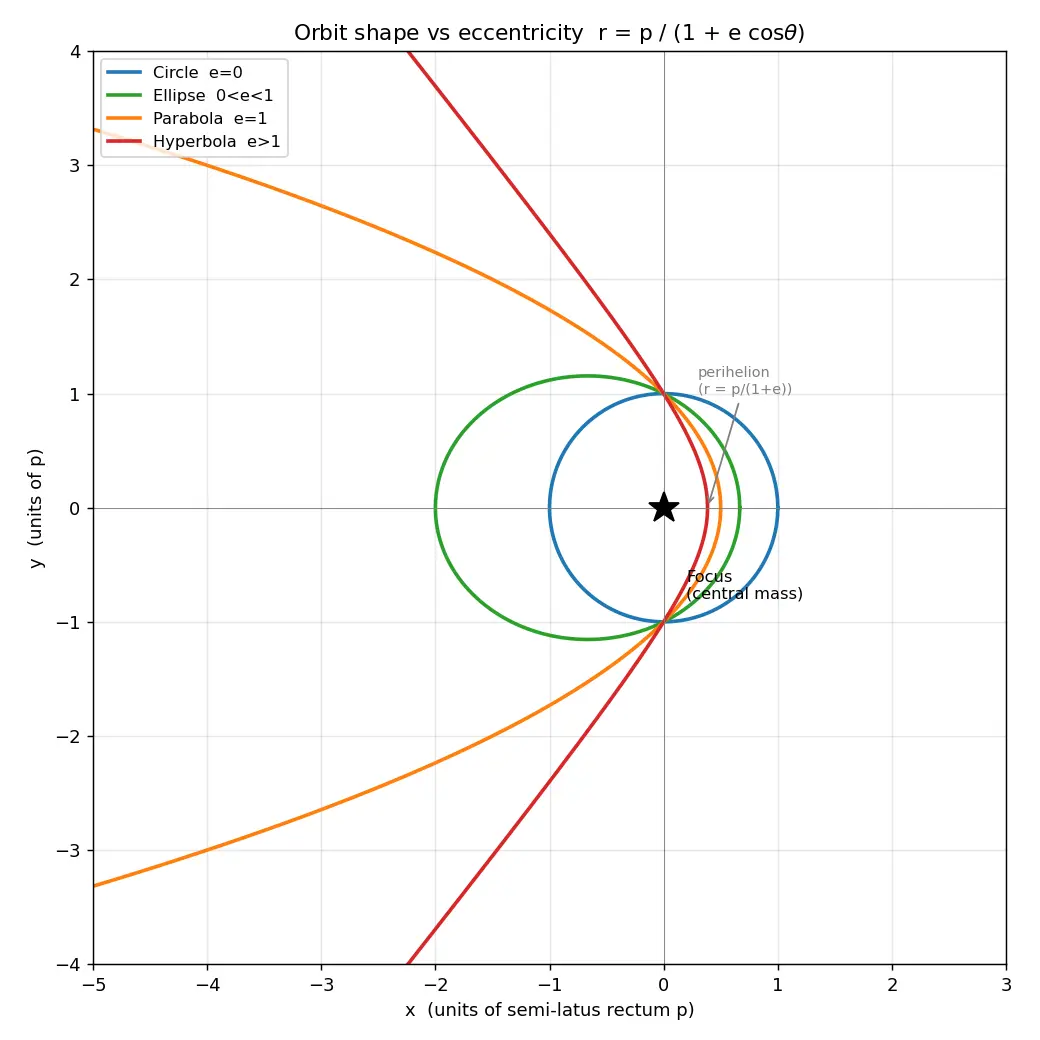

Figure — Orbit shape from eccentricity — circle (e=0), ellipse (0 - e - 1), parabola (e=1), hyperbola (e - 1)

Linking $e$ to energy

HOW (the eccentricity–energy relation). From the vis-viva and conservation laws one derives (total energy $E$ , total angular momentum $L$ ):

$e = \sqrt{1 + \frac{2 E L^2}{\mu^2 m^3}}$

Equivalently, in specific quantities (per unit mass): write $\varepsilon = E/m$ for specific energy and $h = L/m$ for specific angular momentum, so the relation simplifies to

$e = \sqrt{1 + \frac{2\varepsilon h^2}{\mu^2}}.$

Inspect the sign of $\varepsilon$ :

$\varepsilon<0 \Rightarrow e<1$ (ellipse/circle),
$\varepsilon=0 \Rightarrow e=1$ (parabola),
$\varepsilon>0 \Rightarrow e>1$ (hyperbola). ✓ matches the table.

For an ellipse, $p = a(1-e^2)$ so the perihelion and aphelion are: $r_{\min} = a(1-e), \qquad r_{\max} = a(1+e)$

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine throwing a ball around a planet. Throw it gently → it loops around in a squashed circle (ellipse) and comes back. Throw it at just the right speed → it flies away and barely never comes back, slowing to a stop infinitely far away (parabola). Throw it even harder → it zooms past and keeps going forever with speed to spare (hyperbola). The number $e$ is a "shape score": $0$ = perfect circle, almost-1 = stretched loop, $1$ = the escape edge, more than 1 = gone for good.

Active recall

What is the polar equation of an orbit with focus at origin?

r=\dfrac{p}{1+e\cos\theta}

with

p=h^2/\mu

What eccentricity gives a circle?

e=0

(both foci merge at the center,

r

constant).

Range of

e

for an ellipse?

0<e<1

(bound,

E<0

What shape is the marginal escape orbit and its

e

Parabola,

e=1

, total energy

E=0

What does

e>1

mean physically?

Hyperbola, unbound, positive total energy — escapes with leftover speed.

Why does

r\to\infty

for

e\ge1

but not

e<1

Denominator

1+e\cos\theta=0

needs

\cos\theta=-1/e

; only reachable when

e\ge1

Difference between specific and total angular momentum?

h=r^2\dot\theta

is per unit mass; total is

L=mh=mr^2\dot\theta

Relation between

e

and specific energy/ang. momentum?

e=\sqrt{1+2\varepsilon h^2/\mu^2}

with

\varepsilon=E/m,\ h=L/m

; sign of

\varepsilon

fixes the shape.

Perihelion and aphelion of an ellipse?

r_{\min}=a(1-e)

r_{\max}=a(1+e)

Asymptote angle of a hyperbola with

e=2

\cos\theta=-1/e=-0.5\Rightarrow\theta=120^\circ

Is eccentricity a length or a ratio?

A dimensionless ratio

e=c/a

(focal distance over semi-major axis).

Connections

Conic Sections — geometric origin of the four shapes
Vis-viva Equation — gives speed at any $r$ , ties to energy
Specific Orbital Energy — sign determines bound vs unbound
Angular Momentum in Orbits — sets the semi-latus rectum $p$
Kepler's First Law — ellipse with Sun at a focus ( $0\le e<1$ )
Escape Velocity — the $e=1$ boundary condition

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, orbital mechanics me sirf ek number — eccentricity $e$ — decide karta hai ki body ka rasta kaisa hoga. Gravity inverse-square force hai, aur uska solution hamesha ek conic section deta hai. Polar form me orbit ka equation aata hai $r = p/(1+e\cos\theta)$ . Yahi formula sab kuch bata deta hai. Yahan $h = r^2\dot\theta$ specific angular momentum hai (per unit mass), aur total angular momentum $L = m h$ hota hai — dono ko mat mila dena.

Trick ye hai: denominator $1+e\cos\theta$ ko dekho. Agar $e<1$ , ye kabhi zero nahi hota, isliye $r$ hamesha finite — orbit band (bound) — yani circle ya ellipse. Agar $e=1$ , to ek hi direction me $r$ infinity chala jaata hai — parabola, escape ki exact boundary. Agar $e>1$ , to kisi finite angle pe hi $r$ infinity ho jaata hai — hyperbola, body ek baar aati hai aur hamesha ke liye nikal jaati hai.

Energy se bhi connect hota hai: $\varepsilon<0$ matlab bound ( $e<1$ ), $\varepsilon=0$ matlab parabola ( $e=1$ ), $\varepsilon>0$ matlab hyperbola ( $e>1$ ). Earth ka $e\approx0.0167$ , isliye uska orbit lagbhag circle hai — seasons mainly axial tilt se aate hain, distance change se nahi.

Sabse common galti: students sochte hain $e=1$ bas ek bahut lambi ellipse hai. Galat! $e=1$ pe orbit khul jaata hai, $a\to\infty$ , body wapas nahi aati — ye qualitative change hai. Yaad rakho: $e$ ek ratio hai ( $c/a$ ), koi length nahi. Mnemonic "Circles Earn Parabolic Heights" se order yaad rahega.
