Intuition The one core ideaA converging nozzle is a pipe that narrows, and gas speeds up as it squeezes through — but there is a hard ceiling, the speed of sound , that the gas at the narrow exit can never exceed. To understand why , we only need to track how four properties (pressure, temperature, density, and speed) trade off against each other as the gas accelerates, and to know that the "top speed" is set by how fast a pressure change can travel through the gas.
This page assumes nothing . Before you touch the parent derivation, every letter it uses must mean something you can picture . We build them one at a time, each on top of the last. Where you see a link like Isentropic Flow Relations , that is a deeper vault note for later — you do not need it to read this page.

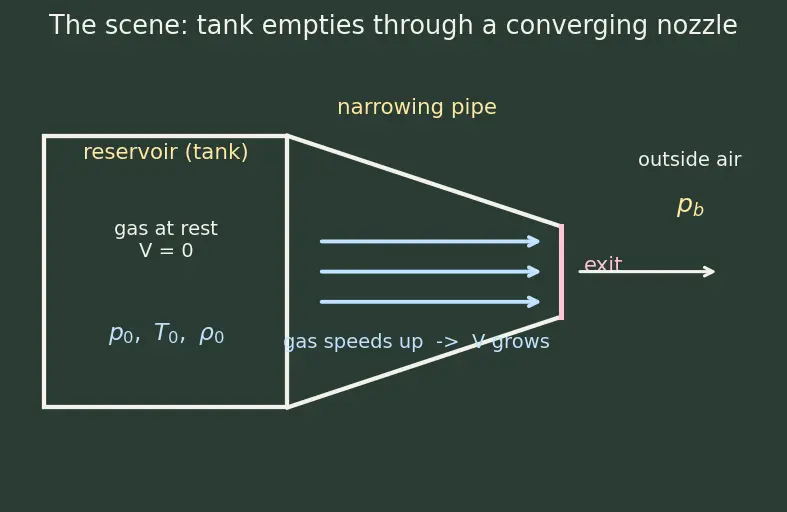

Everything in this topic happens inside one picture: a big tank of still gas emptying through a narrowing pipe into the open air.
Keep this picture in your head. Every symbol below is a label somewhere on it.
==Pressure p push per unit area that gas exerts on any surface it touches. Picture countless tiny gas molecules drumming against a wall; the harder and more often they hit, the higher the pressure.
Picture: arrows pointing into a wall, packed tight = high p p Why the topic needs it: the whole story is driven by a pressure difference . High pressure in the tank, low pressure outside — gas flows from high to low, and how far it accelerates depends entirely on this difference.Units: pascals (Pa) or kilopascals (kPa). 1 kPa = 1000 Pa
Definition Temperature and density
==Temperature T T kelvin (K) , which starts at absolute zero (no jiggle at all), so T
==Density ρ mass packed into each cubic metre . Molecules crammed close = high ρ ρ kg/m 3
Intuition Why three dials, not oneA gas parcel has three things that can change as it flows: how hard it pushes (p T ρ not independent — squeeze the gas (raise ρ
==V speed of the gas itself — how fast the whole stream is travelling down the pipe, in metres per second. In the still tank V = 0 V
We will also meet these Greek symbols, so learn to say them now:
Symbol
Say it
Means
ρ "roe"
density
γ "gamma"
heat-capacity ratio (§7)
m ˙ "m-dot"
mass flow rate (§8)
The little dot over m ˙ rate .
This is the star of the whole show, so it gets a figure.

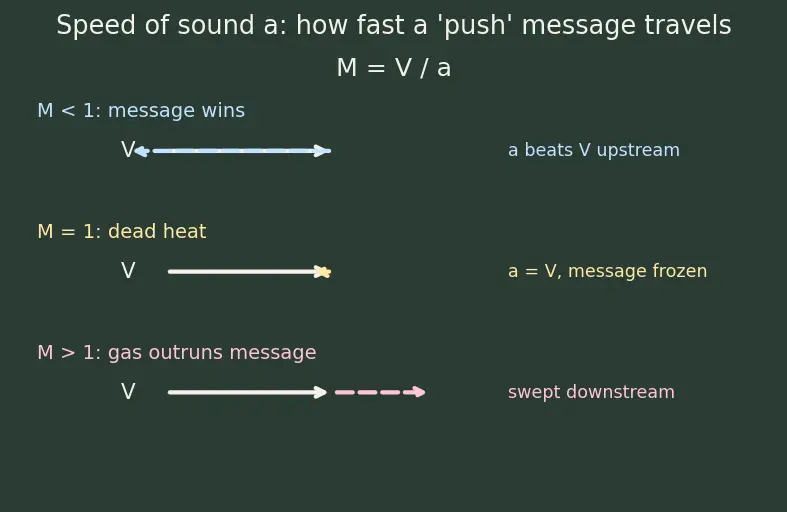

Definition Speed of sound==a in that gas at that moment . It depends on temperature:
a = γ R T
Picture: clap your hands; the "someone pushed the air" message races outward at speed a a T Why the topic needs it — the deepest reason on this page: a pressure change is how the downstream world tells the upstream gas "there's room, come faster." That message can only travel at speed a at a
See Speed of Sound for the full derivation of a = γ R T
M = 1 Why it feels right: we memorised "sound is 340 m/s" in school.
The fix: a = γ R T local temperature. In the cold exit gas (T ∗ = 250 K 300 K M = 1 317 m/s M local sound speed, not a single fixed number.
Definition Heat-capacity ratio==γ γ = 1.4
Picture: think of the gas as a spring. γ Why the topic needs it: γ every formula the parent writes — in a = γ R T 0.528

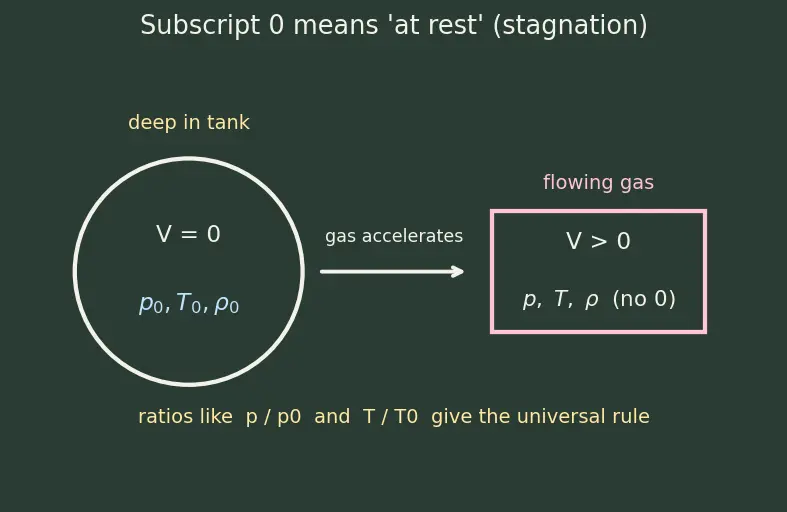

Definition Stagnation conditions==Stagnation properties p 0 , T 0 , ρ 0 at rest , before it starts flowing — deep inside the big tank where V = 0 0
Picture: the calm interior of the reservoir tank, far from the pipe, where nothing is moving.Why the topic needs it: these are the known, fixed starting numbers. Every result is expressed as a ratio to them — p / p 0 T / T 0
See Stagnation Properties for how a moving parcel's stagnation values are defined.
Definition Back pressure and starred (critical) values
==Back pressure p b
==Starred values p ∗ , T ∗ , ρ ∗ exactly when M = 1 at the exit. The star always tags the sonic (choked) condition.
Why the topic needs it: the entire behaviour is a contest between p b p ∗ p b p ∗
Definition Mass flow rate==m ˙ kilograms of gas passing a cross-section each second :
m ˙ = ρ A V A
Picture: count the mass sliding past an imaginary hoop in the pipe every second. Denser gas (ρ A V Why the topic needs it: "choking" is defined by m ˙ Mass Flow Rate & Choking for the full peak-at-M = 1
Definition Isentropic flowIsentropic = adiabatic (no heat crosses the pipe walls) and reversible (no friction, no shock losses). It is the "idealised, lossless" flow.
Picture: gas gliding through a perfectly smooth, perfectly insulated pipe — nothing wasted, nothing leaked.Why the topic needs it: only under this assumption do p T ρ shock appeared, isentropy would break — see Normal Shock Waves .
perfect gas law p = rho R T
critical star values at M = 1
choking and mass flow ceiling
Read it top to bottom: the three dials feed the gas law; temperature and γ M M = 1
Cover the right side and answer out loud. If any answer is fuzzy, reread that section before the parent derivation.
What does pressure p The push (force) per unit area from molecules hitting a surface.
What does density ρ Mass per cubic metre; say "roe".
State the perfect-gas law and what R p = ρR T R
What is the speed of sound a Why does the speed of sound matter for choking? Pressure "messages" travel at a M = 1
Define the Mach number M M = V / a
Is M = 1 No — a M = 1 T
What does γ The heat-capacity ratio (gas "stiffness"); γ = 1.4
What does the subscript 0 Stagnation / reservoir value — the property when the gas is at rest (V = 0
What does a starred quantity like p ∗ Its value exactly when M = 1
What is p b Back pressure — the pressure of the environment the nozzle exhausts into.
Write mass flow rate in terms of ρ , A , V m ˙ = ρ A V
What does "isentropic" mean? Adiabatic (no heat exchange) and reversible (no friction/shock) — lossless flow.
