Before you can read the parent note Birefringence — ordinary and extraordinary rays, you must own every symbol it throws at you. This page builds each one from nothing — plain words, then a picture, then why the topic needs it. Read top to bottom; each block leans on the one above.

0 · What is a "light wave" and its electric field $\vec{E}$?

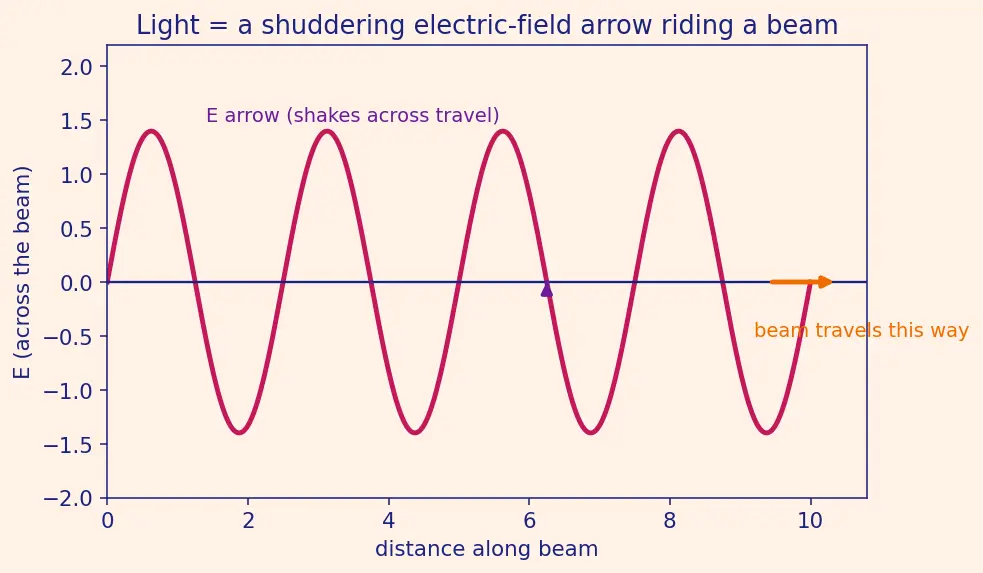

The picture: think of the arrow $\vec{E}$ as a sideways shudder riding along the beam. The beam moves forward (say, to the right); the arrow $\vec{E}$ shakes across the direction of travel — up-down, or left-right, or any angle in between.

Why the topic needs it. Birefringence is entirely about the direction of this arrow. A crystal "feels" light through $\vec{E}$ pushing its electrons. If we only remembered the beam's travel direction and forgot which way $\vec{E}$ points, we could not explain why one beam becomes two. So $\vec{E}$'s orientation is the star of the show — see Polarization of light.

1 · Polarization — which way the arrow points

• Unpolarized light: the arrow's direction is random, changing millions of times a second — a blurry star of directions.
• Linearly polarized light: the arrow is pinned to one line — a single clean double-arrow.

Why the topic needs it. The whole trick of birefringence is that the crystal sorts light by polarization: it hands the vertical-ish wiggle to one ray and the horizontal-ish wiggle to another. No concept of polarization → no way to say which ray is which. (Devices that force one polarization: Polaroid and Nicol prism.)

2 · Refractive index $n$ — how much the material slows light

The picture: imagine the beam's front (a "wavefront") as a marching row of people. In vacuum they march fast. Entering glass, they march slower — the whole row bunches up and, if it hits at an angle, the row pivots. That pivot is refraction (bending), and $n$ controls how strongly it bends.

Why the topic needs it. "Two refractive indices" is birefringence. One index $n_o$ for one polarization, another for the other. You cannot say that sentence until $n$ means something to you.

3 · Permittivity $\epsilon$ and why $n=\sqrt{{\epsilon }_r}$

The deep link, provable from the wave equation, is $n=\sqrt{{\epsilon }_r}.$

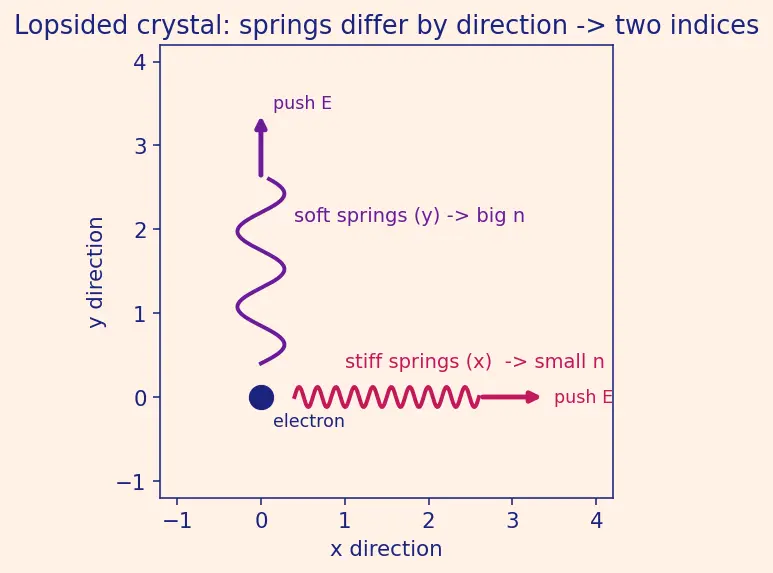

Why the topic needs it. This is the mechanism. The parent note's "electrons on springs of different stiffness" only makes sense once $\epsilon$, ${\epsilon }_r$, and $n=\sqrt{{\epsilon }_r}$ are yours. See Dielectric tensor and anisotropic media for the full mathematical machinery.

4 · Isotropic vs anisotropic — the same in all directions, or not

The picture: a bowl of marbles packed identically in all directions (isotropic) versus a stack of pencils, tightly packed side-to-side but loosely end-to-end (anisotropic).

Why the topic needs it. "Birefringent = anisotropic." The word anisotropic is the technical stamp for "lopsided," and the parent note uses it directly.

5 · The optic axis and the angle $\theta$

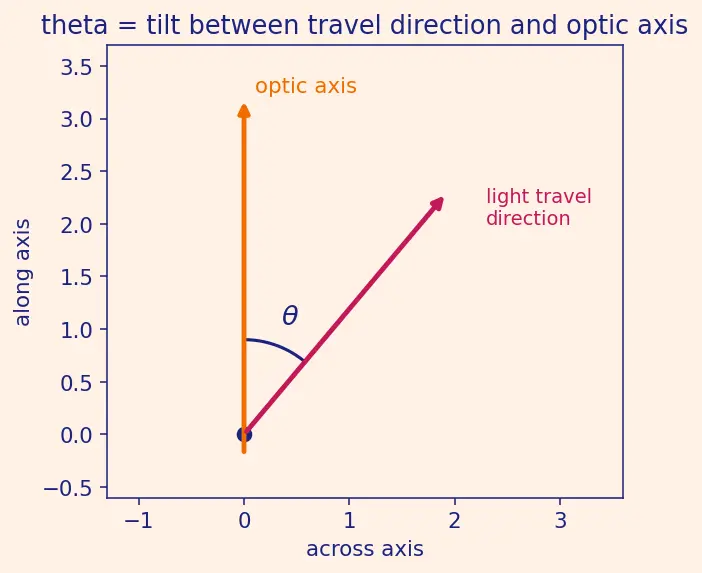

Why the topic needs it. The extraordinary index is written $n_e(\theta )$ — a function of $\theta$. The parenthesis $(\theta )$ is not multiplication; it means "the value of $n_e$ depends on the angle $\theta$." You will meet this in the formula $\frac{1}{n_e(\theta {)}^2}=\frac{{\cos }^2\theta }{n_o^2}+\frac{{\sin }^2\theta }{n_e^2}.$ Right now just register: $\theta$ is the tilt angle to the special axis, and everything "extraordinary" hangs on it.

6 · $\sin \theta$, $\cos \theta$ and ${\cos }^2\theta$ — resolving into components

The picture: a unit-length arrow tilted by $\theta$ casts a shadow of length $\cos \theta$ on the horizontal axis and $\sin \theta$ on the vertical axis. As $\theta$ grows from $0$ to $90^{\circ }$, the horizontal shadow shrinks ($\cos$: 1→0) and the vertical one grows ($\sin$: 0→1).

Why the topic needs it. The e-ray formula splits the wave's displacement into a piece along the $n_o$-direction (weighted ${\cos }^2\theta$) and a piece along the $n_e$-direction (weighted ${\sin }^2\theta$). Without sine/cosine you cannot "resolve" the arrow, and the formula is opaque symbols. (Sine also drives Snell's Law, which the o-ray obeys.)

7 · Positive vs negative crystal — the sign of $n_e-n_o$

Why the topic needs it. The parent classifies crystals by this sign and uses $|\Delta n|$ (the size, ignoring sign) to compute how far out of step the two rays fall — the basis of Wave plates (quarter and half wave).

How these foundations feed the topic

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, re-read that section before opening the parent note.
