Foundations — Bose-Einstein condensation — concept

This page assumes nothing. Before you can read Bose-Einstein condensation — concept you must be fluent in about a dozen small symbols. We build each one from a picture, say why the topic needs it, and order them so each rests on the one before.

0. The characters, in the order they appear

We will meet, in this sequence:

1. A particle and its state — the boxes we put things in.
2. Energy $\epsilon$ — how we label a box.
3. Temperature $T$ and $k_B$ — how much energy "shaking" there is.
4. Bosons vs the exclusion rule — who is allowed to share a box.
5. Occupation $\bar{n}$ — how many sit in one box.
6. Chemical potential $\mu$ — the knob that sets total headcount.
7. Density of states $g(\epsilon )$ — how many boxes live near each energy.
8. Thermal de Broglie wavelength ${\lambda }_T$ — the "size" of a particle-wave.
9. The zeta number $\zeta (3/2)$ — the pure number that falls out of counting.

Let's earn each one.

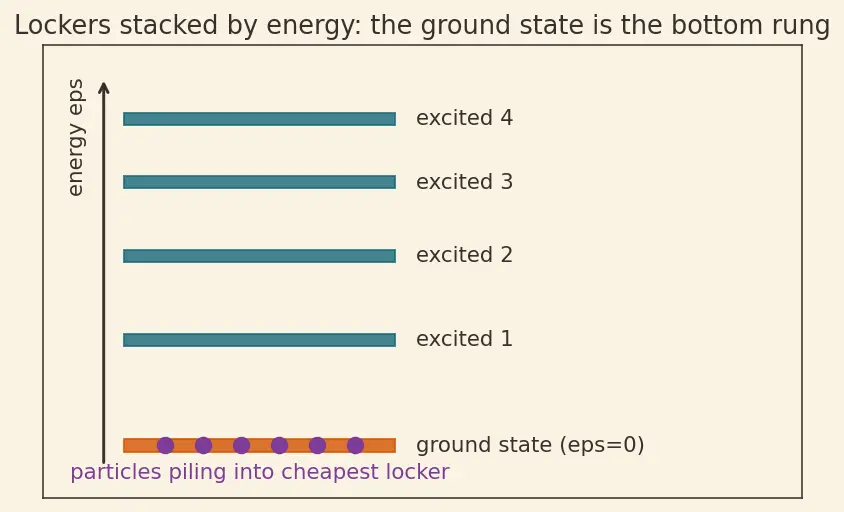

1. Particle, state, and "occupation"

Occupation just means how many particles are in a given locker right now. The symbol for the average occupation of the locker at energy $\epsilon$ is $\bar{n}(\epsilon )$ — the bar means "average value".

Why the topic needs it: BEC is literally a statement about occupation — "a macroscopic number of particles crowd into ONE locker." You cannot state the phenomenon without this word.

2. Energy $\epsilon$ — the label on each locker

For a free particle in a box the energy is $\epsilon =\frac{{\hslash }^2{k}^2}{2m},$ which we unpack now, symbol by symbol.

Why this exact formula? Because a quantum particle is a wave, and a wave's energy grows with how fast it wiggles ($k^2$). This is the cheapest possible way a free particle can store energy, so it's what a cold gas uses.

3. Temperature $T$ and Boltzmann's constant $k_B$

So every time you see $k_{B}T$, read it as "the amount of energy the temperature is worth." It always appears as a pair.

Why the topic needs it: all the statistics compare a locker's energy $\epsilon$ against the thermal budget $k_{B}T$. The ratio $\epsilon /k_{B}T$ (a pure number) decides whether a locker is "easy" or "expensive" to reach.

4. Bosons and the sharing rule

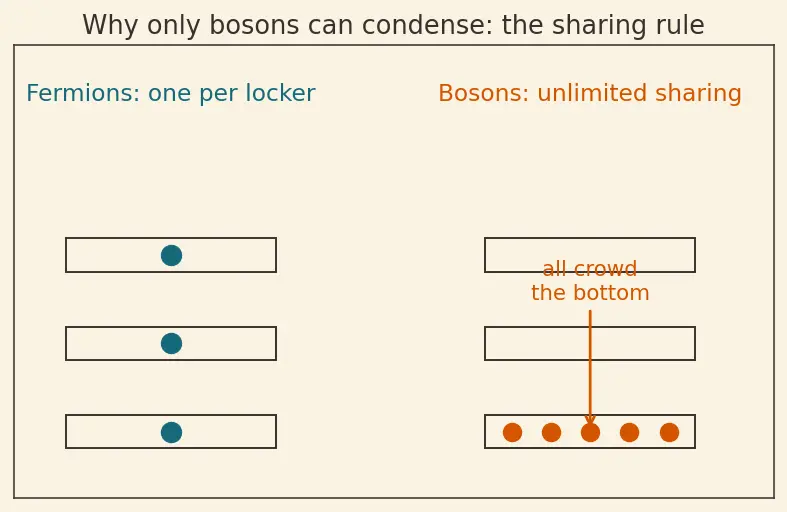

Contrast this with the opposite family, fermions (Fermi-Dirac statistics), which obey an exclusion rule: at most one per state. The picture below shows the difference — and it is the whole reason BEC can happen.

Why the topic needs it: without unlimited sharing there is no "everyone piles into one state," hence no condensate.

5. The occupation formula $\bar{n}(\epsilon )$

Now that we have $\epsilon$, $k_{B}T$, and "bosons can share," we can write how many bosons on average sit in a locker at energy $\epsilon$:

Read it slowly:

• $\epsilon -\mu$ — how far this locker's energy sits above the reference knob $\mu$ (defined next).
• Divide by $k_{B}T$ — measure that gap in units of the thermal budget → a pure number.
• $e^{(\dots )}$ — the exponential function: it grows very fast. Big energy gap → huge $e^{(\dots )}$ → tiny occupation. Small gap → $e$ near 1 → huge occupation.
• The $-1$ in the denominator is the fingerprint of bosons (fermions have $+1$). It is what lets the answer blow up.

Why this exact shape (why not something simpler)? Because it is the unique result of counting all the ways indistinguishable, freely-sharing particles can be arranged at temperature $T$. See Bose-Einstein statistics for the derivation. The topic starts from this formula, so you must recognise every piece on sight.

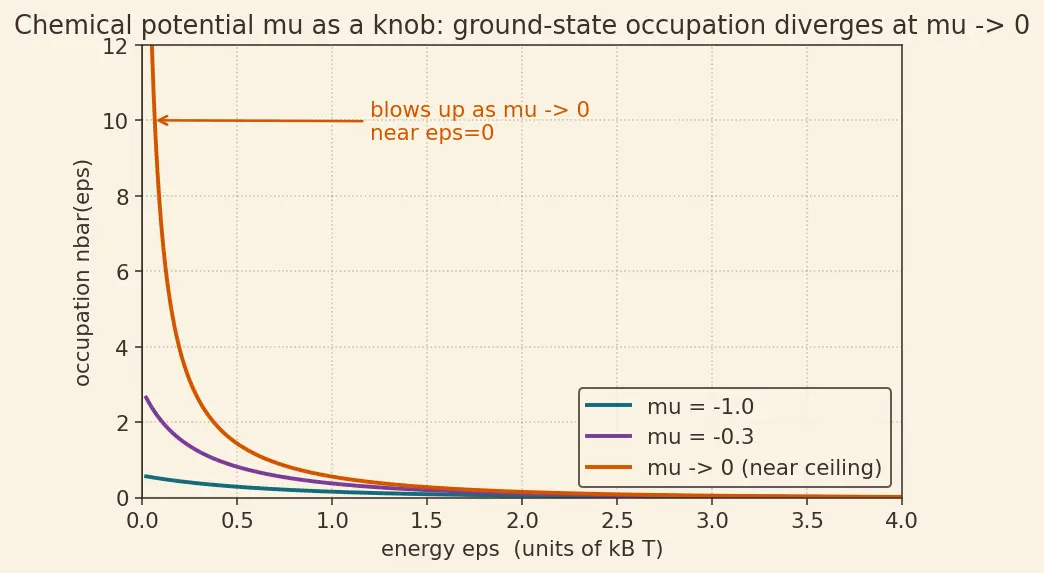

6. Chemical potential $\mu$ — the headcount knob

Why the topic needs it: the entire BEC story is "$\mu$ climbs toward its ceiling at $0$, sticks, and the surplus pours into locker 0." No $\mu$, no story.

7. Density of states $g(\epsilon )$ — how many lockers near each energy

Lockers aren't spread evenly. Near a given energy there are more or fewer of them. The density of states counts them.

For free particles in 3D it works out to $g(\epsilon )d\epsilon =\frac{gV}{4{\pi }^2}{\left(\frac{2m}{{\hslash }^2}\right)}^{3/2}\sqrt{\epsilon }d\epsilon .$

The crucial visual fact:

The extra letters here:

• $V$ — the volume of the box. More volume, more lockers.
• $g$ (plain, not $g(\epsilon )$) — the spin degeneracy: how many internal "flavours" each locker secretly has (e.g. spin states). It just multiplies the count. Watch the notation clash: $g$ alone = degeneracy number; $g(\epsilon )$ = the density function.

Why the topic needs it: to add up all the particles in excited states you sum over lockers, which becomes $\int g(\epsilon )\bar{n}(\epsilon )d\epsilon$. Without $g(\epsilon )$ you can't count.

8. Thermal de Broglie wavelength ${\lambda }_T$

Why the topic needs it: the whole transition condition collapses to the elegant $n{\lambda }_T^3\approx 2.612$. ${\lambda }_T$ is the ruler that measures "quantum-ness."

9. The number $\zeta (3/2)$

When you do the counting integral, all the temperature and volume factors pull out front and leave behind a pure number: ${\int }_0^{\infty }\frac{\sqrt{x}}{e^x-1}dx=\Gamma \left(\frac{3}{2}\right)\zeta \left(\frac{3}{2}\right)=\frac{\sqrt{\pi }}{2}\cdot 2.612\dots$

Why the topic needs it: it sets the exact saturation density $n_{\text{exc}}^{\max }=g\zeta (3/2)/{\lambda }_T^3$. It's the numeric answer to "how much room is there?"

How the foundations feed the topic

Everything on the left is a foundation; the single node on the far right is the topic itself.

Equipment checklist

Cover the right side and check you can produce each from memory.
