Visual walkthrough — Bose-Einstein statistics — bosons

We build from absolute zero. If a word looks scary, we define it in plain English first, then anchor it to a chalkboard drawing, and only then let it into an equation.

---

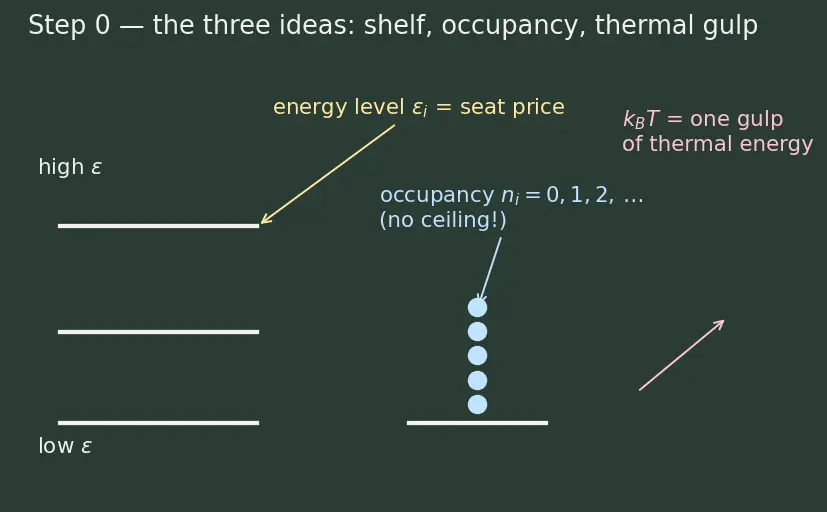

Step 0 — The three words we need before we start

Before any equation, three plain-English ideas. Look at the figure as you read each.

• An energy level ${\epsilon }_i$ is just a "seat price". A particle sitting in that state carries that much energy. In the picture it is a horizontal shelf; its height = its price.
• Occupancy $n_i$ is how many particles are currently sitting on that shelf. For bosons this can be $0,1,2,3,\dots$ with no ceiling — that is the whole point of a boson (drawn as a tall stack of chalk dots).
• Temperature $T$ measures how much random energy the surroundings can hand out. We will always use the combination $k_{B}T$, where $k_B$ (Boltzmann's constant) is the fixed conversion factor "degrees → joules". So $k_{B}T$ is literally "one gulp of thermal energy".

---

Step 1 — Let particles come and go (why the grand canonical ensemble)

WHAT. We focus on one shelf (one energy level ${\epsilon }_i$) and ask: on average, how full is it?

WHY. The number of bosons is not fixed — photons are born and absorbed, atoms drift in and out. So we cannot pretend "there are exactly $N$ particles". Instead we let particles flow between our shelf and a giant reservoir. The bookkeeping tool for a system that trades both energy and particles with a reservoir is the Grand canonical ensemble.

PICTURE. The reservoir is a huge chalk cloud. Every time a particle jumps onto our shelf it pays the reservoir a fee — an energy cost ${\epsilon }_i$ minus a refund $\mu$.

Each term, right where it sits:

• ${\epsilon }_i$ — price of the shelf (energy per particle).
• $\mu$ — refund per particle from the reservoir.
• ${\epsilon }_i-\mu$ — net cost of putting one more particle there.
• $n$ — the number of particles, so the total net cost scales linearly.

---

Step 2 — Weigh every possibility (the Boltzmann factor)

WHAT. Statistical mechanics says: a configuration costing energy $E$ occurs with a weight $e^{-\beta E}$. Bigger cost ⇒ exponentially smaller weight.

WHY $e^{-\beta E}$ and not something else? Because it is the one weighting that is consistent when independent systems combine (costs add, so weights must multiply, and only the exponential turns addition into multiplication: $e^{-\beta (E_1+E_2)}=e^{-\beta E_1}{e}^{-\beta E_2}$). This is the Maxwell-Boltzmann statistics weight, reused here.

PICTURE. A staircase of possibilities $n=0,1,2,\dots$; the bar for each shrinks by a constant ratio as we climb, because each extra particle multiplies the cost weight by the same factor.

The weight of the shelf holding exactly $n$ particles: $w(n)=e^{-\beta ({\epsilon }_i-\mu )n}.$

• $e^{-\beta (\dots )}$ — the "less likely if more expensive" rule.
• exponent $({\epsilon }_i-\mu )n$ — the net cost from Step 1.

Now name the constant shrink-ratio between neighbouring bars: $\boxed{x=e^{-\beta ({\epsilon }_i-\mu )}}\Rightarrow w(n)=x^n.$ Going from $n$ to $n+1$ particles just multiplies the weight by one more $x$. Note $x$ is a pure positive number.

---

Step 3 — Add up all the possibilities (${\mathcal{Z}}_i$)

WHAT. To turn weights into probabilities we need their total. Sum the weight over every allowed occupancy $n=0,1,2,\dots ,\infty$.

WHY infinite? This is where "boson" enters the maths. A boson shelf has no ceiling, so the ladder never stops. (A fermion ladder would stop at $n=1$.)

PICTURE. Stack all the shrinking bars from Step 2 end-to-end into one total pile ${\mathcal{Z}}_i$ — a converging staircase.

${\mathcal{Z}}_i={\sum }_{n=0}^{\infty }{x}^n=1+x+x^2+x^3+\cdots$

This is a geometric series — each term is the previous times $x$. Its closed form (for $x<1$) is the classic $\boxed{{\mathcal{Z}}_i=\frac{1}{1-x}}\text{valid only if }x<1.$

Why $x<1$ is forced: if $x\ge 1$ the bars never shrink and the pile is infinitely tall — no valid probabilities. Since $x=e^{-\beta ({\epsilon }_i-\mu )}$, the condition $x<1$ means the exponent is negative, i.e. ${\epsilon }_i-\mu >0⟺\mu <{\epsilon }_i\text{for every level.}$ Hold onto this — Step 7 shows it is the seed of Bose-Einstein condensation.

---

Step 4 — Squeeze out the average count (${\bar{n}}_i$)

WHAT. We now define the mean occupancy ${\bar{n}}_i={\sum }_{n}nP(n)$ — the average number of bosons on the shelf — where the probability of exactly $n$ particles is $P(n)=x^n/{\mathcal{Z}}_i$. This is the symbol we promised to earn before using.

WHY the derivative trick? Directly summing $\sum n{x}^n$ is annoying. But notice $\frac{d}{dx}{x}^n=n{x}^{n-1}$, so a derivative manufactures the extra factor of $n$ we need. This is the standard generating-function move: differentiate the partition function to pull the average out of it.

PICTURE. The derivative "tilts" each bar by its height-index $n$, weighting tall-$n$ terms more — exactly what an average does.

${\bar{n}}_i=x\frac{\partial }{\partial x}\ln {\mathcal{Z}}_i.$ Reading it term by term:

• $\ln {\mathcal{Z}}_i=-\ln (1-x)$ — take the log of Step 3's result.
• $\frac{\partial }{\partial x}[-\ln (1-x)]=\frac{1}{1-x}$ — differentiate.
• multiply by the outside $x$: ${\bar{n}}_i=x\cdot \frac{1}{1-x}=\frac{x}{1-x}.$

Sanity of each piece: $x$ small (expensive shelf) ⇒ ${\bar{n}}_i\approx x$ tiny; $x\to 1$ (cheap shelf) ⇒ denominator $\to 0$ ⇒ ${\bar{n}}_i\to \infty$. The crowding is already visible.

---

Step 5 — Put the physics back in

WHAT. Replace the shorthand $x$ by what it actually stands for.

WHY. We introduced $x$ only to keep Steps 3–4 clean. Now we translate back to temperature and energy.

PICTURE. The abstract "$x$" bar dissolves and the physical letters $\epsilon ,\mu ,T$ snap into their slots.

Start from ${\bar{n}}_i=\frac{x}{1-x}$. We want the physical factor $e^{+\beta ({\epsilon }_i-\mu )}$ to appear, and that is exactly $\frac{1}{x}$ — so we deliberately divide the top and bottom by $x$ to convert every $x$ into the $\frac{1}{x}$ we can name physically (dividing numerator and denominator by the same nonzero number leaves the fraction unchanged): ${\bar{n}}_i=\frac{x}{1-x}=\frac{x/x}{(1-x)/x}=\frac{1}{\frac{1}{x}-1}.$ Since $x=e^{-\beta ({\epsilon }_i-\mu )}$, its reciprocal is $\frac{1}{x}=e^{+\beta ({\epsilon }_i-\mu )}$. Therefore $\boxed{{\bar{n}}_i=\frac{1}{e^{\beta ({\epsilon }_i-\mu )}-1}=\frac{1}{e^{({\epsilon }_i-\mu )/k_{B}T}-1}}$ and, in the continuum where we drop the label $i$, this is exactly $\bar{n}(\epsilon )=\frac{1}{e^{(\epsilon -\mu )/k_{B}T}-1}$ — the same function of energy.

Every symbol, now fully earned:

• ${\epsilon }_i$ — the shelf's energy (Step 0).
• $\mu$ — the reservoir's per-particle refund (Step 1).
• $k_{B}T$ — one gulp of thermal energy (Step 0).
• ${\bar{n}}_i$ — the mean occupancy defined in Step 4.
• the $-1$ — the fingerprint of the geometric sum $\frac{1}{1-x}$; it is what makes bosons bunch. (A fermion sum $1+x$ would leave a $+1$; see Fermi-Dirac statistics — fermions.)

---

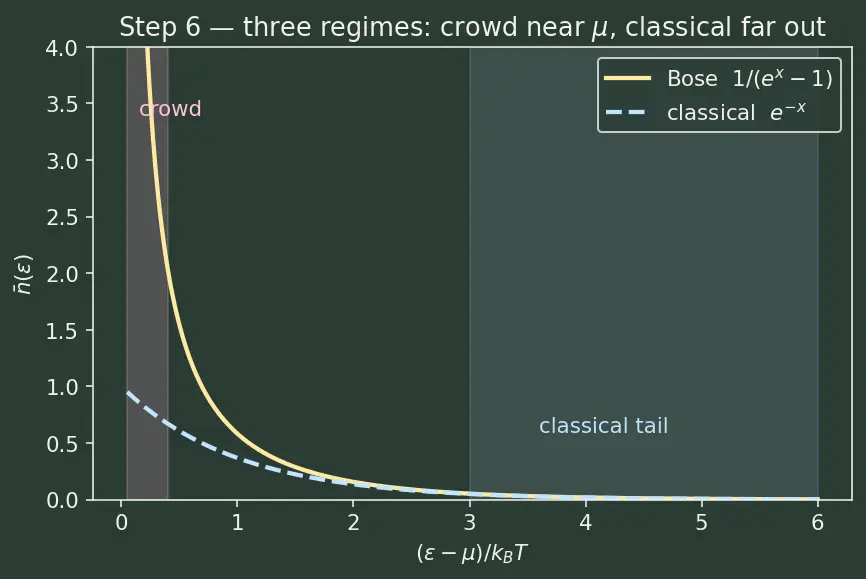

Step 6 — Read the three regimes off the curve

WHAT. Plot the mean occupancy $\bar{n}(\epsilon )$ against energy and see all behaviours at once.

WHY. One graph settles "what happens for high, medium, and near-$\mu$ energies" without extra algebra.

PICTURE. The full curve, with three regions shaded and labelled.

• Far above $\mu$ ($\epsilon -\mu \gg k_{B}T$): $e^{\beta (\epsilon -\mu )}\gg 1$, the $-1$ is a rounding error, so $\bar{n}\approx e^{-(\epsilon -\mu )/k_{B}T}$ — the classical Maxwell-Boltzmann statistics tail.
• A gulp above $\mu$ ($\epsilon -\mu \sim k_{B}T$): order-one occupancy.
• Just above $\mu$ ($\epsilon -\mu \to 0^{+}$): denominator $\to 0$, $\bar{n}\to \infty$ — bosons pile in.

---

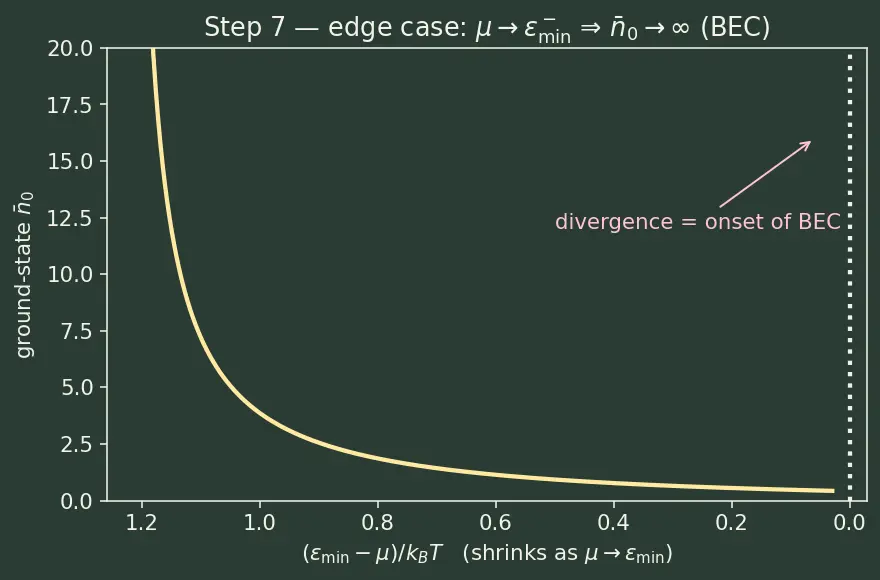

Step 7 — The edge case that breaks the formula (onset of BEC)

WHAT. What if we push $\mu$ up towards the lowest shelf ${\epsilon }_{\min }$?

WHY it needs its own step. Steps 3–5 quietly assumed $x<1$, i.e. $\mu <{\epsilon }_{\min }$ strictly. The boundary $\mu ={\epsilon }_{\min }$ is a genuine degenerate case, and physics lives exactly there.

PICTURE. As $\mu \to {\epsilon }_{\min }^{-}$ the ground-state bar shoots off the top of the board.

At $\mu ={\epsilon }_{\min }$ we get $x=e^0=1$, so:

• the geometric sum $1+1+1+\cdots$ diverges — the ground-state partition function ${\mathcal{Z}}_0=\frac{1}{1-x}$ blows up;
• the ground-state occupancy ${\bar{n}}_0=\frac{x}{1-x}\to \infty$.

Physically, a macroscopic number of bosons collapse into the single lowest state. This mathematical breakdown is the onset of Bose-Einstein condensation; beyond it you must peel the ground state off and treat it by hand. It also explains why $\mu$ can never sit on a level (unlike a fermionic Fermi level).

---

The one-picture summary

This last board compresses the whole journey: shelves → weights $x^n$ → geometric pile $\frac{1}{1-x}$ → derivative trick → back-substitution → the boxed law, with the three regimes and the BEC edge marked on the resulting curve.

Recall Feynman retelling of the walkthrough

Picture a bookshelf where each shelf has a price (its energy). Bosons are shoppers who love company — any number can sit on the same shelf. Instead of counting a fixed crowd, we let shoppers wander in and out of a huge mall (the reservoir), which refunds an amount $\mu$ per shopper. Each shopper on a shelf costs "price minus refund". Nature makes crowded, expensive configurations exponentially rare, so if adding one shopper multiplies the cost, it multiplies the rarity by the same factor $x$ every time. Add up the chances of 0, 1, 2, 3, … shoppers — a shrinking pile that sums to $\frac{1}{1-x}$, but only if the pile actually shrinks ($x<1$). A slick derivative squeezes the average headcount out of that pile: $\frac{x}{1-x}$. Translate $x$ back into real energy and temperature and out drops $\bar{n}=\frac{1}{e^{(\epsilon -\mu )/k_{B}T}-1}$. Cheap shelves near the refund price get mobbed; pricey shelves sit near-empty like the classical case. And if you let the refund creep right up to the cheapest shelf's price, the maths screams "infinity" — that scream is Bose-Einstein condensation.

Recall One-line self-test

Where in the derivation does the boson "$-1$" come from? ::: From summing the infinite geometric series $\sum x^n=\frac{1}{1-x}$; the average $\frac{x}{1-x}=\frac{1}{1/x-1}$ leaves a $-1$. A fermion's two-term sum $1+x$ would give $+1$ instead.

---
