Foundations — Phase rule — Gibbs phase rule

This page assumes you have seen nothing. We build every letter in $F=C-P+2$ — plus the hidden ideas the parent note leaned on ($T$, $P$, phase, mole fraction, chemical potential) — one brick at a time, each brick resting on the one before.

1. Intensive vs. extensive — "does it care how much?"

Before any letters, the deepest idea: some properties change when you take more stuff, and some don't.

The picture: imagine a hot cup of tea. Its temperature is $60^{\circ }$C. Pour half of it into another cup — each cup is still $60^{\circ }$C. Temperature didn't split. But the mass did split in half. Temperature is intensive; mass is extensive.

Why the topic needs this: the phase rule only ever counts intensive things. Amounts (how many moles of ice vs. water) are deliberately ignored — you can have a teaspoon of ice or an iceberg floating in the sea; both sit at the same melting temperature. That is exactly why "degrees of freedom" counts dials that describe the state, not how much material there is.

2. Temperature $T$ and Pressure $P$ — the two global dials

Why the topic needs these two: $T$ and $P$ are shared by every phase at once — ice, water and steam sitting in one sealed jar all feel the same temperature and the same pressure. They are the "global" dials. That shared-ness is the reason the number 2 appears in the rule, and nowhere else.

3. Phase — a "physically distinct region"

The picture: a glass holding oil floating on water floating on nothing but air above.

Count the boundaries you could slide a knife along: air | oil | water. That is three phases — even though two of them (oil, water) are both liquids. "Phase" is not the same as "state of matter."

Why the topic needs it: $P$ (the phase count) is the penalty term. Each new coexisting phase forces new equations (Section 6), stealing a degree of freedom. So we must count phases carefully — and count distinct regions, not textbook states.

4. Mole fraction $x_i$ and the "sums to 1" trap

To describe what a phase is made of, we use proportions, not amounts (proportions are intensive — see Section 1).

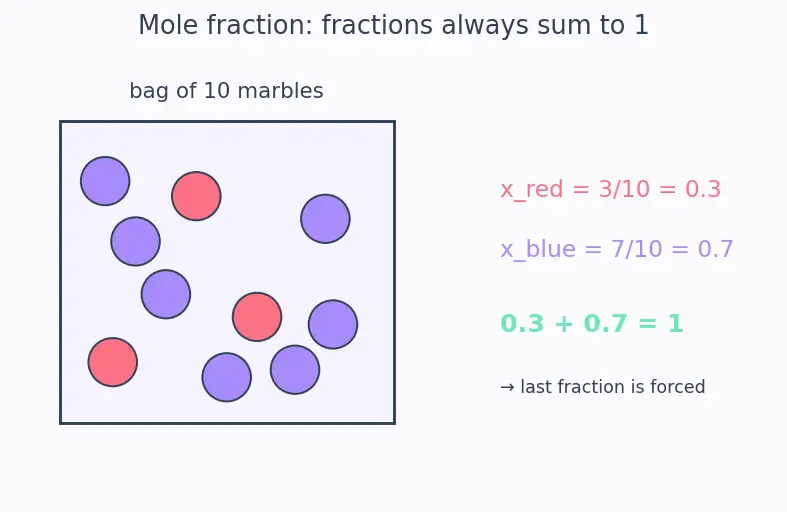

The picture: a bag of 10 marbles, 3 red and 7 blue. $x_{\text{red}}=3/10=0.3$, $x_{\text{blue}}=7/10=0.7$.

Notice the crucial fact staring at you: $0.3+0.7=1$. Always. The fractions of everything in the bag must add up to the whole bag: ${\sum }_{i=1}^C{x}_i=1$

Why the topic needs it: this is Step 1 of the parent's derivation. Each of the $P$ phases contributes $C-1$ free composition variables, giving $P(C-1)$, and then we add the 2 global dials $T,P$. The whole variable count $P(C-1)+2$ is built entirely from Sections 1–4. See Chemical potential for how these fractions feed into equilibrium.

5. Component $C$ — the minimum ingredient list

The picture: a chef's minimal shopping list. If salt always comes pre-dissolved and you can regenerate any mixture from just "water" and "salt", your list is 2 items — even if the beaker technically contains water, salt, sodium ions and chloride ions.

$C=(\text{number of species})-(\text{independent reactions})-(\text{extra constraints})$

Reactions shrink the list because a reaction ties species together by a fixed equilibrium relationship — see Components and independent reactions.

Why the topic needs it: $C$ is the supply of freedom — more independent ingredients means more ways to describe the mixture, hence more dials.

6. Chemical potential ${\mu }_i$ — the "pressure to leave"

This is the deepest prerequisite, and the parent note used it without building it. We build it now.

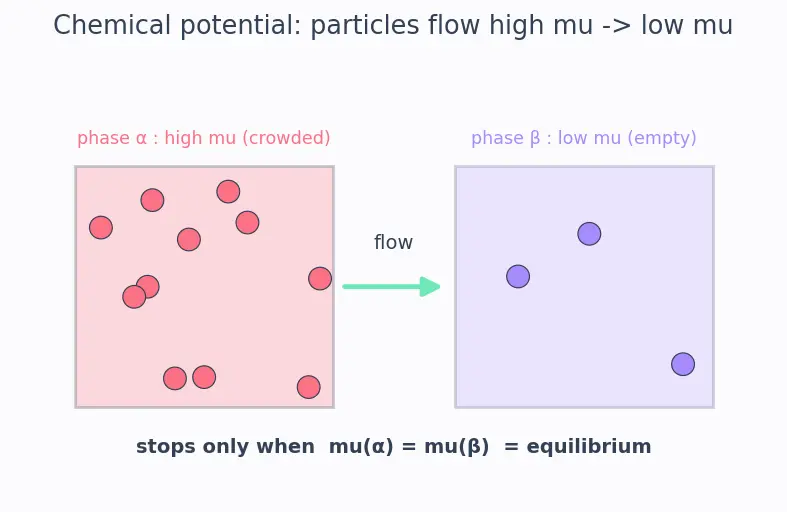

The picture: think of ${\mu }_i$ as crowd pressure at a party. A crowded room "wants" to push people out into an emptier room; particles flow from high ${\mu }_i$ to low ${\mu }_i$, just like heat flows hot → cold or water flows high → low.

Why the topic needs it: every constraint in the phase rule is one of these equalities. For one component across $P$ phases you get a chain ${\mu }^{(1)}={\mu }^{(2)}=\cdots ={\mu }^{(P)}$, which is $P-1$ genuine equations (a chain of $P$ links needs $P-1$ equal-signs). For all $C$ components: $C(P-1)$ constraints. That is Step 2 of the derivation. Deeper story: Chemical potential.

7. Degrees of freedom $F$ — the answer we compute

The picture on a phase diagram:

• $F=2$ → you can wander over a 2-D area (pick $T$ and $P$ freely).
• $F=1$ → you are stuck on a 1-D line (pick $T$, and $P$ is forced).
• $F=0$ → you are pinned to a single point (nothing is free — the triple point).

Why the topic needs it: $F$ is the entire output. Everything else — Sections 1–6 — exists so that $F=\underset{\text{dials, Sec 1–5}}{\underbrace{[P(C-1)+2]}}-\underset{\text{constraints, Sec 6}}{\underbrace{C(P-1)}}=C-P+2$ reads as: (freedom you have) = (dials) − (equations).

How the foundations feed the topic

Read the map top-down: intensity gives us dials, "sums to 1" trims them, components multiply them, phases both add dials and — through chemical potential — remove them. The two streams meet at the subtraction that is the phase rule.

Equipment checklist

Self-test: can you answer each before revealing?
