Before you can read the parent note, you must own every piece of its vocabulary. This page builds each symbol from the ground up: what it means in plain words, what picture it stands for, and why the topic cannot do without it. Read top to bottom — each item leans on the one before, and no quantum number is used before it is derived.
Before any physics, we need a way to say where a point is around a nucleus.
The everyday way is (x,y,z): walk east, walk north, walk up. But an atom is round — the pulling force from the nucleus is the same in every direction at a given distance. So we use coordinates that match that roundness: spherical coordinates.
Look at the figure: r is the length of the amber arrow, θ is how far that arrow leans away from straight-up, and ϕ is how far around the equator you have swept starting from the +x-axis. Every point in space is named by exactly one triple (r,θ,ϕ).
Why the topic needs this: the electron wave is written as ψ(r,θ,ϕ) (we meet ψ in §3). Later, each of the three "shape counts" will come from one of these three directions — one from r, one from θ, one from ϕ.
Why the topic needs it: the whole idea "the electron is a standing wave" is the statement that the electron is described by ψ. Quantum numbers are labels on the allowed ψ shapes.

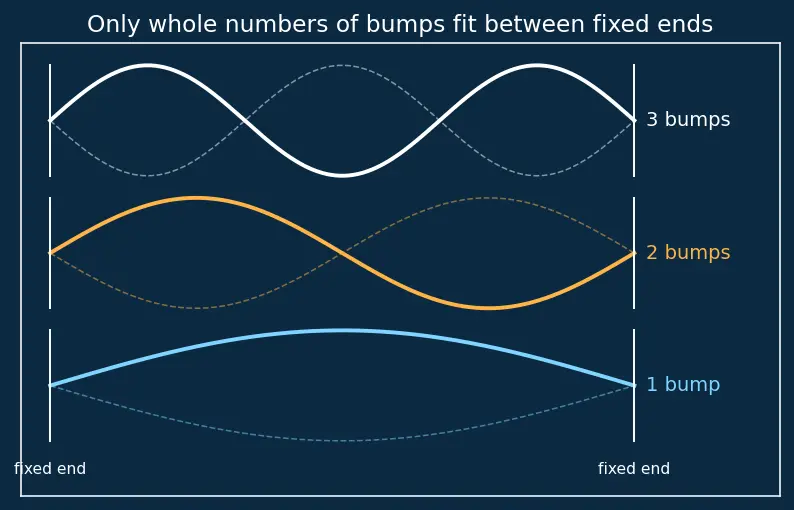

Look at the figure: on the string you can fit 1 bump, 2 bumps, 3 bumps — but never 2.5 bumps, because the loose end wouldn't line up. The number of bumps is forced to be a whole number. That whole number is the ancestor of every quantum number.
The ϕ-wave is written Φ(ϕ)=eimlϕ. That i and that e scare people. Here is all you need.
Now we derive our first quantum number. Bend the electron's ϕ-direction into a ring (the ϕ circle of §1, starting at +x). Walking one full loop takes you from ϕ to ϕ+2π, and the wave must return to the same value — otherwise it has a rip:
Φ(ϕ+2π)=Φ(ϕ)⇒eiml(ϕ+2π)=eimlϕ⇒eiml⋅2π=1.
What this says: going around the circle ml times must land you exactly back at the start. That is only true when ml is a whole number.
Why the topic needs it:ml is the first integer that "falls out" of a match-yourself condition. Its sign is a real physical thing — it says which way the electron fog is circulating.
The ϕ-direction gave ml. Now the tilt direction θ gives a second whole number.
The tilt-wave Θ(θ) must obey the polar piece of Schrödinger's equation (called Legendre's equation). You do not need to solve it — you need one fact about it.
When you enforce "finite at both poles," the maths (Legendre's equation) only allows solutions when a certain constant equals l(l+1) with l a whole number 0,1,2,… — and only when ∣ml∣≤l. Any other value makes the tilt-wave shoot off to infinity at a pole, which is unphysical (a fog can't be infinitely thick at one point).
Why ∣ml∣≤l makes sense: you cannot wrap around the equator more sharply than the overall pattern is wrinkled. A very "calm" pattern (small l) simply has no room for a fast horizontal wrap (large ∣ml∣). Look at the figure: as l grows, more ml slots open up on both the negative and positive sides.
Two down, one to go. The radial direction r gives the last of the wave-equation trio.

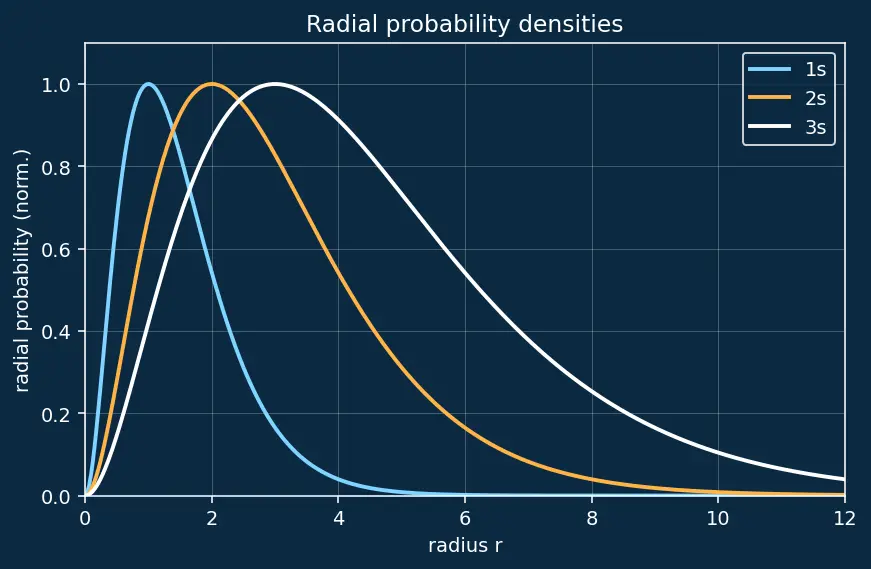

When you enforce "the wave dies out as r→∞," the radial equation only has well-behaved solutions for whole-number values n=1,2,3,…, and only when l≤n−1. This same condition also freezes the allowed energies (that is where the parent note's En=−13.6eV/n2 comes from).
Why the topic needs it:n is the master label — it sets energy and size, and it caps how wrinkled (l) the fog may be. See Hydrogen Atom Energy Levels for the energies it produces.
We now have n,l,ml. To connect l and ml to real physics we need one more picture: the arrow of angular momentum.
Now the two integers earn their physical jobs:
l sets the arrow's length: ∣L∣=l(l+1)ℏ.
ml sets the arrow's shadow: Lz=mlℏ.
Look at the figure: the cyan arrow is L, and its shadow on the vertical z-axis is Lz. A shadow is always shorter than the arrow unless the arrow points straight up — this is exactly why the parent note insists Lz<∣L∣ (space quantization). And because ml can be negative, the shadow can point down (Lz<0) as well as up.
Why the topic needs it: an l=0 state has ∣L∣=0 — a perfectly round, non-swirling fog. See Angular Momentum in Quantum Mechanics for the full arrow story.
The three numbers n,l,ml all came from the wave equation. There is a fourth label that does not come from that equation — it was forced on us by experiment.
Just as the tilt-arrow L had a shadow Lz=mlℏ with ml running in whole steps from −l to +l, the spin-arrow S has a shadow Sz=msℏ whose label ms runs in whole steps from −s to +s.
Why exactly two values? Because s=21, the ladder from −s to +s has only the two rungs ±21. This is precisely what the Stern-Gerlach Experiment showed: a beam of atoms split into exactly two spots — the direct fingerprint of a two-valued built-in magnet.
You don't have to solve it (that's Schrödinger Equation's job). You only need: it is the sieve; the first three quantum numbers are the labels on whatever passes through.
