Hydrogen atom — solving in spherical coordinates: Visual walkthrough

Step 1 — The stage: one electron, one proton, only distance matters

WHAT. We have two charged specks: a heavy proton (charge $+ e$ ) and a light electron (charge $- e$ ). The only force between them is the electric pull, and that pull only cares about how far apart they are — call that distance $r$ .

WHY. If the force ignored direction, then rotating the whole picture changes nothing physical. A force with this property comes from a central potential — a potential energy that is a function of $r$ alone. Spotting this symmetry is the entire reason the problem is solvable.

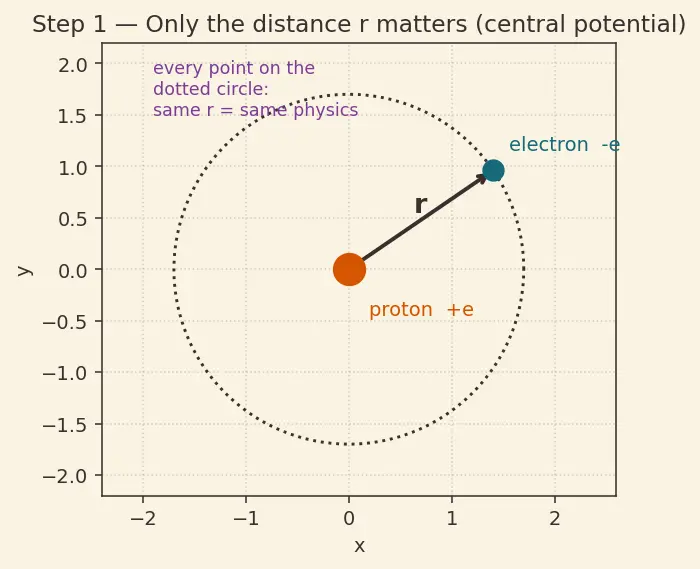

PICTURE. Below, the proton sits at the centre. The electron is somewhere out at distance $r$ . The dotted circle shows: every point on it is physically identical — same energy, same force magnitude. Only $r$ (the radius) carries information.

Figure — Hydrogen atom — solving in spherical coordinates

Step 2 — Splitting motion into "in-and-out" and "around"

WHAT. Any way the electron can move breaks into two independent kinds: moving radially (changing $r$ , in and out) and moving angularly (circling around at fixed $r$ ). We give each its own energy bucket.

WHY. Because the potential only touches $r$ , the "around" motion never feels the force directly — angular momentum is conserved. That lets us treat the circling motion as a fixed, known amount and then solve a much simpler one-dimensional in-and-out problem. This is the payoff of spherical symmetry.

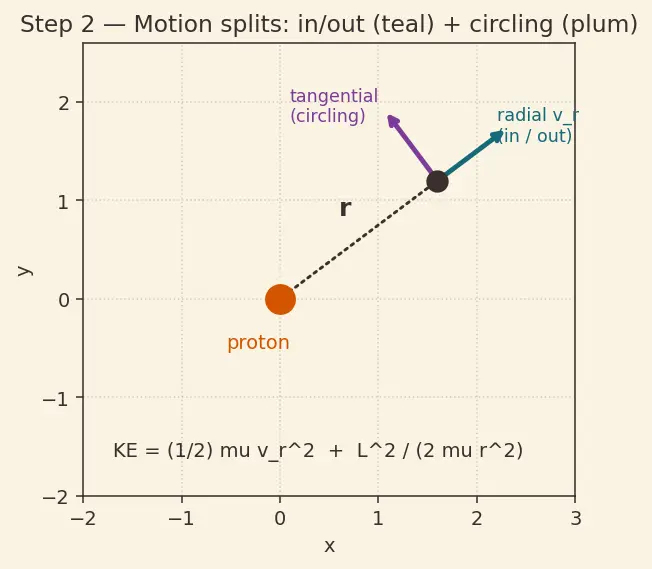

PICTURE. The teal arrow is the radial (in/out) velocity; the plum arrow is the tangential (circling) velocity. They are perpendicular, so their kinetic energies simply add.

Step 3 — The effective valley the electron lives in

WHAT. We fold the circling energy into the potential. The electron then behaves like a bead sliding in ONE dimension (just $r$ ) inside a curve called the effective potential $V_{eff}$ .

WHY. This is the master simplification. Two terms fight: the attractive Coulomb $- 1/ r$ pulling in, and the circling term $+ 1/ r^{2}$ pushing out (the centrifugal barrier). Their sum makes a valley with a bottom — a stable place for the electron to sit. A bead in a valley can only oscillate; that "trapped" quality is what forces energy to be quantized.

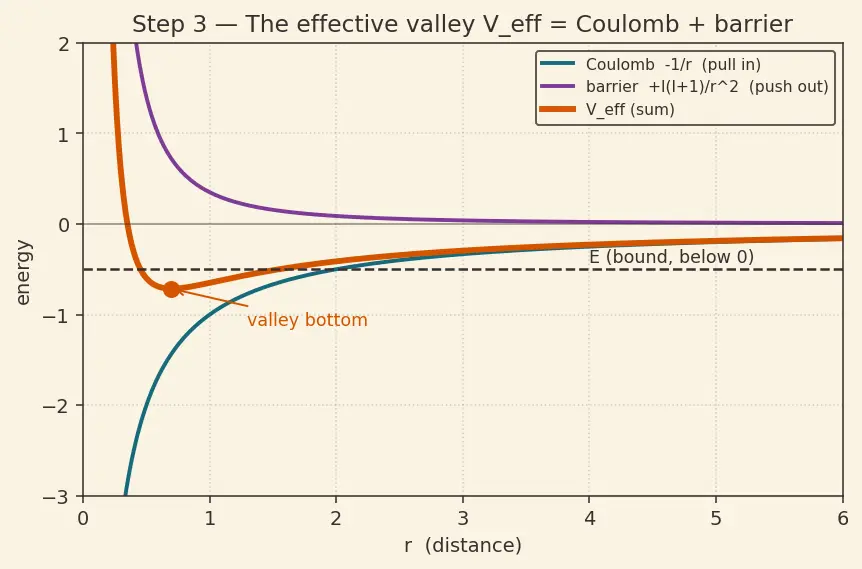

PICTURE. Teal = Coulomb pull (down-and-in). Plum = centrifugal barrier (up-and-out). Burnt-orange = their sum, $V_{eff}$ , with a clear dip. A bound electron has total energy $E$ (the horizontal ink line) sitting below zero, trapped between two walls of the valley.

Step 4 — Why "trapped in a valley" means a ladder of energies

WHAT. Inside the valley the electron is a wave, not a ball. A trapped wave can only vibrate at special "fit-perfectly" patterns — exactly like a guitar string of fixed length only rings at certain notes.

WHY. The wave must (i) decay to nothing far away ( $r \to \infty$ , the right wall) and (ii) not blow up at the centre ( $r \to 0$ , the left wall). Only certain energies produce a wave meeting both walls smoothly. Every other energy makes the wave shoot off to infinity — not a real state. These two "come-back-to-yourself" rules are the whole source of quantization.

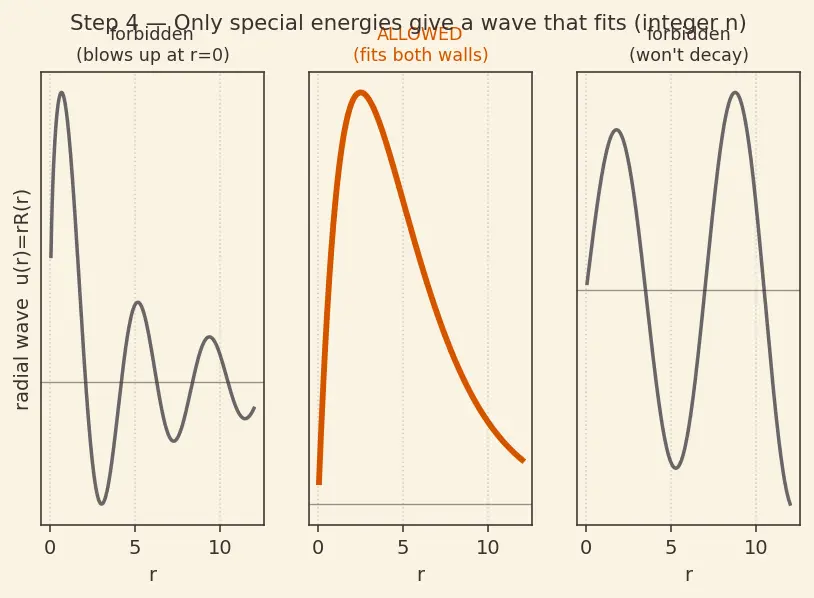

PICTURE. Three candidate energies. The middle one (burnt orange) fits: the wave rises, wiggles, and dies away smoothly — allowed. The other two (faded) either explode at the origin or refuse to decay — forbidden. Allowed energies get labelled by an integer $n$ , the principal quantum number.

Step 5 — The size of each rung: where $1/ n^{2}$ is born

WHAT. We read off how far below zero each allowed energy sits. The answer, from matching the wave to both walls, is that $E_{n}$ scales as $- 1/ n^{2}$ .

WHY. As $n$ grows, the fitting wave spreads to larger $r$ (higher rungs live in the shallow, far part of the valley). Out there the Coulomb valley is very shallow, so the binding energy is tiny. The exact $1/ n^{2}$ falls out of the algebra of the radial equation — it is the specific fingerprint of the $- 1/ r$ Coulomb shape (any other force gives a different pattern).

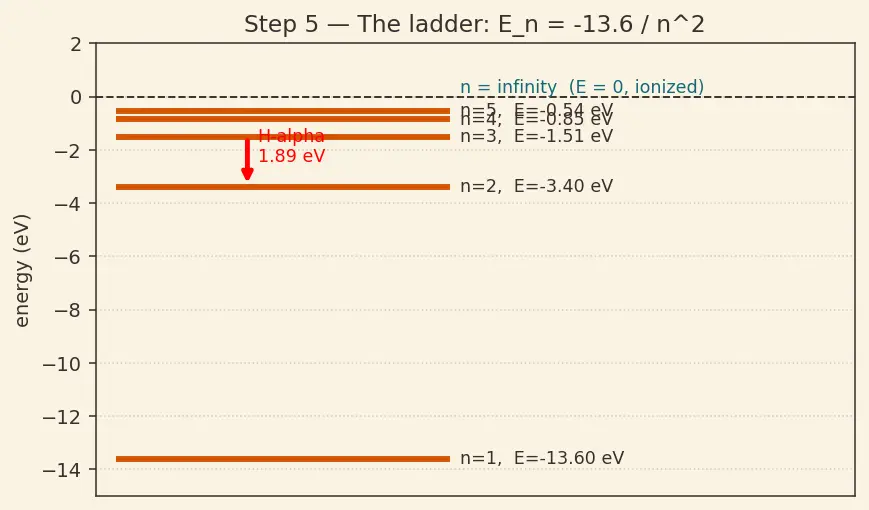

PICTURE. The energy ladder. Rung $n = 1$ sits deep at $- 13.6$ eV. Rung $n = 2$ jumps up to $- 3.4$ eV. Higher rungs crowd toward $0$ from below, spaced like $1/ n^{2}$ . The $n = 3 \to 2$ drop is drawn as the red H-α arrow.

Step 6 — Every corner case, on one picture

WHAT. We sweep through the edge scenarios so no reader hits an unshown situation.

WHY. A derivation is only trustworthy if it survives its extremes: smallest $n$ , largest $ℓ$ , the $ℓ = 0$ special case, and the $r \to 0$ / $r \to \infty$ limits.

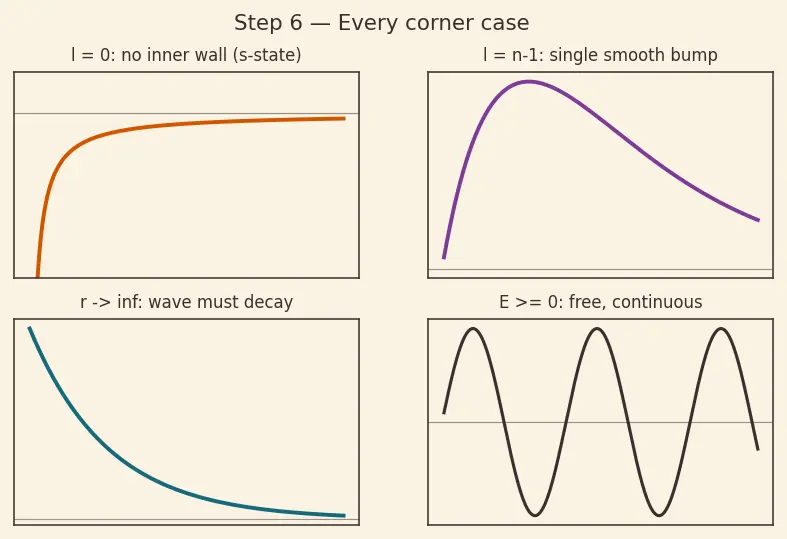

PICTURE. A grid of the four edge cases, each with a one-line verdict.

The one-picture summary

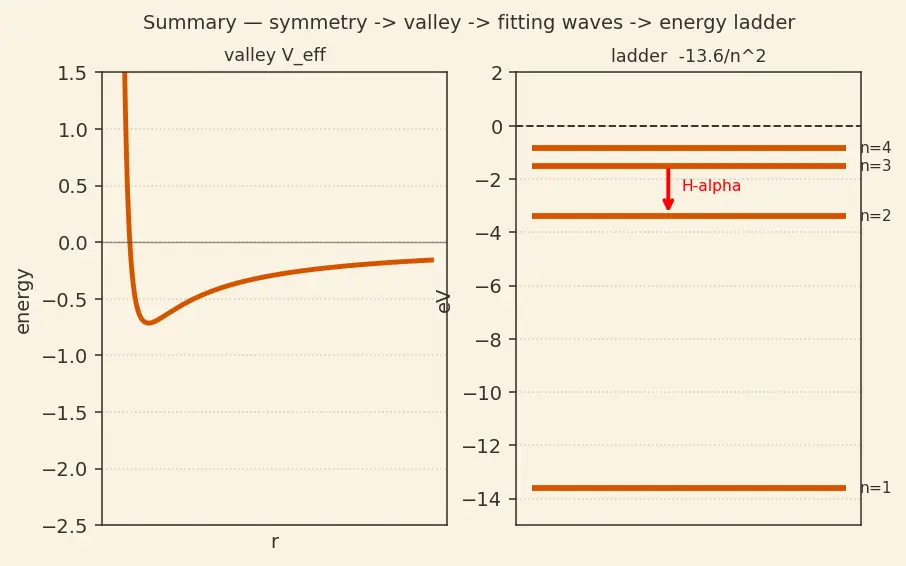

Everything at once: the central potential (Step 1) → the two motions (Step 2) → the effective valley with its barrier (Step 3) → only certain waves fit (Step 4) → those fits form the $- 13.6/ n^{2}$ ladder (Step 5), with the H-α jump marked.

Recall Feynman retelling — the whole walkthrough in plain words

Picture the proton as a flower and the electron as a bee that only feels how far it is from the flower, never which side. Because "which side" doesn't matter, we split the bee's flying into two clean jobs: buzzing straight in and out, and circling around. The circling can't be undone, so it acts like an invisible wall that stops the bee from crashing into the flower — the harder it circles (bigger $ℓ$ ), the higher that wall. Add the flower's inward pull to that wall and you get a valley with a soft bottom, and the bee lives inside it. But the bee is really a wave, and a wave trapped in a valley can only ring at special notes — the ones that die away smoothly far out and don't pile up at the centre. Count those notes $1, 2, 3, \dots$ (that's $n$ ). The lowest note is deepest, $- 13.6$ eV; higher notes crowd toward zero like $1/ n^{2}$ . When the bee hops down from note 3 to note 2, it spits out the leftover energy as a flash of red light — the H-α line. That is the hydrogen energy ladder, built from one idea: match the picture to the symmetry, and the notes appear on their own.

Recall

What single feature of the Coulomb potential lets us split the problem into radial and angular parts? ::: It is central — depends only on $r$ , so direction (angles) never enters the force. Where do the quantized rung numbers $n$ come from physically? ::: From requiring the trapped wave to decay at infinity and stay finite at the origin — the two "walls." Why does energy scale as $1/ n^{2}$ and not, say, $1/ n$ ? ::: It is the specific fingerprint of the $- 1/ r$ Coulomb shape; matching the radial wave to both walls forces exactly $1/ n^{2}$ . What is the maximum $ℓ$ for a given $n$ , and why? ::: $ℓ = n - 1$ ; only then does the radial wave close off smoothly at both walls.

Flashcards

The centrifugal barrier term is which kind of energy?

Kinetic (energy of circling), repackaged as an effective potential wall.
