Intuition The one core ideaA physical law cannot know what units you chose — the swing takes the same time whether you measure its rope in metres or miles. So every honest equation can be rewritten using only unit-free numbers , and the whole topic is just a way of counting how many such numbers a problem allows.
This page builds — from absolute zero — every symbol, word, and picture the parent note Buckingham π theorem leans on. Read it top to bottom; nothing below uses a thing not yet built above it.
Definition Dimension vs. unitA dimension is the kind of quantity you are measuring — a length , a duration , a mass . A unit is one particular yardstick for that kind — a metre, a second, a kilogram. "Length" is a dimension; "metre" is a unit of that dimension.

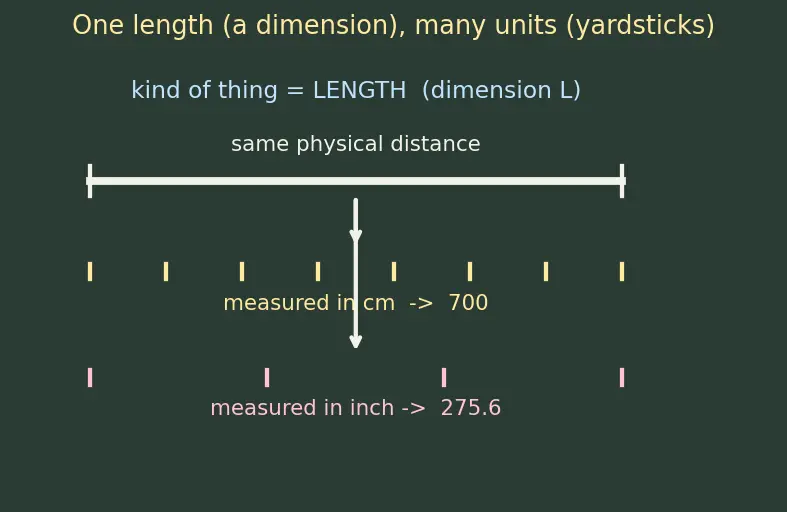

Picture a ruler. The fact that it measures distance is its dimension. The little tick marks (cm, inch) are the unit. Change the ticks and the number changes, but the kind of thing you measured does not.
Why the topic needs this: the theorem's whole power is that laws survive when you swap units. To talk about "swapping units without changing the kind of thing," we must separate dimension (kind) from unit (yardstick). See Fundamental and derived units .
Definition Fundamental dimensionsM , L , T fundamental dimensions — building blocks that cannot be made from each other:
M L T
The square-bracket notation [ X ] "the dimensions of X It is a question-answering symbol : "what kinds of base quantity, and in what powers, make up X
Intuition Why brackets, and why powers?Speed is distance-per-time. Written in kinds: a length divided by a time. We record this as [ v ] = L T − 1 exponents (+ 1 L − 1 T M , L , T all a dimension ever is.
Worked example Reading dimensions off a formula
Area = length × length, so [ A ] = L 2
Density = mass ÷ volume, so [ ρ ] = M L − 3 ρ
Force = mass × acceleration, and acceleration is speed-per-time = L T − 2 [ F ] = M L T − 2
Viscosity (the symbol μ [ μ ] = M L − 1 T − 1
Why the topic needs this: every variable in the theorem is first turned into its [ X ]
Definition Dimensionless quantityA dimensionless quantity is one whose dimensions are M 0 L 0 T 0 = 1 pure number with no units at all. It reads the same to everyone in the universe regardless of their rulers or clocks.
ratio kills the units
Divide a length by a length and the L L + 1 ⋅ L − 1 = L 0 = 1 2 10 0.2 0.2
Why the topic needs this: the theorem's output is a set of dimensionless groups (π 1 , π 2 , … Reynolds number , the most famous such number.
Definition Dimensional homogeneityAn equation is dimensionally homogeneous when every term added or equated has exactly the same dimensions . You may only add apples to apples: a length can never equal a time.
Intuition Picture a balance scaleThink of the = same combination of M , L , T
F = 6 π μ r v [ μ ] [ r ] [ v ] = ( M L − 1 T − 1 ) ( L ) ( L T − 1 ) = M L − 1 + 1 + 1 T − 1 − 1 = M L T − 2 [ F ] = M L T − 2 6 π
Why the topic needs this: homogeneity is the single demand from which the whole theorem flows. See Dimensional homogeneity .
Definition The three counts
n physical variables in your problem (force, speed, density, …).k independent fundamental dimensions actually present (often, but not always, 3 M , L , T p independent dimensionless groups you can build, given by p = n − k
Intuition "Knobs" of the physicsImagine each dimensionless group as a knob on a machine. n k p
Why the topic needs this: p = n − k the formula of the theorem. Everything else is machinery for computing k p
Definition Dimension matrixD M , L , T n dimension matrix D k n
Intuition Rank = number of truly independent rowsThe rank of D genuinely new information — rows that are not just copies or combinations of others. If speed, length and time are your only variables, "time" is hidden inside "speed ÷ length," so the rows collapse and the rank drops. The true k
Why the topic needs this: this is why p = n − k k measured (as a rank), not assumed. Non-dimensionalising the full Navier–Stokes equations is where these ideas turn rigorous.
Definition Repeating variables andπ Repeating variables are the k k no dimensionless group among themselves).
Each ==π π i π not 3.14159
Mnemonic "n minus k = π keys"n k p = n − k π keys that unlock the law. Repeaters = the k
Why the topic needs this: the recipe in the parent note ("pick repeaters, combine with each leftover") produces the π i Drag force and drag coefficient and Model testing and similarity .
Dimensionless = pure number
State the dimensions of speed v [ v ] = L T − 1
Difference between a dimension and a unit Dimension = the kind of quantity (length); unit = the yardstick for it (metre).
What does the bracket [ X ] "Which powers of M , L , T X
When is a quantity dimensionless? When its dimensions reduce to M 0 L 0 T 0 = 1
Why does a ratio of two lengths carry no units? L + 1 ⋅ L − 1 = L 0 = 1
State the rule of dimensional homogeneity Every term equated or added must have identical dimensions.
Check [ F ] [ μ r v ] Both equal M L T − 2 F = 6 π μ r v
Meaning of n k p n k p = n − k π
Why is k If variables share hidden dependence, dimension-rows collapse; the honest count is rank ( D )
Two conditions on repeating variables (1) Together span all k π
Dimensional homogeneity — the balance-scale rule this page builds towardFundamental and derived units — where M , L , T Reynolds number — the flagship dimensionless number once you can build π Drag force and drag coefficient — first payoff of the countingModel testing and similarity — matching π Navier–Stokes equations — where rank/homogeneity turn rigorous
