Foundations — Reynolds transport theorem

Before you can read the Reynolds Transport Theorem on the parent note, you need a small toolbox. We build each tool from zero, in an order where every tool leans only on the ones before it. Nothing is assumed.

1. A "field": a number pinned to every point of space

The first idea in fluids is that instead of one moving ball, we have a whole space full of stuff, and at every point something has a value.

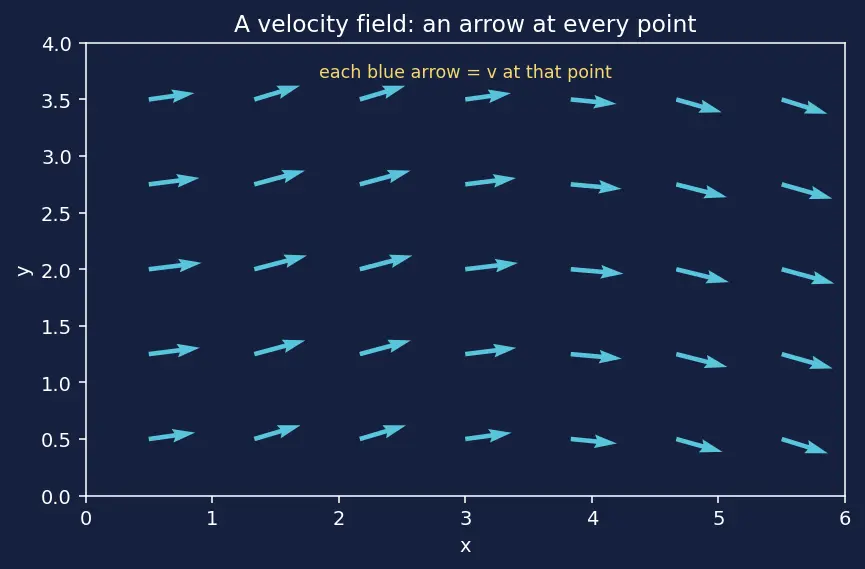

Look at the figure: at every dot in space, there's a little arrow. That collection of arrows is the velocity field. This is the whole reason fluids feel different from a single particle — there is no single object to follow; there is a carpet of arrows filling the room.

2. $\rho$ — density: "how much mass is packed into a tiny box"

The picture: imagine chopping the fluid into millions of tiny sugar-cubes. $\rho$ tells you how heavy each cube is per unit of its size. Water has $\rho \approx 1000{\text{kg/m}}^3$: one cubic metre weighs 1000 kg.

3. $\vec{v}$ — velocity: an arrow at every point

That carpet of arrows from Figure 1 is the velocity field $\vec{v}$. At the point $(x,y,z)$ at time $t$, $\vec{v}(x,y,z,t)$ is the one arrow living there.

4. Extensive vs intensive — $B$ and $b$

Some quantities double when you double the amount of stuff (weigh two buckets, get twice the mass). Others don't (two buckets of water are the same temperature as one).

The picture: $B$ is the total pile; $b$ is how much pile each kilogram carries. Multiply back and you recover the pile: a small mass $dm$ carries $bdm=b\rho dV$ of the property.

5. Two ways to watch: Lagrangian vs Eulerian

In the figure, the Lagrangian observer (blue) drifts downstream glued to the same water blob. The Eulerian observer (yellow) stays bolted to one spot and lets water rush past.

6. System vs control volume — $CV$ and $CS$

The trick that starts the whole derivation: at one instant $t$, we let the system exactly fill the $CV$. An instant later they've drifted apart — some system leaks out, some new fluid enters. That mismatch is precisely the surface term.

7. $\hat{n}$ — the outward normal, and why direction matters

Look at the figure. On the right wall, the fluid arrow $\vec{v}$ and $\hat{n}$ point the same way — fluid is leaving. On the left wall, $\vec{v}$ points in while $\hat{n}$ still points out — they oppose. This sign is how the maths knows outflow from inflow, automatically.

8. $\vec{v}\cdot \hat{n}$ — the dot product: "how much crosses the wall"

We now need a number: how fast does fluid actually pierce the wall? Not "how fast is the fluid" — fluid sliding along the wall crosses nothing. We need the piece of $\vec{v}$ that points along $\hat{n}$.

The figure drops a perpendicular from the tip of $\vec{v}$ onto the $\hat{n}$ line — that shadow length is $\vec{v}\cdot \hat{n}$. Read the three cases across the figure:

• Fluid heading straight out ($\theta =0$): $\cos 0=1$, full speed crosses — maximum outflow.
• Fluid sliding along the wall ($\theta =90^{\circ }$): $\cos 90^{\circ }=0$, nothing crosses — exactly what we want, tangential flow pierces nothing.
• Fluid heading straight in ($\theta =180^{\circ }$): $\cos 180^{\circ }=-1$, the shadow is negative — inflow, correctly signed minus.

9. The two integral signs — ${\int }_{CV}dV$ and ${\oint }_{CS}dA$

The picture: ${\int }_{CV}\rho bdV$ tiles the interior with cubes and totals the property stored inside; ${\oint }_{CS}\rho b(\vec{v}\cdot \hat{n})dA$ tiles the skin with tiles and totals what leaks across.

10. $\frac{d}{dt}$ vs $\frac{\partial }{\partial t}$ — rates of change

The storage term $\frac{d}{dt}{\int }_{CV}\rho bdV$ asks: is the total stuff inside my fixed box changing over time? It has nothing to do with flow — it's about unsteadiness. For steady flow it is zero, even while fluid rushes through.

Prerequisite map

Equipment checklist

Test yourself — cover the right side and answer:

Connections

• Parent: RTT — where all these tools assemble.
• Eulerian vs Lagrangian description — the two viewpoints of §5.
• Continuity equation — RTT with $b=1$.
• Momentum equation (control volume) — RTT with $b=\vec{v}$.
• Bernoulli equation — RTT with $b=e$ under restrictions.
• Material derivative — the point-wise cousin of the storage idea.
• Divergence theorem — swaps the surface integral of §9 for a volume integral.
