Intuition The one core ideaA gyroscope does not fall because gravity's push gets redirected: a spinning object stores a huge amount of "turning motion" (angular momentum) pointing along its axis, and a sideways torque can only rotate that arrow sideways , never drop it. Everything on this page is the vocabulary you need to make that one sentence exact.
This page is the toolbox. The parent derivation freely uses arrows, angles, cross products and moments of inertia. Here we build each of those from nothing — plain words first, then a picture, then why the topic can't live without it .
A vector is a quantity with both a size (how much) and a direction (which way). We draw it as an arrow: the length is the size, the way it points is the direction. We write it with a little arrow on top, like r

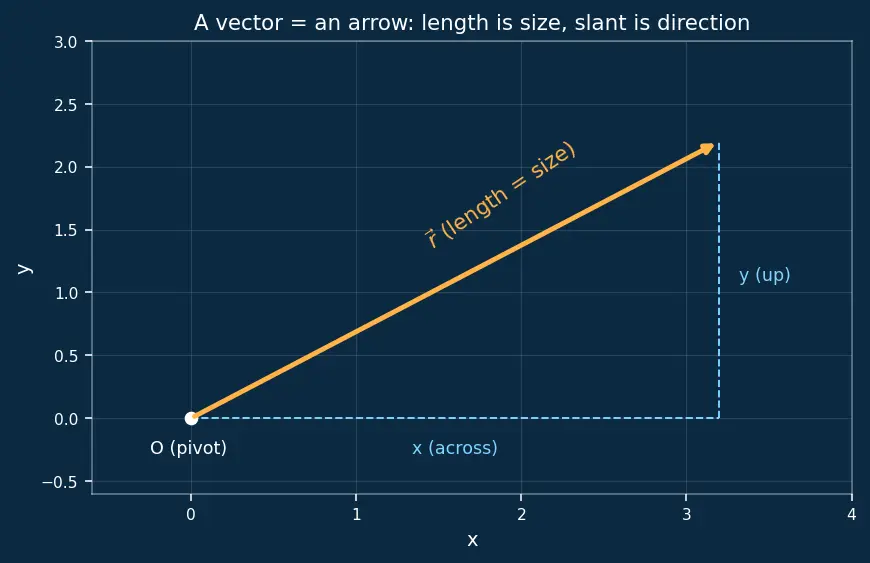

Look at the figure below. The arrow r O
Why the topic needs it: the whole derivation is about a direction that changes (the axis of the top swinging around). You cannot even ask "which way does the axis point?" without arrows.
Before any angle can mean something, we must nail down which way is which . Throughout this page and the parent derivation we use a fixed right-handed frame attached to the ground at the pivot O
Definition The fixed frame( x ^ , y ^ , z ^ )
z ^ straight up (opposite gravity).x ^ y ^ flat on the horizontal floor , at right angles."Right-handed" means: point your right hand's fingers from x ^ y ^ z ^ positive sense of every rotation below.
Definition Positive sense of each Euler rotationA rotation is positive when it turns counter-clockwise as seen looking down the axis toward its arrow-tip (the right-hand rule again):
ϕ > 0 z ^ θ > 0 away from z ^ z ^ ψ > 0
Why fix all this? Without a positive direction, "ϕ ˙ = Ω
Before angles, one length. The top is a rigid body pivoted at O center of mass (balance point) sits out along the symmetry axis.
Definition The axis lengthℓ ℓ O center of mass along the top's axis. It is the reach of the arm on which gravity will pull — the reason it matters as a lever arm is spelled out in Section 8. For now: ℓ

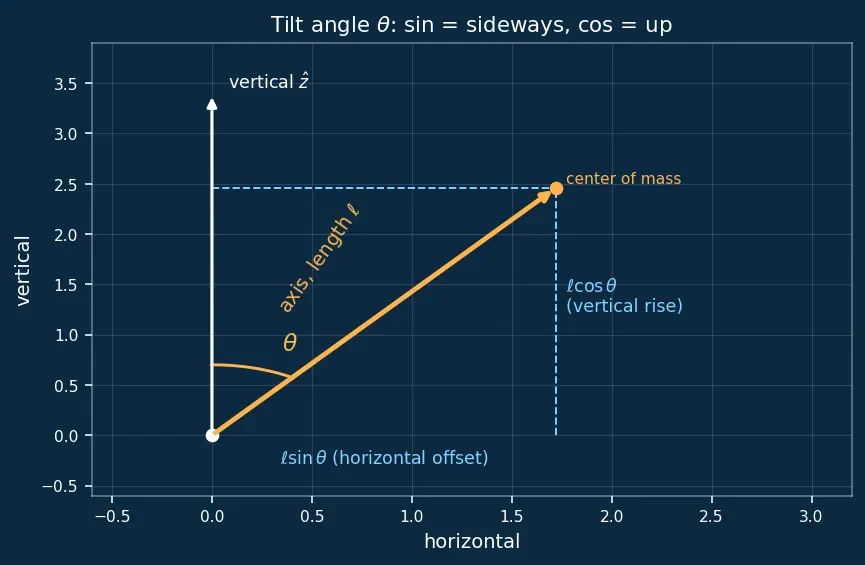

Definition The tilt angleθ θ straight-up vertical direction z ^ θ = 0 θ = 9 0 ∘
Notice two useful lengths in that figure, for the axis of length ℓ θ
Vertical rise of the center of mass = ℓ cos θ Horizontal offset of the center of mass = ℓ sin θ O
Intuition Why sine and cosine, not just "the angle"?Gravity pulls straight down , but the top's axis is slanted . To find how much of the axis sticks out sideways (the part gravity can grab to make a torque) we must split the slant into an up-part and a sideways-part. ==cos θ sin θ ℓ sin θ
sin cos Why it feels right: both come from the same triangle.
The fix: cos θ adjacent over hypotenuse — it is largest (= 1 sin θ opposite over hypotenuse — it is largest when the axis is horizontal. The torque uses the horizontal offset, so it uses sin θ
The top can turn in three independent ways at once. Three numbers name them; together they are the Euler Angles . Their positive senses were fixed in Section 2.
Definition The three turning angles
==ϕ around the vertical z ^
==θ Nutation .
==ψ about its own axis — the fast whirl of the wheel itself.
Intuition Why exactly three?A rigid body's orientation in space needs three numbers to pin down — no more, no less. Euler's clever choice makes each number a physical motion you can watch : sweep (ϕ θ ψ only ϕ at a constant rate.
Definition A rate: the dot notationA dot over a symbol means "how fast it changes each second". So ==ϕ ˙ θ ˙ ψ ˙ ϕ ¨
In steady precession: θ ˙ = 0 ϕ ¨ = 0 ψ ¨ = 0 ϕ ˙ ≡ Ω ψ ˙ ≈ ω s
==ω 2 π ≈ 6.28 ω = 6.28 rad/s
Two of them appear in the topic and must never be mixed up:
==ω s spin rate of the wheel about its own axis (usually large, hundreds of rad/s).
==Ω precession rate, the slow sweep of the axis around the vertical (usually small). This is the same Ω ϕ ˙ ≡ Ω number (a speed).
The whole punchline of the topic is a relationship between these two: fast spin ⇒ Angular Momentum for how spin becomes a stored arrow.
Definition An angular speed can be an arrow too:Ω overload the letter Ω : written plain, Ω Ω vector . They carry the same size but Ω L Ω straight up along z ^ (the axis the sweep turns about), with length equal to the sweep-speed Ω Ω Ω up ; a clockwise sweep would point down.
Why bother making Ω Because in Section 10 we need to say not just how fast the axis sweeps but about which axis — and only a vector carries both. The plain number Ω
We need one more idea before angular momentum: rotational stubbornness .
Definition Moment of inertiaMoment of inertia is rotational stubbornness: how hard it is to change a body's spin. Mass far from the axis counts more (it has to move faster to keep up), so a fat wheel is more stubborn than a thin rod of the same mass.
A body actually has a stubbornness for each of three perpendicular axes — call them I 1 x ^ I 2 y ^ I 3 symmetric top the shape looks identical all the way around its spin axis, so the two transverse axes are interchangeable and their stubbornnesses are equal : I 1 = I 2 Moment of Inertia Tensor and Symmetric Top ).
==I 3 symmetry axis (the spin axis). This is the one that goes with the spin.
==I 1 = I 2 transverse stubbornnesses (about any line across the top). They are equal by symmetry, and we call the common value I 1
I 1 Why it feels right: you grab whichever I The fix: the spin whirls about the symmetry axis , so its stored arrow is I 3 ω s I 1 I 2
Definition Angular momentumL L along the spin axis . Bigger/faster spin = longer arrow. Its direction follows the right-hand rule : curl the fingers of your right hand the way the wheel turns, and your thumb points along L
Intuition Why represent spin as an arrow at all?Because then "how the spin changes" becomes "how an arrow moves", and arrows we can add, tilt, and rotate with pictures. The magic of the whole topic is that gravity moves the tip of this arrow sideways. Without the arrow picture there is no way to see that.
The pull of gravity on the top: a downward force of size m g m g ≈ 9.8 m/s 2 center of mass — the balance-point introduced in Section 3, a distance ℓ
The lever arm is the perpendicular distance from the pivot line to the line of the force. For downward weight, that is the horizontal offset of the center of mass: ℓ sin θ ℓ
τ Torque is "turning-force": how strongly a force twists a body about the pivot. Big when the force is large and applied far out on a long lever arm.
The tool that builds it is the cross product .
a × b cross product is a new arrow that is:
perpendicular to both (sticks out of the plane they span, direction by right-hand rule),with length ∣ a ∣∣ b ∣ sin α α
The sin α zero (no twist), perpendicular arrows give the most .
Intuition Why a cross product for torque?A twist needs two pieces of information — the arm (r m g turning axis perpendicular to both. That is exactly what a cross product manufactures. Hence
τ = r × m g , ∣ τ ∣ = m g ℓ sin θ . r g horizontally — this is why the torque is horizontal, the fact that makes the top precess instead of fall.
We now have both an arrow for the spin (L Ω L rigidly around the vertical by the precession, how fast does its tip move? The answer is a cross product — and here is why , in pictures.
Intuition Building the rule from the pictureLook at the figure. The arrow L θ z ^ not roam free — it is stuck on a horizontal circle whose radius is the horizontal reach of L L sin θ
WHAT moves: only the tip, and only around that circle.HOW FAST: a point on a circle of radius R Ω R Ω R = L sin θ Ω L sin θ WHICH WAY: the tip's velocity is tangent to the circle — perpendicular to both the up-axis Ω L
"Perpendicular to both, with size Ω L sin θ precisely the definition of the cross product Ω × L α = θ is a cross product.
Definition Kinetic energyT T because it is moving . For a spinning/tilting/sweeping top it is built entirely from the moments of inertia (I 1 I 3 θ ˙ ϕ ˙ ψ ˙ 2 1 I × ( rate ) 2 ⇒ T
Definition Potential energyV V height : lift the center of mass and you store energy, drop it and you release energy. Here V = m g ℓ cos θ ℓ cos θ θ = 0 V θ = 9 0 ∘ V = 0
Definition The Lagrangian recipeLagrangian Mechanics builds the equations of motion from L = T − V Euler–Lagrange equation :
d t d ∂ q ˙ ∂ L − ∂ q ∂ L = 0 q
Read this map bottom-up : the boxes at the top are the raw ideas you just built; follow the arrows and watch them combine, step by step, into the final precession formula at the very bottom. It shows you why every section on this page had to come before the derivation — nothing in the parent note uses a tool that is not fed in here first.
Euler angles phi theta psi
Angular speed omega Omega
Moment of inertia I1 I2 I3
dL over dt equals Omega cross L
Master equation tau equals dL dt
Steady precession Omega equals m g l over I3 omega s
Lagrangian exact treatment
Cover the right side and test yourself.
What does an arrow's length and slant represent? Its size (magnitude) and its direction.
Length of a vector reaching x y Which way does z ^ z ^ x ^ y ^ z ^
When is a rotation ϕ θ ψ Counter-clockwise viewed looking down the rotation axis toward its arrow-tip (right-hand rule).
What is ℓ The distance from pivot O = ℓ sin θ
Which trig function gives the horizontal offset of a tilted axis? sin θ cos θ
Name the three Euler angles and their motions. ϕ θ ψ
What does a dot over a symbol mean? Two dots? Rate of change per second; two dots = rate of change of the rate.
Difference between ω s Ω ω s Ω
What is Ω Ω An arrow up the z ^ Ω
Which way does the angular-momentum arrow L Along the spin axis, direction by the right-hand rule.
Formula for spin angular momentum magnitude? L s = I 3 ω s
Which moment of inertia goes with the spin, I 1 I 3 I 3 I 1 = I 2
Why is a cross product the right tool for torque? It combines lever arm and force into a turning-axis arrow perpendicular to both, with size ∝ sin
Why does a rigidly swept arrow change as Ω × L Its tip rides a horizontal circle of radius
L sin θ at rate
Ω , so tip-speed
= Ω L sin θ perpendicular to both
Ω and
L — the cross product.
Why is the gravity torque horizontal? r (up the axis) and
g (down) both lie in the vertical plane, so
r × m g sticks out horizontally.
State the master equation of rotational dynamics.
