Visual walkthrough — Poisson brackets — definition, properties, connection to commutators

---

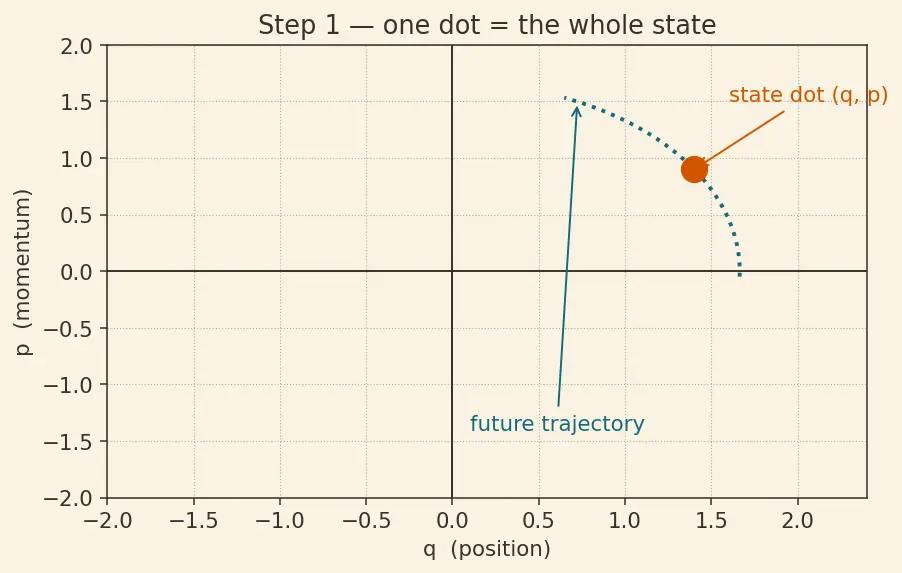

Step 1 — What "state" means: one dot in phase space

WHAT. We draw the arena. One point = everything the system is doing right now.

WHY. Newton needs position and velocity to predict the future. In this picture that is just "where is the dot." Time evolution will be the dot moving — and our whole goal is to describe that motion.

PICTURE. The dot sits at $(q,p)$. As time passes it will trace a curve — the trajectory.

Building the vocabulary from Hamiltonian Mechanics: $q$ is position, $p$ its conjugate momentum, and the plane they span is phase space.

---

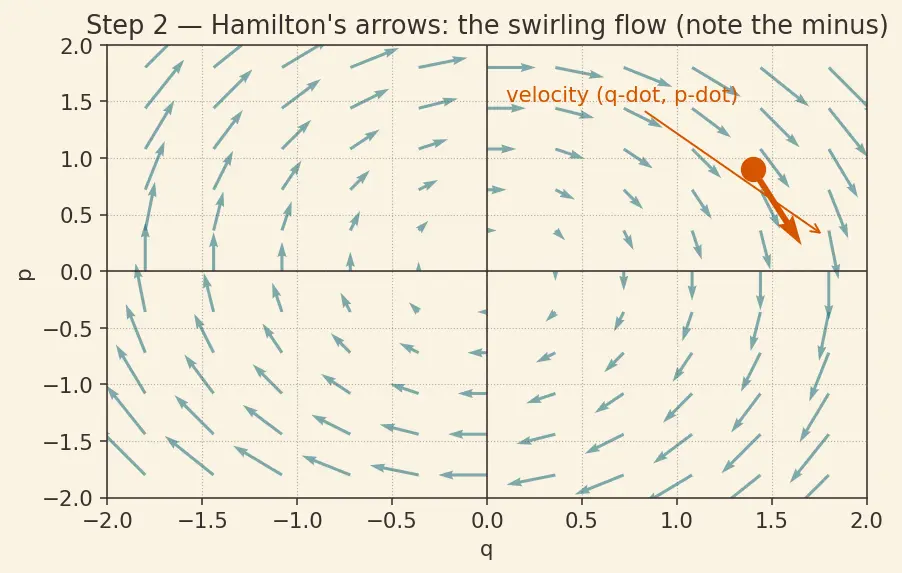

Step 2 — The velocity of the dot: Hamilton's arrows

WHAT. At every point of the plane, these two numbers form an arrow — the velocity of the dot sitting there. The whole plane fills with arrows: a flow field, like a river's surface.

WHY. We need the dot's velocity to know how anything riding on the dot changes. Hamilton's equations hand us that velocity for free. Note the minus sign on $\dot{p}$: it is what makes the flow swirl (circulate) rather than spread out — this is the seed of everything.

PICTURE. Faint arrows everywhere; the dot rides one of them. The arrow direction is $(\dot{q},\dot{p})=\left(\frac{\partial H}{\partial p},-\frac{\partial H}{\partial q}\right)$.

---

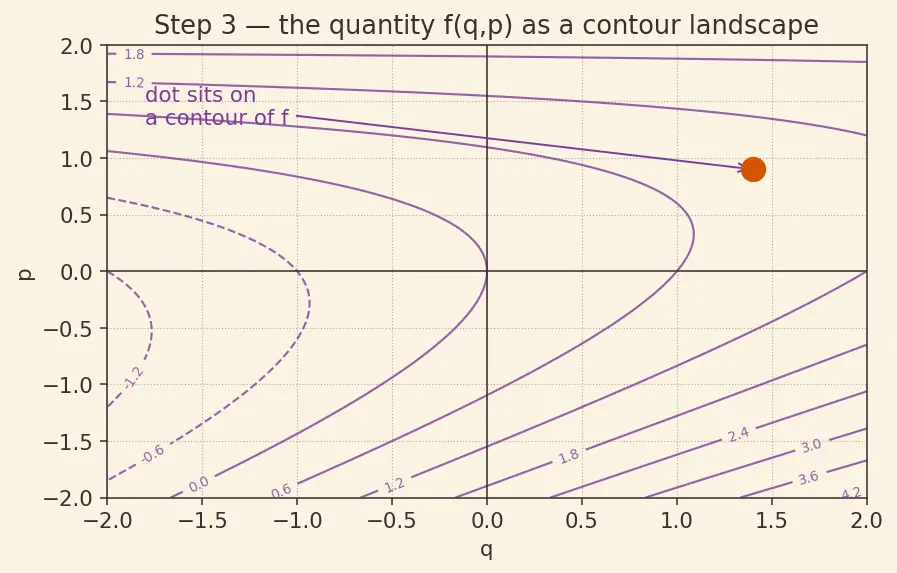

Step 3 — A quantity we care about: the function $f$ as a coloured landscape

WHAT. We overlay a smooth colour map $f(q,p)$ on the same plane. Every point has a value; the dot sits on some coloured spot.

WHY. We want to track "how does $f$ change as the system runs?" — e.g. is energy staying put? To answer that we watch the value of $f$ at the moving dot. The dot slides across the landscape and reads off new heights.

PICTURE. Contour lines of $f$ (like a topographic map). The dot is on one contour; motion carries it toward higher or lower ground.

---

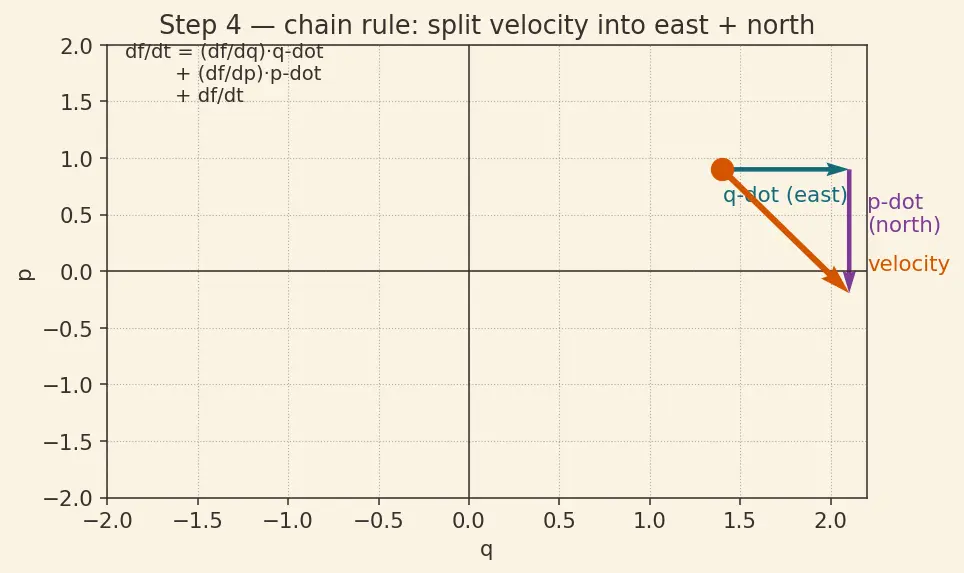

Step 4 — Chain rule: how fast the height changes as the dot moves

WHAT. We add up the reasons the reading changes: slide east × east-slope, plus climb north × north-slope, plus the ground shifting under us.

WHY. This is the only honest way to differentiate a value that depends on time through two moving inputs. It is pure geometry — no physics yet. Think "rate of ascent = (how steep) × (how fast you walk) summed over both directions."

PICTURE. The velocity arrow (from Step 2) is decomposed into its east part $\dot{q}$ and north part $\dot{p}$; each meets the corresponding slope of the landscape.

---

Step 5 — Inject the physics: substitute Hamilton's arrows

WHAT. We swap the abstract velocities $\dot{q},\dot{p}$ for their Hamiltonian values. That single swap is the entire dynamical input.

WHY. Steps 1–4 were kinematics (geometry of motion). The system's actual physics — its energy $H$ — enters here and nowhere else. Watch the minus sign migrate from the flow field into the formula: that swirl is where antisymmetry is born.

PICTURE. The two arrows — the $f$-landscape's slopes and the $H$-flow's slopes — are laid over each other. The product $\frac{\partial f}{\partial q}\frac{\partial H}{\partial p}$ is one shaded rectangle; $\frac{\partial f}{\partial p}\frac{\partial H}{\partial q}$ the other; we subtract them.

---

Step 6 — Name the pattern: this is the Poisson bracket

WHAT. We give the parenthesis a name. Nothing computed — pure bookkeeping. The master equation is now assembled.

WHY. Because this exact shape appears for every function $f$ and every Hamiltonian $H$, it deserves a symbol. Once named, it becomes an algebraic object with its own rules (antisymmetry, Jacobi — see the parent) and lets us think about mechanics without ever solving a trajectory.

PICTURE. The two shaded rectangles from Step 5 are stamped into a single tile labelled $\{f,H\}$, sitting on top of the $\partial f/\partial t$ correction.

---

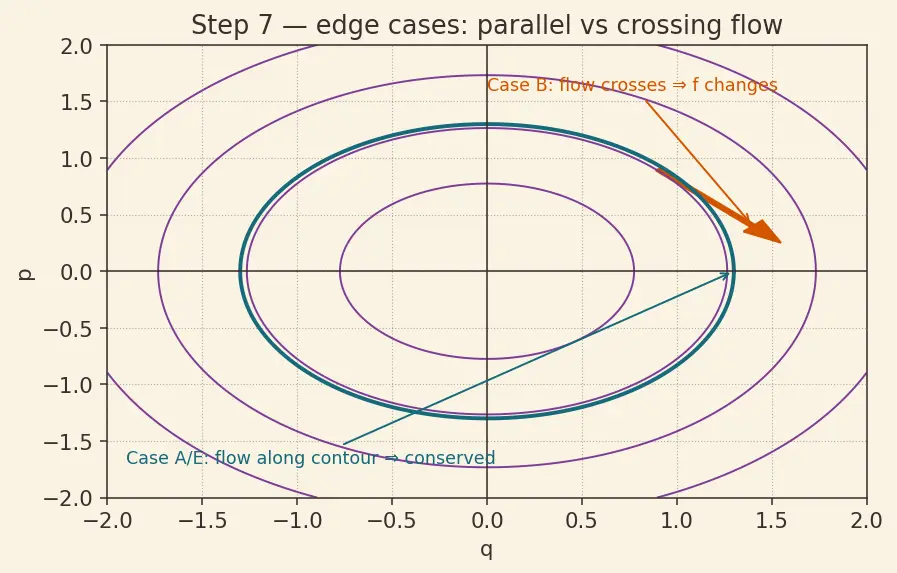

Step 7 — Edge cases: read every branch off the picture

You must never meet a scenario the walkthrough didn't cover. Here are all of them.

---

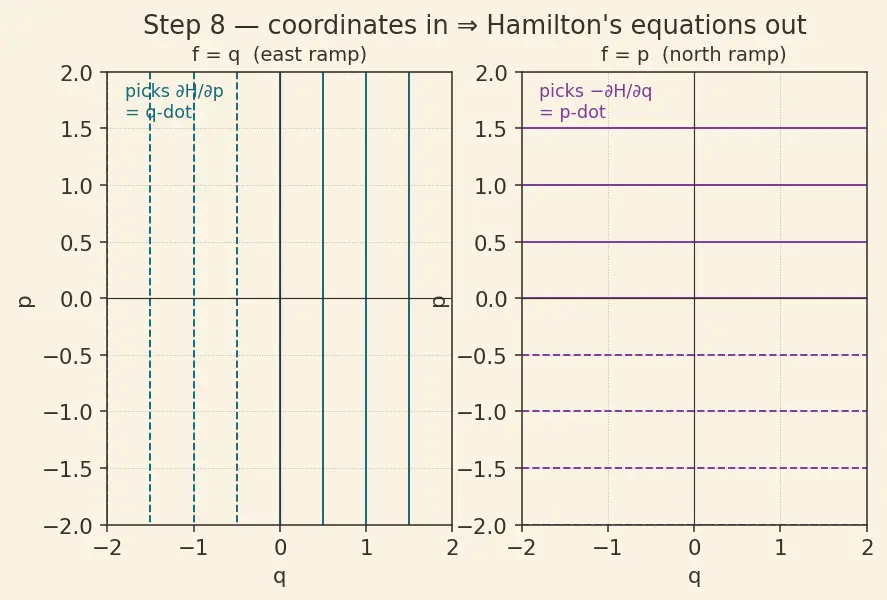

Step 8 — Recover Hamilton's equations (the bracket contains all mechanics)

WHAT. Feed the coordinates themselves into the master law.

WHY. It closes the loop: the bracket law we built from Hamilton's equations spits them right back out as a special case. The formalism is self-consistent and complete — every equation of motion is one instance of $\frac{df}{dt}=\{f,H\}$.

PICTURE. For $f=q$ the landscape is a plain east-west ramp (height $=q$); its only slope is in $q$, picking out $\partial H/\partial p$. For $f=p$ it is a north-south ramp, picking out $-\partial H/\partial q$.

---

The one-picture summary

Everything above compressed into a single diagram: the moving dot, the $H$-flow arrows, the $f$-contours, the two subtracted rectangles, and the boxed result. Trace it left to right — that is the derivation.

Recall Feynman retelling of the whole walkthrough

Imagine phase space as a flat map and your system as a single dot on it. Hamilton's equations are a wind blowing across the map — at every spot they tell the dot which way and how fast to drift, and because of one minus sign the wind swirls instead of blowing straight. Now paint the map in colours standing for some quantity you care about, like energy. As the wind carries the dot, it reads new colours. How fast does the colour change? Two reasons: how steep the colours are, times how fast the wind pushes you across them — added up for the east-west and north-south directions. That's the chain rule. When you plug the actual wind (Hamilton's arrows) into that sum, the swirl's minus sign turns it into a neat "east-slope times north-wind minus north-slope times east-wind" pattern. That pattern is the Poisson bracket. So: rate of change of any quantity = its Poisson bracket with the energy (plus a wobble term if the colours themselves are repainted over time). If the wind blows exactly along a colour line, that colour never changes — the quantity is conserved forever. And if you ask the same question about the position and momentum themselves, you just get Hamilton's equations back — proving this one bracket rule quietly contains all of mechanics.

---

Connections

• Hamiltonian Mechanics — the flow field $\dot{q},\dot{p}$ drawn in Step 2.
• Noether's Theorem & Conservation Laws — Case A: flow parallel to contours ⇔ symmetry ⇔ conservation.
• Liouville's Theorem — the swirling (divergence-free) flow of Step 2 is why phase-space volume is preserved.
• Canonical Transformations — transformations that keep the bracket picture intact.
• Commutators in Quantum Mechanics — the same swirl, shrunk to atoms with a factor $i\hslash$.
• Angular Momentum Algebra — feeding $L_i$ into this machine gives $\{L_i,L_j\}={ϵ}_{ijk}{L}_k$.
